Model No: houkem-665nm

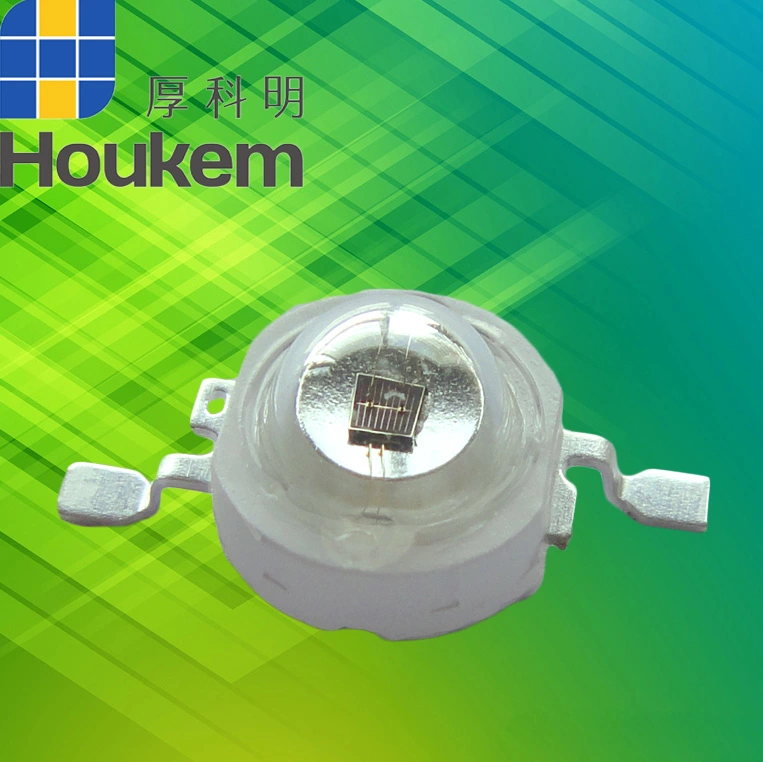

Rohs 1 Watt led epistar chip 620nm 630nm 650nm 660nm 665nm red high power led grow light diode
ir led houkem is infrared led professional manufacturer
Delivery :
FOB
minimum order :
1 piece
Supply Ability :
100000piece / Day
Country of Origin :
Shenzhen/ Guangzhou
Quantity :
USD0.65 - USD2.00 / piece
- Type:High Power LED
- Chip Material:InGaN
- Emitting Color:Red
- Power:1-3W
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Viewing Angle(°):140
- Color Rendering Index(Ra):80
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 80
- Brand Name:HOUKEM
Product Description
Rohs 1 Watt led epistar chip 620nm 630nm 650nm 660nm 665nm red high power led grow light diode
Electeical Characteristics at 350mA,Ta=25°C
Color | Part No | Forward Voltage | Units | ||
Min | Typ | Max | |||
Red | KEM-HP001DR-E42 | 1.9 | - | 2.2 | V |
Absolute Maximum Ratings
Parameter | Symbol | Rating | Unit |
Red | |||
DC Forward Current(mA) | If | 350 | mA |
Peak Pulse Current(mA) | If | 350 | mA |
Reverse Voltage | VR | 5 | V |
LED Junction Temperature | Tj | 125 | °C |
Operation Temperature | Topr | -20--60 | °C |
Storage Temperature | Tstg | -20--80 | °C |
Soldening Temperature | Tsol | 260 | °C |
ESD Sensitivity | Vb | 4000 | V |
Luminous Flux at 350mA,Ta=25°C
color | Part No | CRI | Flux | Units | ||
Min | Typ | Max | ||||
Red | KEM-HP001DR-E42 | 75 | 30 | 40 | lm | |
Series information:
| 1Watt Series | |||||||||
| Item | Model | Color | Angle(°) | WL /CCT (IF=350mA) | Luminous Flux (IF=350mA) | Forward Voltage (IF=350mA) | |||
| Min | Max | Min | Max | Min | Max | ||||
| 1W High power LED | KEM-HP001WW-E45 | WHITE | 140±5 | 2800K | 4800K | 100 | 110 | 3 | 3.4 |
| KEM-HP001UR-E45 | RED | 140±5 | 650NM | 660NM | 60 | 80 | 3 | 3.4 | |
| KEM-HP001PG-E45 | GREEN | 140±5 | 515NM | 525NM | 80 | 100 | 3 | 3.4 | |

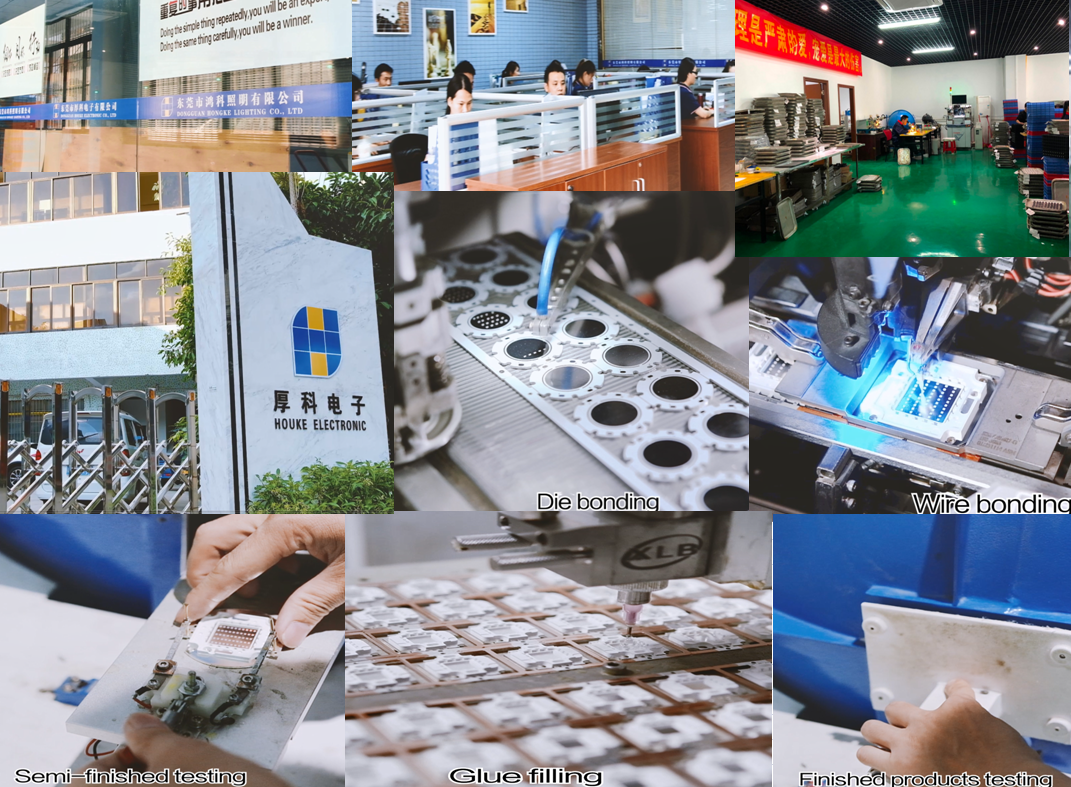

Factory Information
