Rohs 1 Watt Epileds chip 650nm 660nm 620nm 630red high power led grow light diode
- Type:High Power LED
- Power:1-3W
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Viewing Angle(°):140
- Color Rendering Index(Ra):80
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 80
- Brand Name:HOUKEM
Specification
Electeical Characteristics at 350mA,Ta=25°C
Color | Part No | Forward Voltage | Units | ||
Min | Typ | Max | |||

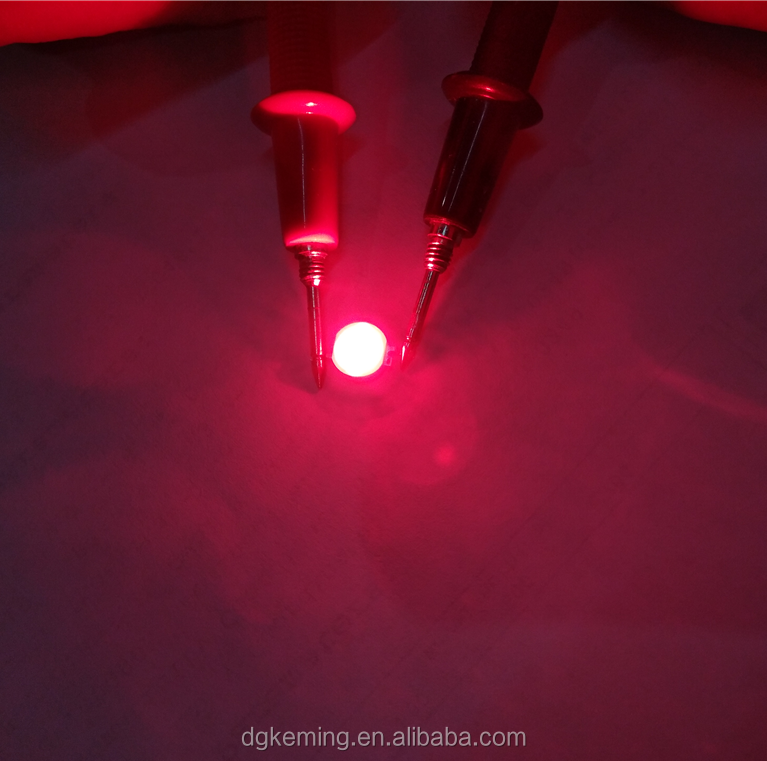

Red | KEM-HP001R-E42 | 1.9 | - | 2.4 | V |
Absolute Maximum Ratings
Parameter | Symbol | Rating | Unit |
RED | |||
DC Forward Current(mA) | If | 350 | mA |
Peak Pulse Current(mA) | If | 350 | mA |
Reverse Voltage | VR | 5 | V |
LED Junction Temperature | Tj | 125 | °C |
Operation Temperature | Topr | -20--60 | °C |
Storage Temperature | Tstg | -20--80 | °C |
Soldening Temperature | Tsol | 260 | °C |
ESD Sensitivity | Vb | 4000 | V |
Luminous Flux at 1050mA,Ta=25°C
color | Part No | CRI | Flux | Units | ||
Min | Typ | Max | ||||
Red | KEM-HP001R-E42 | 80 | 40 | 50 | lm | |
Series information:
| 1Watt Series | |||||||||
| Item | Model | Color | Angle(°) | WL /CCT (IF=350mA) | Luminous Flux (IF=350mA) | Forward Voltage (IF=350mA) | |||
| Min | Max | Min | Max | Min | Max | ||||
| 1W High power LED | KEM-HP001WW-E45 | WHITE | 140±5 | 2800K | 4800K | 100 | 110 | 3 | 3.4 |

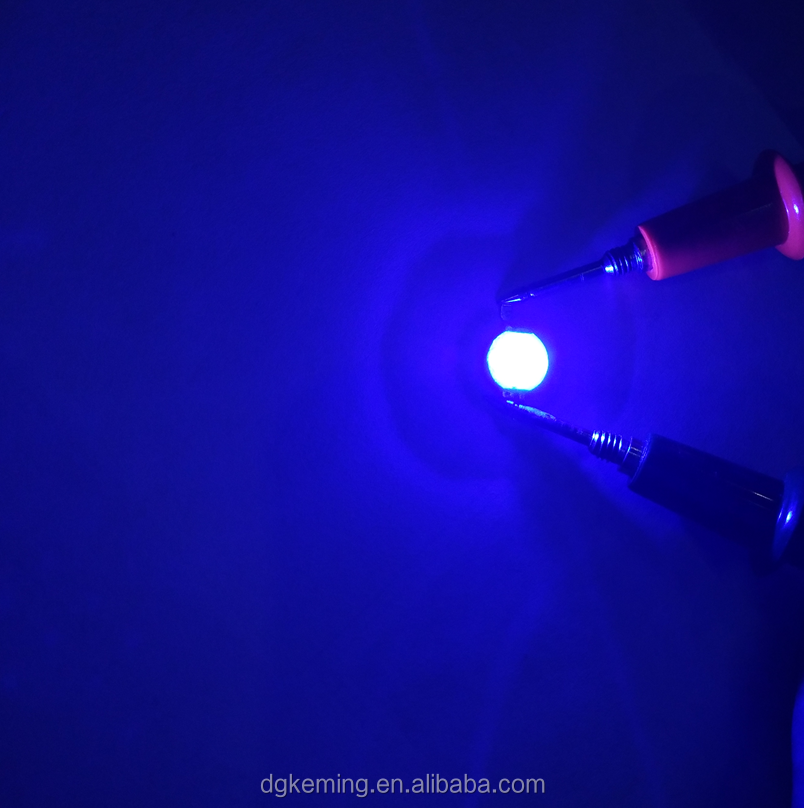

| KEM-HP001DB-E45 | BLUE | 140±5 | 390NM | 410NM | 50 | 70 | 3 | 3.4 | |

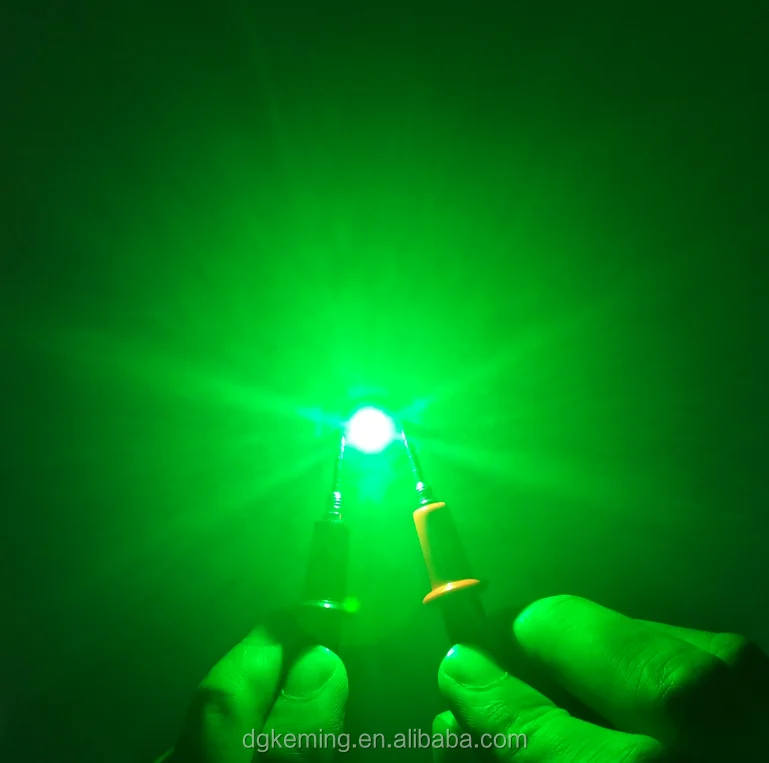

| KEM-HP001PG-E45 | GREEN | 140±5 | 515NM | 525NM | 80 | 100 | 3 | 3.4 | |

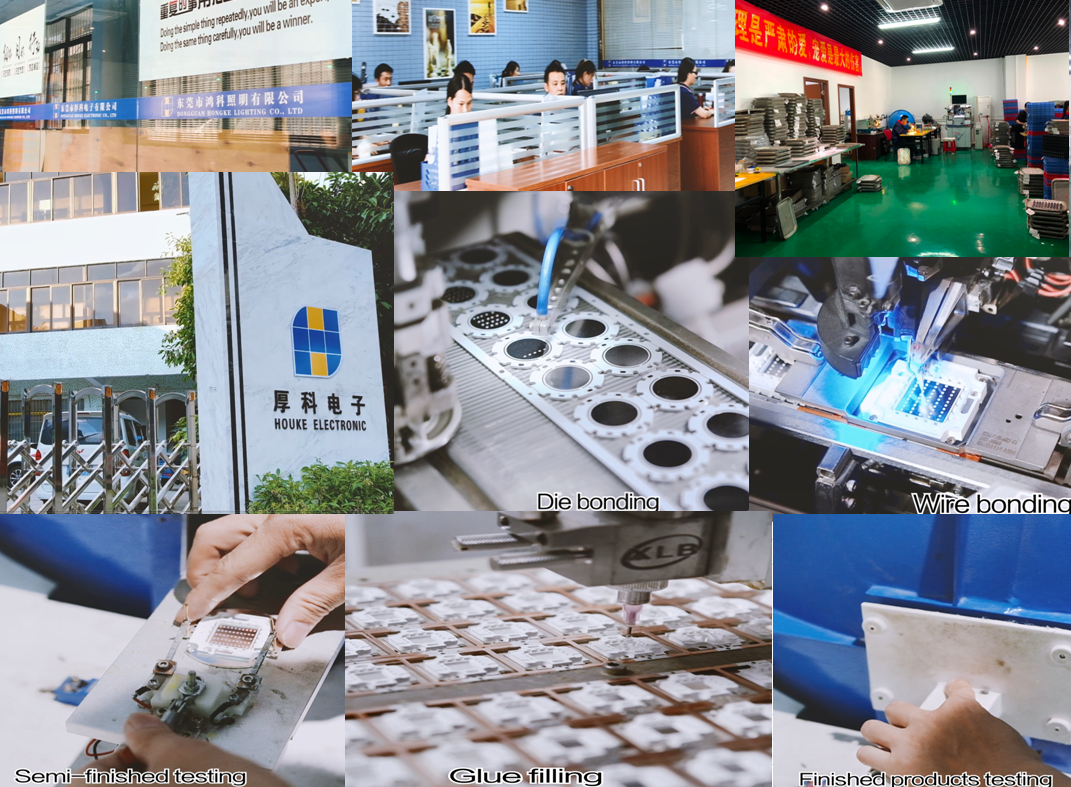

We are the LED professional manufacturer, have over 14 years experience on LEDs. We can offer you 7 segment led display, dot matrix,
high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED grow light, high bay light, street light,
and all LED lighting application solution.
