Model No: HOUKEM-7057-ARGB
rgb mini size led matrix display 1.9mm dot 5x7 led matrix tri-color red green blue led matrix panel
dot matrix display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$3.00 - $3.50 / piece
- Application:Indoor, Graphics, elevator, digital counter
- Color:RGB, red, blue, green
- Panel Size:12.7*17.8mm
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet, Photo
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-7057-ARGB
- Brand Name:HOUKEM
- use:advertising publish, subway, elevator
- Pixels:2.54
- Specification:-
- Product name:rgb 5*7 dot matrix
- Warranty:2Years
- PCB Polarity:common cathode
- operating temperature:-35 ~ +50 ℃
- OEM:YES
- Custom made:YES
- Life span:100000hours
- Certificate:CE/ROHS
Product Describtion
rgb 1.9mm dot 5x7 led matrix tri-color
Features:
1, Low consumption
2, High brightness
Product details:
| Item No. | HOUKEM-7057-ARGB |
| Dimension | 12.7*17.8*6.3mm |
| dot | 1.9mm |
| Surface color | Black / Grey |
| Segment color | White /Clear |
| Emitting color | rgb |

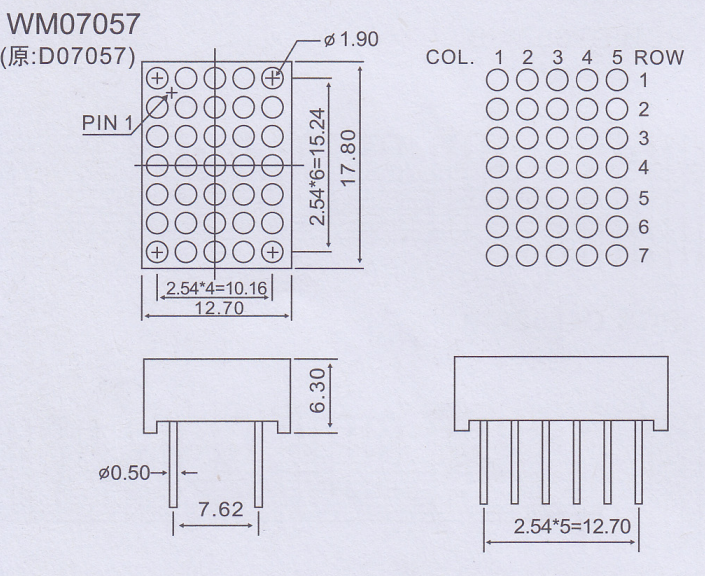

Package dimension & Internal circuit diagram
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=15mA | 600-605 | 30 | 1.8 | 2.0 | 90 | 100 |
Super green | IF=15mA | 565-575 | 30 | 1.8 | 2.0 | 48 | 55 |
Super red | IF=15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red 1 | IF-15mA | 620-625 | 20 | 1.8 | 2.0 | 200 | 210 |
Ultra red 2 | IF=15mA | 620-625 | 20 | 1.8 | 2.0 | 300 | 350 |
High red | IF=15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=15mA | 570-580 | 30 | 1.8 | 2.0 | 43 | 50 |
Yellow | IF=15mA | 580-600 | 35 | 1.8 | 2.0 | 70 | 80 |
Blue | IF=15mA | 465-475 | 40 | 2.9 | 3.0 | 150 | 200 |
Ultra blue | IF=15mA | 465-469 | 40 | 2.9 | 3.0 | 350 | 380 |
Pure green | IF=15mA | 515-525 | 40 | 2.9 | 3.0 | 600 | 250 |
White | IF=15mA | - | - | 2.8 | 2.9 | 180 | 200 |
Two years quality warranty
Our Services

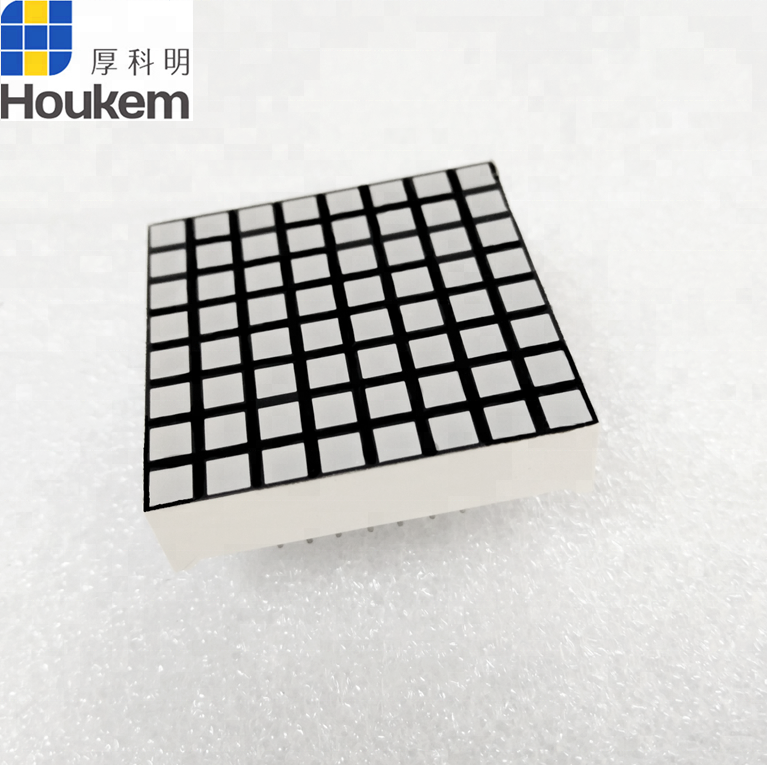

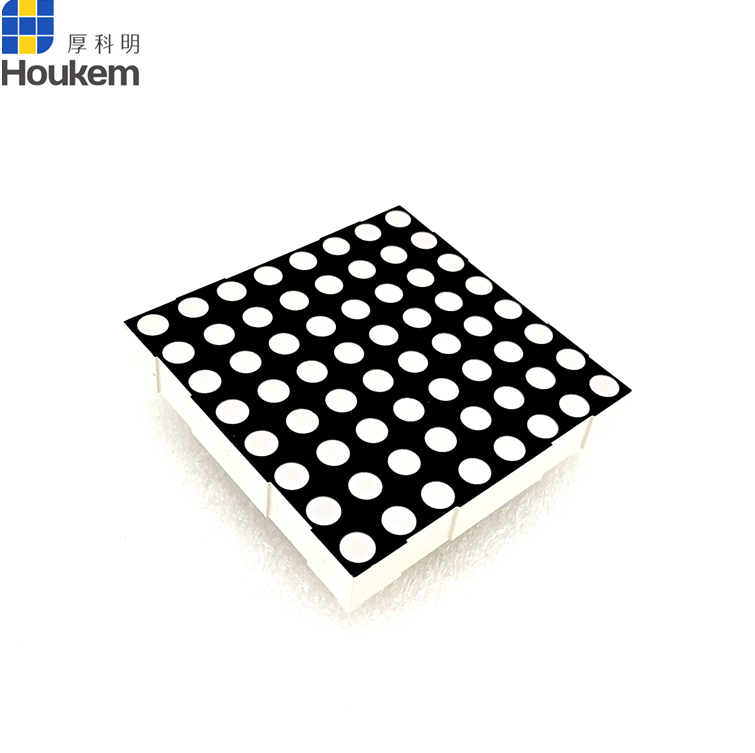

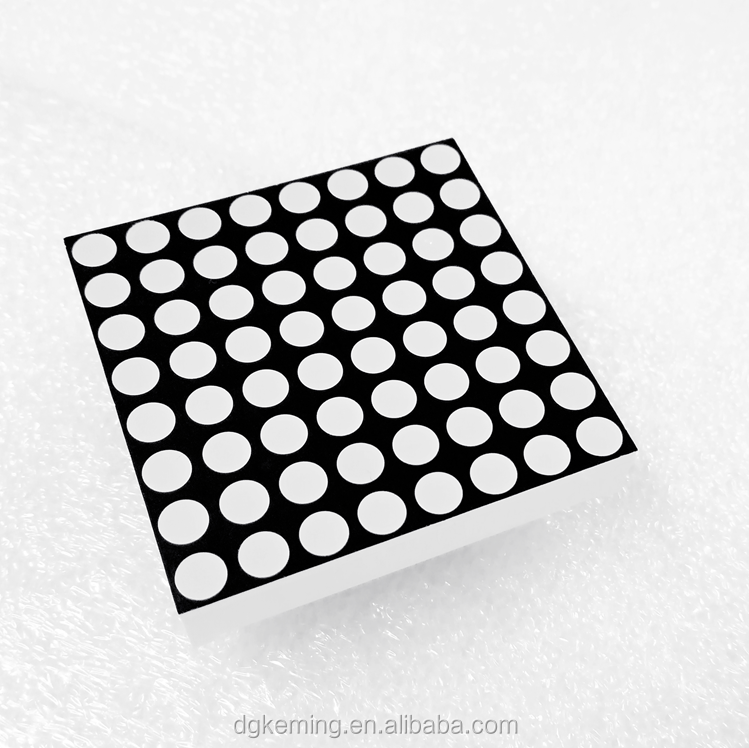

Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
7 segment LED display
| 1 digit | 0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20'' |
| 2 digit | 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5'' |
| 3 digit | 0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8'' |
| 4 digit | 0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2'' |
| 5 digit | 0.28'', 0.36'', 0.56'' |
| 6 digit | 0.3'', 0.36'' |
14 /16 segment
| 1 digit | 0.39'', 0.5'', 0.8'', 1.2'', 2.3'' |
| 2 digit | 0.54'' |
| 3 digit | 0.54'' |
| 4 digit | 0.39'' |
Various colors: super red, ultra red, high red, yellow green, pure green, super green,
pure green, blue, yellow, white, amber, orange, Bi-color, RGB.
Custom 7 segment display are available

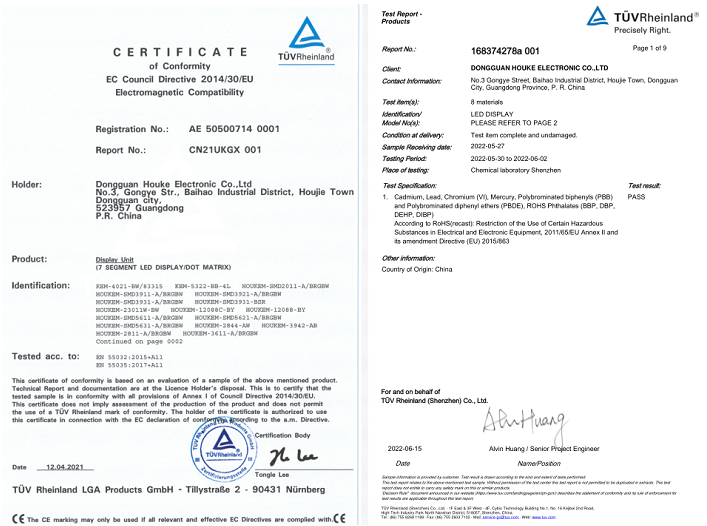

Certifications
Contact us
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens,
street light,and all LED lighting application solution, etc.
