RGB led matrix 8x8 full color led dot matrix display 38x38mm
- Application:Indoor, elevator, game machine, running machine, Indoor
- Color:RGB
- Panel Size:37.9*37.9MM
- Pixel Pitch:2.54
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet, Photo
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-15088-BRGB
- Brand Name:HOUKEM
- use:advertising publish, subway, elevator
- Pixels:2.54mm
- Specification:--
- Screen Dimension:37.9*37.9*10.3mm
- Product name:8*8 led matrix display
- Warranty:2Years
- Forward Voltage:R:1.8-2V G/ B: 2.8-3V
- PCB Polarity:common anode
- operating temperature:-35 ~ +50 ℃
- OEM:YES
- Custom made:YES
- Certificate:CE ROHS
3.7mm dot led matrix display rgb led matrix
Product details:
HOUKEM-15088-ARGB-----common cathode(CC)
HOUKEM-15088-BRGB-----common cathode (CA)
| Item No. | HOUKEM-15088-BRGB |
| Dimension | 37.9*37.9*10.3mm |
| dot | 3.7mm |
| Surface color | Black / Grey |
| Segment color | White /Clear |
| Emitting color | RGB |
Features:
1, Low power consumption
2, High brightness
3,High intensity and reliability
4,Easy assembly

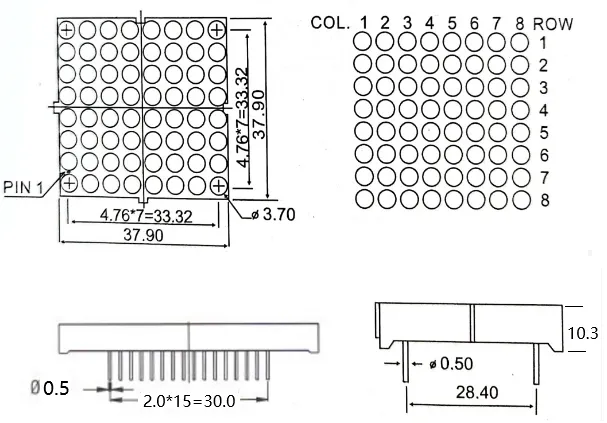

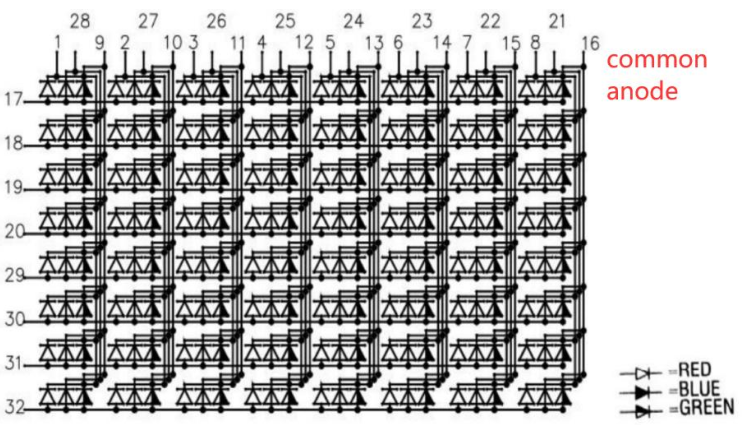

Package dimension & Internal circuit diagram
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=15mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=15mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red | IF=15mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=15mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=15mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=15mA | 465-475 | 40 | 2.95 | 3.0 | 150 | 200 |
ultra blue | IF=15mA | 467-469 | 40 | 2.9 | 3.0 | 365 | 380 |
Pure green | IF=15mA | 515-525 | 40 | 2.95 | 3.0 | 600 | 640 |
White | IF=15mA | - | - | 2.8 | 3.0 | 180 | 200 |
Features:
1, Low power consumption
2, High brightness
3,High intensity and reliability
4,Easy assembly
