0.2" 7 segments smd
0.2" 7 segments smd
0.2" 7 segments smd
0.2" 7 segments smd
Model No: Houkem-2011-A/BPG

small Pure green 0.2" 7 segments smd led display

smd 7 segment display houkem is 7 segment led display professional manufacturer
Delivery :
EXW
minimum order :
2 pieces
Supply Ability :
1000pieces / Month
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $0.30 - US $0.60 / pieces
add to cart
Contact Now
  • Color:pure green
  • Panel Size:8*6.9mm
  • Pixel Pitch:16
  • Place of Origin:Guangdong, China
  • Model Number:Houkem-2011-A/BPG
  • Brand Name:Houkem
  • Function:SDK
  • digit height:5.08mm
  • place of origin:Dongguan,china
  • Emitting color:pure green
  • Face color:Black / Gray/red
  • Polarity:Cathode /Anode
  • Usage:Clock, weighing scale, counter, price sign,etc
  • Working current:20mA
  • Package:EPE+ carton or tube packaging
  • OEM:yes
  • Operating temperature:-35 ~ +85 ℃
Products Description
reverse mount small Pure green 0.2"7 segments smd led display
Part No.
Houkem-2011-A/BPG
Dimension
10*6.9*3.0mm
Digit Height
5.08mm
Surface Color
Black/Grey
Epoxy Color
Milky White/Clear
Emitting Color
Pure green
Luminous intensity
200-300mcd/chip
Polarity
Common Cathode
If need other specifications, Please contact with our sales to get what you want.

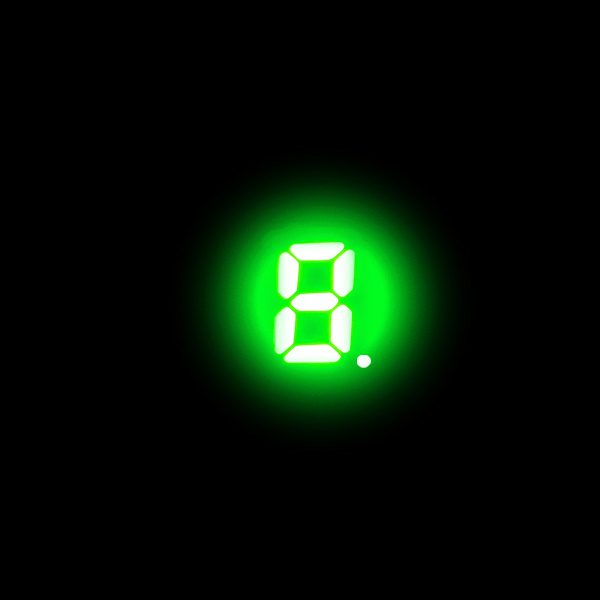

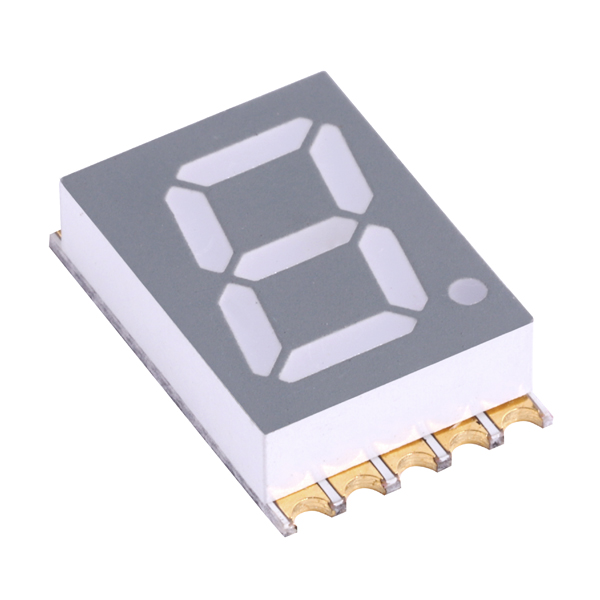

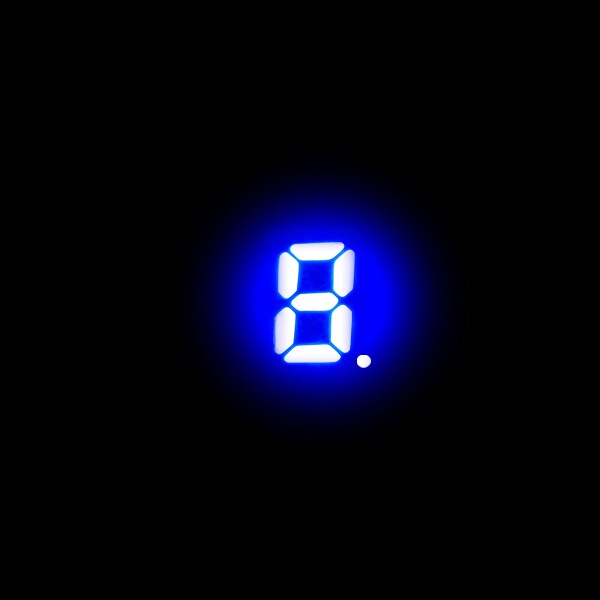

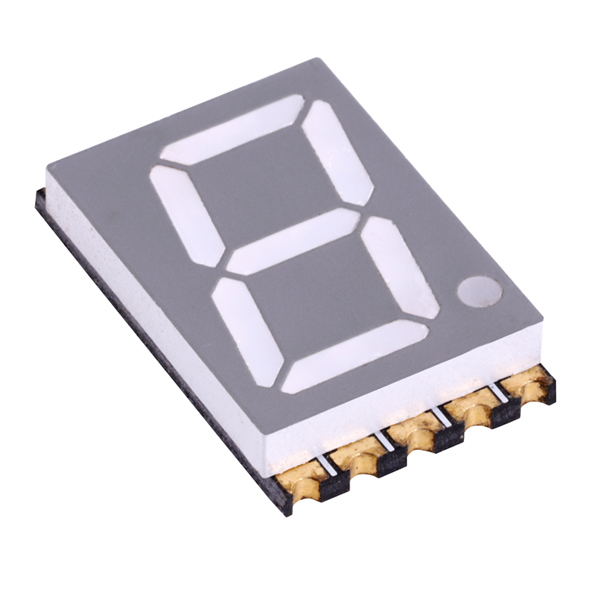

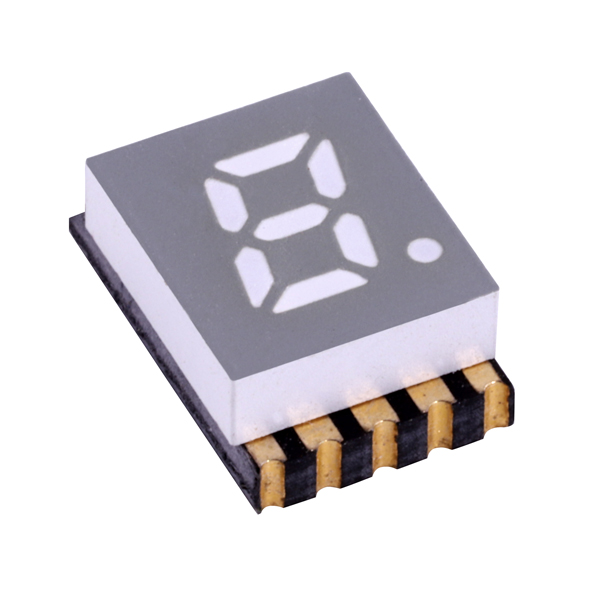

Details Images
Features:
1.0.2"(mm) digit height.
2.Uniform glow.
3.Low current consumption.
4.2 years of warranty.
5.Rohs & CE compliant.

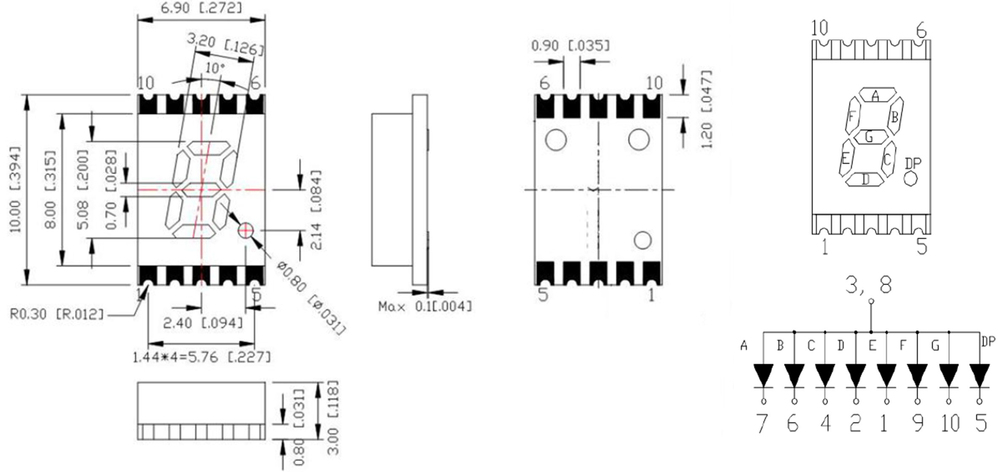

Dimension and Internal Circuit Diagram
Relative Products:

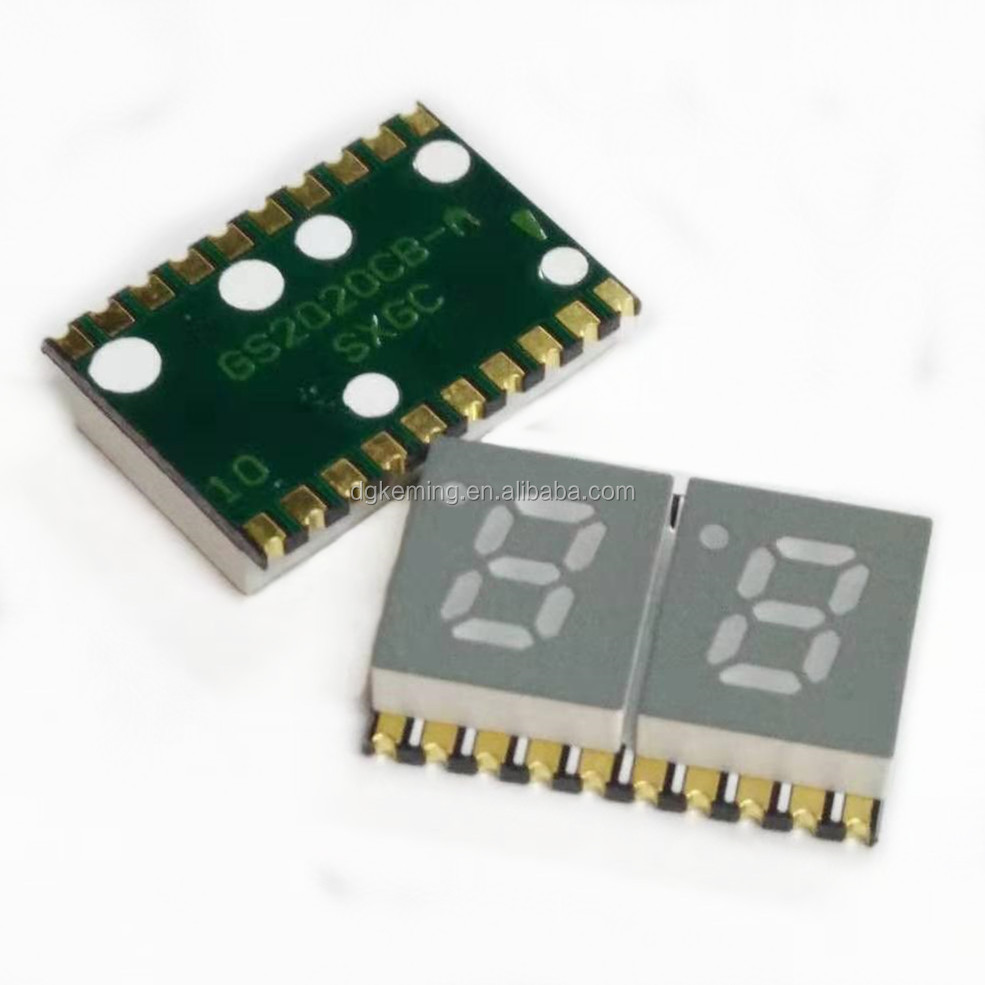

0.2 inch 7 segment smd 2 digits

0.39 inch seven segment smd

0.56 inch 7-segment smd

All colors and size we can supply:
Items
Wavelength(nm)
Forward Voltage(V)
Forward current(mA)
Luminous Intensity (mcd)
Peak Forward Current(mA)
Reverse Voltage (V)
Reverse Current(uA)
super red
630-635
1.8-2.0
18
100-150
100
5
10
high red
638-660
1.8-1.9
18
15-20
100
5
10
ultra red
620-625
2.0-2.1
18
200-300
100
5
10
super green
565-575
1.9-2.0
18
48-55
100
5
10
pure green
615-625
2.8-3.0
20
260-300
100
5
10
white
/
2.6-2.8
20
200-250
100
5
10
blue
465-475
2.8-3.0
20
150-200
100
5
10
yellow
580-600
1.9-2.0
18
70-80
100
5
10
amber
600-605
1.9-2.0
18
100-110
100
5
10
1 digit 7 segment smd display
0.2"/0.3"/0.39"/0.56"/0.8"
2 digit 7 segment smd display
0.2"/0.39"/0.56"
3 digit 7 segment smd display
0.2"/0.39"/0.56"
4 digit 7 segment smd display
0.2"/0.3"/0.39"/0.56"
6 digit 7 segment smd display
0.2"
Application
Industrial Equipment led display
Clock LED Display
Home Appliance LED Display
Company Profile
Houkem has 18 years of experience in manufacturing,developing,selling of led products,and certified by ISO 9001 international quality system.our main products are:customized led display,7 segment smd /led display,dot matrix,uv led & IR led.Our reliable quality and excellent service acquired high reputation from our customers.Sincerely hope to cooperate with you and create a bright future!

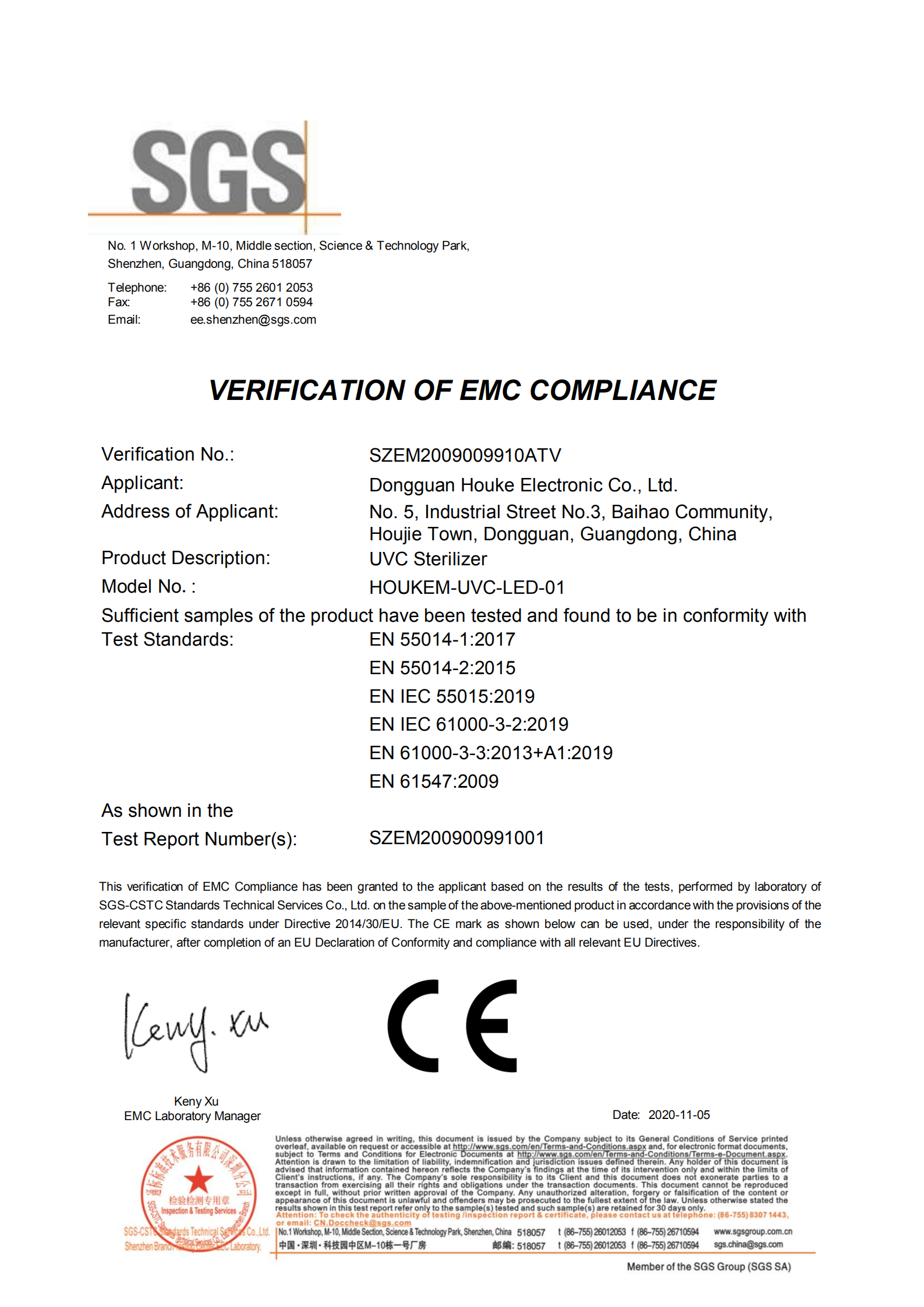

Certifications
Exhibition
FAQ
Q1: Can you accept the sample order?
Yes, we can. we welcome sample order to test and check quality.

Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.

Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.

Q4: What's your lead time?
3-7 days for the sample orders in the stock. 20-30 days for mass production.

Q5: What's your quotation terms?
EXW.

Q6: How about your quality?

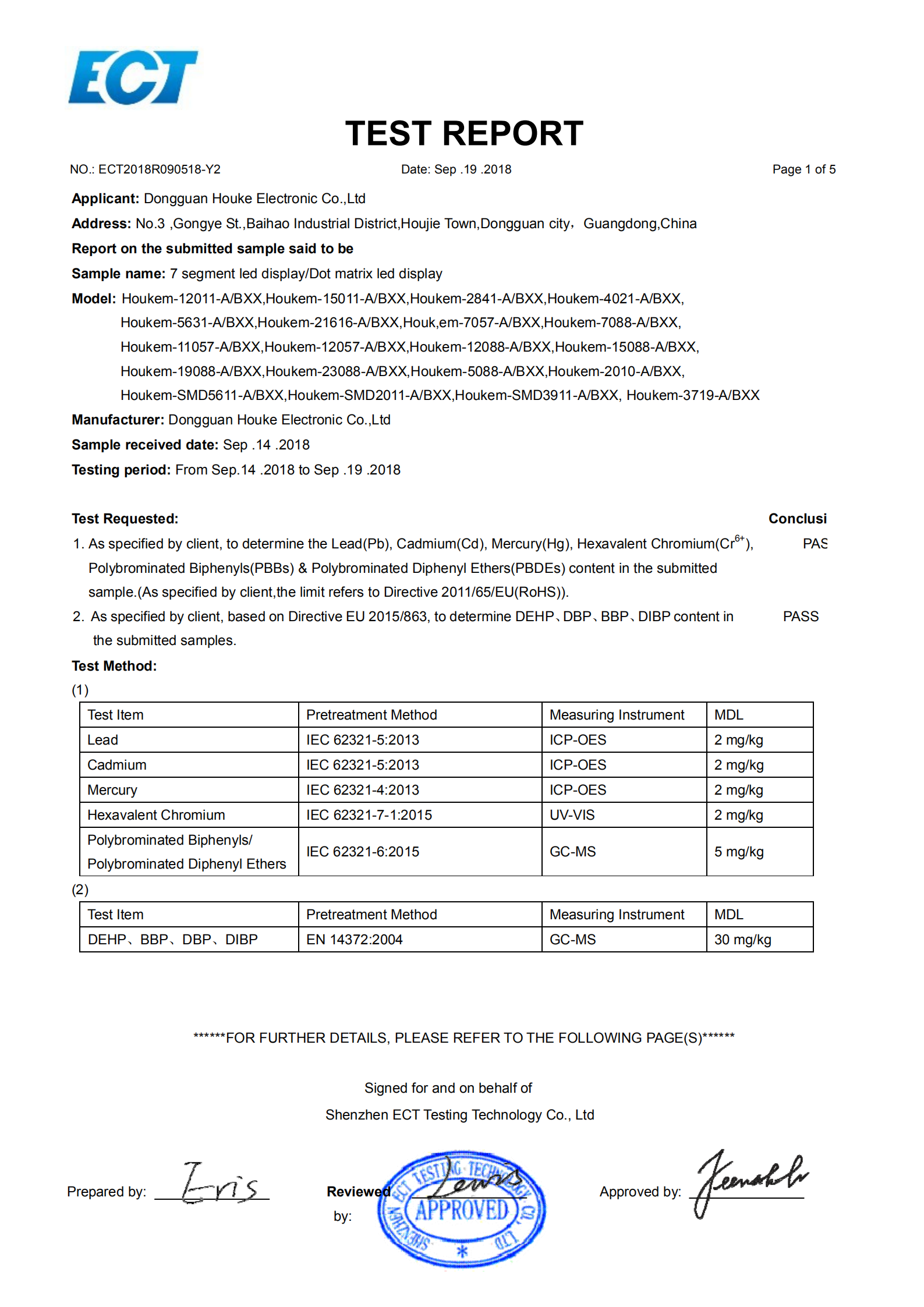

Our products are CE, Rohs listed.
