Model NO.
HOUKEM-16117-ASR
Price:
USD 2.52-2.62
Delivery:
FOB
Minimum order quantity:
1000
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Red
  • Display Function:Graphics
  • Pixels:25mm
  • Brand Name:HOUKEM
  • Model Number:HOUKEM-16117-ASR
  • Screen Dimension:39.9*57.2mm


Product Describtion



 business

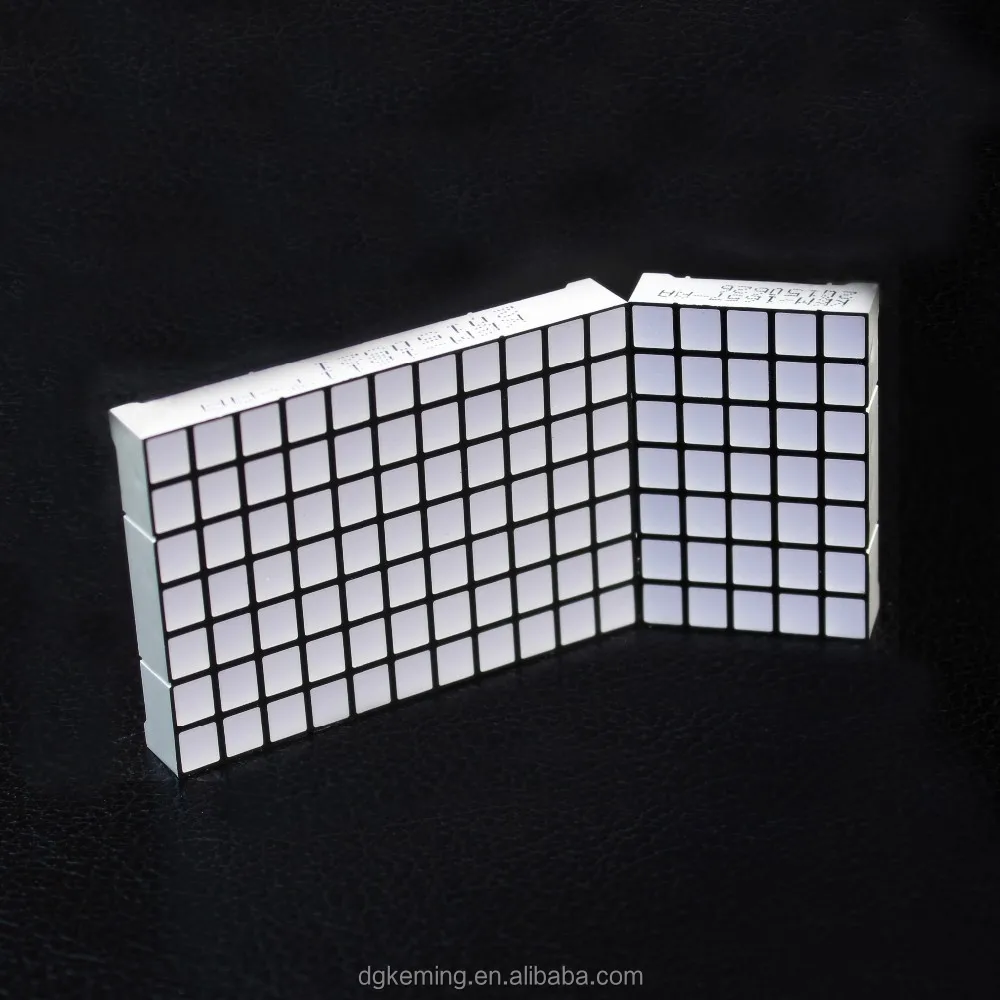

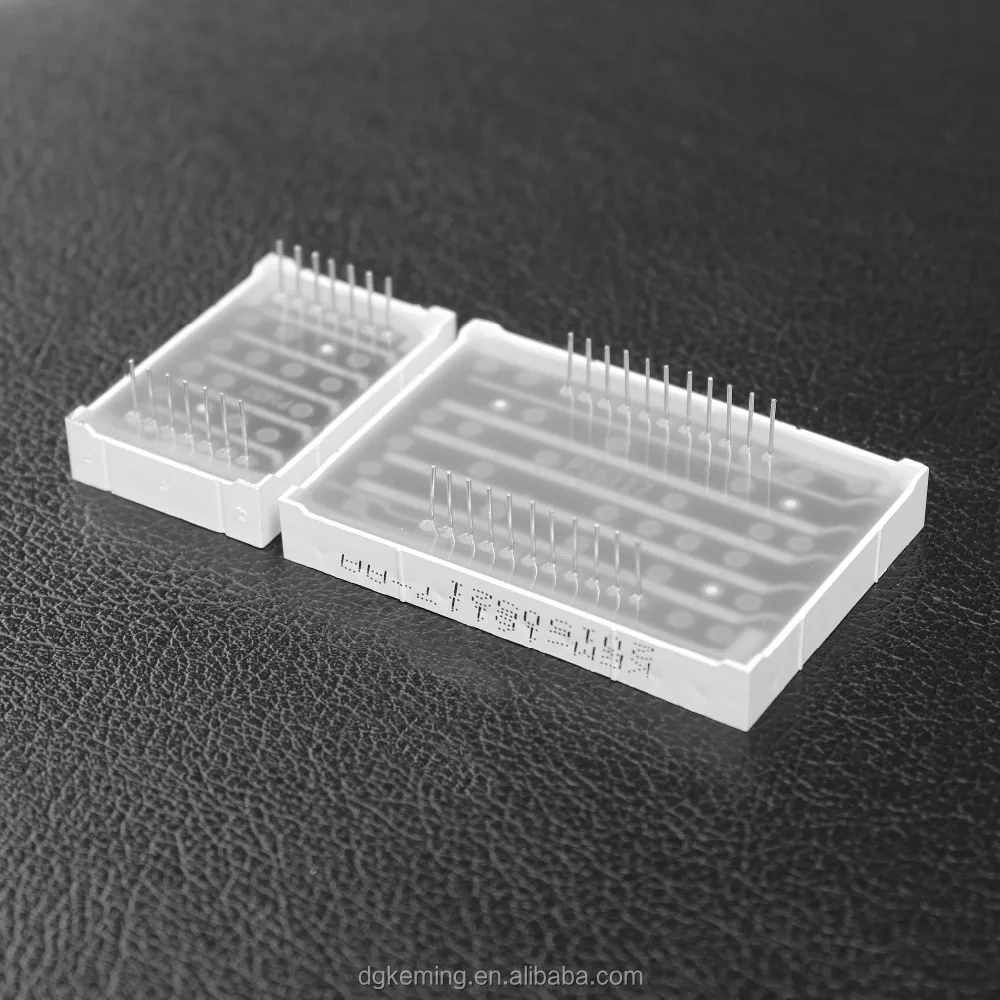

 7x11 led dot matrix display



Features:

1, Low consumption

2, High brightness







Product details:

Item No.HOUKEM-16117-ASR
Dimension39.9*57.2*8mm
dot4.4*4.9mm
Surface color  Black  / Grey
Segment colorWhite  /Clear
Emitting color Super red

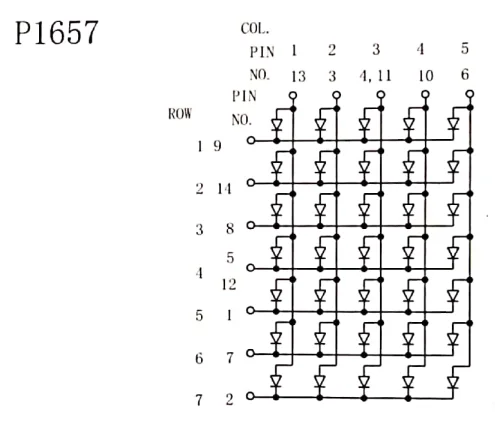

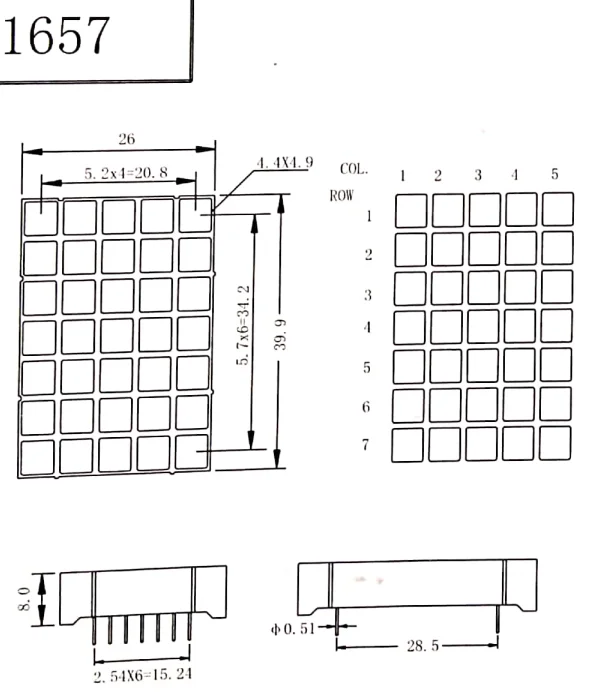

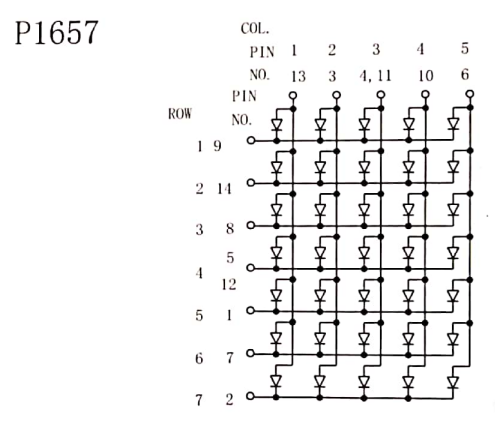

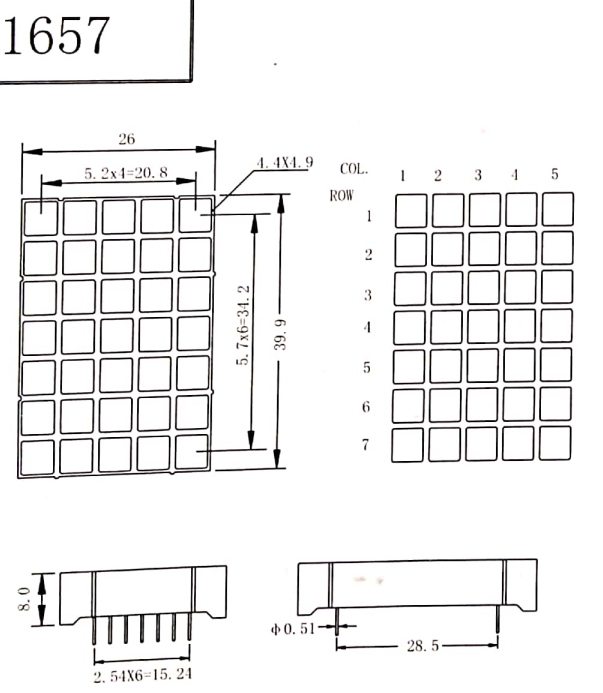

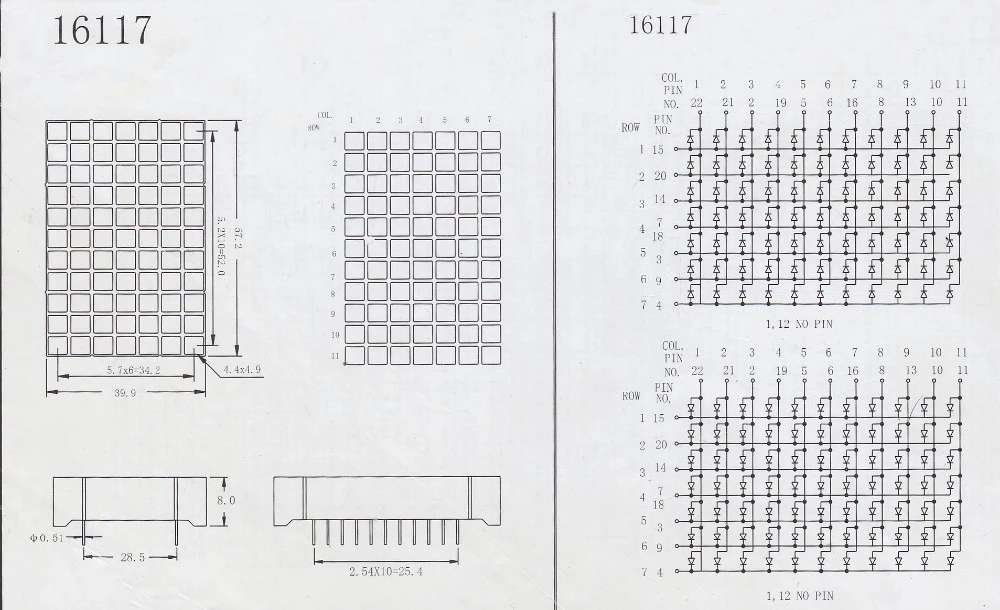

Package dimension & Internal circuit diagram

paste-pic-dp_uuid_8awfupaste-pic-dp_uuid_dcznm



 16117



Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.9

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.9

2.0

48

55

Super red

IF=10-15mA

625-640

20

1.8

2.0

110

130

Ultra red 1

IF=10-15mA

625-625

20

1.8

2.0

200

210

Ultra red 2

IF=10-15mA

620-625

20

2

2.1

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.9

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.8

3.0

150

200

Pure green

IF=10-15mA

515-525

40

2.8

3.0

180

250

White

IF=10-15mA

-

-

2.8

3.0

180

200









Two years quality warranty

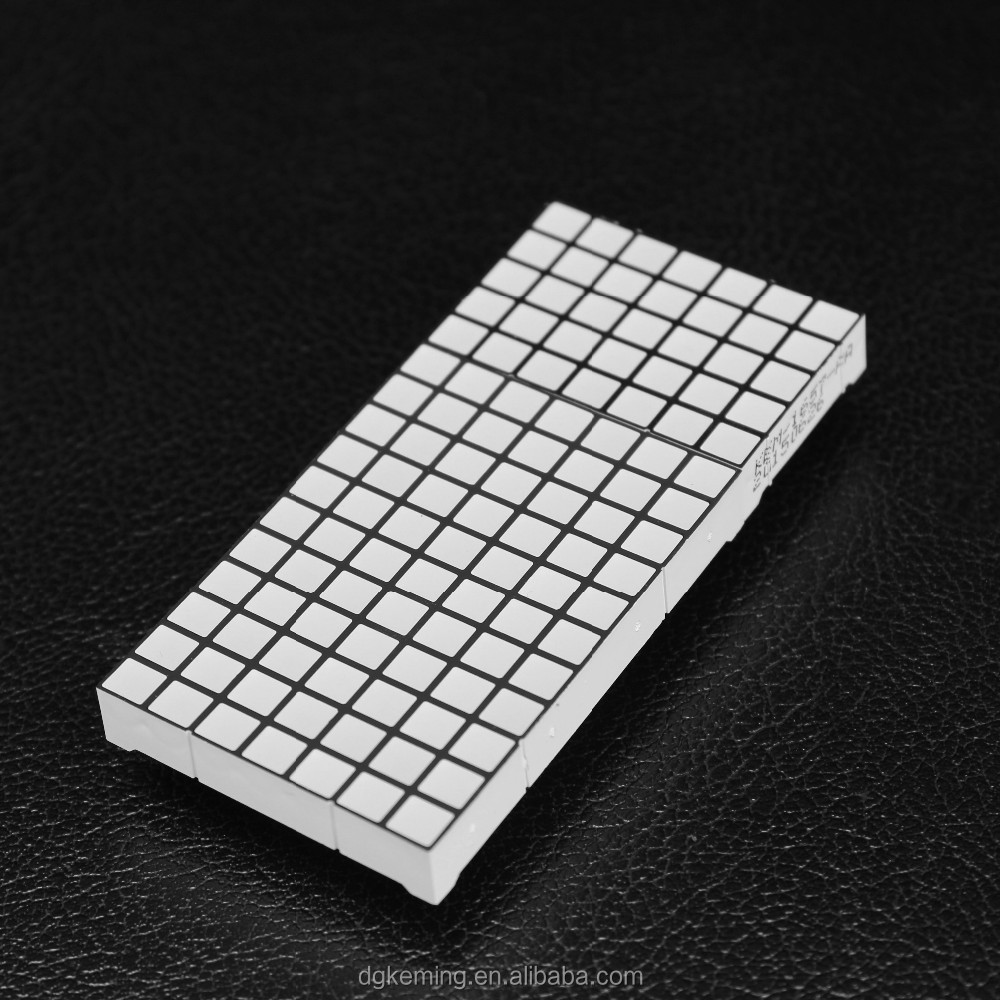

 16117-1657-1

16117-1657-1111

16117-1657-111









Our Services

Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

led dot matrix display



7 segment LED display

1 digit0.2'',  0.28'',  0.3'',  0.36'',  0.39'',  0.4'',  0.5'',  0.52'',  0.56'',   0.6'',   0.8'',     1'',    1.2'',   1.5'',    1.8'',      2.3'',   3'',      4'',     5'',   6'',    7'',     8'',     10'',    12'',     16'',  20''
2 digit0.28'',   0.3'',   0.36'',   0.39'',   0.4'',  0.43'', 0.5'',   0.52'',   0.56'',   0.8'',  1'',   1.2'',   1.5''
3 digit0.25'',   0.28'',    0.3'',    0.4'',   0.52'',  0.56'',  0.8''
4 digit0.25'',   28'',   0.36'',    0.4'',    0.5'',     0.56'',  0.8'',   1.2''
5 digit0.28'',    0.36'',    0.56''
6 digit0.3'',    0.36''



14 /16 segment

1 digit0.39'', 0.5'', 0.8'', 1.2'', 2.3''
2 digit0.54''
3 digit0.54''
4 digit0.39''



Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.



Custom 7 segment display are available


High power led: smd led, red, green, blue led, UV/ IR LED





Packaging & Shipping

packing & shipping

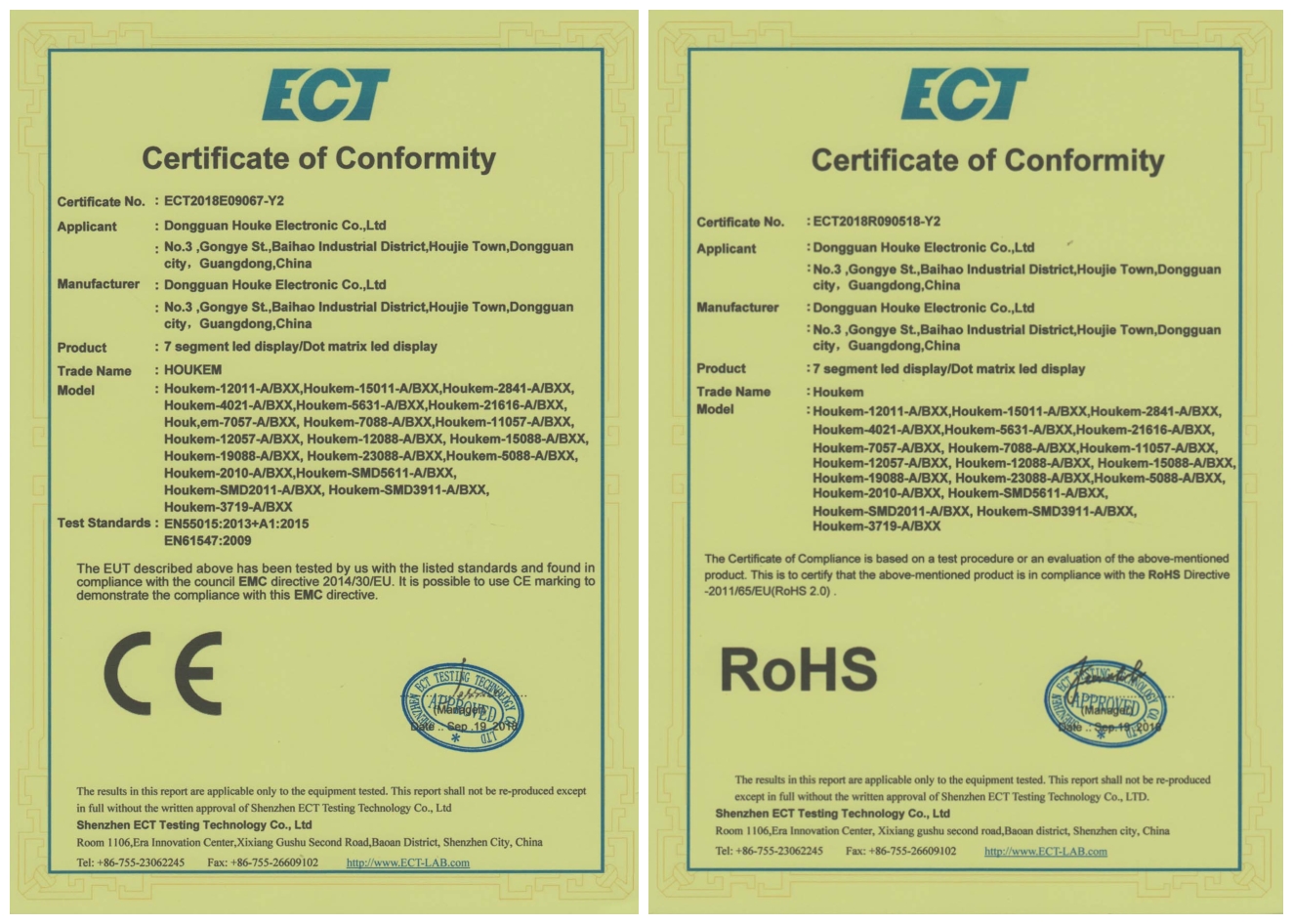

Certifications

 Houke-certifictes

Contact us



Lydia Su
Skype ID: wood3701
Phone: +86 13129213536
Wechat: 13129213536
QQ:1039243252
NO. 3, Gongye St, Baihao Industrial District, Houjie Town, Donguan city, Guangdong, China 523957

Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 265nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light,
street light,and all LED lighting application solution, etc.

 factory



Related Products

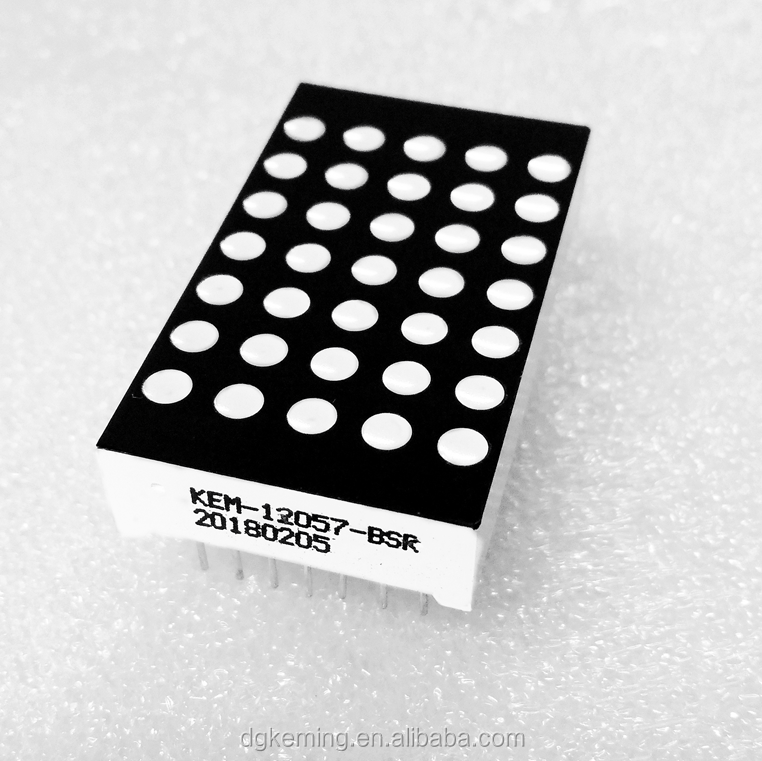

KEMING-12057(22.80×39.1mm )  dot:3mm



12057 (2)

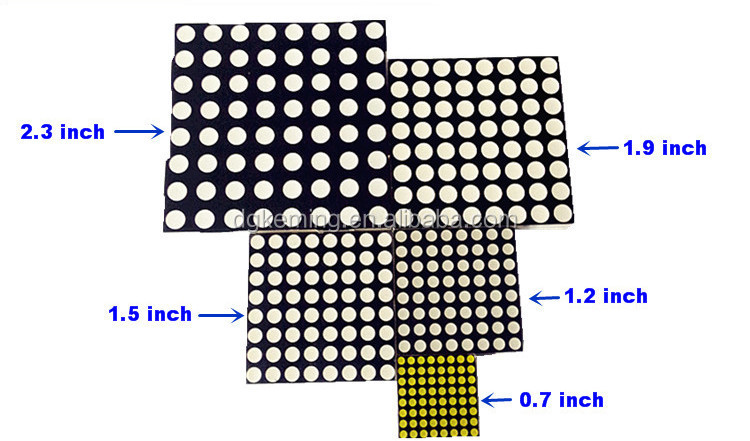

 8x8 dot matrix led related product
