Red Green Blue high power led 3W RGB LED epileds chip
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Lifespan (hours):50000
- Working Time (hours):50000
- Chip Material:AlGaInP
- Emitting Color:RED+GREEN+BLUE
- Power:3w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:3W High Power rgb LED
- Emitting Colour:red+green+blue
- Forward Current:300-350mA
- Forward Voltage:R:2-2.4V, G:3-3.4V, B: 3-3.4V

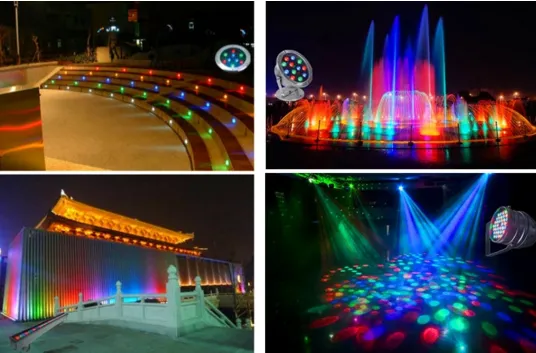

- Application:Stage light
- Warranty:2 Years
- Wave length:620-625nm, 460-465nm, 520-525nm
- warranty:2 Years
- Certification:RoHS, CE

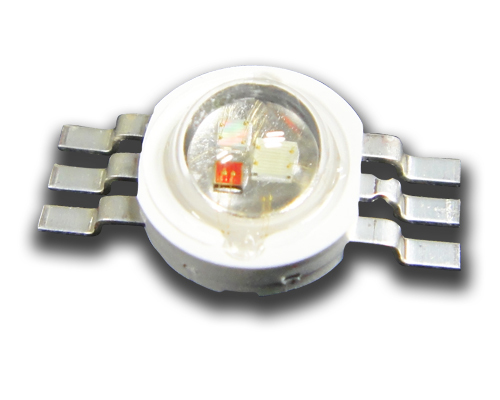

High power 3w RGB led
Electrical and optical characteristics (Ta = 25℃)
| Item | High Power 3w RGB LED |

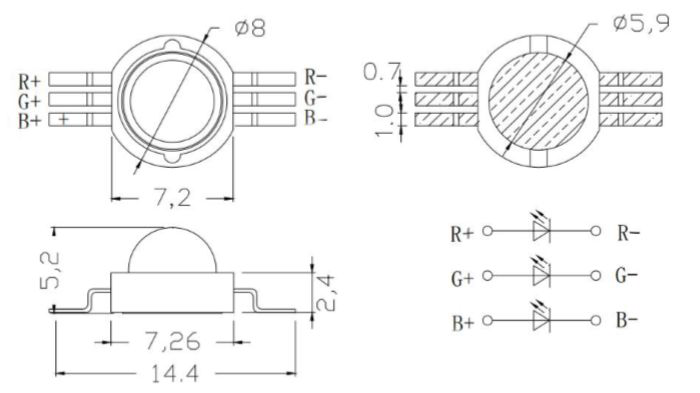

| size | 14.4*5.2mm |
| Color | Red+Green+blue |
| view angle | 140degree |
| Wavelength | R: 620-625nm, G: 520-525nm, B:460-465nm |
| Forward Current | 00-350mA |
| Forward Voltage | R: 2-2.4V, G: 3-3.4V, B: 3-3.4V |
| lumen | R: 620-625nm, Epileds 38mil, G: 520-525nm, Epileds 35mil, B:460-465nm, Epileds 35mil, |
| Certification | CE, RoHS |
| PCB Material | 2.0mm Red copper plate |
3W, 1 series 1 parallel

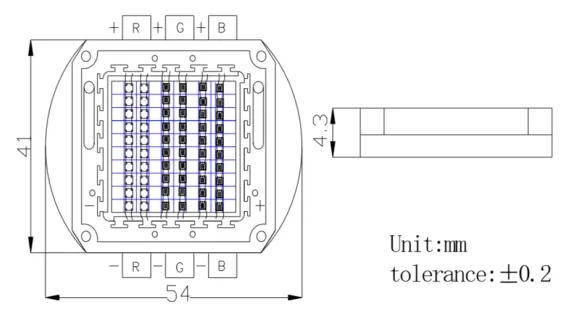

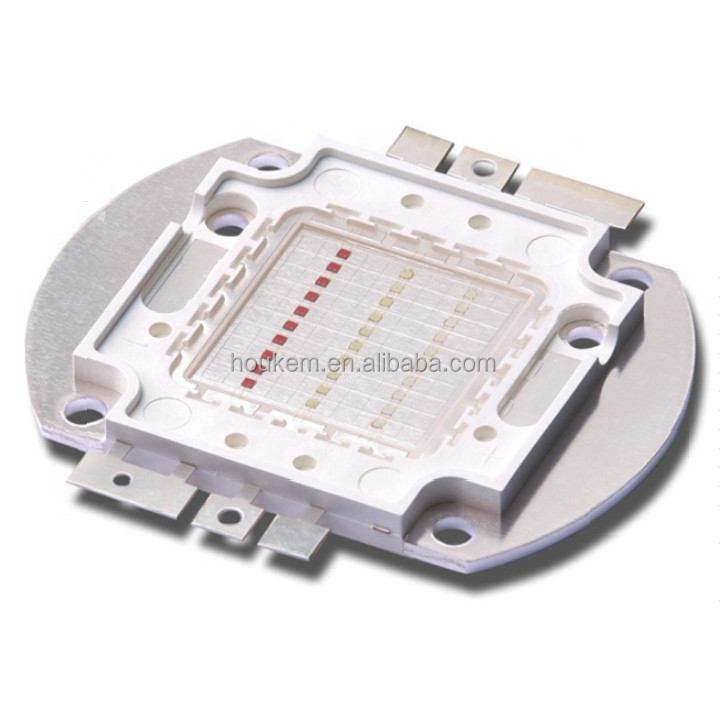

60W, 10 series 6 parallel

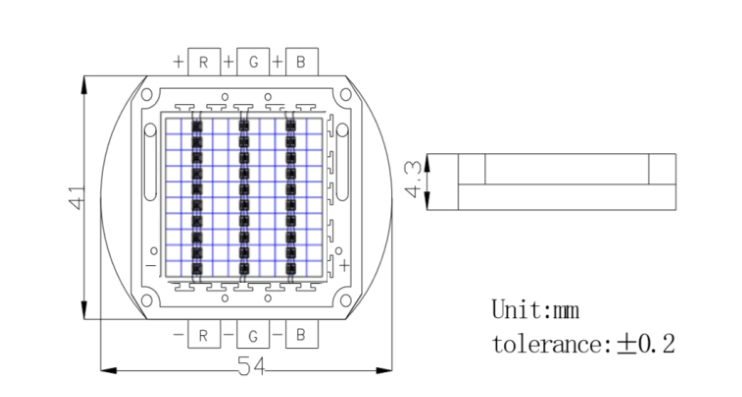

30W, 10 series 3 parallel

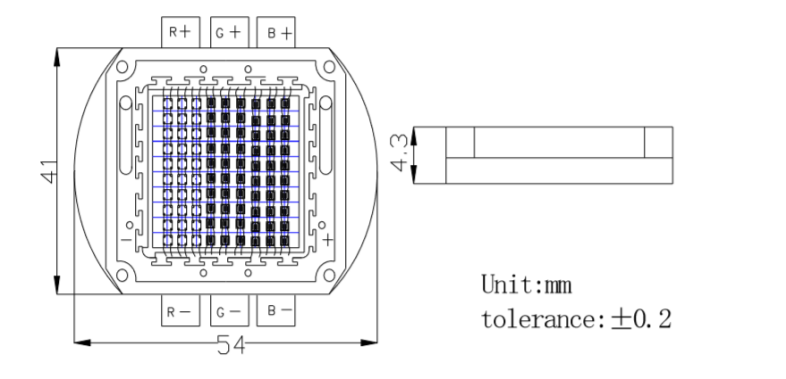

90W, 10 series 9 parallel
2. Our products must pass strict quality control procedures.
3. We have advanced production equipment.
4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
5. After repeated tests before shipment.

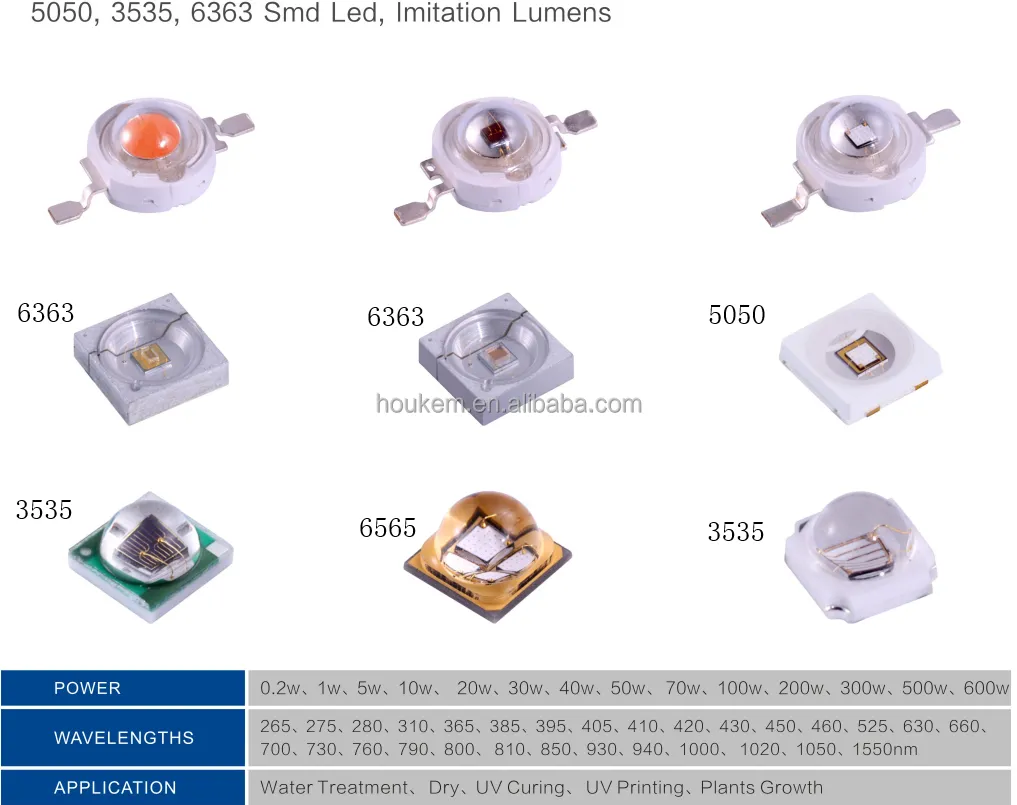

Established in 2003, our factory is specialized in LED products, including High power led, high power 255nm to 1550nm LED arrays,

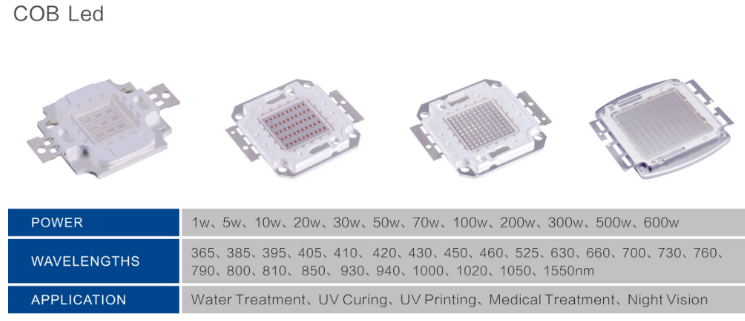

COB LEDs, SMD LEDs, street light LED, LED optical lens, LED grow light, led flood light, street light,and all LED lighting application solution, etc.
Q1. Can I have a sample order for your products?
A: For standard type,Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-7 days, mass production time needs 1-3 weeks .
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc for sample checking is available for most types.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 work days to arrive. Airline and sea shipping also optional.
Q5.what payment method can you accept?
A: T/T, Paypal, Western Union, Credit card, Alipay, Wechat.
Q6. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q7. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
