Model No: HOUKEM-7088-ASRSG

Red and green 8x8 round dot matrix txt display dual color 8x8 dot matrice kem 7088 asrsg

dot matrix led display houkem is 7 segment led display professional manufacturer

minimum order :

1

Quantity :

USD0.70 - USD1.00

add to cart

Contact Now

Place of Origin:CN;GUA
Application:Graphics, air conditioner, running machine
Color:red and green
Panel Size:20*20mm
Model Number:HOUKEM-7088-ASRSG
Brand Name:HOUKEM

Product Describtion

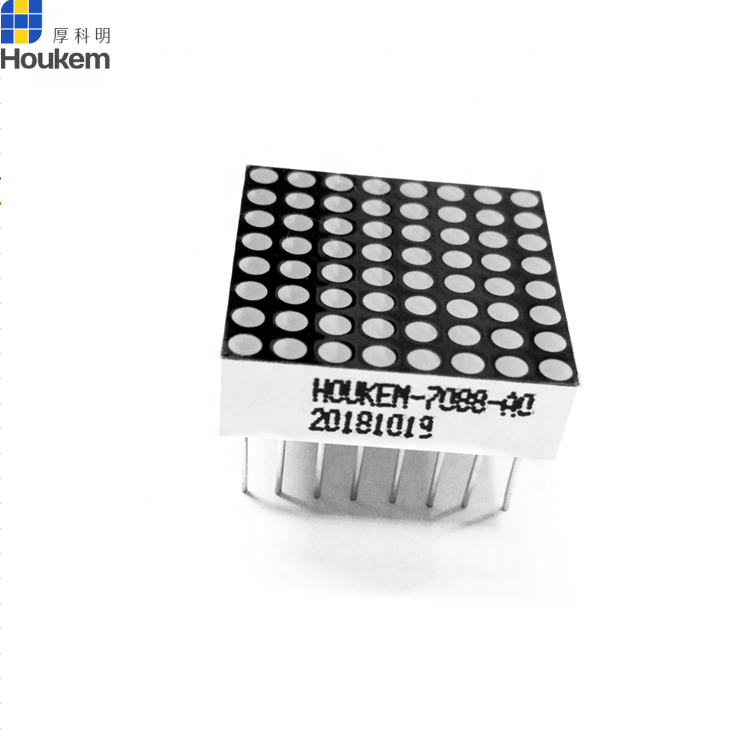

Red and green 8x8 dot matrix dual color

1,Low consumption 2, High brightness

Item No.	HOUKEM-7088-ASRSG
Dimension	20206.5mm
Surface color	Black /Grey
epoxy color	WHITE
Emitting color	super red & super green

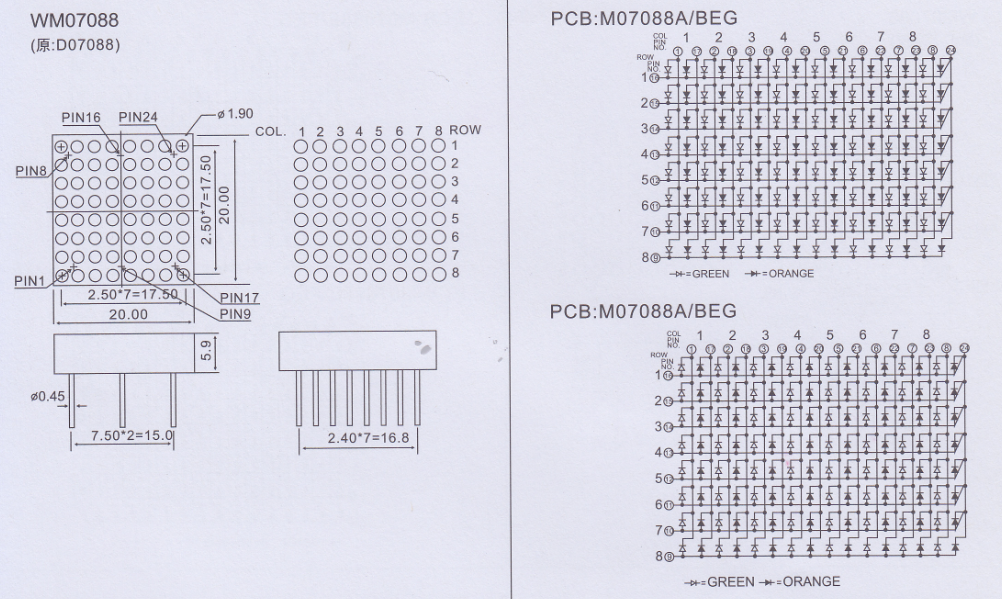

Package dimension & Internal circuit diagram

7088 ABEG

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)

Emitting Color	Test Condition	Wavelength(nm)		Forward Voltage(V)		Luminous Intensity (mcd)
Emitting Color	Test Condition	(λp)	λ	Typ	Max	Typ	Max
Amber	IF=10-15mA	600-605	30	1.9	2.0	90	100
Super green	IF=10-15mA	565-575	30	1.9	2.0	48	55
Super red	IF=10-15mA	620-625	20	1.8	2.0	110	130
Ultra red 1	IF=10-15mA	620-625	20	1.8	2.0	200	210
Ultra red 2	IF=10-15mA	620-625	20	1.8	2.0	300	350
High red	IF=10-15mA	638-660	20	1.8	1.9	15	20
Yellow green	IF=10-15mA	570-580	30	1.9	2.0	43	50
Yellow	IF=10-15mA	580-600	35	1.9	2.0	70	80
Blue	IF=10-15mA	465-475	40	2.7	2.9	150	200
Pure green	IF=10-15mA	515-525	40	2.7	2.9	180	250
^White	^IF=10-15mA	^-	^-	^2.7	^2.9	¹⁸⁰	²⁰⁰

Two years quality warranty

Application

application

Our Services

7 segment LED display

1 digit	0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit	0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit	0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit	0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit	0.28'', 0.36'', 0.56''
6 digit	0.3'', 0.36''

14 /16 segment

1 digit	0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit	0.54''
3 digit	0.54''
4 digit	0.39'', 0.54''

Led dot matrix: 57, 58, 88, 117, 16*16

3. Various colors: super red, ultra red, high red, yellow green, pure green,

super green, pure green, blue, yellow, white, amber, Bi-color, RGB.

Custom 7 segment display are available

customized 7 segment led display
