Red and green 0.8 inch bi-color single digit led 7 segment
- Place of Origin:CN
- Application:Graphics, time display
- Color:red and green
- Panel Size:20*27.7*10mm
- Model Number:HOUKEM-8016-BSRG
- Brand Name:HOUKEM
Common anode single digit led 0.8''7 segment display bi-color
| Item No. | HOUKEM-8016-BSRG |
| Dimension | 20*27.7*10mm |
| Surface color | Black /Grey |
| epoxy color | white |
| Emitting color | super red and super green |

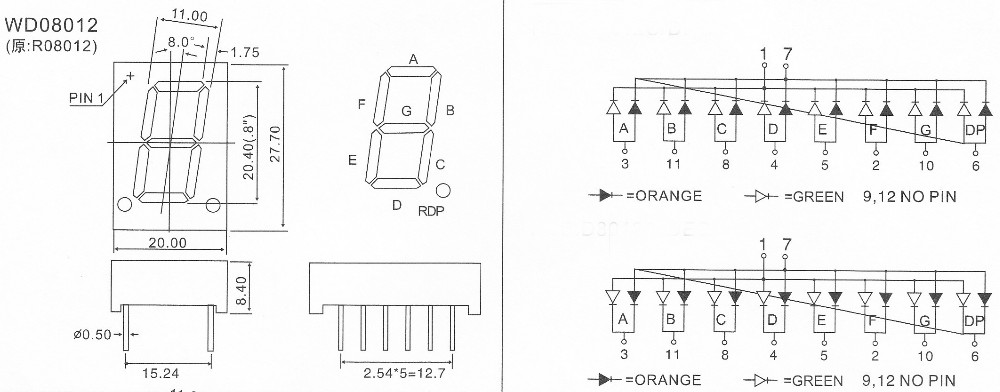

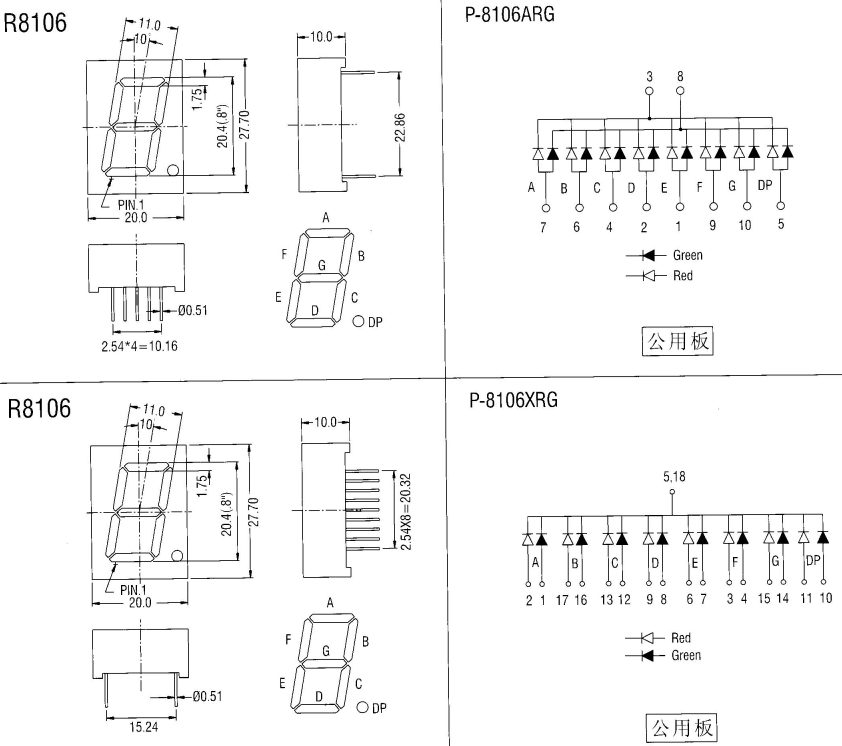

Package dimension & Internal circuit diagram
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
1,Low consumption
2, High brightness
3,High intensity and reliability
4,Easy assembly
Two years quality warranty
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=10-15mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=10-15mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
ultra red 1 | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 200 | 210 |
Ultra red 2 | IF=10-15mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=10-15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=10-15mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=10-15mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=10-15mA | 465-475 | 40 | 2.8 | 3.0 | 150 | 200 |
Pure green | IF=10-15mA | 515-525 | 40 | 2.8 | 3.0 | 180 | 250 |
White | IF=10-15mA | - | - | 2.8 | 3.0 | 180 | 200 |
Custom service:
1. We can supply you all kinds of 7 segment LED display
---Digit size: from 0.25"to 20"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 14 segment both available
3. Various colors: super red, ultra red, high red, yellow green, pure green,
super green, pure green, blue, yellow, white, amber, Bi-color, RGB.
4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
5. high power led: white /red /blue/green/IR/UV led
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays,
Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays,
High power led, high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens,
LED spot light, high bay light, street light,and all LED lighting application solution, etc.
