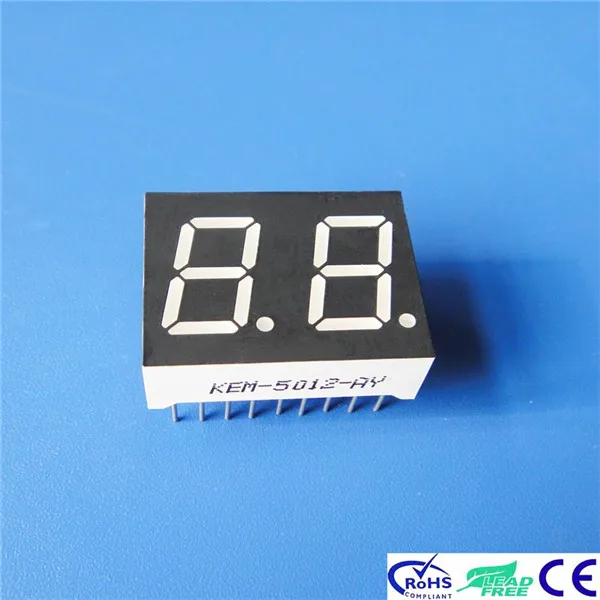

Red 0.5" 7 segment 2 digits led 7segment display common anode 9*2 pin

Model NO.
Houkem-5021-BSR
Price:
USD 0.15-0.55 / pieces
Delivery:
FOB
Minimum order quantity:
10 pieces
Supply Ability:
50000 pieces / Day
Country of Origin:
shenzhen guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Red
  • Display Function:Graphics
  • Pixels:20mm
  • Brand Name:KEM
  • Model Number:Houkem-5021-BSR
  • Screen Dimension:25*19mm


Product Describtion


RED 0.5"7 segment  18 pin 2 digit led seven  segment







Item No.Houkem-5021-BSR
Dimension25*19*8mm
Surface color  Black  /Grey
epoxy color white
Emitting color super red

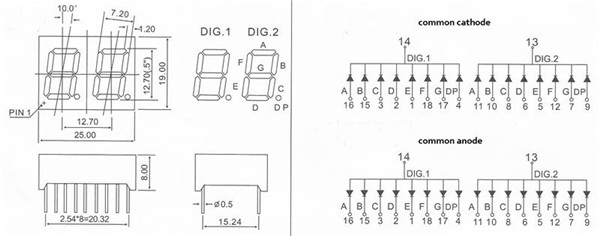

Package dimension & Internal circuit diagram





5021

Note: If this PCB layout don't meet your requirements, please contact me for other choices.





Two years quality warranty



1,Low power consumption

2, High brightness

3, High intensity and reliability

4, Easy assembly

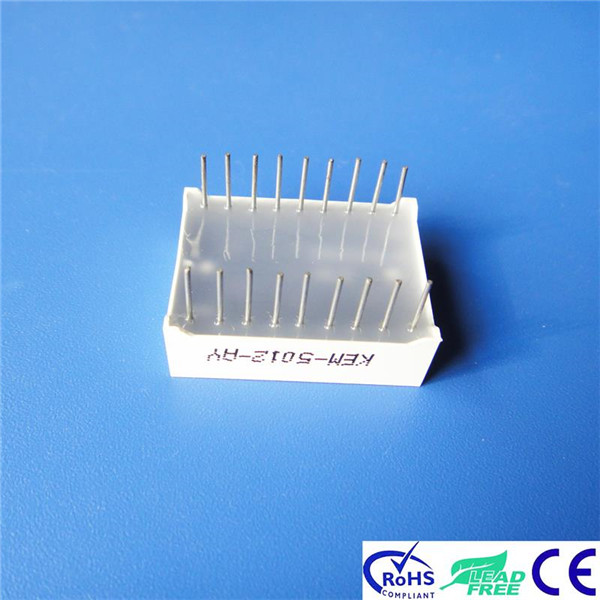

   5021-015021-0010



















Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

625-640

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200





Our Services

Quantity Lead time

1-10K pcs 3-7 days

10.1K-50K pcs 7-15 days

Any delivery way is available.

Our service:

 Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

 we can offer---- SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, Bi-color, RGB.



4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

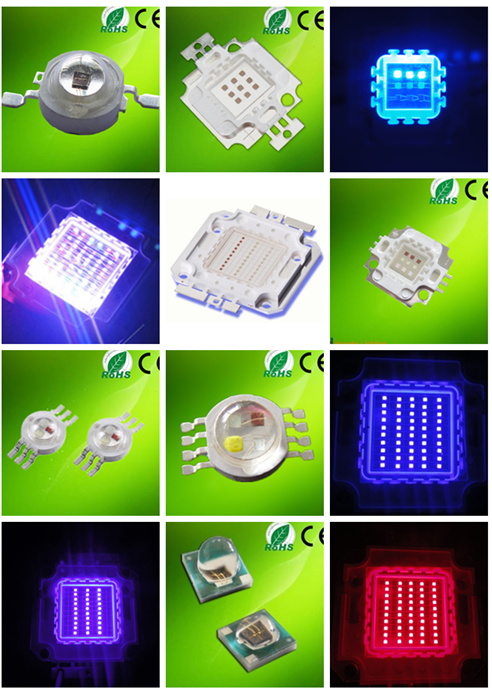

5. high power led:  white /red /blue/green/IR/UV led





Working Process

kem working process



Application



application-6311

Packaging & Shipping

packing (1)

express-611

Contact us







Established in 2003,our factory is specialized in LED products, including 7 segment

LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix Led displays,bar graph

arrays and LED directon indicator displays.etc.

 new factory7 segment dot matrix LED






Related Products

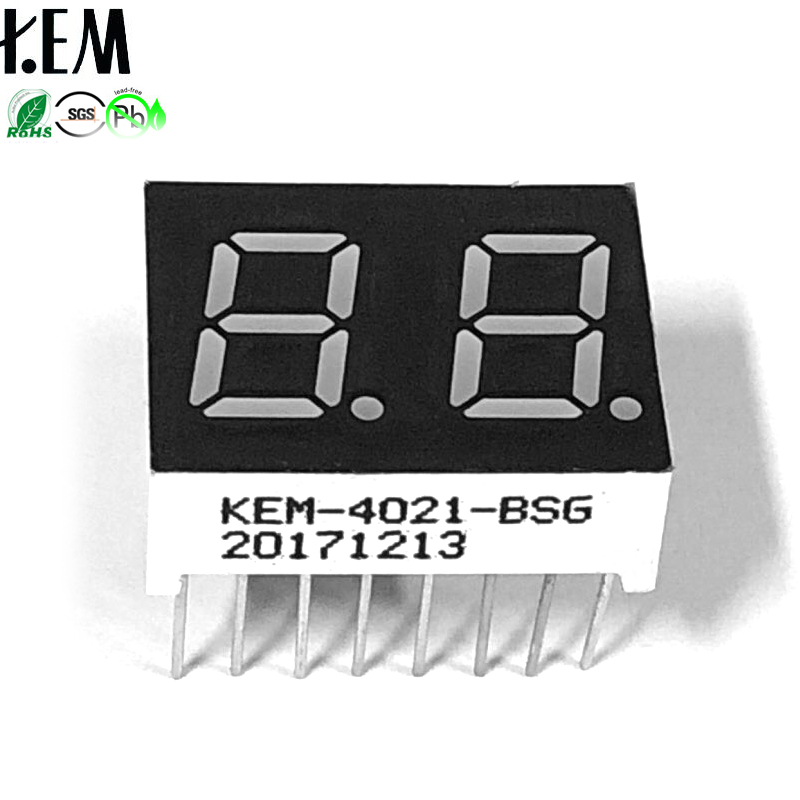

 0.4inch



 4021-99

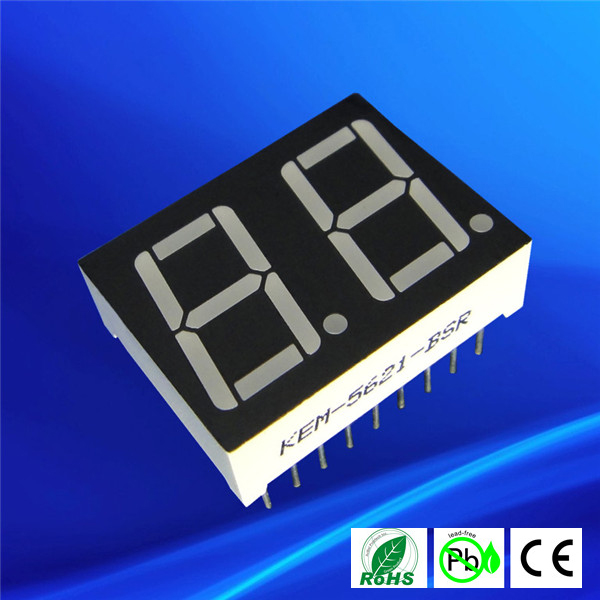

 0.56 inch

5621-103



0.8 inch

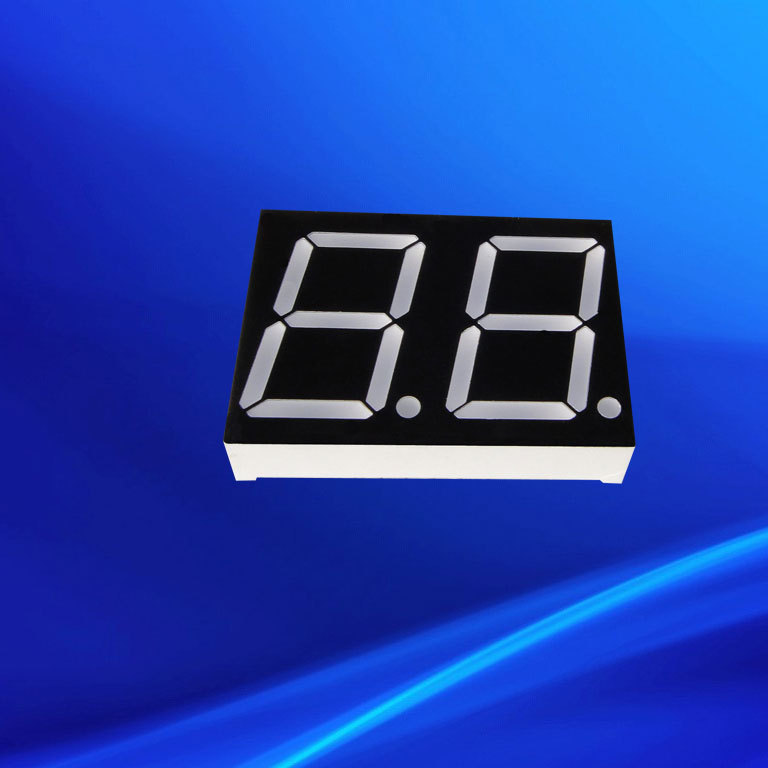

 0.80 inch 2 digit 7 segment led display
