Model No: HOUKEM-3031SMD-BR
red 0.3'' SMD thin 7 segment display 0.3 inch 3 digits
smd 7 segment display houkem is 7 segment led display professional manufacturer
Delivery :
EXW
minimum order :
2 pieces
Supply Ability :
1000pieces / Month
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $0.80 - US $2.00 / pieces
- Application:Indoor, stewpot, induction cookers, rice cooker,
- Color:red
- Panel Size:22.3*12*3.75mm
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet, Photo
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-3031SMD-BR
- Brand Name:HOUKEM
- use:advertising publish, shopping mall, elevator
- Pixels:2.54
- Specification:-
- Display Function:Graphics
- Warranty:2Years
- PCB Polarity:common anode
- operating temperature:-35 ~ +60 ℃
- OEM:YES
- Custom made:YES
- Certificate:CE/ROHS/ISO9001/REACH
Product Describtion
RED 0.3 inch thin 3 digit smd 7 segment led display
Features:
1, Low consumption
2, High brightness
Product details:
| Item No. | HOUKEM-3031SMD-BR |
| Dimension | 22.3*12*3.75mm |
| digit height | 0.3'' (7.62mm) |
| Surface color | Black /Grey |
| Segment color | White /Clear |
| Emitting color | red |

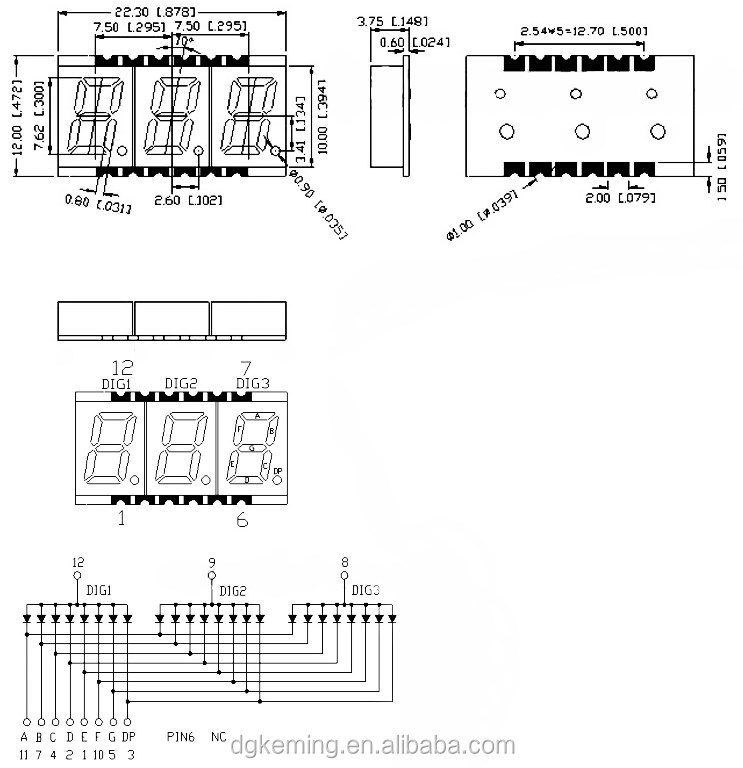

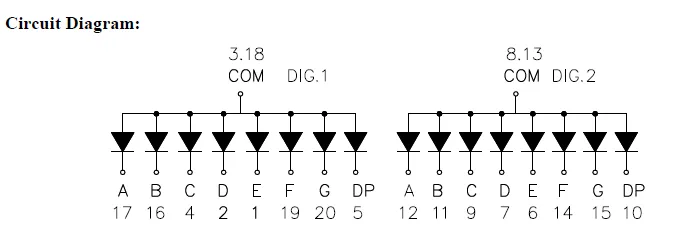

Package dimension & Internal circuit diagram
0.3'' 3 digit smd 7 segment

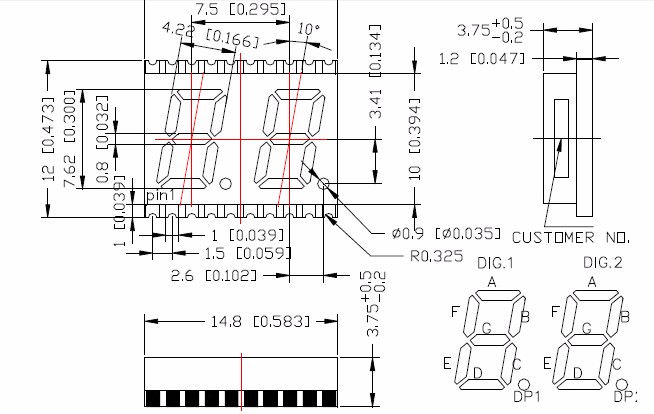

0.3'' 2 digit smd 7 segment
Related Products
If you need other size, please kindly feel free to contact us.
Our Services

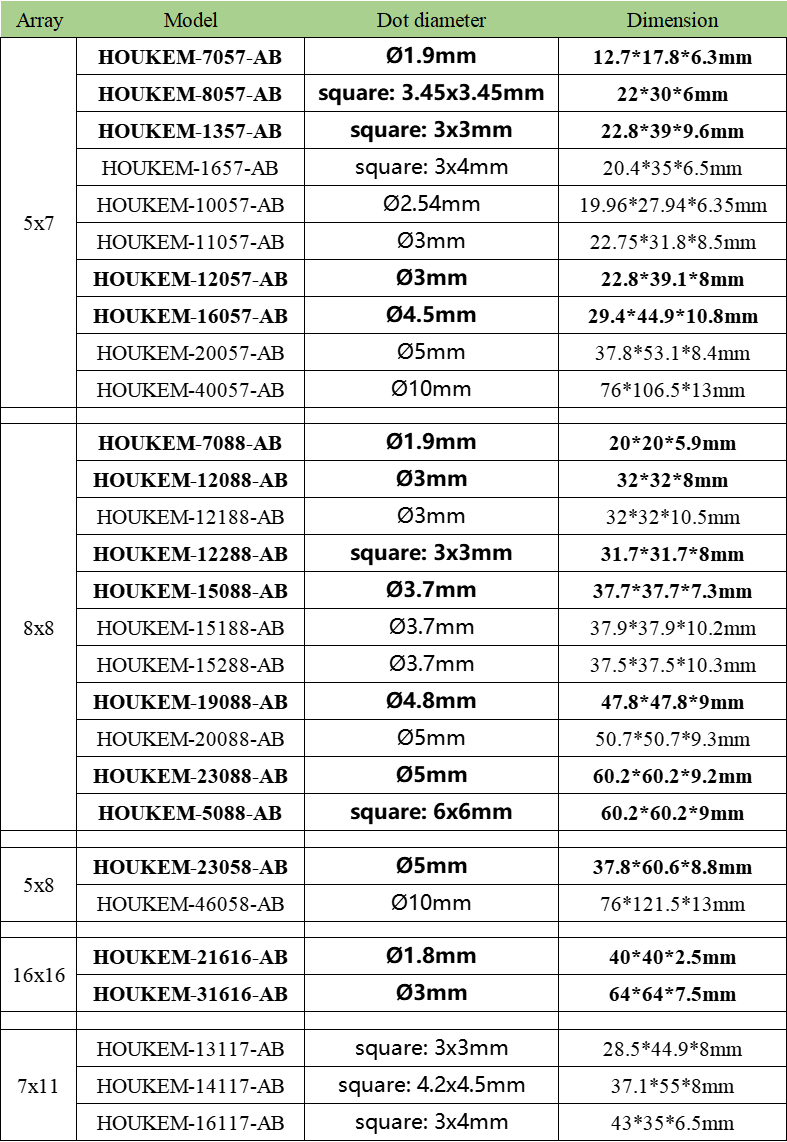

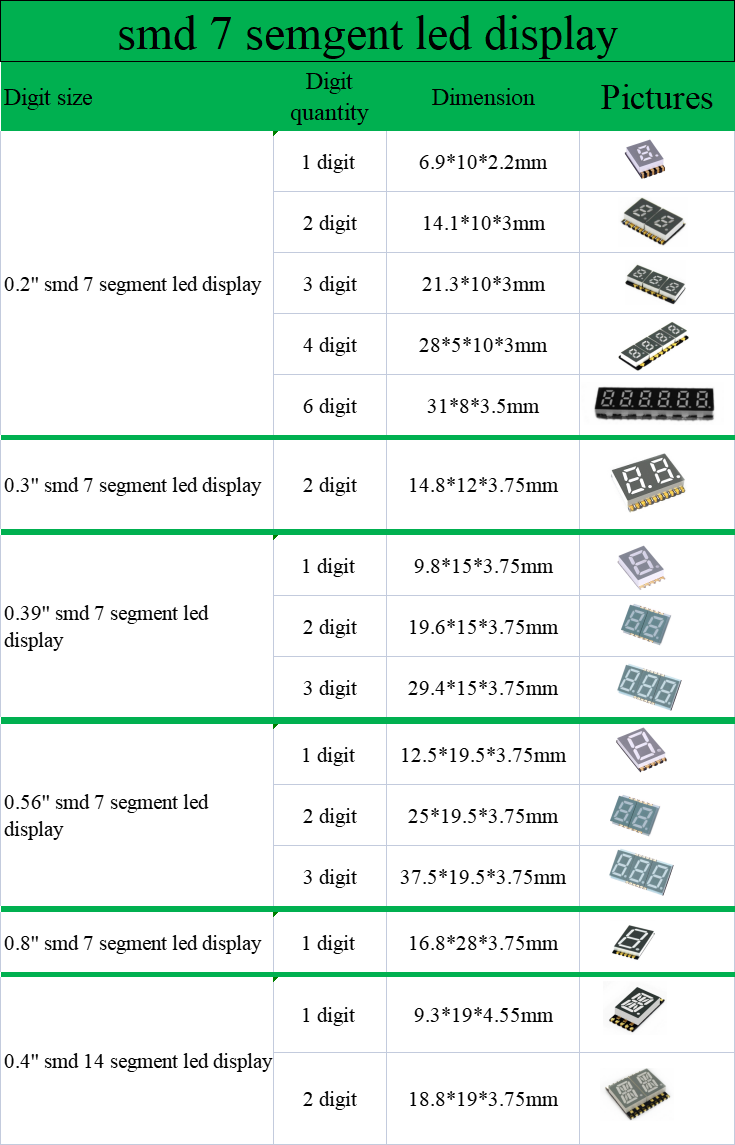

Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
7 segment LED display
| 1 digit | 0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20'' |
| 2 digit | 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5'' |
| 3 digit | 0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8'' |
| 4 digit | 0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2'' |
| 5 digit | 0.28'', 0.36'', 0.56'' |
| 6 digit | 0.3'', 0.36'' |
14 /16 segment
| 1 digit | 0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3'' |
| 2 digit | 0.54'' |
| 3 digit | 0.54'' |
| 4 digit | 0.39'', 0.54'' |
Various colors: super red, ultra red, high red, yellow green, pure green, super green,
pure green, blue, yellow, white, amber, orange, Bi-color, RGB.
Custom 7 segment display are available

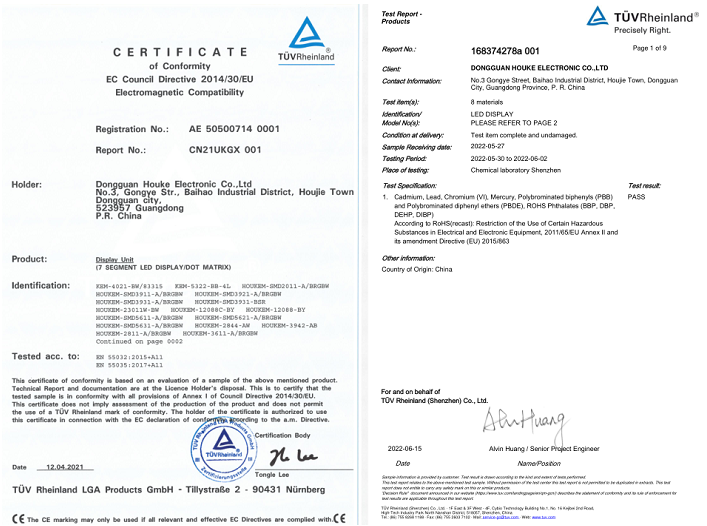

Certifications
Contact us

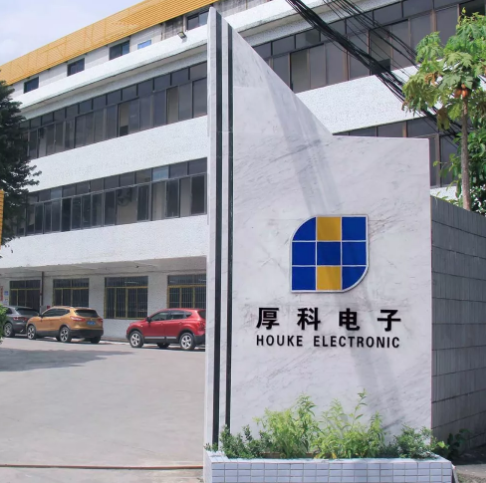

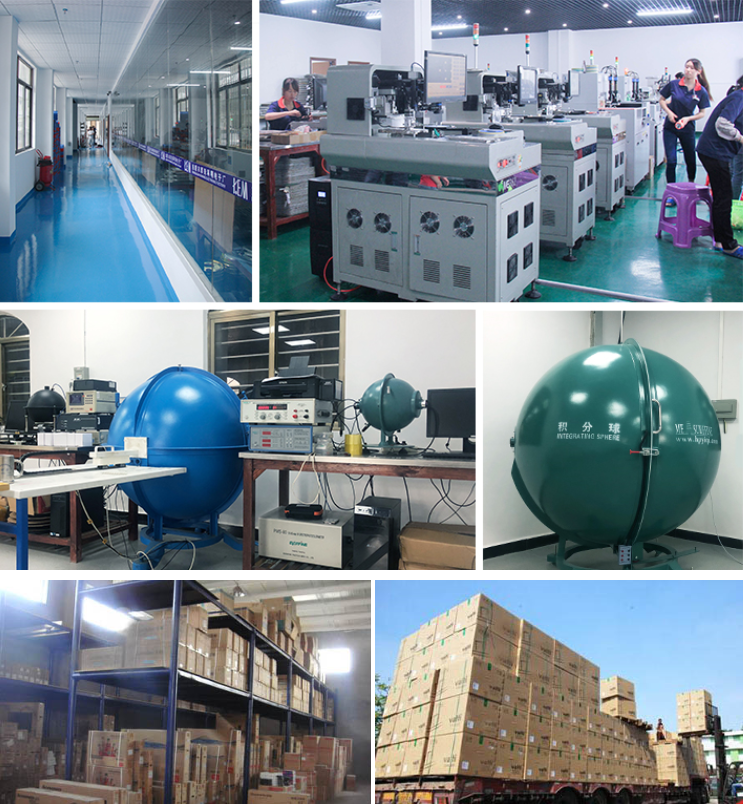

Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens,
and all LED lighting application solution, etc.
