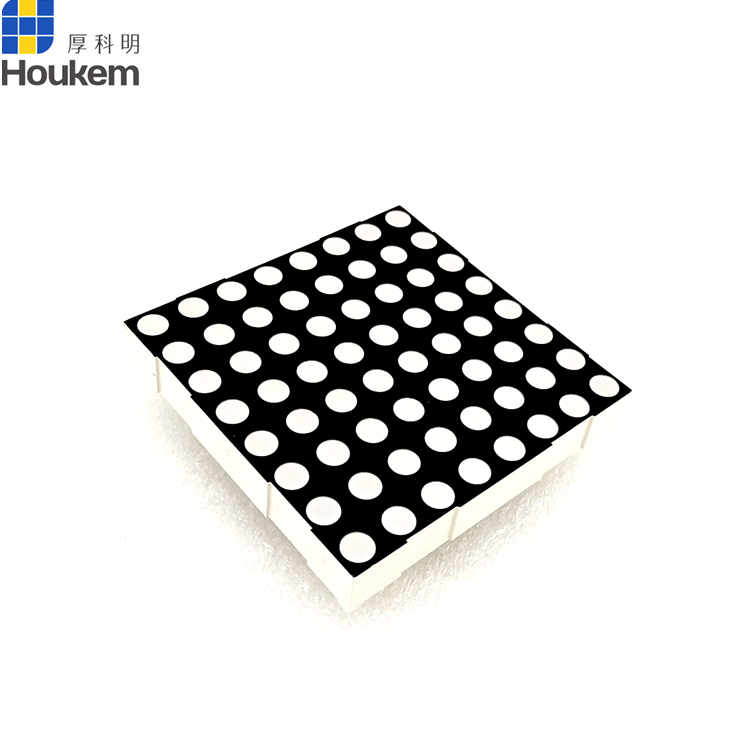

Pure green round dot 1.9mm 8*8 LED dot matrix Houkem-7088 screen size 20*20mm led matrix for elevator/lift
- Place of Origin:CN;GUA
- Usage:Indoor
- Tube Chip Color:Green
- Display Function:Graphics
- Pixels:20mm
- Brand Name:HOUKEM
- Model Number:Houkem-7088-APG
- Screen Dimension:20*20mm
High brightness 1.9mm dot 8*8 dot matrix display 20*20mm common cathode led matrix for elevator
Features:
1, Low consumption
2, High brightness
3,High intensity and reliability
4,Easy assembly

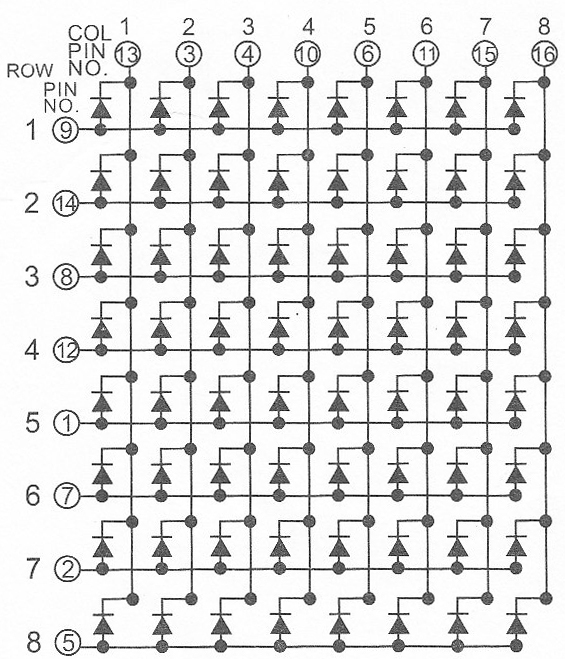

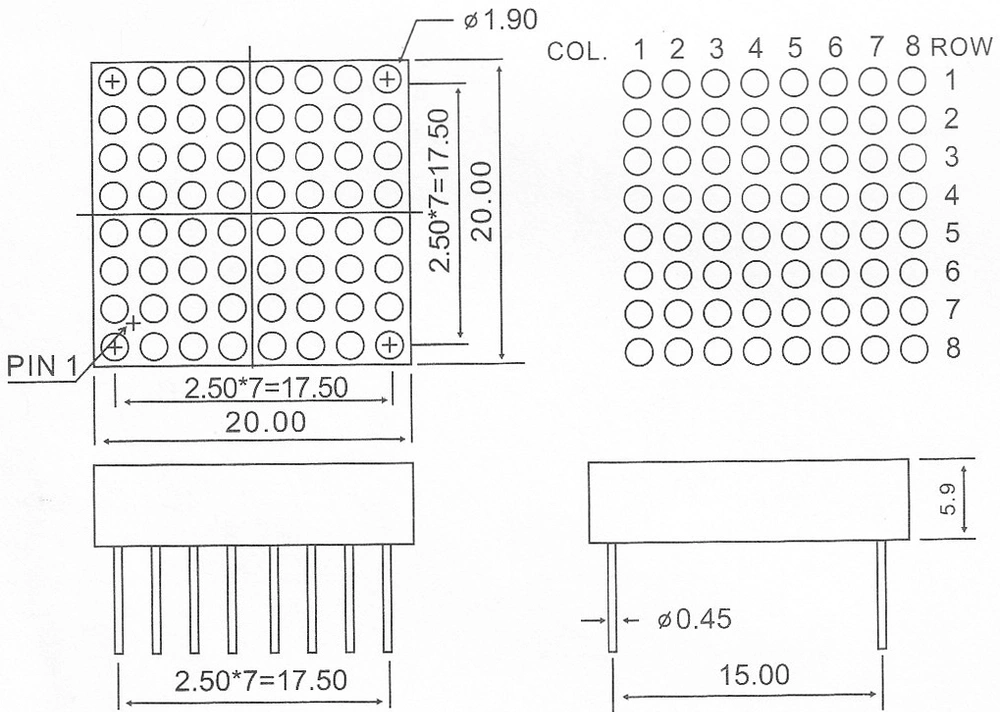

Package dimension & Internal circuit diagram
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=10-15mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=10-15mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 300 | 350 |
High red | IF=10-15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=10-15mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=10-15mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=10-15mA | 465-475 | 40 | 2.7 | 2.9 | 150 | 200 |
Pure green | IF=10-15mA | 515-525 | 40 | 2.7 | 2.9 | 180 | 250 |
White | IF=10-15mA | - | - | 2.7 | 2.9 | 180 | 200 |
Product details:
| Item No. | Houkem-7088-APG |
| Dimension | 20*20*5.9mm |
| dot | 1.9mm |
| Surface color | Black / Grey |
| Segment color | White /Clear |
| Emitting color | pure green |
Customized product are available
Custom service:
1. We can supply you all kinds of 7 segment LED display
---Digit size: from 0.25"to 20"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 14 segment both available
3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.

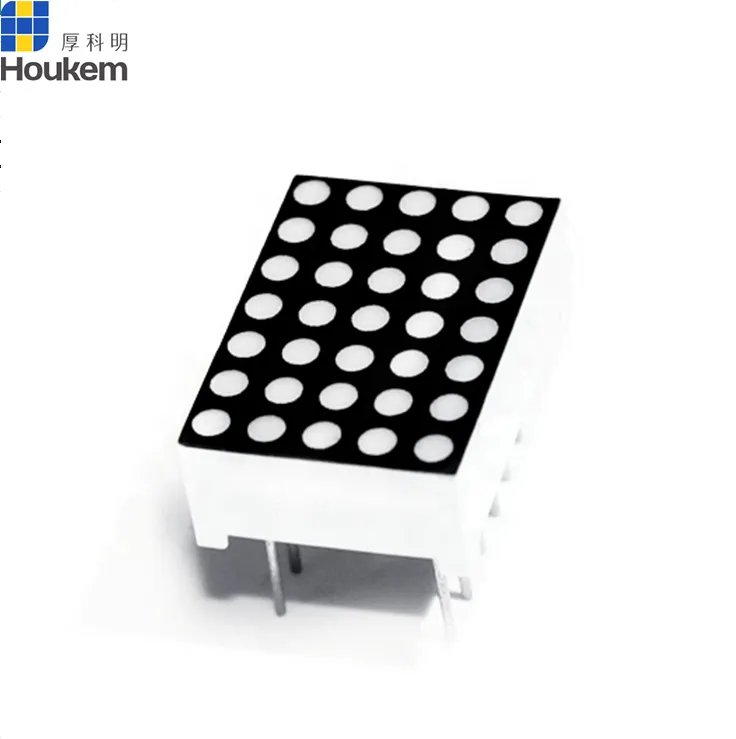

4.Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
