Pure Green 7 Inch 1 Digit 7 Segment Clock Display
Product Description
Pure Green 7'' 1 digit 7 segment display anode
7 inch 1 Digit 7 Segment Display Pure Green
7 inch Pure Green 7 segment clock display
Part No.: | Houkem-70011-A/BPG | Warranty: | 2 years |
Digit Height: | 176mm= 7 inch | Application: | Audio equipment or instrument panels |
Epoxy Color: | Milky White / Clear | Pixels: | 2.5 mm |
Luminous intensity: | 600mcd | Operating Temperature: | -20℃~60℃ |
Product Dimension: | 130 x 196 x10 mm | Brand name: | Houkem |
Surface color: | Black / Grey | Certification: | CE, REACH, RoHS |
Polarity: | Common cathode/ Common anode | HS Code: | 8531200000 |
Emitting color: | Pure green | Country of Origin | China |
Current: | 40mA | Key words: | 1 digit 7 segment display 7 segment clock display 7 segment display |
Voltage: | 3.3~4.0V |

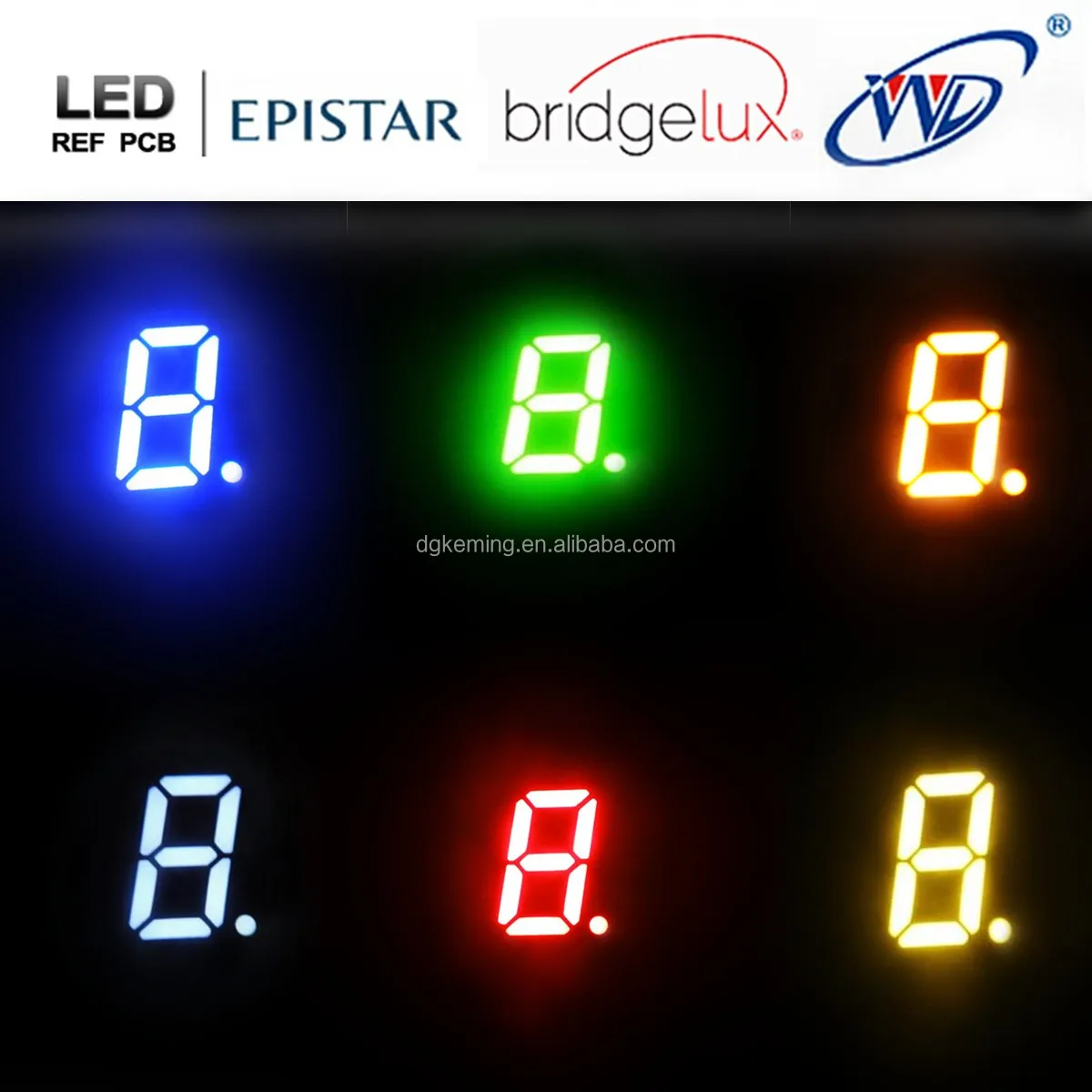

Other colors for options:
Different colors vary in price.. What color do you want ?
Ultra Red 1 | 625~640 nm, 30 mA, 2.1~2.5 V, 200-270mcd |
Ultra Red 2 | 625~640 nm, 30 mA, 2.1~2.5 V, 300-350 mcd |
Super Red | 625~640 nm, 20 mA, 1.8~2.3 V, 80-120 mcd |
High Red | 640~660 nm, 20mA, 2.1~2.5 V, 12 mcd |
Amber | 605~615nm, 30mA, 2.1~2.5V, 30 mcd |
Super Green | 565~575 nm, 30 mA, 1.9 ~2.4 V, 50 mcd |
Pure Green | 515~525 nm, 40 mA, 3.3~4.0 V, 600 mcd |
Yellow | 590~600 nm, 35 mA, 2.1~2.5 V, 60 mcd |
Blue | 465~475 nm, 40 mA, 3.1~3.5 V, 220 mcd |
White | 3.1~3.5 V, 20 mA,125 mcd |
New Yellow | 583-586 nm, 35 mA, 2.1~2.5 V, 140-168 mcd |

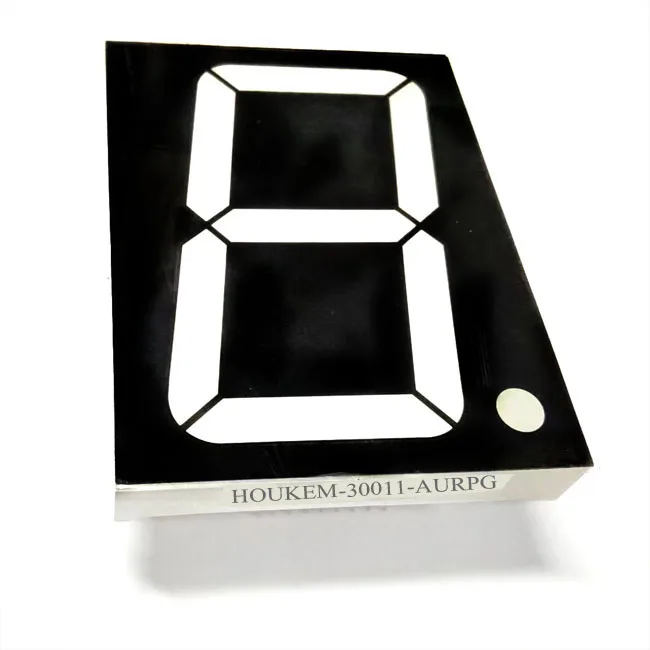

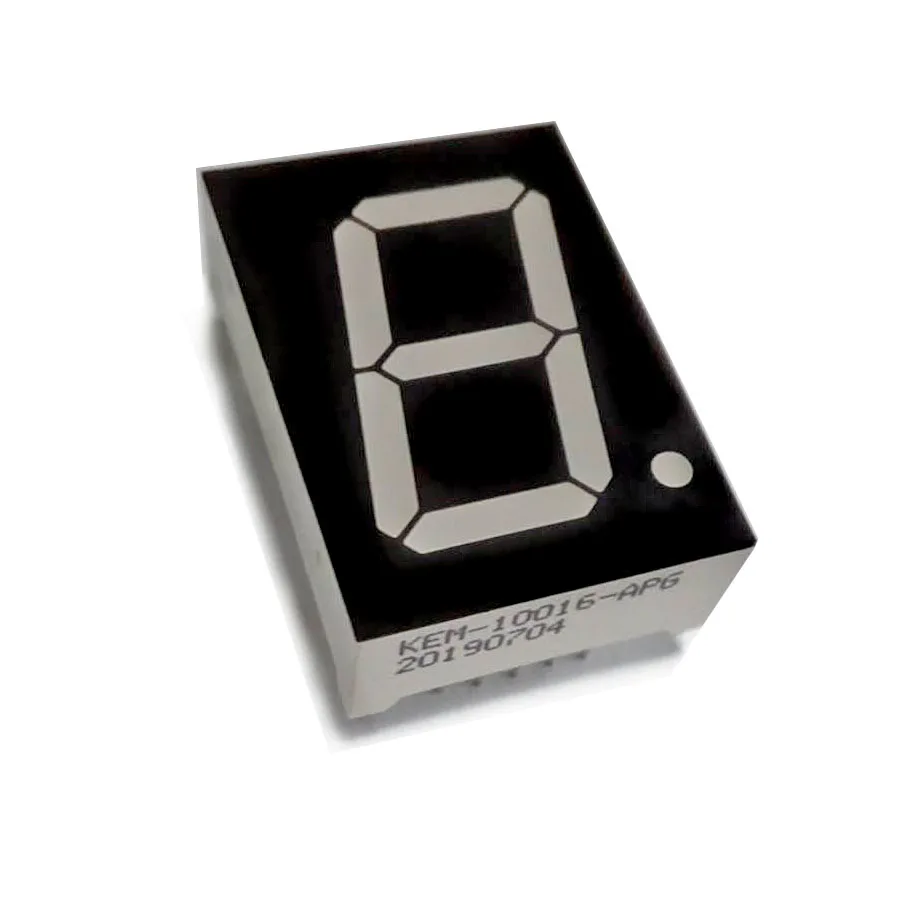

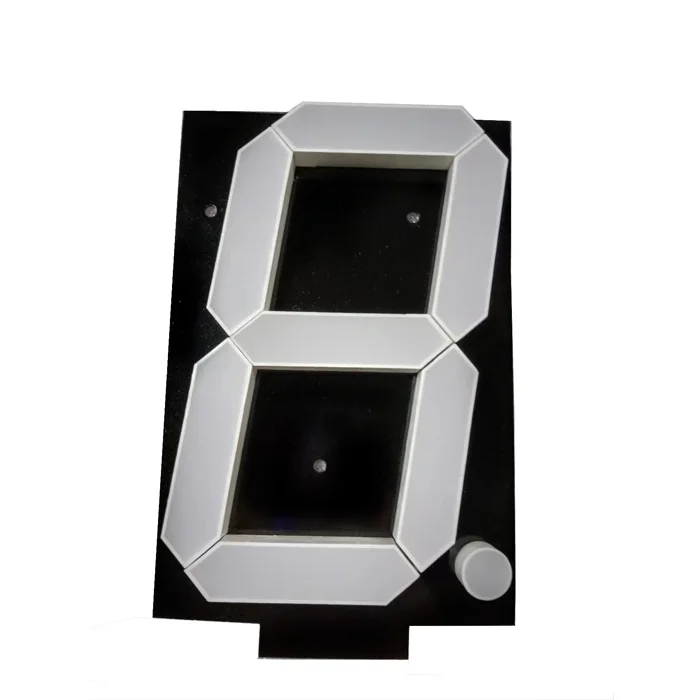

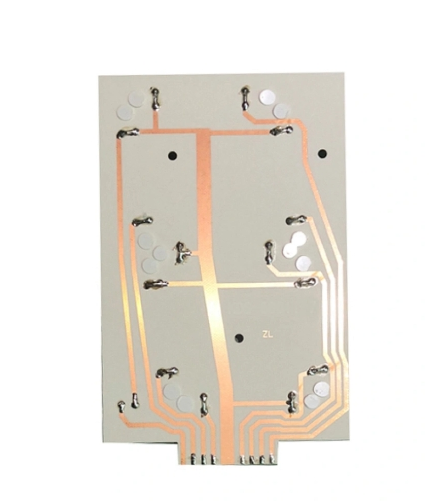

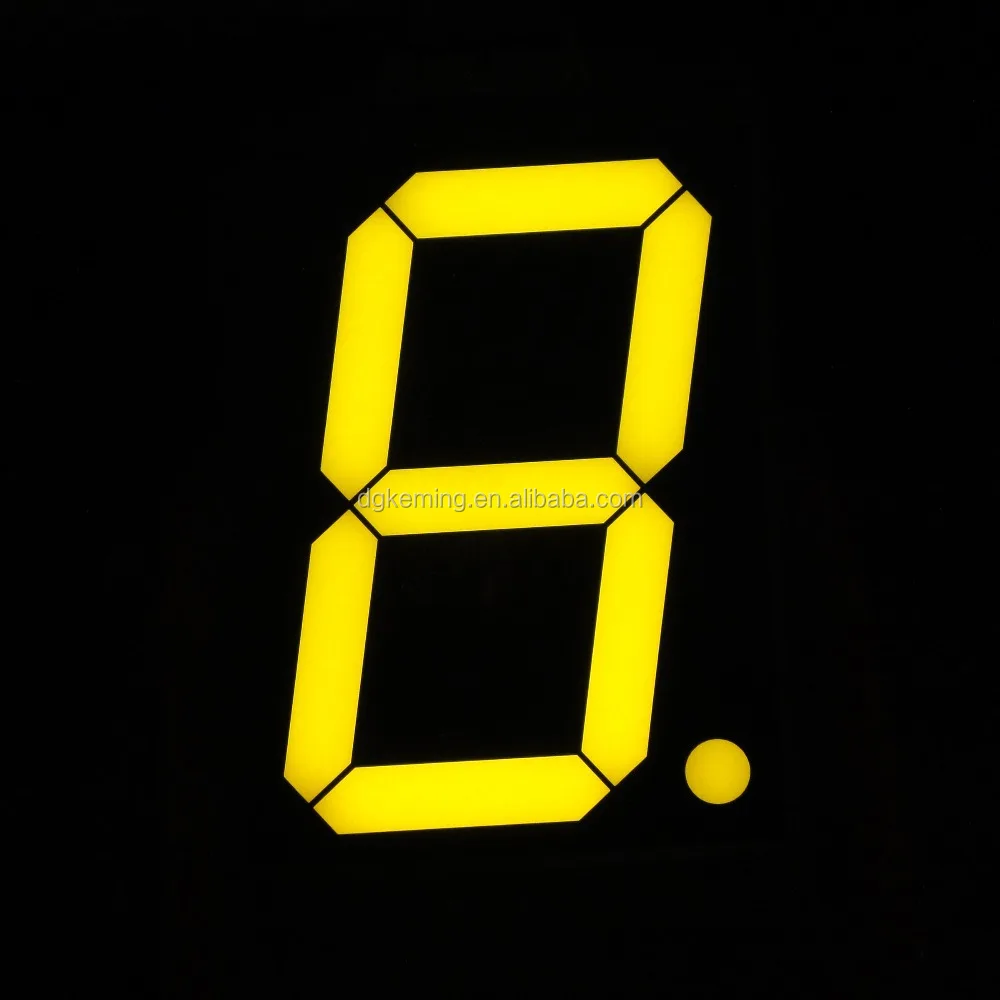

Product pictures
 |  |
 |  |

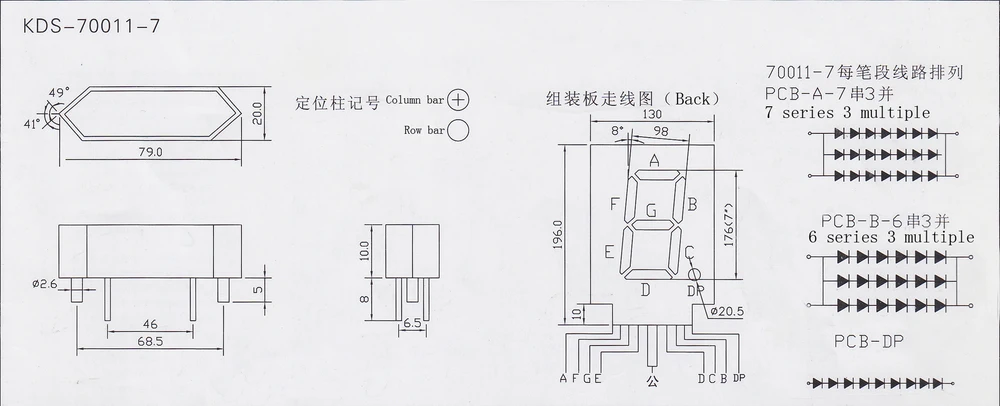

Dimension and internal circuit diagram

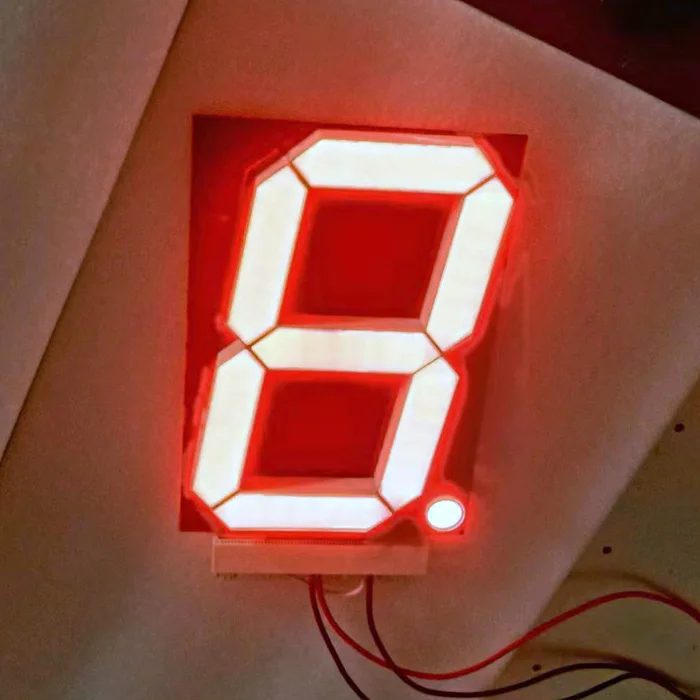

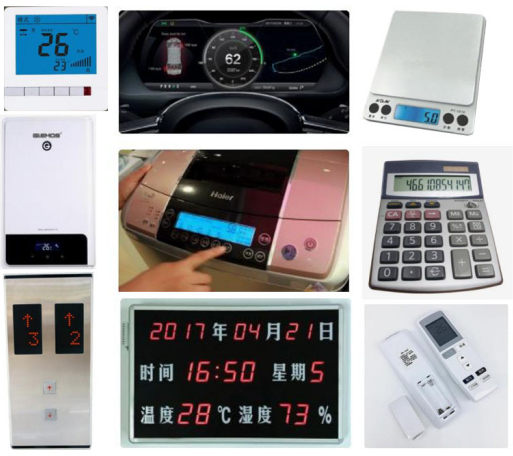

Application
