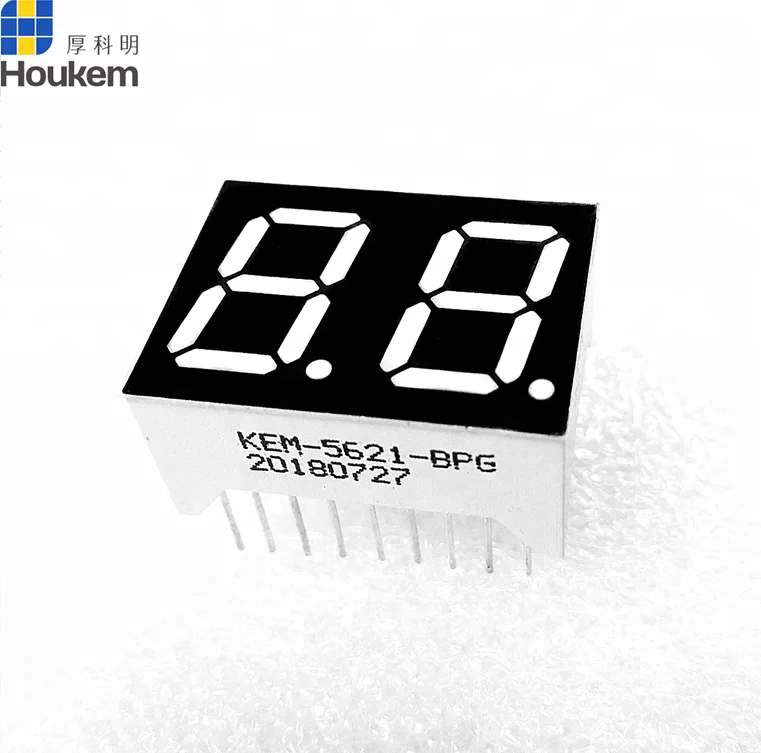

seven segment display 0.56 inch diamond shape common anode

Model No: Houkem-5621-BPG

Pure green 0.56'' 7 segment display 2 digits for electric appliance - Houkem

7 segment led display houkem is 7 segment led display professional manufacturer

Delivery :

EXW

minimum order :

5 pieces

Supply Ability :

5000pieces / Month

Stock Time :

7-14Day

Country of Origin :

Dongguan/ Guangdong

Quantity :

US $0.29 - US $0.34 / pieces

add to cart

Contact Now

Place of Origin:CN;GUA
Usage:Indoor
Display Function:Graphics
Pixels:20mm
Tube Chip Color:green
Brand Name:KEM
Model Number:Houkem-5621-BPG
Screen Dimension:25*19mm

Product Describtion

Pure green two digit 0.56'' 7 segment display common anode9*2 pin

Item No.	Houkem-5621-BPG
Dimension	25198mm
Surface color	Black /Grey
epoxy color	white
Emitting color	pure green

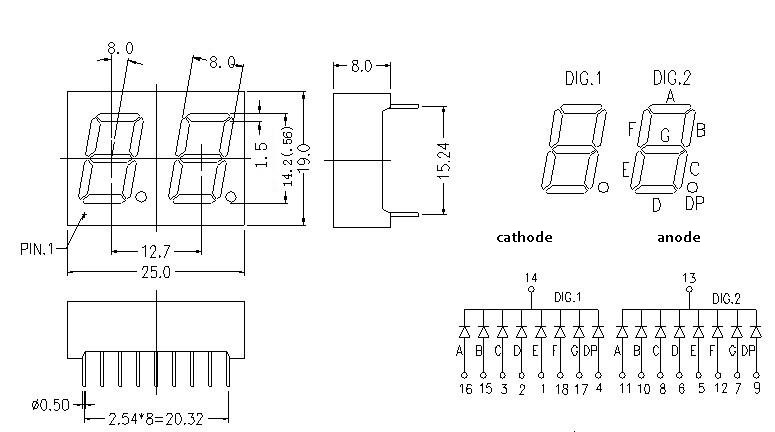

Package dimension & Internal circuit diagram

5621

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Two years quality warranty

1,Low power consumption

2, High brightness

3, High intensity and reliability

4, Easy assembly

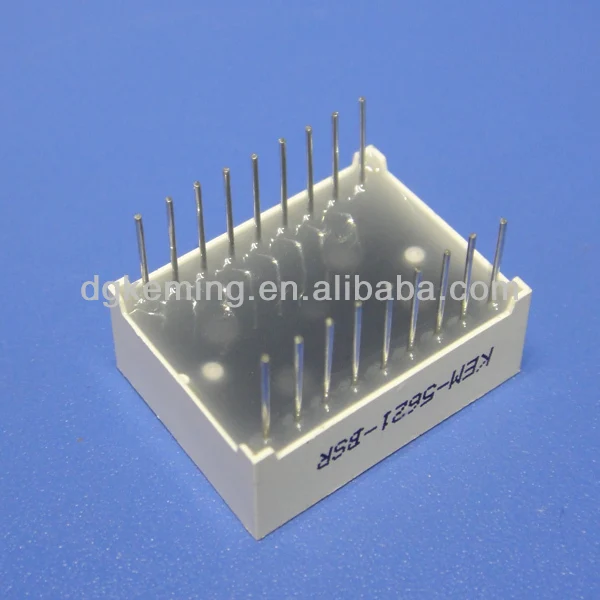

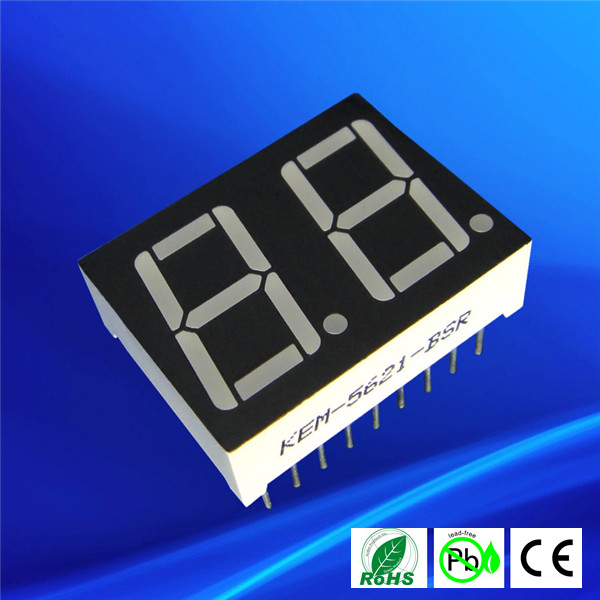

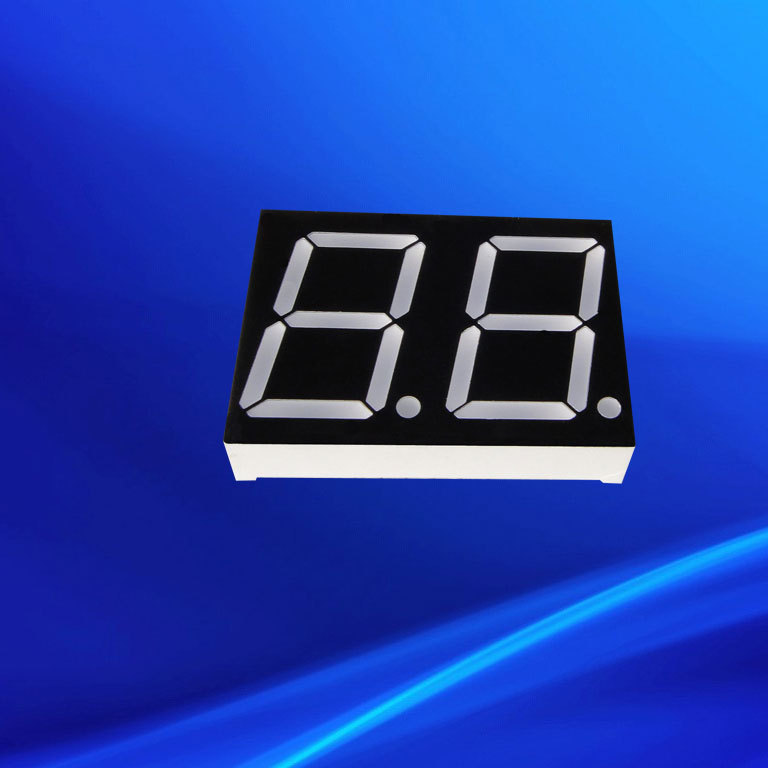

0.56'' two digit 7 segment display

0.56inch seven segment display

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)

Emitting Color	Test Condition	Wavelength(nm)		Forward Voltage(V)		Luminous Intensity (mcd)
Emitting Color	Test Condition	(λp)	λ	Typ	Max	Typ	Max
Amber	IF=18mA	600-605	30	1.9	2.0	90	100
Super green	IF=18mA	565-575	30	1.9	2.0	48	55
Super red	IF=18mA	620-625	20	1.8	2.0	110	130
Ultra red	IF=18mA	620-625	20	2	2.1	300	350
High red	IF=18mA	638-660	20	1.8	1.9	15	20
Yellow green	IF=18mA	570-580	30	1.9	2.0	43	50
Yellow	IF=18mA	580-600	35	1.9	2.0	70	80
Blue	IF=20mA	465-475	40	2.8	3.0	150	200
Pure green	IF=20mA	515-525	40	2.8	3.0	180	250
^White	^IF=20mA	^-	^-	^2.8	^3.0	¹⁸⁰	²⁰⁰

Our Services

Quantity Lead time

1-10K pcs 3-7 days

10.1K-50K pcs 7-15 days

Any delivery way is available.

Our service:

Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

we can offer---- FREE SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, Bi-color, RGB.

4. Led dot matrix: 57, 58, 88, 117, 16*16

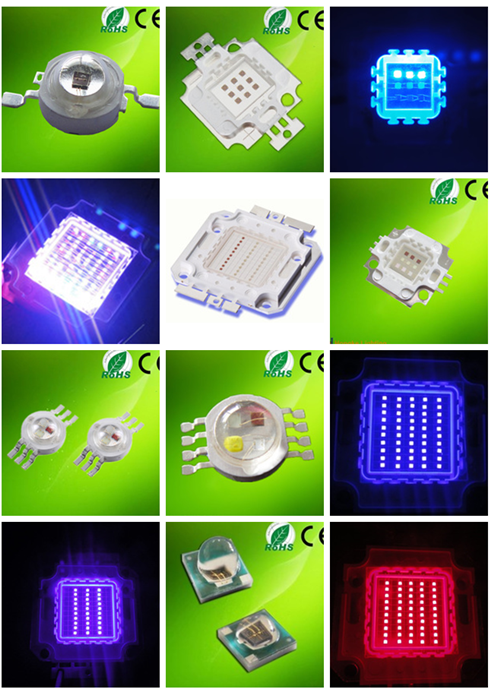

5. high power led: white /red /blue/green/IR/UV led

Working Process

Application

application-6311

Packaging & Shipping

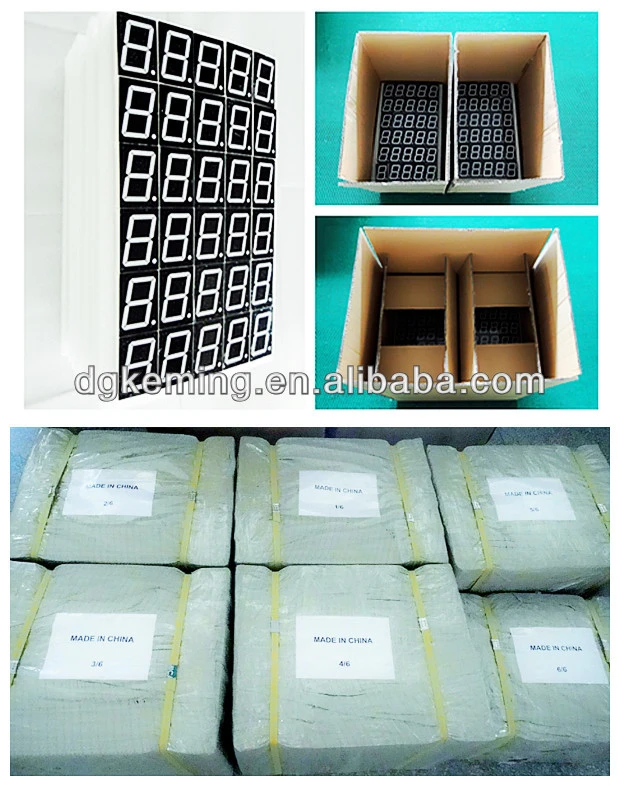

packing (1)

express-611

Contact us

Lydia Su

Skype ID: wood3701

Phone: +86 13129213536

Wechat: 13129213536

QQ:1039243252

Established in 2003,our factory is specialized in LED products, including 7 segment

LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix Led displays,bar graph

arrays and LED directon indicator displays.etc.
