Promotion 2.3 inch 8x8 Led rgb dot matrix display
- Place of Origin:Guangdong, China
- Model Number: KEM-5088-BRGB
- Brand Name: KEM
- Display Function:Graphics
- Tube Chip Color:FULL COLOR
- Pixels:11mm
- Usage:Semi-outdoor
- Dot Arrangement:8x8 dot array RGB dot matrix
- Light Source:Epistar LED chips
- Dot Diameter:6x6mm
- Emitting color:Full color (red+green+blue)
- Surface color:Black or gray
- Dot Color:Water clear or milky white
- Apply:Advertising display, led display
- Country of origin:Guangdong China (Mainland)
- Key words:rgb dot matrix led display
- Screen Dimension:60.4x60.4mm

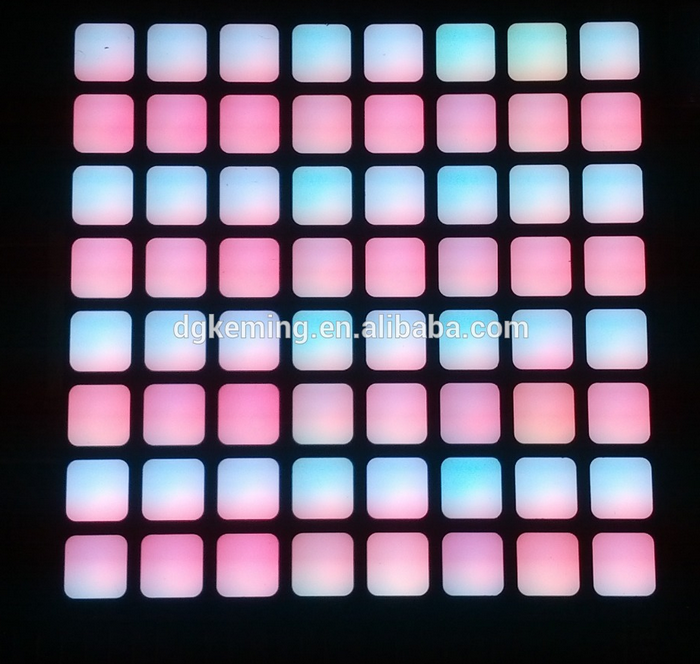

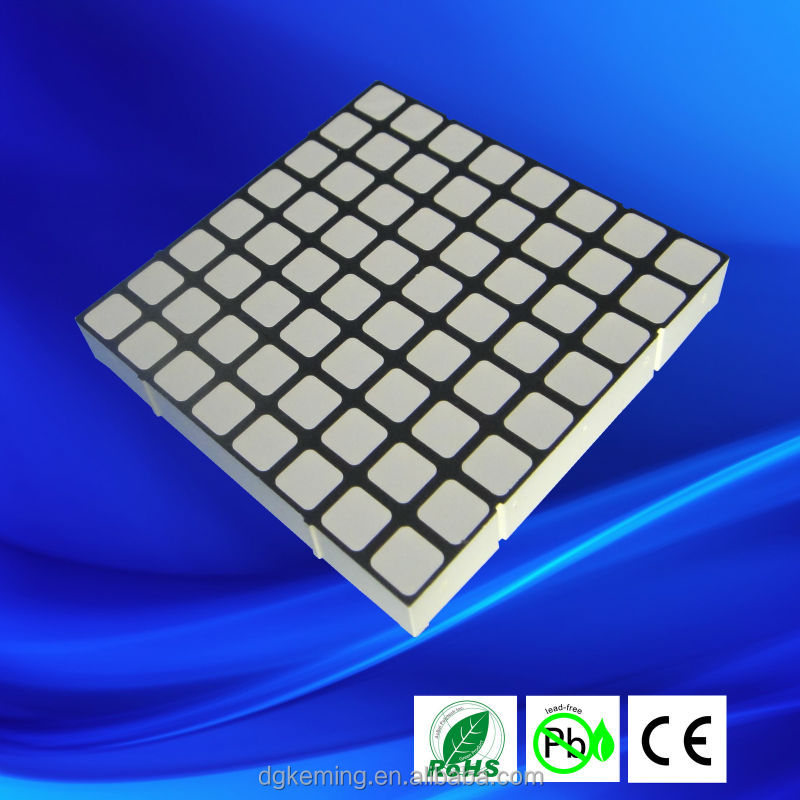

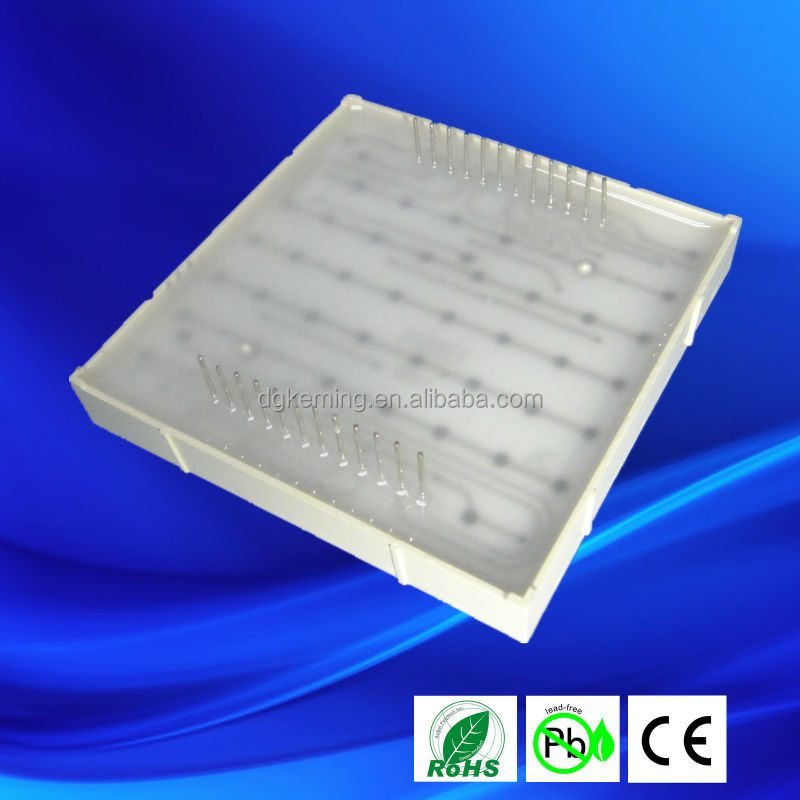

Full Color 8x8 Led Matrix square rgb dot matrix led display

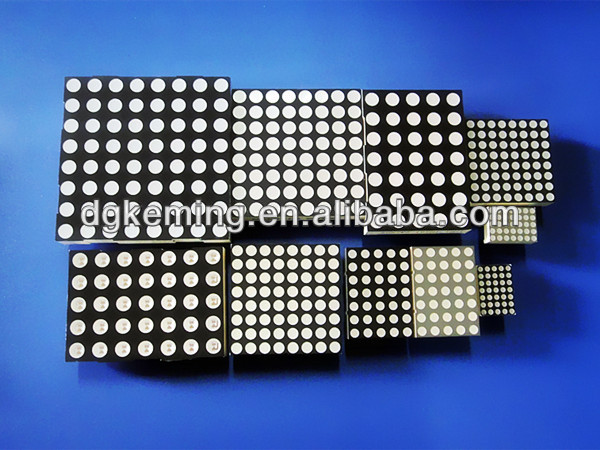

More range of dot matrix also are available:
Spec of Promotion 2.3 inch full Color 8x8 Led rgb dot matrix display:

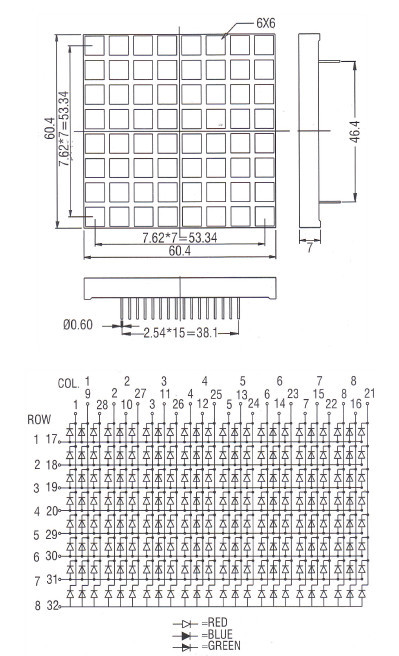

Dimension and Internal Circuit Diagram:
Note: If above dimension & PCB layout of led dot matrix not meet your requirements, please kindly contact us for other choices.
Overview:
1. We can supply you all kinds of Dot Matrix Display:
---Dot Dia. from 1.9mm to 10mm
---Array type: 5x7 dots, 5x8 dots, 8x8 dots

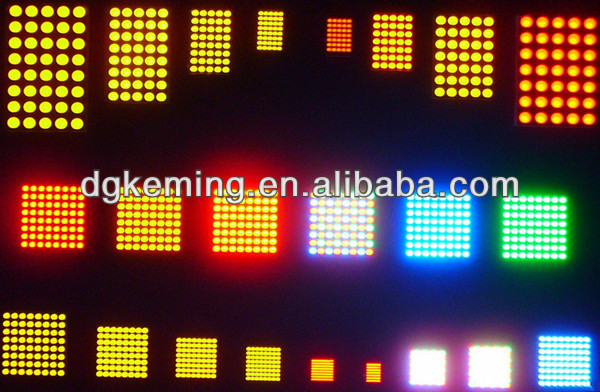

2. Available Emitting color: Red, green, blue, yellow, amber, white, RGB,etc
3. Available surface color: black and grey
4. Dot exposy color: milky white, water clear or same as emitting color
Other size for you choice:
| Model | Dot Diameter | Array | Length*Width |
| KEM-7057-AB | 1.9mm | 5*7 dot | 12.7*17.8mm |
| KEM-7088-AB | 1.9mm | 8*8 dot | 20*20mm |
| KEM-10057-AB | 2.54mm | 5*7 dot | 19.96*27.94mm |
| KEM-11057-AB | 3.0mm | 5*7 dot | 22.75*31.8mm |
| KEM-12057-AB | 3.0mm | 5*7 dot | 22.80*39.1mm |
| KEM-12088-AB | 3.0mm | 8*8 dot | 32.0*32.0mm |
| KEM-12288-AB | square 3.0*3.0mm | 8*8 dot | 31.7*31.7mm |
| KEM-15088-AB | 3.7mm | 8*8 dot | 37.9*37.9mm |
| KEM16057-AB | 4.5mm | 5*7 dot | 29.4*44.9mm |
| KEM-19088-AB | 4.8mm | 8*8 dot | 47.8*44.9mm |
| KEM-20057-AB | 5.0mm | 5*7 dot | 37.8*53.1mm |
| KEM-20088-AB | 5.0mm | 8*8 dot | 50.7*50.7mm |
| KEM-23058-AB | 5.0mm | 5*8 dot | 37.8*60.6mm |
| KEM-2488-AB | square6.0*6.0mm | 8*8 dot | 60.2*60.2mm |
| KEM-40057-AB | 10.0mm | 5*7 dot | 76.0*106.5mm |
| KEM-46058-AB | 5.0mm | 5*8 dot | 76.0*121.5mm |
