8x8 LED Dot Matrix Display Module
8x8 LED Dot Matrix Display Module for Industrial Applications
High Quality 8x8 LED Dot Matrix Display Manufacturer
HOUKEM provides reliable 8x8 LED Dot Matrix Display modules for industrial equipment, digital display systems, control panels, and embedded electronic applications. As a professional LED display manufacturer, we offer OEM and customized LED matrix solutions with stable quality, competitive pricing, and flexible production capacity.

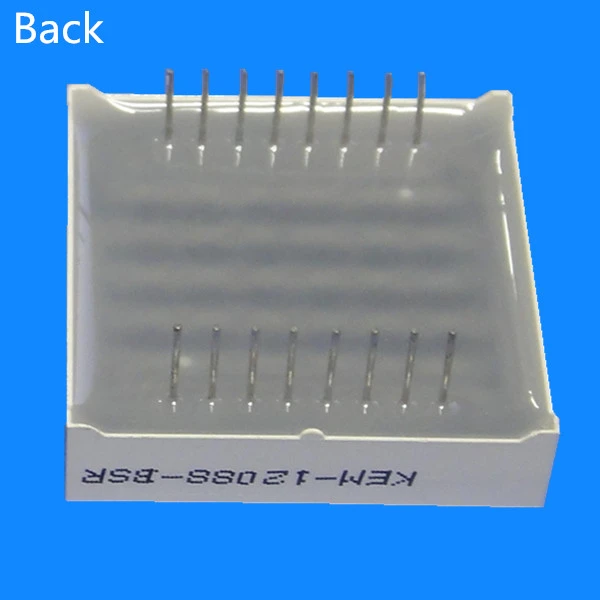

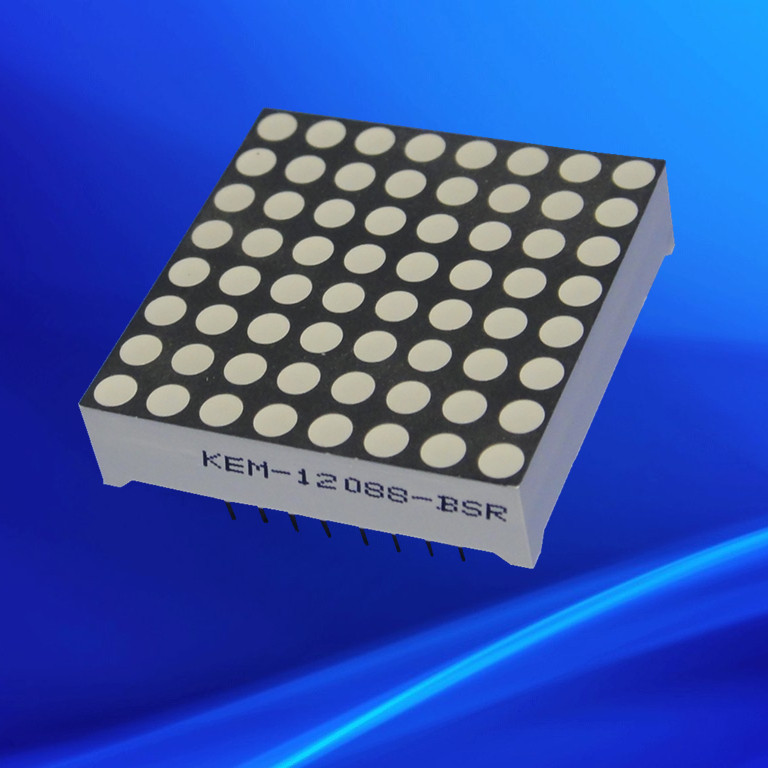

This8x8 LED Dot Matrix Display Module features an 8×8 dot arrangement, 3mm LED dots, yellow green emitting color, and compact 32×32mm dimensions. It is designed for customers who need durable and easy-to-integrate LED display components for various electronic devices.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | 8x8 LED Dot Matrix Display Module |
| Model Number | KEM-12088-BSG |
| Brand | HOUKEM |
| Display Type | LED Dot Matrix Display |
| Array | 8x8 dots |
| Dot Diameter | 3mm |

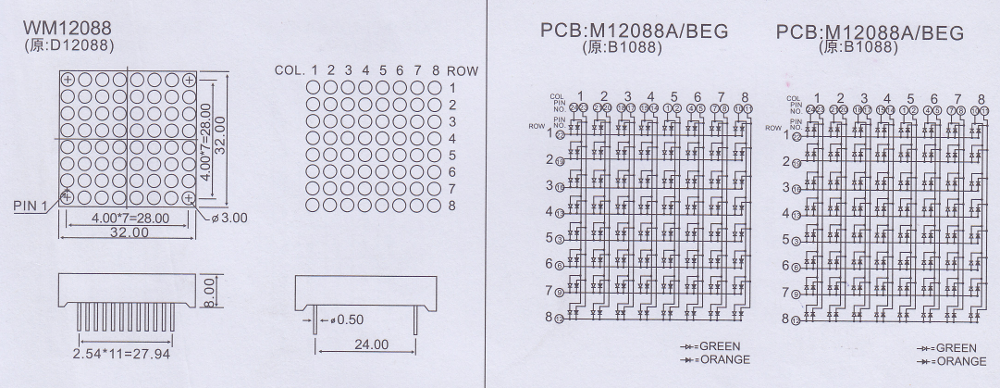

| Dimension | 32 × 32 × 8mm |
| Emitting Color | Super Green / Yellow Green |
| Surface Color | Black / Grey |
| Dot Color | Water clear / Milky white / Same color as emitting color |
| Pixel Pitch | 2.54mm |
| Polarity | Common Cathode / Common Anode |
| Light Source | Epistar LED |
| Luminous Intensity | 80-120mcd/chip |
| Application | Indoor LED display, industrial equipment, advertising display |
| OEM Support | Available |

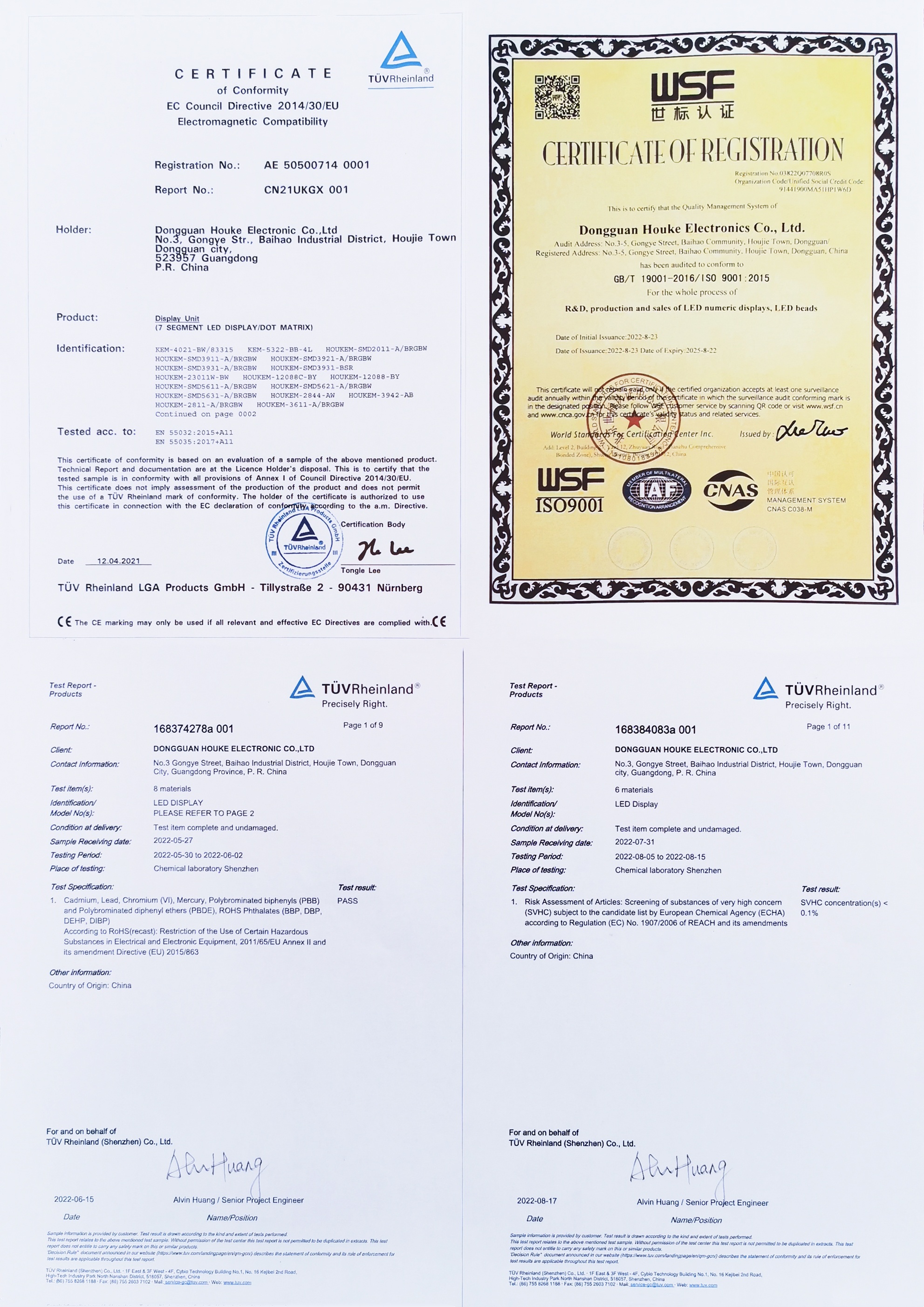

| Certification | CE / RoHS / ISO9001 |
| Warranty | 2 Years |
Features of 8x8 LED Dot Matrix Display
Compact 8×8 LED Matrix Structure

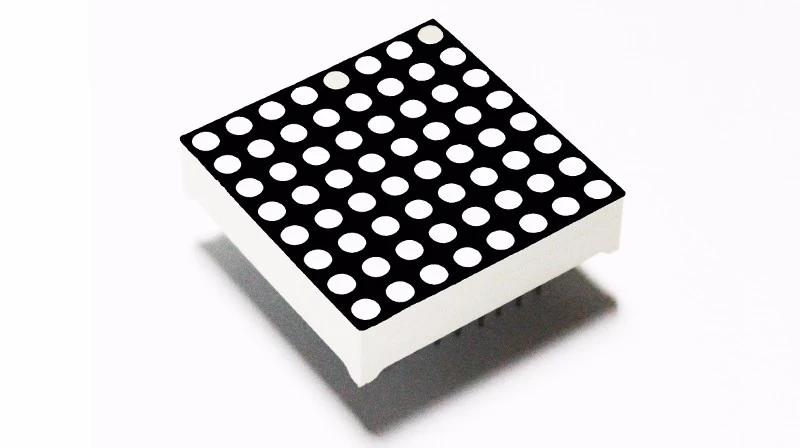

The8x8 LED Dot Matrix Display adopts an 8×8 dot arrangement design, providing 64 individual LED points in a compact module. The standard 32×32mm size allows easy integration into electronic control systems, display panels, and customized devices.
High Brightness Yellow Green LED Output

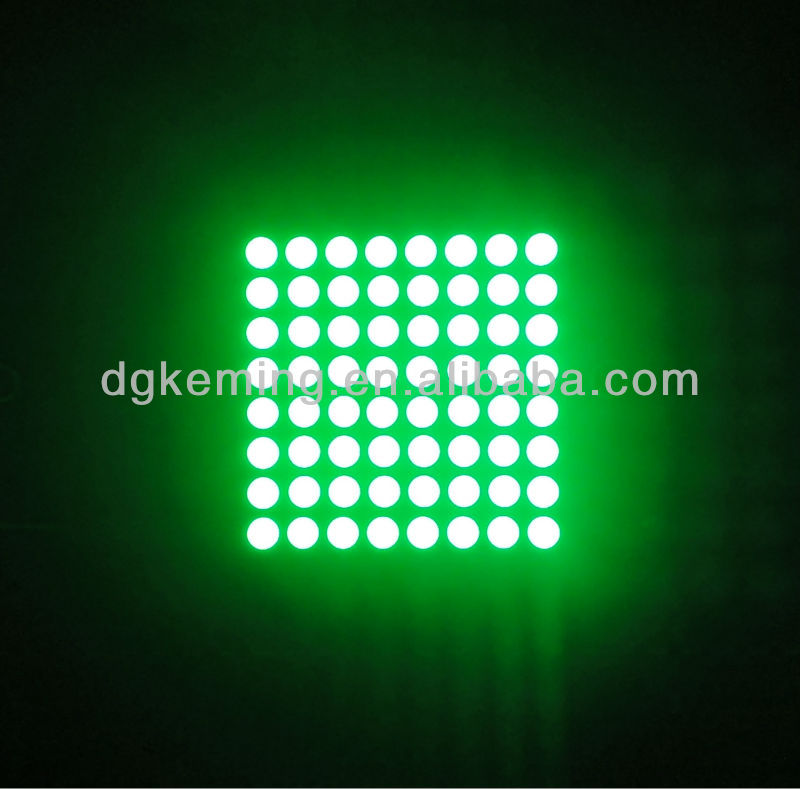

This LED matrix module uses high-quality Epistar LED chips to provide stable yellow green light output. The optimized luminous intensity of 80-120mcd per chip ensures clear visibility for indoor display applications.
Flexible Common Anode and Common Cathode Design
The module supports common cathode and common anode configurations, making it compatible with different circuit designs. Customers can select the suitable polarity according to their controller and application requirements.
OEM and Customized LED Matrix Solutions
HOUKEM supports customized LED Dot Matrix Display solutions according to customer requirements, including:
- Different LED colors
- Customized dimensions
- Special PCB designs
- Alternative dot sizes
- OEM logo and packaging
With professional manufacturing experience, we help customers develop suitable LED display modules for their projects.
Applications of 8x8 LED Matrix Display Module
The8x8 LED Matrix Display Module is widely used in various electronic and industrial applications, including:
Industrial Equipment Display
Used for:
- Machine status indicators
- Industrial control panels
- Equipment information displays
- Automation systems
Digital Display Devices
Suitable for:
- Digital clocks
- Electronic counters
- Information display boards
- Embedded display systems
Commercial Display Applications
Common applications include:
- Advertising displays
- Exhibition equipment
- Elevator display panels
- Public information systems
The compact design and reliable LED performance make this module an ideal choice for manufacturers requiring long-life display components.
Available LED Matrix Display Options
HOUKEM provides various LED Dot Matrix Display sizes and configurations to meet different project requirements.
| Model | Dot Diameter | Array | Dimension |
|---|---|---|---|
| KEM-7057-AB | 1.9mm | 5×7 Dot | 12.7×17.8mm |
| KEM-7088-AB | 1.9mm | 8×8 Dot | 20×20mm |
| KEM-10057-AB | 2.54mm | 5×7 Dot | 19.96×27.94mm |
| KEM-12088-AB | 3mm | 8×8 Dot | 32×32mm |
| KEM-12288-AB | 3×3mm Square Dot | 8×8 Dot | 31.7×31.7mm |
| KEM-15088-AB | 3.7mm | 8×8 Dot | 37.9×37.9mm |
| KEM-20088-AB | 5mm | 8×8 Dot | 50.7×50.7mm |
Available emitting colors include:

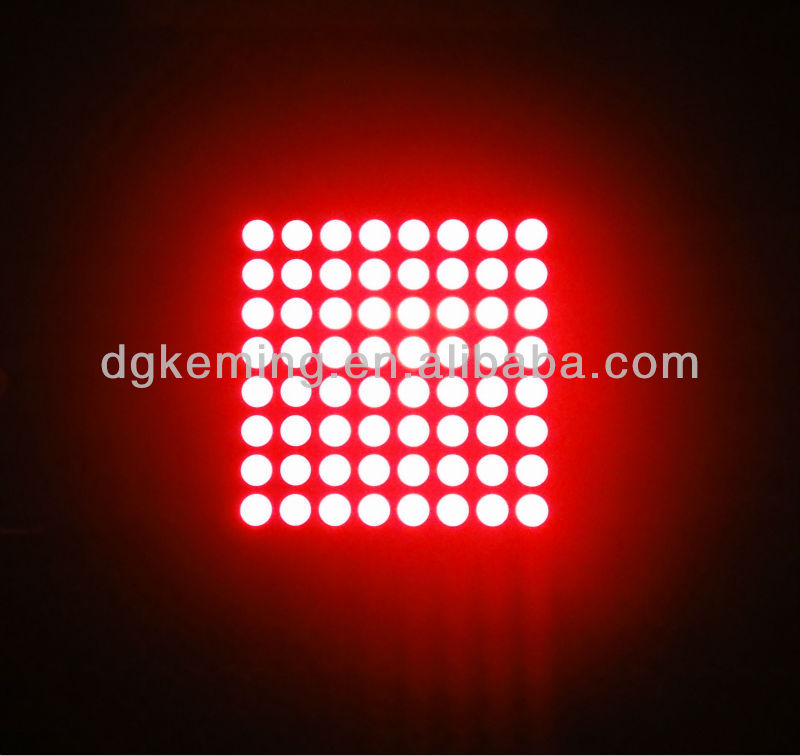

- Red
- Green
- Blue
- Yellow
- Amber
- White
- RGB
Why Choose HOUKEM LED Matrix Display
HOUKEM is an experienced LED display manufacturer specializing in:
- LED Dot Matrix Display
- 7 Segment LED Display
- SMD LED Display
- UV LED and IR LED products
With professional production equipment, strict quality control, and ISO9001 certified manufacturing processes, we provide reliable LED components for global customers.
Our advantages include:
- Factory-direct pricing
- OEM customization support
- Professional technical assistance
- Stable production capacity
- Fast sample delivery
We have supplied LED products to customers worldwide and continue to provide customized display solutions for different industries.
FAQ
Q1: What is the main application of an 8x8 LED Dot Matrix Display?
The module is mainly used for industrial displays, digital equipment, control panels, advertising displays, and embedded electronic devices.
Q2: Can HOUKEM customize the LED matrix display?
Yes, HOUKEM supports OEM customization including size, LED color, PCB design, polarity, and packaging requirements.
Q3: What LED colors are available for this matrix display module?
Besides yellow green, we can provide red, green, blue, white, amber, and RGB LED matrix options.
Q4: Does this LED Dot Matrix Display support common anode and common cathode designs?
Yes, customers can choose common anode or common cathode versions according to their circuit requirements.
Q5: What is the production lead time for bulk orders?
Sample orders usually require 3-7 days, while mass production normally takes around 25-30 days depending on order quantity.
