Product Overview

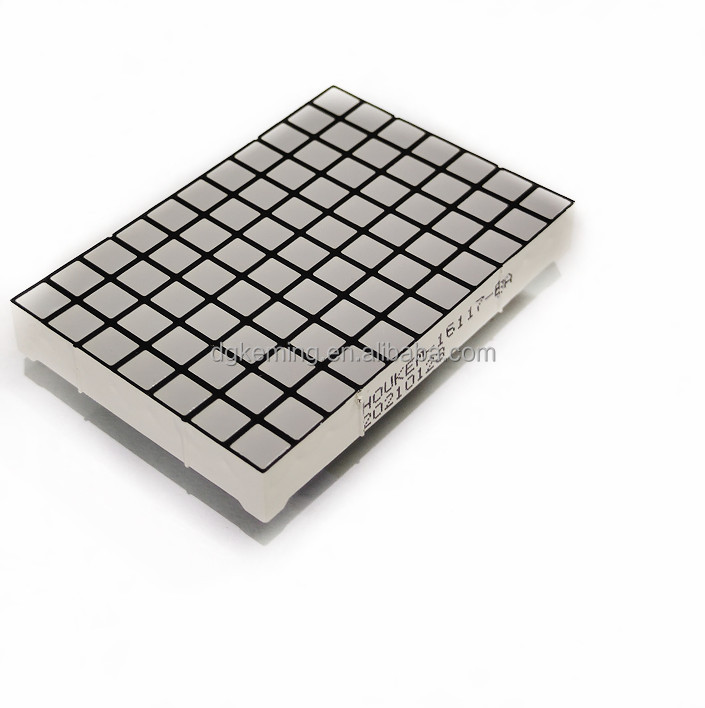

Houkem11x7 LED Dot Matrix Display is a high-quality LED display module designed for elevator indicators, industrial equipment, numeric displays, and customized electronic applications. With an 11×7 dot matrix structure,4.4×4.9mm square dots, and super red LED illumination, this module provides clear and stable visual performance for professional B2B display solutions.
Manufactured by Dongguan Houke Electronic Co., Ltd., this LED matrix module supports OEM and ODM customization, making it suitable for elevator manufacturers, industrial control system suppliers, and electronic equipment developers requiring reliable LED display components.

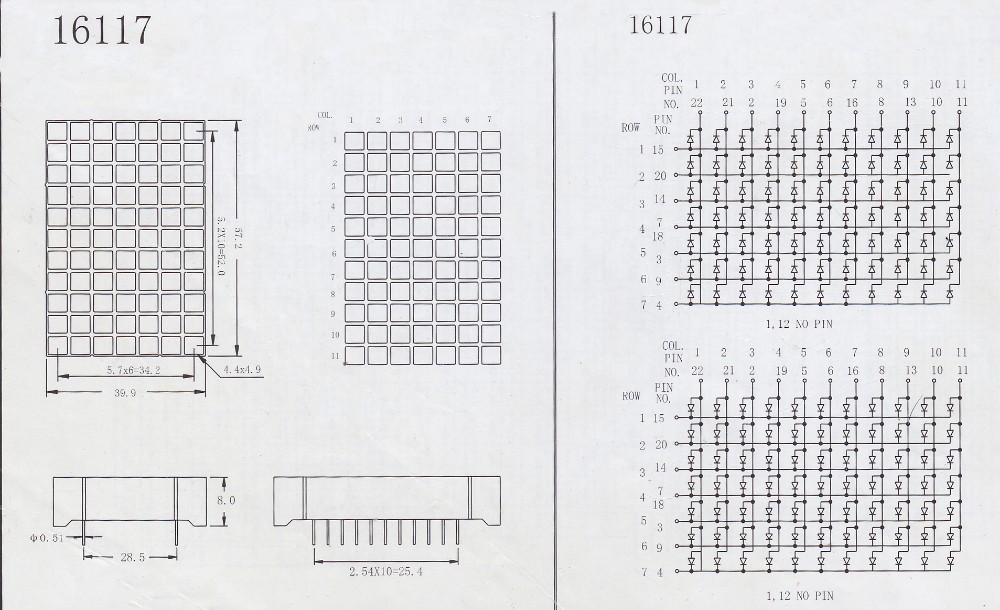

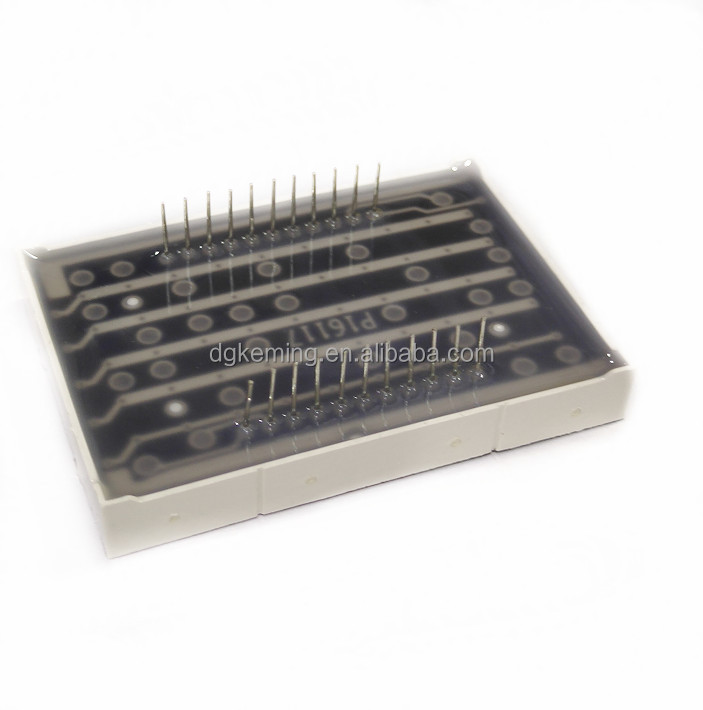

TheKEM-16117-A/BSR 11x7 LED Dot Matrix Display features a compact 57.2×39.9×8mm dimension, common cathode/anode options, and long-term operational reliability. It is an ideal choice for applications requiring bright numeric or graphic indicators in limited installation spaces.
Product Specifications
| Item | Specification |
|---|---|
| Product Model | Houkem-16117-A/BSR |
| Product Type | 11x7 LED Dot Matrix Display |
| Dot Matrix | 11×7 |
| Dot Size | 4.4×4.9mm |
| Dimension | 57.2×39.9×8mm |
| Emitting Color | Super Red |
| Luminous Intensity | 80-100mcd/chip |
| Surface Color | Black/Grey |
| Epoxy Color | Milky White/Clear |
| Polarity | Common Cathode / Anode |
| LED Source | Taiwan Epistar LED |
| Warranty | 3-5 Years |
| Certificate | CE, RoHS, REACH, ISO9001 |
Features of 11x7 LED Dot Matrix Display
High Visibility Super Red LED Display
The11x7 LED Matrix Display uses high-quality super red LED chips to achieve stable brightness and excellent visibility. It is suitable for indoor display applications where clear numeric and indicator information is required.
Compact 11×7 Matrix Structure
With an 11×7 dot arrangement, this LED display module provides more display capability compared with traditional 5×7 matrix modules. It can present numbers, symbols, arrows, and simple characters for various indicator systems.
Flexible Polarity Options
The module supports both common cathode and common anode configurations, allowing engineers to integrate the display into different circuit designs without changing the overall product structure.
OEM and Custom Manufacturing Support
As an experienced LED display manufacturer, Houkem provides customized solutions according to customer requirements, including:
- Custom LED display dimensions
- Different emitting colors
- Customized electrical specifications
- OEM logo and packaging solutions
Applications of 11x7 LED Matrix Display
The11x7 LED Dot Matrix Display is widely used in professional electronic equipment and commercial display systems.
Elevator Indicator Display
This module is especially suitable for:
- Elevator floor indicators
- Lift direction displays
- Building information systems
- Elevator control panels
The compact size and high brightness make it an excellent solution for elevator manufacturers and elevator component suppliers.
Industrial Equipment Display
The module can also be integrated into:
- Industrial control panels
- Automation equipment
- Machine status indicators
- Digital counters
Its reliable performance supports long-term operation in industrial environments.
Commercial and Electronic Devices
Additional applications include:
- Exhibition hall displays
- Restaurant equipment
- Numeric LED indicators
- Customized electronic products
Why Choose Houkem 11x7 LED Matrix Display?
Houkem has more than 19 years of experience in LED product manufacturing, development, and sales. Our factory specializes in:
- LED dot matrix displays
- 7 segment LED displays
- SMD LED products
- Customized LED display solutions
With ISO9001 quality management certification and CE/RoHS/REACH compliance, Houkem provides stable product quality, professional technical support, and flexible OEM services for global customers.
Every LED display module is tested before shipment to ensure reliable performance and consistent quality.
FAQ About 11x7 LED Dot Matrix Display
1. What is an 11x7 LED Dot Matrix Display used for?
An 11x7 LED Dot Matrix Display is mainly used for elevator indicators, industrial equipment displays, numeric indicators, and customized electronic display systems.
It can display numbers, symbols, and simple graphic information.
2. Can Houkem customize the LED matrix display?
Yes, Houkem provides OEM and ODM customization services for LED matrix modules.
Customers can request different colors, dimensions, electrical parameters, and packaging options.

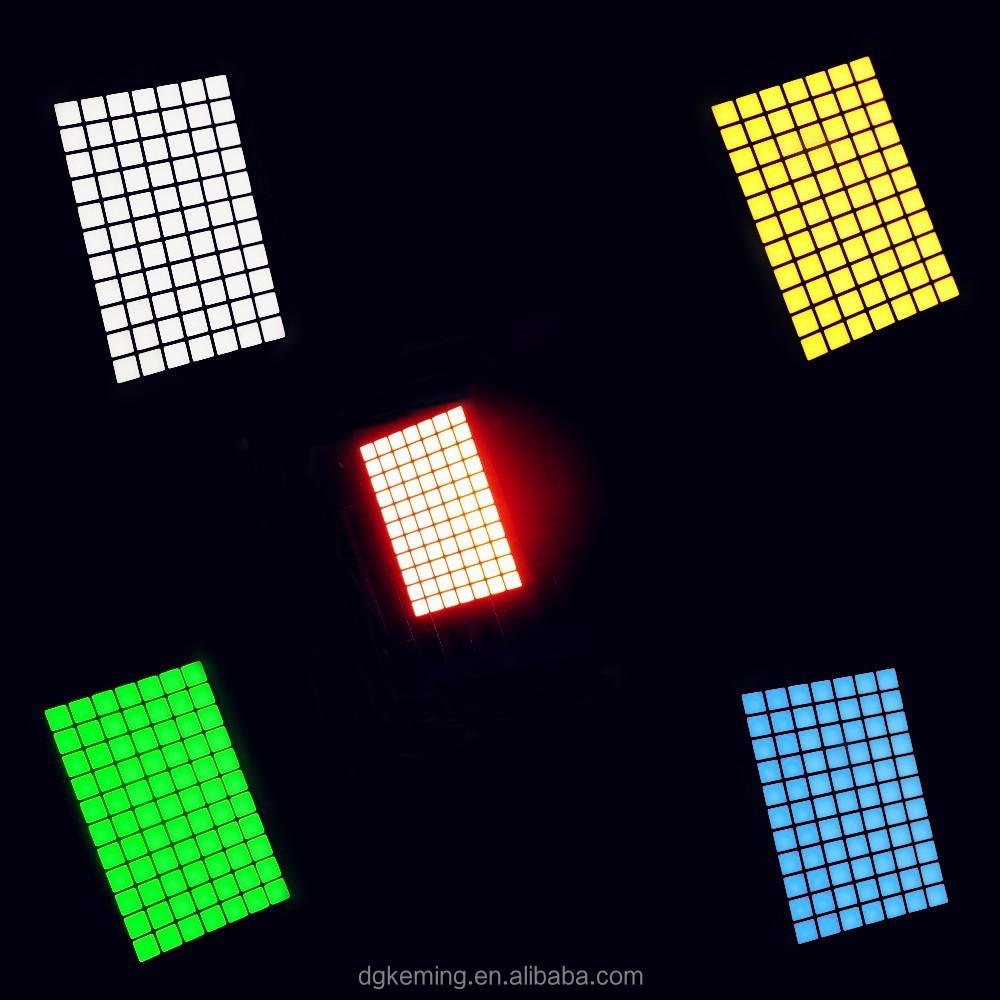

3. What LED colors are available for this matrix display?
The standard model is available in super red, while other colors can be customized according to project requirements.
Available LED colors include red, green, blue, white, amber, and other options.
4. Does this 11x7 LED display support elevator applications?
Yes, this module is designed for applications such as elevator floor indicators and direction displays.
Its compact structure and high brightness make it suitable for elevator control systems.
5. What quality certifications does Houkem provide?
Houkem LED display products comply with CE, RoHS, REACH, and ISO9001 quality standards.
Each product is inspected before delivery to ensure reliable performance for global customers.
Contact Houkem for Custom LED Display Solutions
Looking for a reliable 11x7 LED Dot Matrix Display manufacturer?
Houkem provides factory-direct LED matrix modules with OEM/ODM support, competitive pricing, and professional technical service. Contact us today for datasheets, samples, customization requirements, and bulk quotations.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
