11x7 LED Matrix Display 3x3mm Dot Module
11x7 LED Matrix Display 3x3mm Dot Module
Product Overview
HOUKEM11x7 LED Matrix Display is a high-quality LED dot matrix module designed for industrial indicators, elevator displays, digital signs, and customized electronic equipment. With an 11x7 dot lattice structure and 3x3mm square dots, this LED display module provides clear visual performance, stable operation, and flexible integration for professional applications.
As an experienced LED display manufacturer, HOUKEM provides OEM and ODM customization services to meet different application requirements. The product supports various specifications, colors, and polarity options, making it suitable for customers requiring reliable LED matrix solutions for large-volume production.
Key Features of 11x7 LED Matrix Display
- 11x7 dot matrix structure for graphic, numeric, and character display applications
- 3x3mm square LED dots for balanced brightness and visibility
- Super red emitting color with uniform light output
- Common cathode and common anode options available
- Low power consumption and stable performance
- OEM/ODM customization support
- CE, RoHS, REACH, and ISO9001 certified manufacturing
The 11x7 LED Matrix Display is manufactured with high-quality LED chips, ensuring consistent brightness and long service life for continuous operation environments.

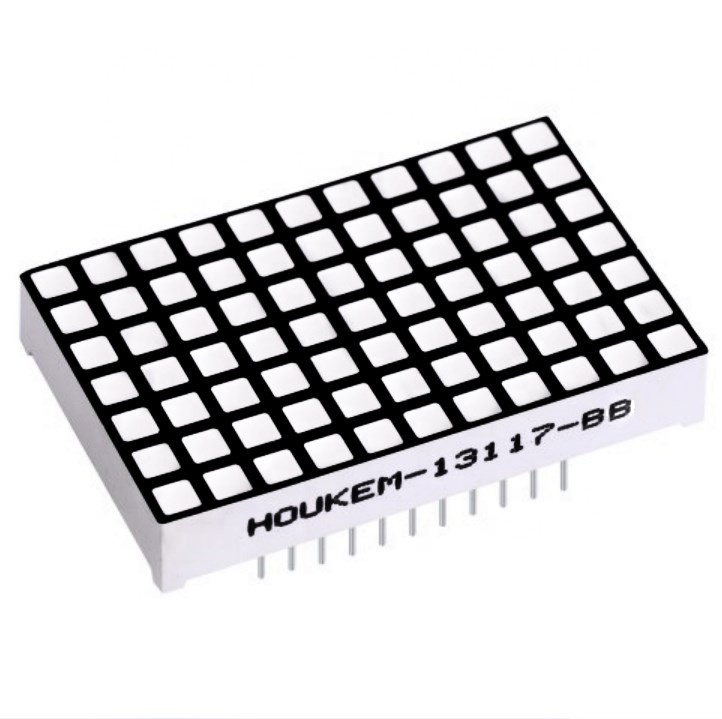

Product Specifications
| Item | Specification |
|---|---|
| Product Name | 11x7 LED Matrix Display |
| Part No. | HOUKEM-13117-A/BSR |
| Dot Lattice | 11x7 |
| Dot Size | 3x3mm |
| Dimension | 44.9 x 28.5 x 8mm |
| Emitting Color | Super Red |
| Luminous Intensity | 80-100mcd/chip |
| Surface Color | Black/Grey |
| Epoxy Color | Milky White/Clear |

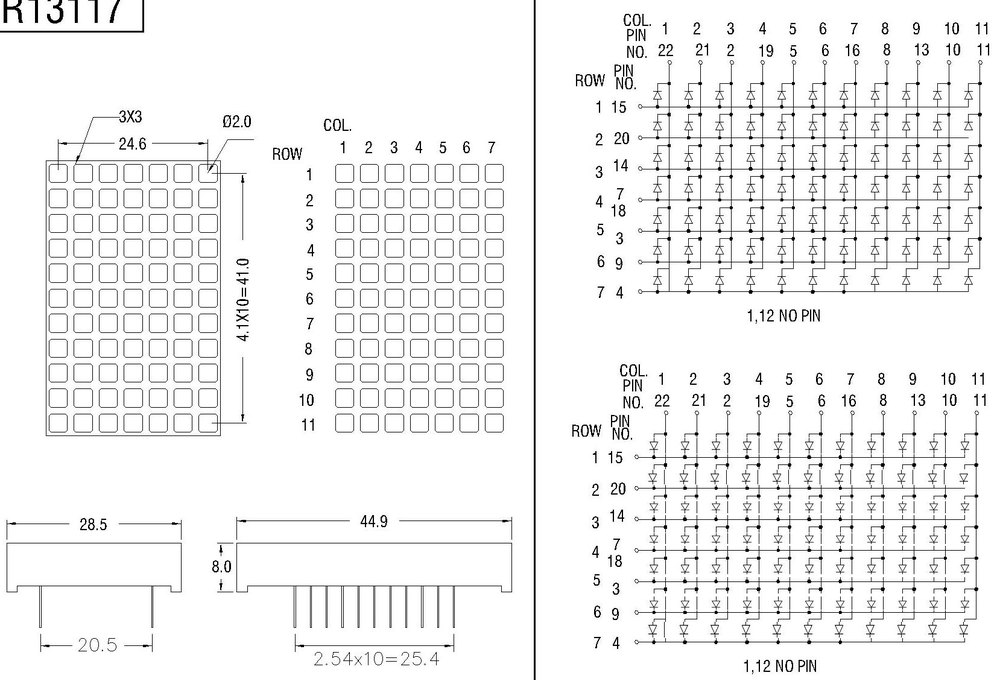

| Polarity | Common Cathode / Common Anode |
| LED Source | Taiwan Epistar LED |
| Warranty | 2 Years |
| Certification | CE / RoHS / REACH / ISO9001 |
The compact size and flexible electrical configuration allow this 11x7 Dot Matrix LED Display to be easily integrated into different control systems and electronic devices.
Applications of 11x7 LED Matrix Display
The HOUKEM 11x7 LED Matrix Display Module is widely used in professional display applications, including:
Elevator Indicator Displays
The compact structure and reliable brightness make this LED matrix display suitable for elevator floor indicators, direction indicators, and numeric information displays.
Industrial Equipment
The module can be integrated into industrial control panels, machine indicators, and automation equipment requiring clear LED information output.
Digital Signs and Advertising Displays
With graphic and text display capability, the LED dot matrix module can support customized information display solutions for commercial environments.
Electronic Devices and Control Systems
The product is also suitable for clocks, home appliances, and other electronic equipment requiring compact LED display components.
Customization and Manufacturing Support
HOUKEM provides professional customization services for customers with different design requirements. Our engineering team can support customized LED matrix solutions including:
- Different LED colors
- Customized dimensions
- OEM logo printing
- Customized electrical specifications
- Special packaging requirements
With more than 19 years of LED manufacturing experience, HOUKEM has developed strong capabilities in LED display production, quality control, and international supply chain service.
Why Choose HOUKEM LED Matrix Displays?
HOUKEM specializes in manufacturing LED display products, including:
- LED dot matrix displays
- 7 segment LED displays
- SMD LED products
- Customized LED modules
- UV LED and IR LED products
Our factory uses advanced production equipment and testing systems to ensure every product meets professional quality standards. All products are tested before shipment to provide reliable performance for global customers.
FAQ
1. What applications are suitable for the 11x7 LED Matrix Display?
The 11x7 LED Matrix Display is commonly used for elevator indicators, industrial equipment, digital signs, and customized electronic displays.
2. Can HOUKEM customize the LED matrix module?
Yes. HOUKEM supports OEM and ODM services, including customized sizes, colors, specifications, and packaging.

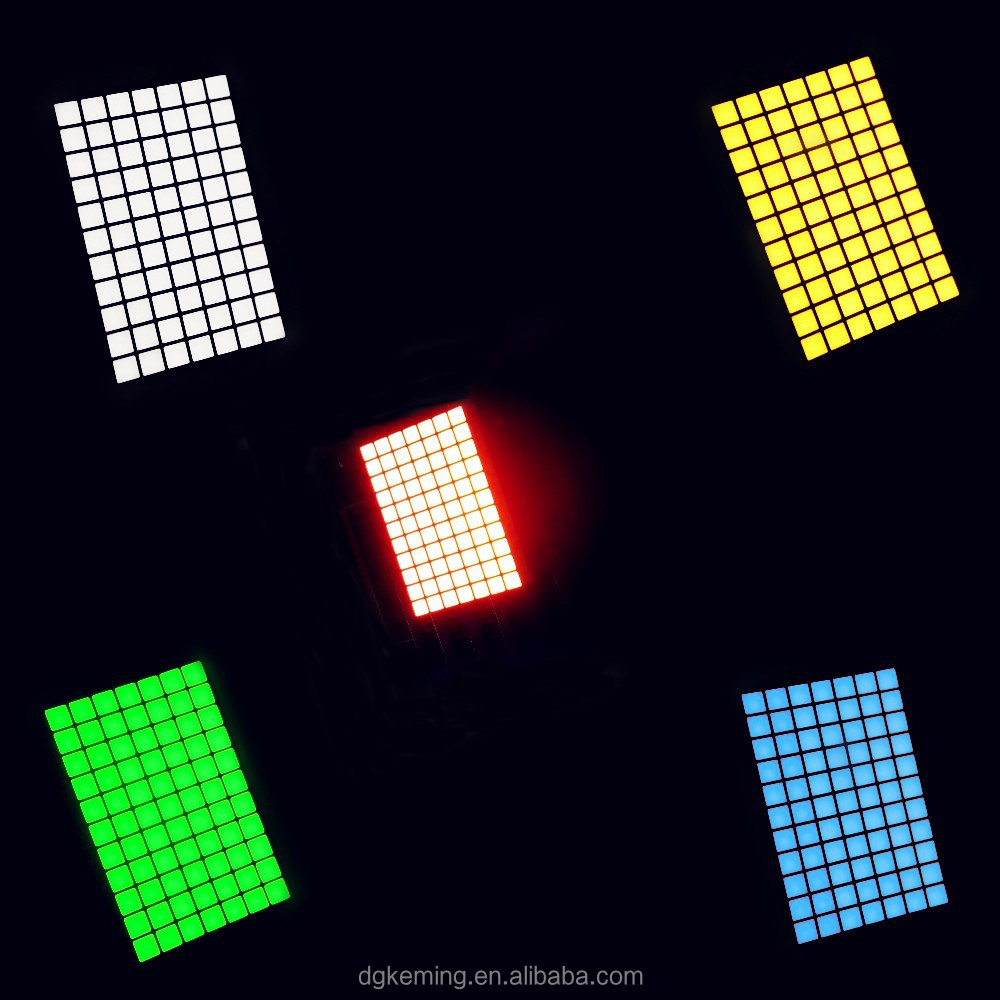

3. What LED colors are available for this display module?
Besides super red, HOUKEM can provide different LED colors according to customer requirements, including green, blue, white, yellow, and bi-color options.
4. Does this LED dot matrix display support different polarity options?
Yes. The product supports both common cathode and common anode configurations for easier circuit integration.
5. What is the minimum order quantity for samples?
HOUKEM accepts sample orders for testing and quality evaluation before mass production.
Contact HOUKEM for Your LED Display Solution
If you are looking for a reliable 11x7 LED Matrix Display manufacturer, HOUKEM can provide factory-direct supply, technical support, and customized LED display solutions.
Contact our team today to get product datasheets, samples, pricing information, and OEM service support for your next LED display project.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
