5x8 Super Red LED Dot Matrix Display
5x8 Super Red LED Dot Matrix Display for Industrial Applications
Houkem 5x8 LED Dot Matrix Display is a compact and reliable LED matrix module designed for industrial equipment, elevator displays, digital clocks, and embedded electronic applications. As an original LED display manufacturer, Houkem provides customized LED display solutions with stable quality, competitive pricing, and OEM support.

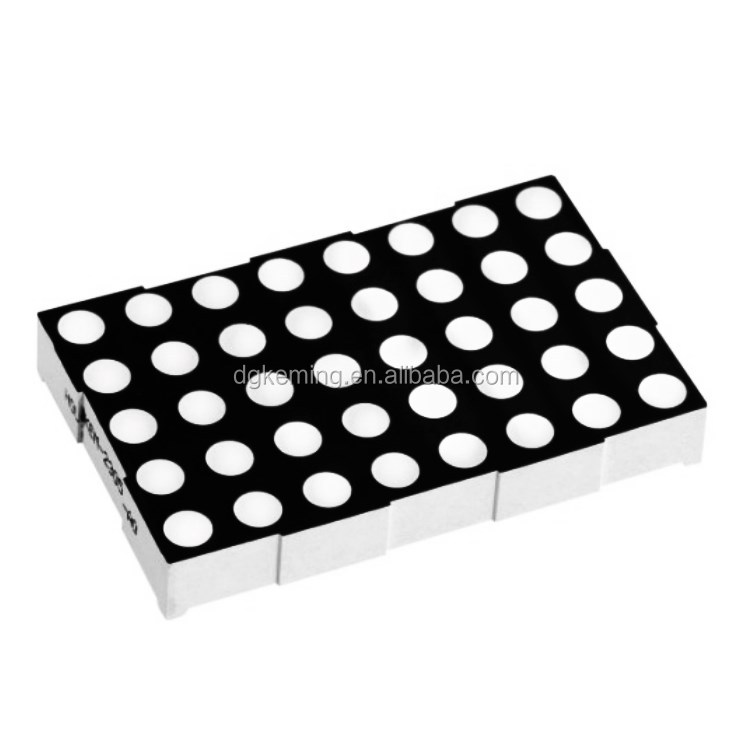

The 1458 LED Dot Matrix Module adopts a 5×8 dot matrix structure with a 3.0mm dot diameter and super red LED chips, delivering uniform illumination, low power consumption, and long operating life. It is suitable for manufacturers requiring durable LED display components for control panels, instruments, and electronic devices.
Product Specifications of 5x8 LED Dot Matrix Display
The Houkem 5x8 LED Dot Matrix Display (Model: Houkem-14058-A/BSR) is manufactured with high-quality LED chips and strict quality control processes to ensure consistent performance for bulk production.
| Parameter | Specification |
|---|---|
| Product Name | 5x8 Super Red LED Dot Matrix Display |
| Model Number | Houkem-14058-A/BSR |
| Display Type | LED Dot Matrix Display Module |
| Dot Matrix Configuration | 5×8 |
| Dot Diameter | 3.0mm |

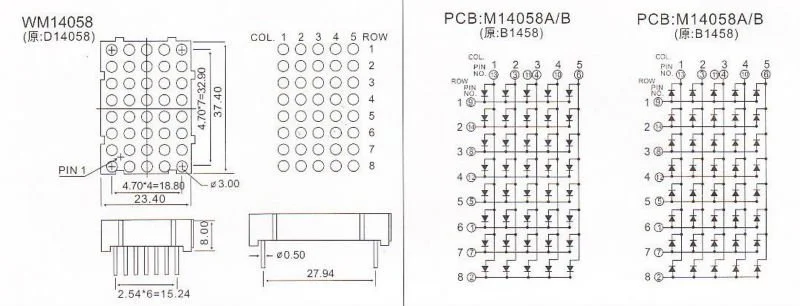

| Dimension | 37.4 × 23.4 × 8mm |

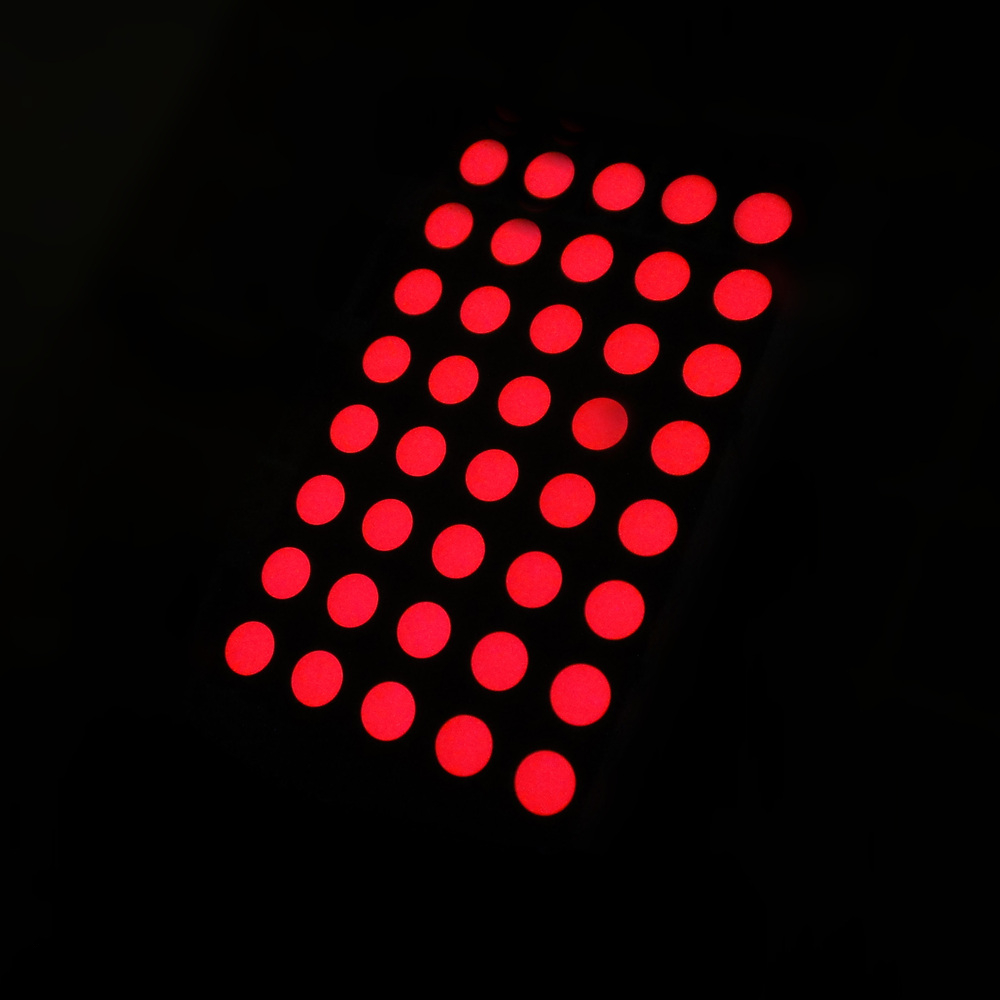

| Emitting Color | Super Red |
| Luminous Intensity | 80-100mcd/chip |
| Polarity | Cathode / Anode |
| Surface Color | Black / Grey |

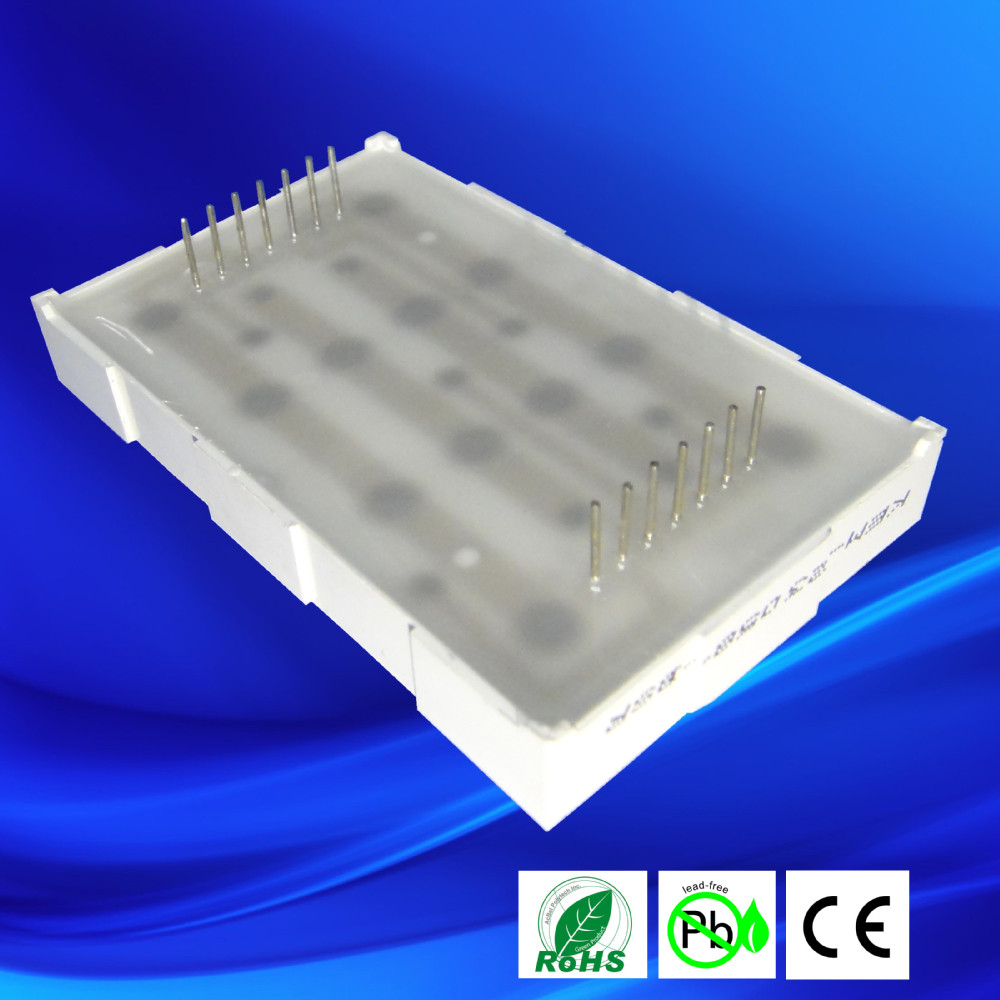

| Epoxy Color | Milky White / Clear |
| Pixel Pitch | 2.54mm |
| LED Source | Taiwan Epistar LED |
| Warranty | 3-5 Years |
| Certificate | CE, RoHS, REACH, EMC |
The compact structure of this 3mm LED Dot Matrix Display allows easy integration into different electronic systems while maintaining excellent brightness and visibility.
Features of 1458 LED Dot Matrix Module
Compact 5×8 Matrix Structure
The 1458 LED Dot Matrix Module uses a standardized 5×8 pixel arrangement, making it suitable for numeric and character display applications where space efficiency is important.
Uniform Brightness and Stable Performance
Each LED pixel provides consistent luminous output, ensuring clear display performance in industrial environments and electronic equipment.
Low Power Consumption Design
The LED matrix module is designed for efficient operation with low current consumption, helping manufacturers improve product reliability and energy efficiency.
OEM and Customization Support
Houkem supports customized LED display solutions according to customer requirements, including LED color, specifications, packaging, and application requirements.

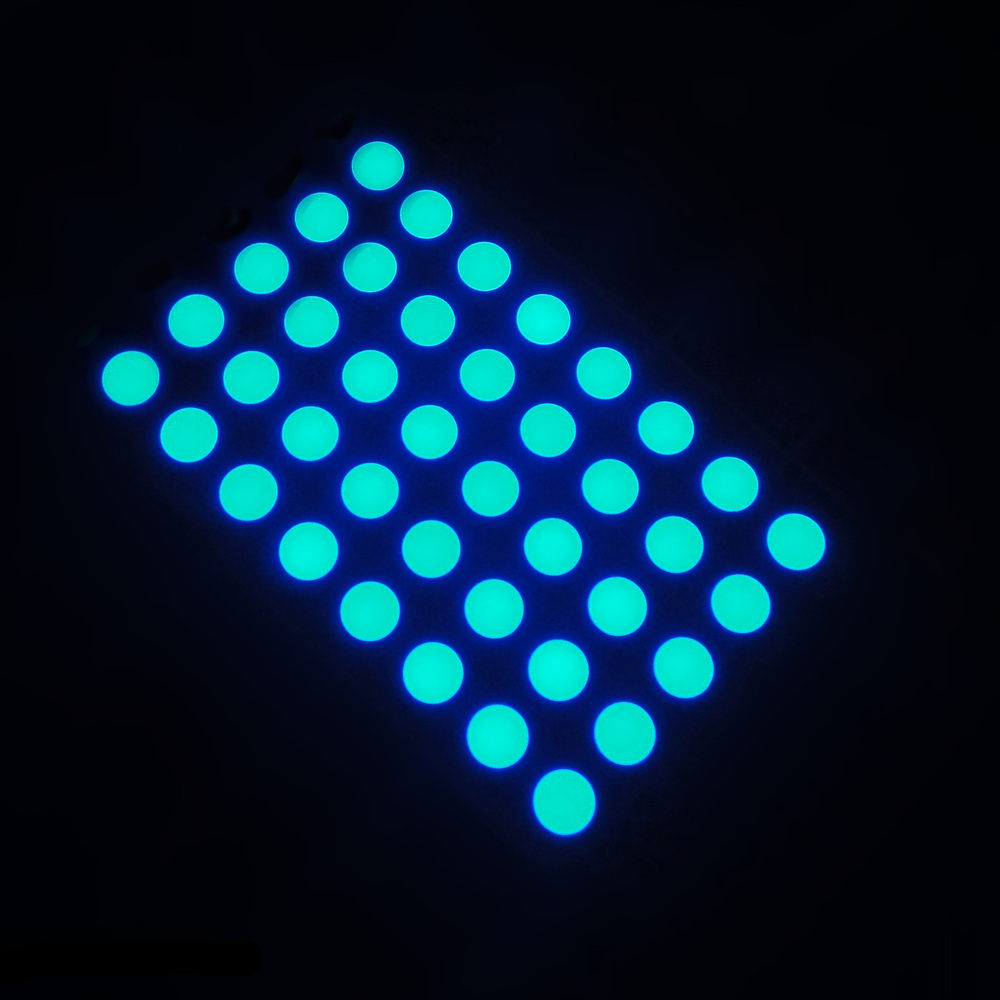

Available LED Colors and Electrical Parameters
Houkem can provide different LED colors and customized specifications according to project requirements.
| Item | Wavelength(nm) | Forward Voltage(V) | Forward Current(mA) | Luminous Intensity(mcd) |
|---|---|---|---|---|
| Super Red | 630-635 | 1.8-2.0 | 18 | 100-150 |
| High Red | 638-660 | 1.8-1.9 | 18 | 15-20 |
| Ultra Red | 620-625 | 2.0-2.1 | 18 | 200-300 |

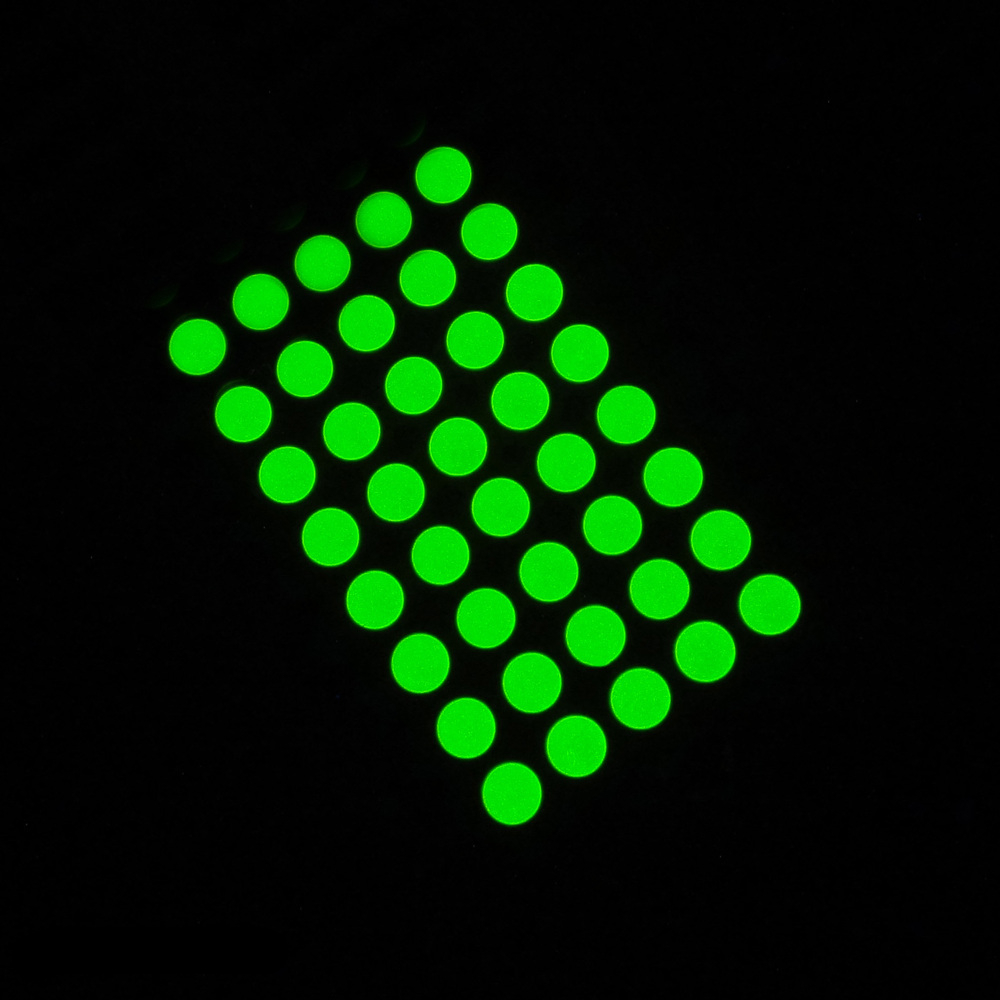

| Super Green | 565-575 | 1.9-2.0 | 18 | 48-55 |
| Pure Green | 615-625 | 2.8-3.0 | 20 | 260-300 |

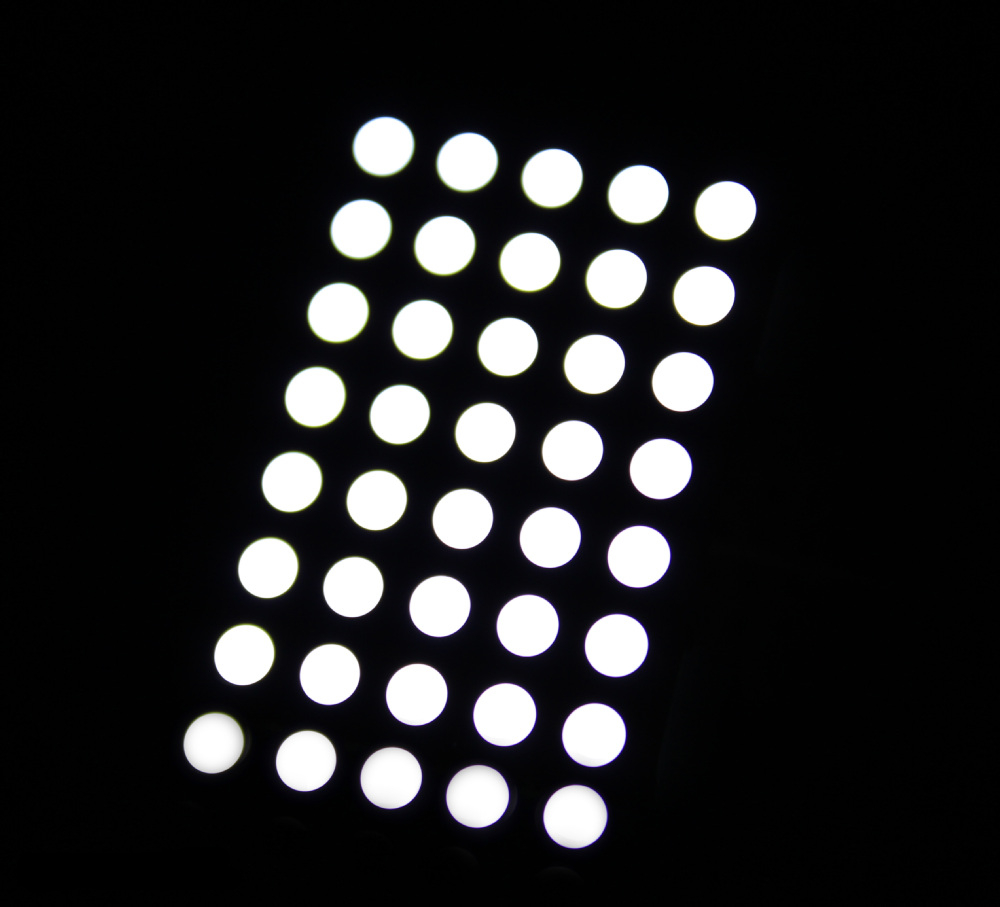

| White | / | 2.6-2.8 | 20 | 200-250 |
| Blue | 465-475 | 2.8-3.0 | 20 | 150-200 |
| Yellow | 580-600 | 1.9-2.0 | 18 | 70-80 |
| Amber | 600-605 | 1.9-2.0 | 18 | 100-110 |
Applications of LED Dot Matrix Display Module
The 5x8 LED Dot Matrix Display is widely used in:
Industrial Equipment Display
Suitable for machine control panels, industrial instruments, and automation equipment requiring clear status indicators.
Elevator Display Systems
The compact LED matrix module can be integrated into elevator floor displays and information panels.
Digital Clock and Timer Display
Used for clocks, counters, and timing devices requiring reliable numeric visualization.
Home Appliance and Electronic Equipment
Suitable for embedded display systems in household and commercial electronic products.
Why Choose Houkem LED Display Manufacturer
Houkem has more than 19 years of experience in manufacturing, developing, and supplying LED display products. With ISO 9001 quality management certification, Houkem specializes in customized LED displays, 7 segment LED displays, dot matrix displays, UV LEDs, and IR LEDs.
As an original manufacturer, Houkem provides:
- Factory-direct pricing
- Professional R&D support
- Customized LED display solutions
- Strict quality inspection before shipment
- Global shipment service from China to customer warehouses
All products are tested before delivery and supported with reliable after-sales service.
Frequently Asked Questions
What is the main application of a 5x8 LED Dot Matrix Display?
This LED matrix module is mainly used for industrial equipment, elevator displays, digital clocks, and embedded electronic devices.
Can Houkem customize the LED matrix display specifications?
Yes. Houkem can customize LED colors, dimensions, packaging, and electrical specifications based on customer project requirements.
What is the difference between a 5x8 LED Matrix Module and an 8x8 LED Display?
A 5x8 LED Matrix Module contains 40 LED pixels and is designed for compact character or numeric displays, while an 8x8 module provides more pixels for larger graphic patterns.
Does Houkem provide samples before bulk orders?
Yes. Sample orders are available for customers to test product performance and confirm specifications before mass production.
What quality certifications are available for this LED display module?
Houkem LED display products comply with CE, RoHS, REACH, and EMC requirements to support international industrial applications.
Contact Houkem for Your LED Display Project
Looking for a reliable 5x8 LED Dot Matrix Display manufacturer for your industrial or OEM project?
Contact Houkem today for product samples, technical support, and customized LED matrix display solutions. Our engineering team is ready to help you select the right LED display module for your application.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
