Houkem 0.2 Inch SMD 7 Segment Display

Houkem 0.2 Inch SMD 7 Segment Display for Compact Electronic Applications

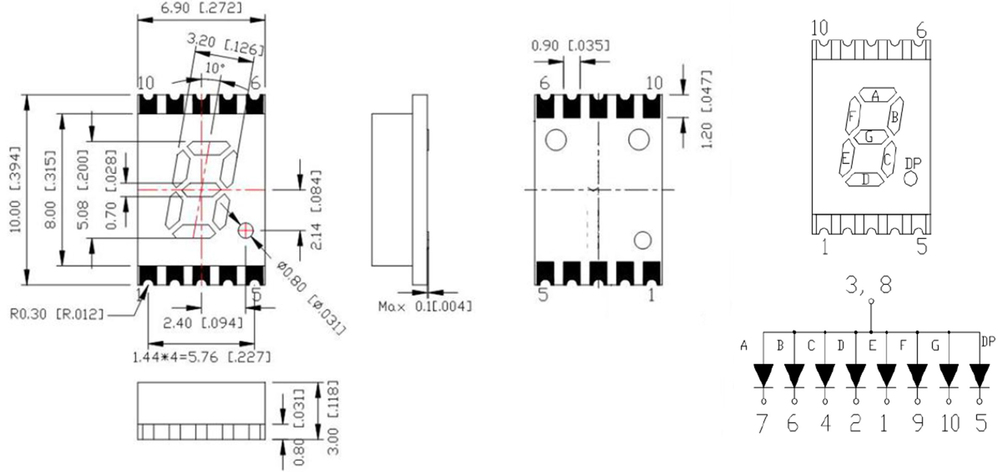

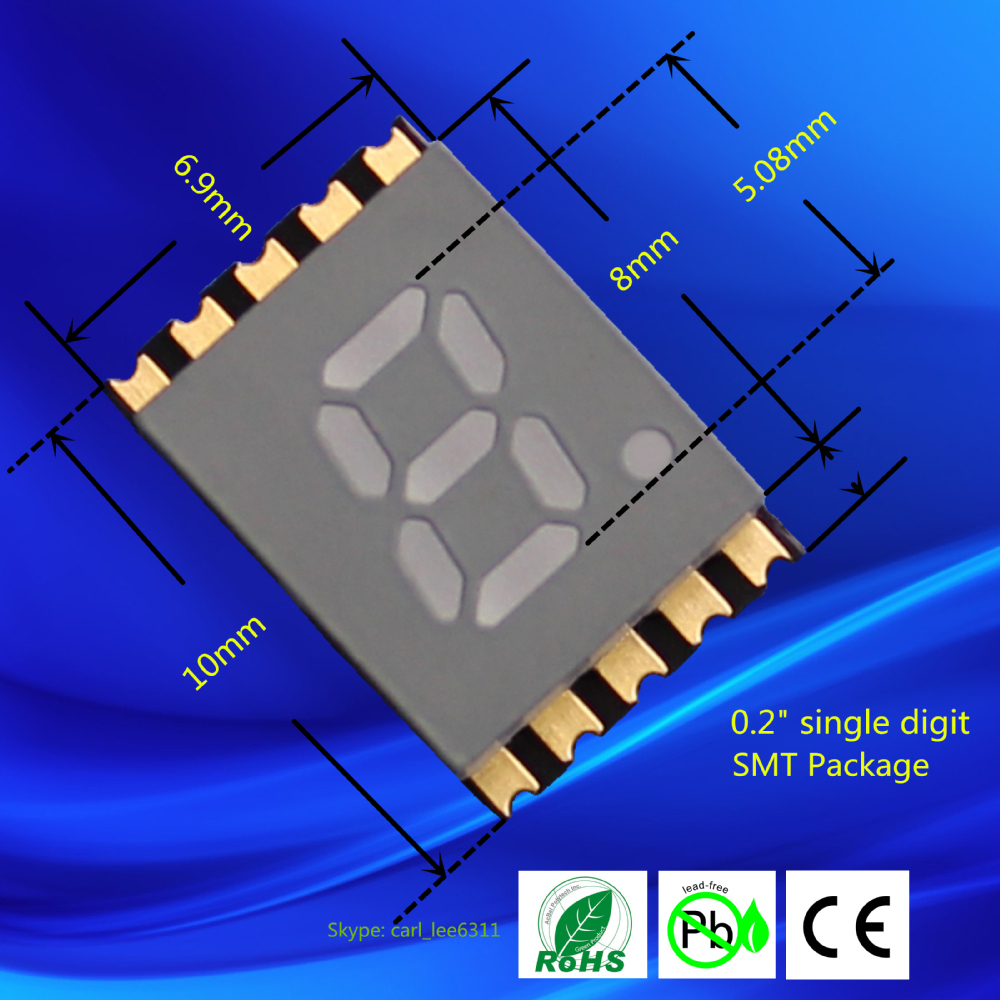

Houkem0.2 inch SMD 7 segment display(Model:KEM-SMD2011-BSR) is a compact single digit LED display component designed for space-limited electronic products. With a small 10 × 6.9 × 3mm package size, surface mount structure, and reliable LED performance, this mini 7 segment display is widely used in PCB-mounted electronic devices, digital indicators, measuring equipment, and control panels.

As a professional LED display manufacturer, Houkem provides high-quality SMD 7 segment LED displays with OEM and ODM customization capabilities. The KEM-SMD2011 series supports multiple emitting colors, including red, green, blue, yellow, and white, allowing customers to select suitable display solutions according to different electronic applications.

Product Specifications

The KEM-SMD2011-BSR is a single digit 0.2 inch SMD 7 segment display featuring low power consumption, stable brightness, and easy PCB integration. It is designed for manufacturers requiring compact numerical display components.

Features of 0.2 Inch SMD 7 Segment Display

Ultra Compact Surface Mount Design

The KEM-SMD2011-BSR adopts an ultra-small SMD package design, making it suitable for electronic products where PCB installation space is limited.

Compared with traditional through-hole LED displays, this 0.2 inch SMD 7 segment display provides a smaller footprint and easier surface mounting process, helping engineers develop thinner and more compact electronic devices.

Single Digit Numerical Display Solution

Thissingle digit SMD LED display is designed for applications requiring simple numerical indication. The compact one-digit structure allows easy integration into control boards, instruments, and embedded electronic systems.

Typical display functions include:

• Digital status indication
• Small counters
• Measurement displays
• Control panel indicators
• Electronic equipment interfaces

Multiple Color Options Available

Houkem can supply different colors for the SMD 7 segment display series, including:

• Red
• Green
• Blue
• Yellow
• White
• Amber
• Bi-color options

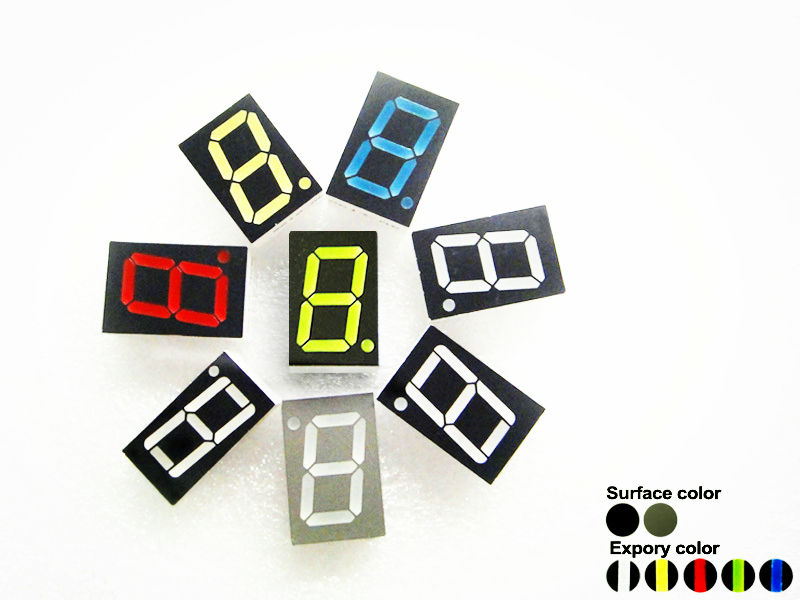

Different surface colors and epoxy colors are also available according to customer requirements.

Low Power Consumption and Stable Performance

The KEM-SMD2011-BSR operates with a low input voltage of 1.8-2.3V and recommended working current of 20mA, providing efficient performance for compact electronic applications.

The display uses reliable LED chips to ensure stable brightness and consistent quality for long-term production.

Applications of Mini 7 Segment LED Display

The0.2 inch 7 segment LED display is widely used in professional electronic products, including:

Electronic Instruments

Suitable for measurement devices, testing equipment, and compact instruments requiring numerical display.

Control Panels

The small size makes it ideal for embedded control boards and industrial equipment indicators.

Consumer Electronics

Used in compact electronic devices requiring simple numeric information display.

Digital Indicators

Applicable for counters, status displays, and customized electronic solutions.

OEM and Custom SMD LED Display Solutions

Houkem supports OEM and ODM projects for customers requiring customized small SMD 7 segment displaysolutions.

Customization options include:

• Different digit sizes
• Multiple LED colors
• Customized polarity
• Special packaging
• Product structure modification

With more than 19 years of LED manufacturing experience, Houkem provides professional support from prototype testing to mass production.

Why Choose Houkem as Your SMD LED Display Supplier

Houkem specializes in manufacturing:

• SMD 7 segment LED displays
• 7 segment LED displays
• 14 segment displays
• Dot matrix LED displays
• Customized LED display solutions

Our products are manufactured under strict quality control standards and are suitable for global B2B customers requiring stable supply, competitive pricing, and technical support.

Available services include:

• Datasheet supply
• Sample testing
• OEM customization
• Bulk production
• Global delivery support

FAQ

Q1: What is the main advantage of the 0.2 inch SMD 7 segment display?

The main advantage is its ultra-compact size, which allows installation in small PCB spaces and compact electronic devices.

Q2: Is the KEM-SMD2011 available in different LED colors?

Yes, Houkem supplies red, green, blue, yellow, white, amber, and customized color options.

Q3: Can Houkem customize this single digit SMD LED display?

Yes, OEM and ODM customization are available for dimensions, colors, polarity, and packaging requirements.

Q4: What applications use this mini 7 segment LED display?

It is commonly used in electronic instruments, control panels, counters, measuring devices, and embedded systems.

Q5: Can customers request samples before bulk orders?

Yes, Houkem provides samples and technical datasheets for customer evaluation before mass production.

Contact Houkem for Your LED Display Project

Looking for a reliable 0.2 inch SMD 7 segment display manufacturer?Contact Houkem today for product samples, technical support, and customized LED display solutions for your electronic applications. Our team provides professional OEM services for global electronic manufacturers and distributors.
