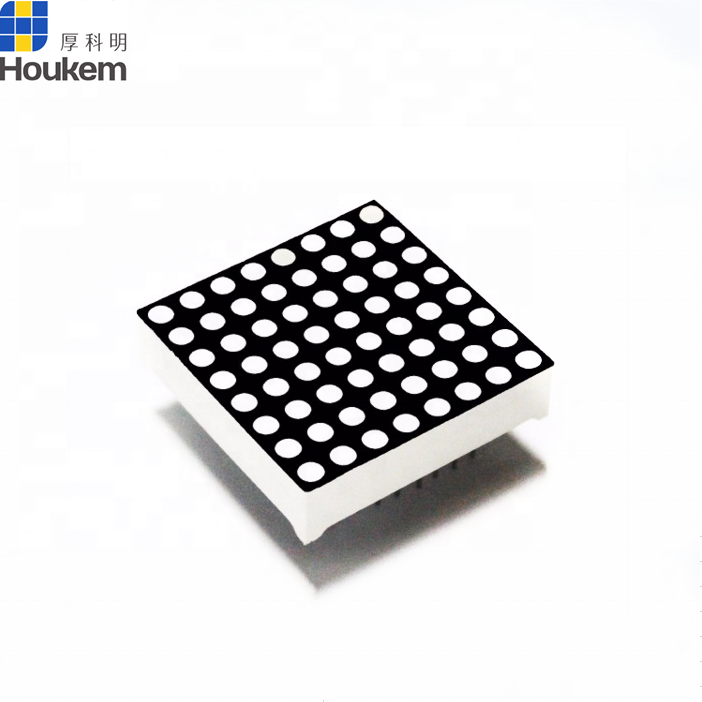

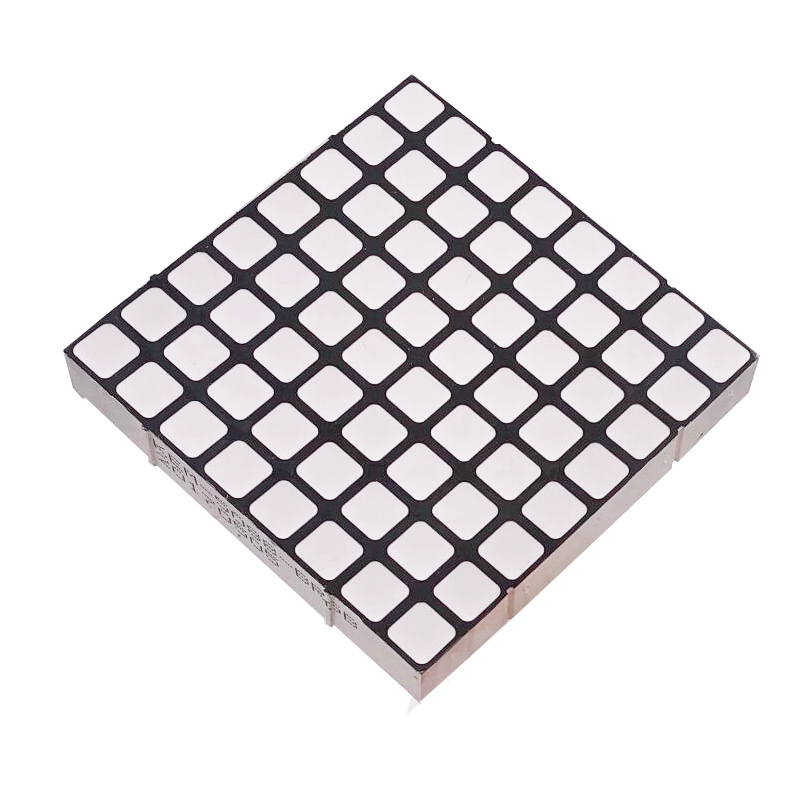

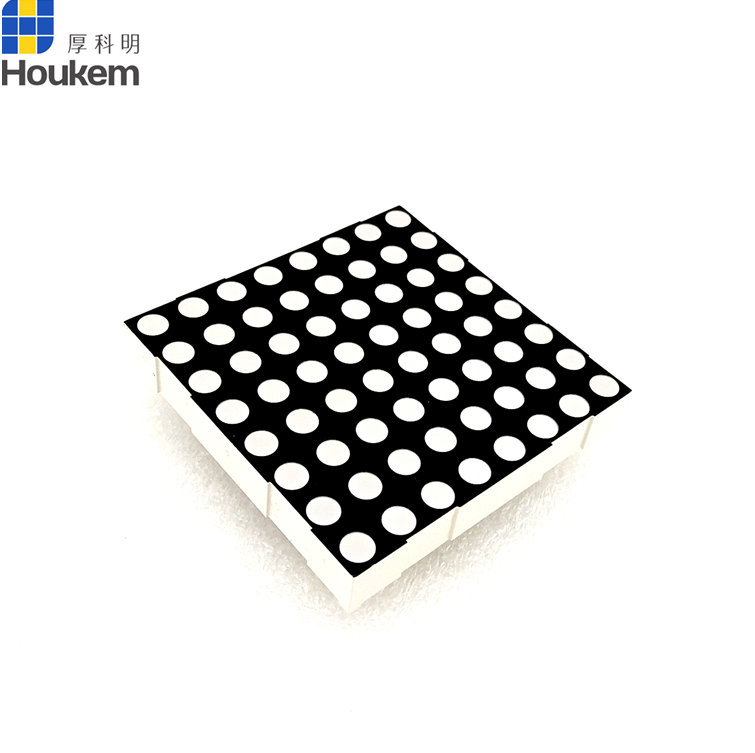

white 8x8 big square led dot matrix display
- Application:Indoor, Indoor, elevator,Graphics
- Color:white
- Panel Size:60.2*60.2mm
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet, Photo
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-5088-BW
- Brand Name:HOUKEM
- use:advertising publish
- Pixels:2.54mm
- Specification:--
- Product name:8*8 led dot matrix
- DOT:60.2*60.2*9.2mm
- Warranty:2Years
- Luminous Intensity:180-200mcd
- Forward Voltage:2.8-2.9v
- PCB Polarity:common anode
- operating temperature:-35 ~ +50 ℃
- OEM:YES
- Custom made:YES
- Certificate:CE ROHS ISO9001 REACH
6mm square 8x8 dot matrix display 60.2*60.2mm white color
Features:
1, Low consumption
2, High brightness
3,High intensity and reliability
4,Easy assembly

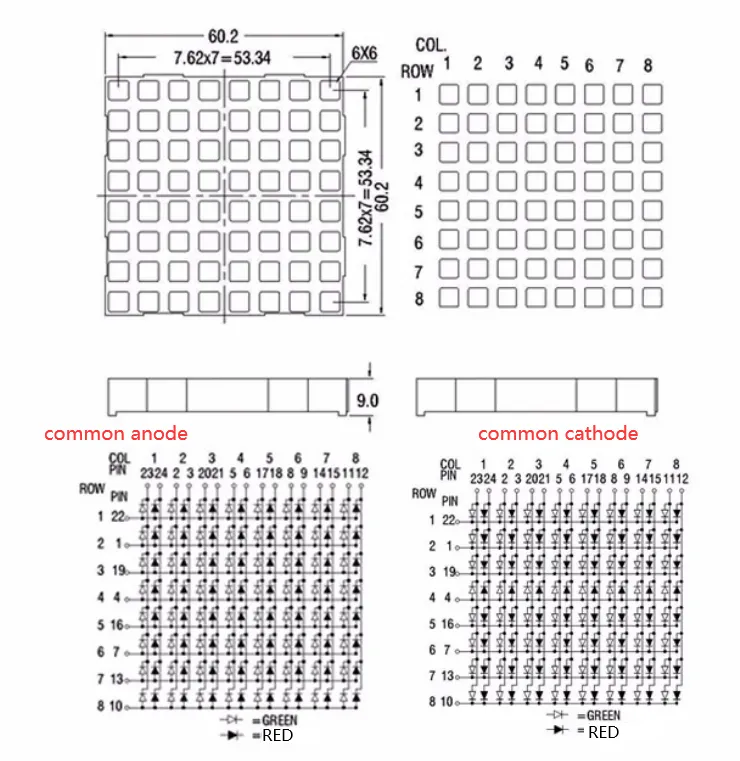

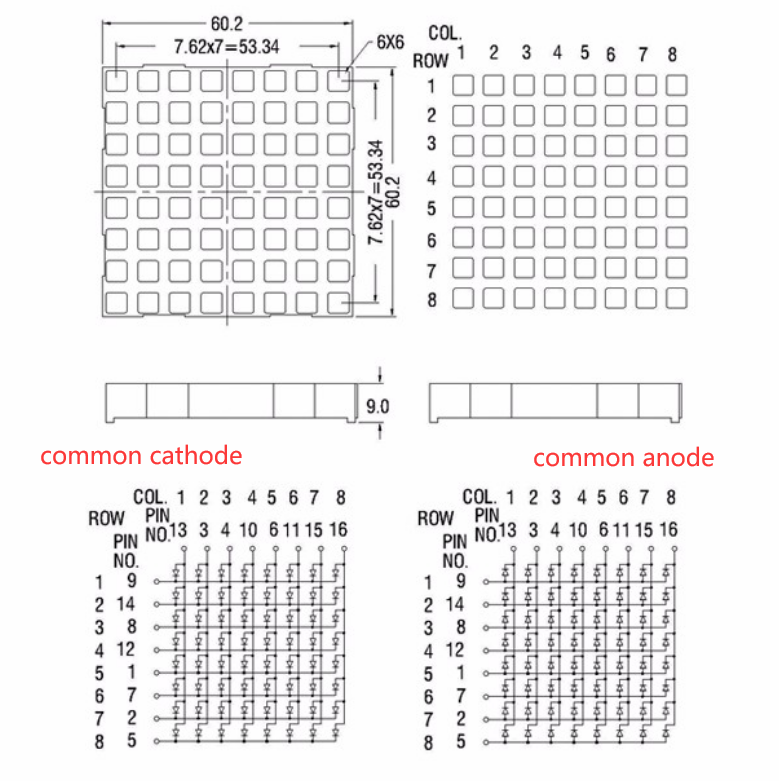

Package dimension & Internal circuit diagram
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=15mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=15mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red 1 | IF=15mA | 620-625 | 20 | 1.8 | 2.0 | 200 | 210 |
Ultra red 2 | IF=15mA | 620-625 | 20 | 1.8 | 2.0 | 300 | 350 |
High red | IF=15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=15mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=15mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=15mA | 465-475 | 40 | 2.95 | 3.0 | 150 | 200 |
Pure green | IF=15mA | 515-525 | 40 | 2.95 | 3.0 | 600 | 640 |
White | IF=15mA | - | - | 2.8 | 2.9 | 180 | 200 |
Product details:
| Item No. | HOUKEM-5088-BW |
| Dimension | 60.2*60.2*9.2mm |
| square dot | 6mm |
| Surface color | Black / Grey/ white |
| Segment color | White /Clear |
| chip | smd type |
| Emitting color | white |
Dual color
Customized product are available
Custom service:
1. We can supply you all kinds of 7 segment LED display
---Digit size: from 0.25"to 20"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 14 segment both available
3. Various colors: super red, ultra red, high red, yellow green, pure green, super green,
pure green, blue, yellow, white, amber, Bi-color, RGB.

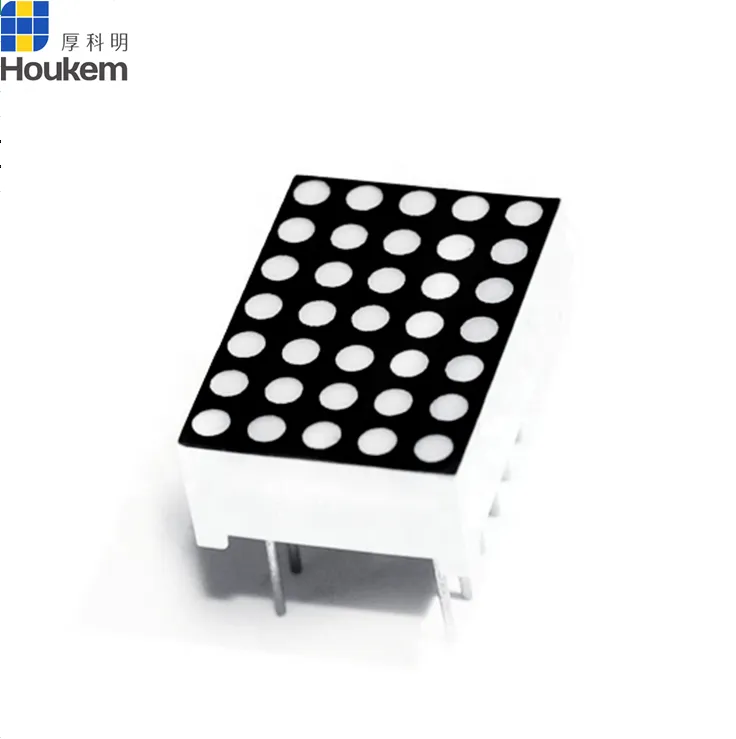

4.Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
