wholesale price 1 watt 3535 high radiant power 265nm 270nm 1W germicidal UVC led for Disinfection lamp
- Color Temperature(CCT):265nm
- Input Voltage(V):DC 6V
- Warranty(Year):2-Year
- Type:High Power LED
- Support Dimmer:NO
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):26
- Lifespan (hours):10000
- Working Time (hours):10000
- Chip Material:AlGaInP
- Emitting Color:purple
- Power:1W
- Viewing Angle(°):60
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:1W High Power LED 265nm
- Emitting Colour:puple
- Forward Voltage:5.5-6.5v
- Application:sterilization
- Warranty:2 Years
- Wave length:260-270nm
- warranty:2 Years
- Current:150mA
- Certification:CE, ROHS
255-1550nm are available
High power 1w 265nm uv led
Electrical and optical characteristics (Ta = 25℃, IF=150mA)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 150mA | 6 | 6.2 | 6.5 | V |
Radiant Flux [mW] | mW | IF = 150mA | 20 | --- | 26 | mw |
Viewing Angle | 2θ1/2 | IF = 150mA | ---- | 60 | ---- | Deg. |
Dominate Wavelength | λd | IF = 150mA | 260 | 265 | 270 | nm |
Features and Benefits
• Deep ultraviolet LED
• Low thermal resistance
• SMT solderable
• Lead Free product
• RoHS compliant
• High Luminous intensity
• Long Operation Life
Key Applications
• Blood Analysis
• Phototherapy
• Spectroscopy for Medical &
Scientific application
• Deodorization

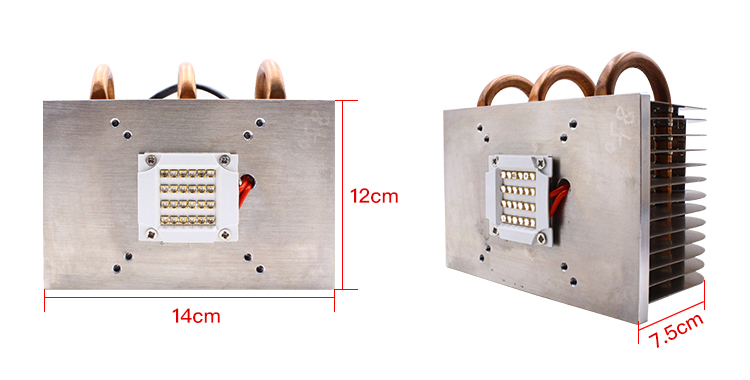

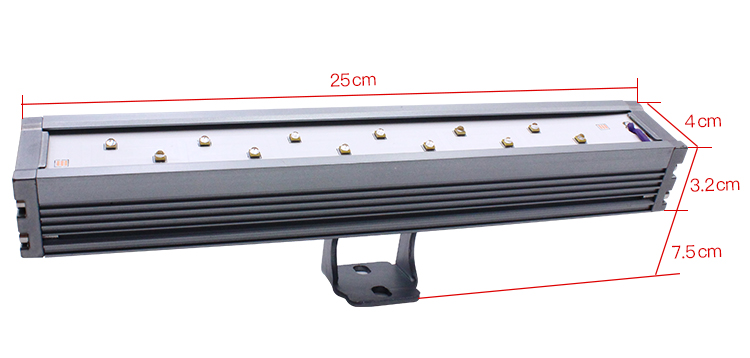

UVC LED sterilizer light
Established in 2003, we are a LED professional manufacturer, we offer led products, high power 255nm to 1550nm LED, COB LEDs,
SMD LEDs, street light LED, LED optical lens, uvc led sterilizer light, 10w-200w led flood light, and all LED lighting application solution.
1, What will be the delivery time and what will be the mode of payment ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction, Paypal,Western Union.
2. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express, etc since the products isn't too heavy for the transportation.
3. Could you please send me the sample for the same . So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
4. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
