High power 1w ir led 700nm 730nm 760nm 780nm 790nm 810nm 850nm 940nm 970nm 980nm 1000nm 1040nm 1050nm 1060nm 1550nm
- Model Number:HOUKEM-1W-850
- Type:LED
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Package Type:Surface Mount
- Supplier Type:Original manufacturer
- Media Available:datasheet, Photo
- Product name:3W High Power LED 850nm
- Emitting Colour:red
- Forward Current:500mA
- Forward Voltage:1.2-1.4v
- Application:Indoor Light, grow light, stage light
- Warranty:2 Years
- Wave length:850-855nm
- Certification:CE ROHS
- other wavelength:255-1550nm
- Chip size:Epileds 42mil

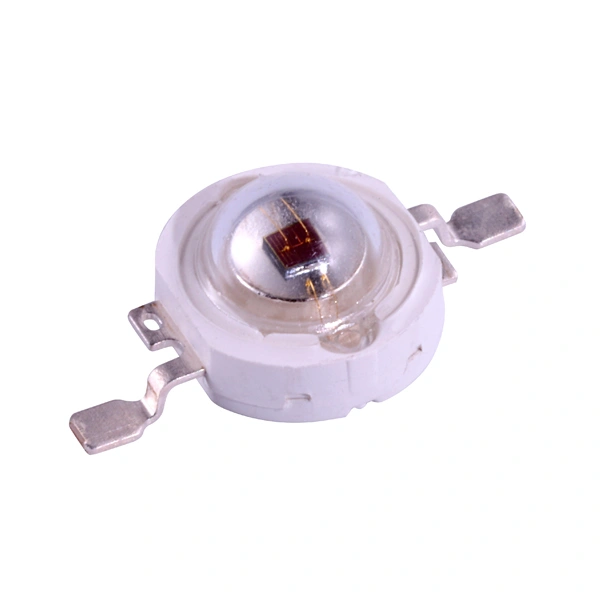

High power 3W 850nm ir led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 500mA | 1.5 | 1.5 | 1.6 | V |
Luminous Flux | Φv | IF = 500mA | 75 | 77 | 80 | mw |
Viewing Angle | 2θ1/2 | IF = 500mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 500mA | 850 | 850 | 855 | nm |
| other IR LED Wavelength | 700-710nm, 730-735nm, 740-745nm, 760-765nm, 780-785nm, 800-805nm,805-810nm, 830-840nm,850-855nm, 880-890nm, 910-920nm, 930-940nm, 940-945nm, 970-980nm, 980-990nm, 995-1000nm, 1010-1020nm, 1040-1050nm, 1030-1035nm, 1345-1350nm,1450nm |
Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1550nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
