Houkem 3 watts IR led diode 820nm 825nm 830nm 835nm 840nm 845nm 850nm 855nm infrared led smd 3535 1w
- Color Temperature(CCT):2700k
- Input Voltage(V):1.5-1.8v
- Warranty(Year):2-Year
- Type:SMD LED
- Support Dimmer:NO
- Lighting solutions service:Lighting and circuitry design, auto CAD layout, Project Installation
- Lifespan (hours):100000
- Working Time (hours):100000
- Product Weight（kg）:0.01
- Chip Material:INGAN
- Emitting Color:IR
- Optical Attenuation(%):98
- Power:1-3w
- Power Dissipation:1
- Viewing Angle(°):30
- Color Rendering Index(Ra):80
- Color Temperature:2700k
- Operating Temperature(℃):-20 - 45
- Storage Temperature(℃):-25 - 85
- Place of Origin:Guangdong, China
- Brand Name:Houkem
- Product name:ir led
- Wavelength:820-855nm
- power:1-3watts
- Forward Current:350-700mA
- Warranty:100000hours
- Radiant flux:90-100mw
- Voltage:1.5-1.8v
- Chip Brand:Epileds
Products Description
Houkem 3 watts IR led diode 820nm 825nm 830nm 835nm 840nm 845nm 850nm 855nm infrared led smd 3535 1w

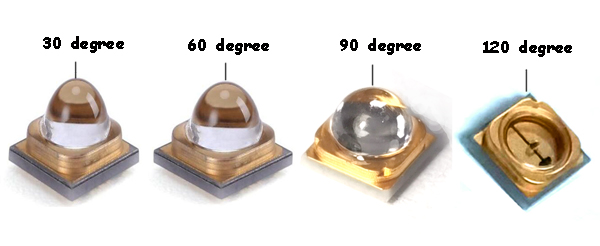

Quarts lens Viewing angle | 30/60/90/120 degree | Wavelength | 820-855nm |
| Package dimension | 3.5*3.5mm | Forward current | 350-700mA |
| Output power | 80-100mw | Forward voltage | 15-1.8V |
| If need other specifications, Please contact with our sales get what you want. | |||
Images Details
Features:
1.Brand chips
2.Mercury-free
3.Ozone free
4. Long Life time:5000hours
5.Small dimension
6.Stable high quality
7.ISO 9001 Factory
3535 smd IR led 820nm 830nm 840nm 850nm 1w
Dimension and internal circuit diagram:
Related productions:
| Package | Viewing angle | Wavelength | Electronic Power | Output power | Forward Voltage | Forward Current |
| 3535 smd led | 30/60/90/120 degree | 250-260nm/ 260-270nm/ 270-280nm | 0.2w | 2-5mw | 5-7v | 20-40A |
| 0.6w | 10-15mw | 5-7v | 100mA | |||
| 6565 smd led | 90/120 degree | 1.2w | 20-25mw | 5-7v | 150-200mA | |
| 3w | 60-80mw | 5-7v | 350-500mA | |||
| 5w | 100-105mw | 5-7v | 500-700mA |

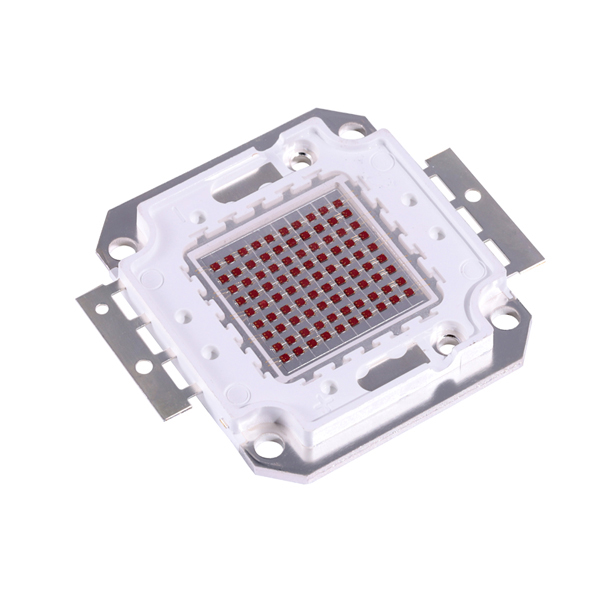

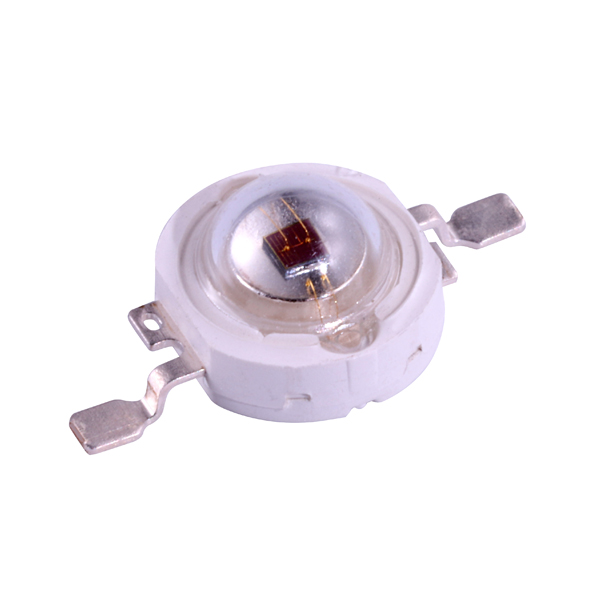

1w-3w IR led 10w-100w IR led
Company profile:
Houkem has 18 years of experience in manufacturing,developing,selling of led products,and
certified by ISO 9001 international quality system.our main products are:customized led display,7
segment smd /led display,dot matrix,uv led & IR led.Our reliable quality and excellent service
acquired high reputation from our customers.Sincerely hope to cooperate with you and create a
bright future!
Certifications
Exhibition:
FAQ:
Q1: Can you accept the sample order?
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 20-30 days for mass production.
Q5: What's your quotation terms?
EXW.
Q6: How about your quality?
Our products are CE, Rohs listed.
Q7: What's your warranty?
With over 18 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested two times before shipment. and have 2 years of warranty.
Q8: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) We provide logistic service door to door (China:to your warehouse), much easier to transport.
