Model NO.
HOUKEM-5021-AA
Price:
USD 0.15-0.50
Minimum order quantity:
1
Quantity:
  • Place of Origin:CN;GUA
  • Application:Graphics, time clock
  • Color:amber
  • Panel Size:25*19mm
  • Pixel Pitch:20MM
  • Model Number:HOUKEM-5021-AA
  • Brand Name:HOUKEM
Product Describtion






 16 PIN led digital display common cathode 0.5'' 2 digit 7 segment led display amber



Features:

1, Low consumption

2, High brightness



Product details:

Item No.HOUKEM-5021-AA
Dimension25*19*8mm
digit height0.5'' (12.7mm)
Surface color  Black  / Grey
Segment colorWhite  /Clear
Emitting color amber

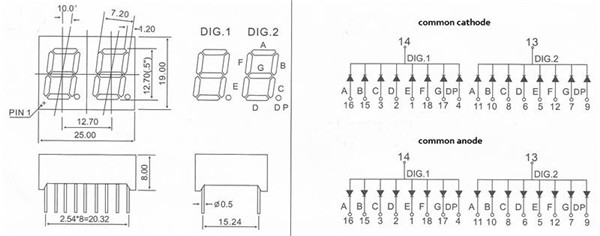

Package dimension & Internal circuit diagram



5021





Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.8

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.8

2.0

48

55

Super red

IF=10-15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF-10-15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=10-15mA

620-625

20

1.8

2.0

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.8

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.8

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.7

2.9

150

200

Pure green

IF=10-15mA

515-525

40

2.7

2.9

180

250

White

IF=10-15mA

-

-

2.7

2.9

180

200









Two years quality warranty

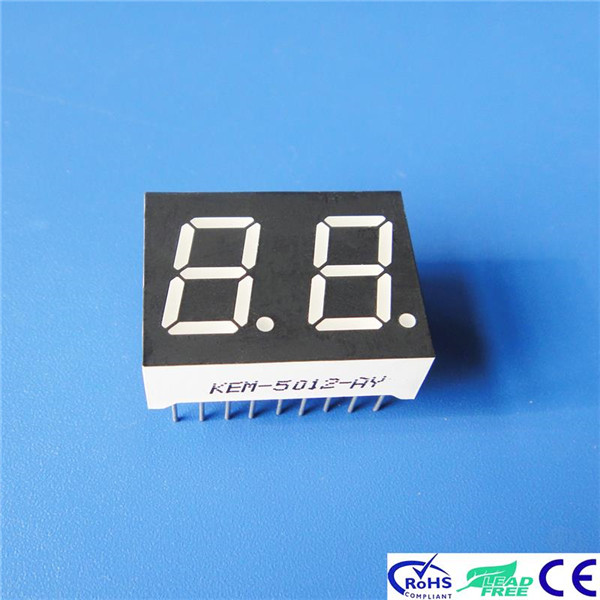

 0.5'' two digit 7 segment led display

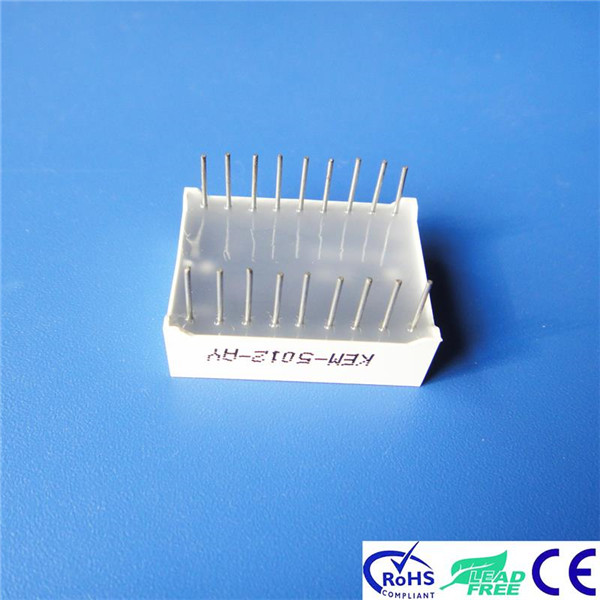

0.5inch dual digits 7 segment display



Our Services

Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

led dot matrix display



7 segment LED display

1 digit0.2'',  0.28'',  0.3'',  0.36'',  0.39'',  0.4'',  0.5'',  0.52'',  0.56'',   0.6'',   0.8'',     1'',    1.2'',   1.5'',    1.8'',      2.3'',   3'',      4'',     5'',   6'',    7'',     8'',     10'',    12'',     16'',  20''
2 digit0.28'',   0.3'',   0.36'',   0.39'',   0.4'',  0.43'', 0.5'',   0.52'',   0.56'',   0.8'',  1'',   1.2'',   1.5''
3 digit0.25'',   0.28'',    0.3'',    0.4'',   0.52'',  0.56'',  0.8''
4 digit0.25'',   28'',  0.3'',  0.36'',    0.4'',    0.5'',     0.56'',  0.8'',   1.2''
5 digit0.28'',    0.36'',    0.56''
6 digit0.3'',    0.36''



14 /16 segment

1 digit0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit0.54''
3 digit0.54''
4 digit0.39'', 0.54''



Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.



Custom 7 segment display are available

custom 7 segment led display

High power led: smd led, red/ green/ blue led, UV/ IR LED





Packaging & Shipping

packing & shipping

Certifications

 Houke-certifictes

Contact us




Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 265nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light,
street light,and all LED lighting application solution, etc.
