Model No: HOUKEM-3032-BSR

miniature 3 digit 7 segment LED display red color 0.3inch triple digit micro led 7 segment display

7 segment led display houkem is 7 segment led display professional manufacturer

Delivery :

EXW

minimum order :

10 pieces

Stock Time :

7-14Day

Country of Origin :

Dongguan/ Guangdong

Quantity :

US $0.22 - US $0.30 / pieces

add to cart

Contact Now

Place of Origin:CN;GUA
Application:home appliance
Color:red
Panel Size:15.5*15mm
Model Number:HOUKEM-3032-BSR
Brand Name:HOUKEM

Product Describtion

0.3 inch 7 segment led display 7.8mm red

Features:

1, Low consumption

2, High brightness

Product details:

Item No.	HOUKEM-3032-BSR
Dimension	15.5157.2mm
digit height	0.3'' (7.8mm)
Surface color	Black / Grey
Segment color	White /Clear/green
Emitting color	super red

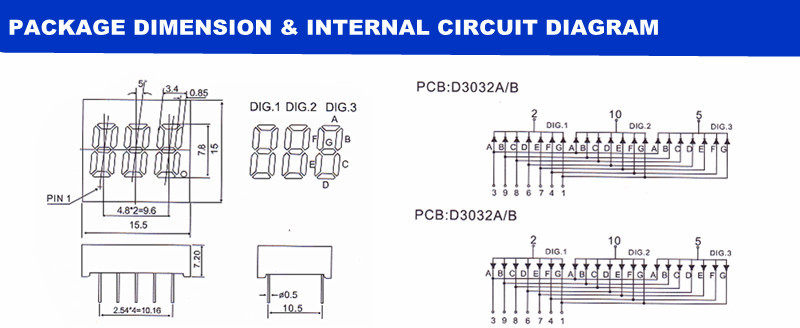

Package dimension & Internal circuit diagram

3031

Two years quality warranty

0.3 Inch 7segment display

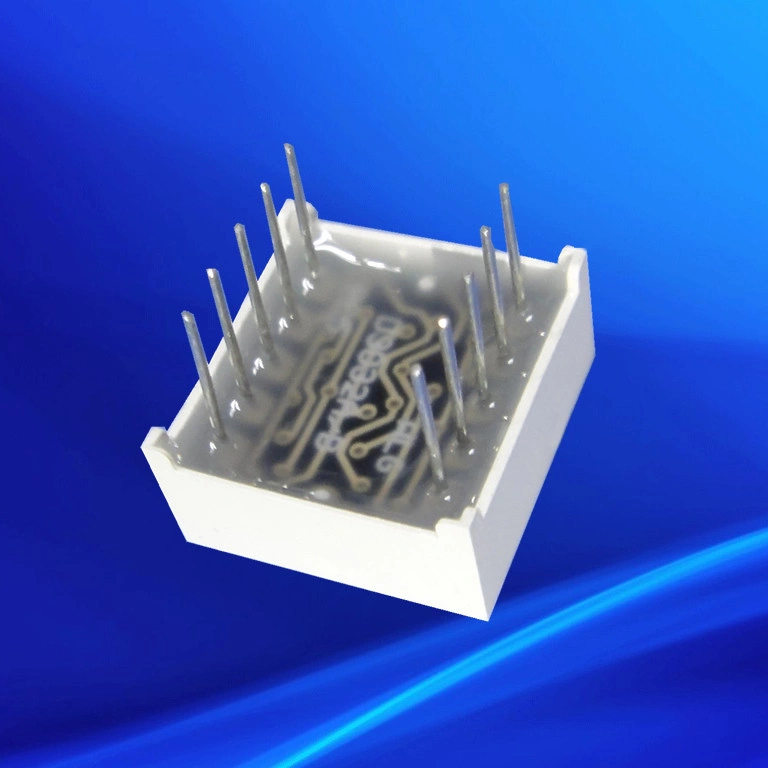

0.3'' single digit 7 segment

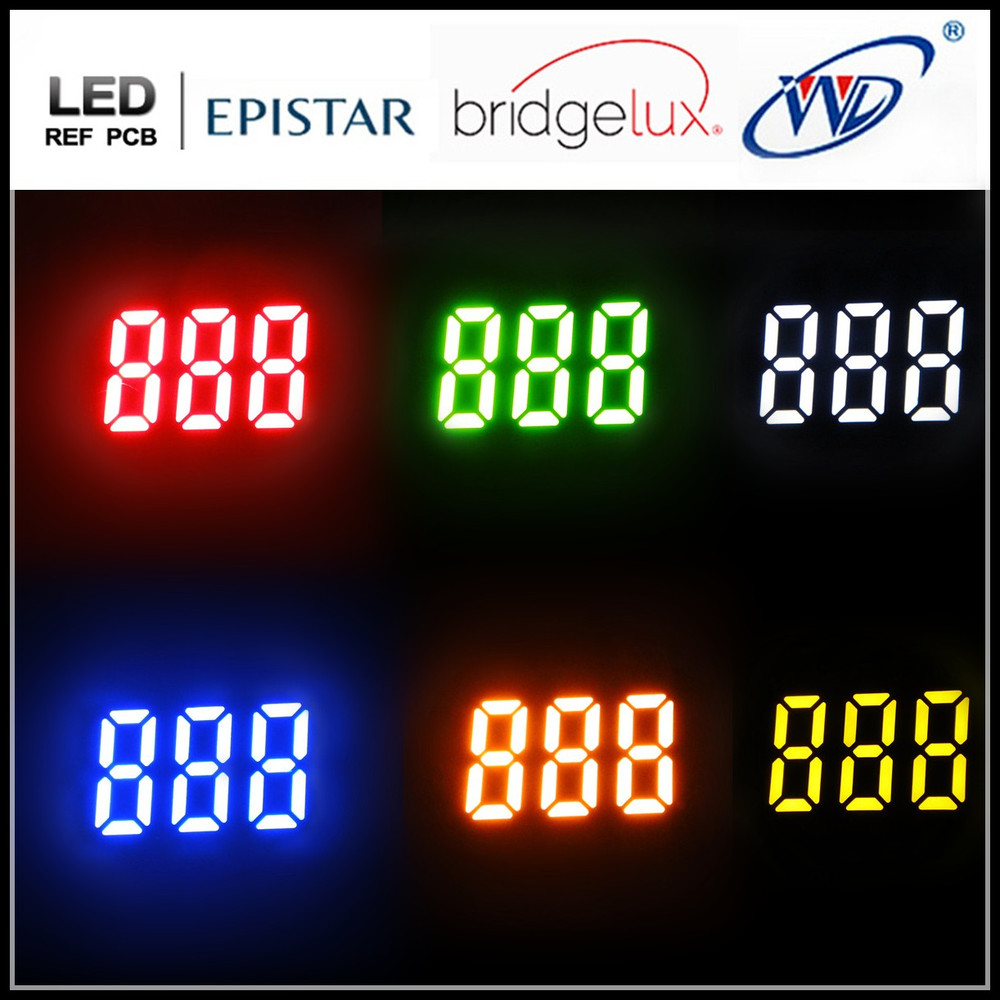

KEM-3031-6COLORS

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)

Emitting Color	Test Condition	Wavelength(nm)		Forward Voltage(V)		Luminous Intensity (mcd)
Emitting Color	Test Condition	(λp)	λ	Typ	Max	Typ	Max
Amber	IF=10-15mA	600-605	30	1.8	2.0	90	100
Super green	IF=10-15mA	565-575	30	1.8	2.0	48	55
Super red	IF=10-15mA	620-625	20	1.8	2.0	110	130
Ultra red 1	IF-10-15mA	620-625	20	1.8	2.0	200	210
Ultra red 2	IF=10-15mA	620-625	20	1.8	2.0	300	350
High red	IF=10-15mA	638-660	20	1.8	1.9	15	20
Yellow green	IF=10-15mA	570-580	30	1.8	2.0	43	50
Yellow	IF=10-15mA	580-600	35	1.8	2.0	70	80
Blue	IF=10-15mA	465-475	40	2.7	2.9	150	200
Pure green	IF=10-15mA	515-525	40	2.7	2.9	180	250
White	IF=10-15mA	-	-	2.7	2.9	180	200

Our Services

Led dot matrix: 57, 58, 88, 117, 16*16

led dot matrix display

7 segment LED display

1 digit	0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit	0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit	0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit	0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit	0.28'', 0.36'', 0.56''
6 digit	0.36'', 0.56''

14 /16 segment

1 digit	0.39'', 0.5'', 0.8'', 1.2'', 2.3''
2 digit	0.54''
3 digit	0.54''
4 digit	0.39'', 0.54''

Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.

Custom 7 segment display are available

High power led: smd led, red/ green/ blue led, UV/ IR LED

Packaging & Shipping

packing & shipping

Certifications

Houke-certifictes

Contact us

Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,

SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,

high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, led grow light,

street light,and all LED lighting application solution, etc.

7 segment dot matrix LED
