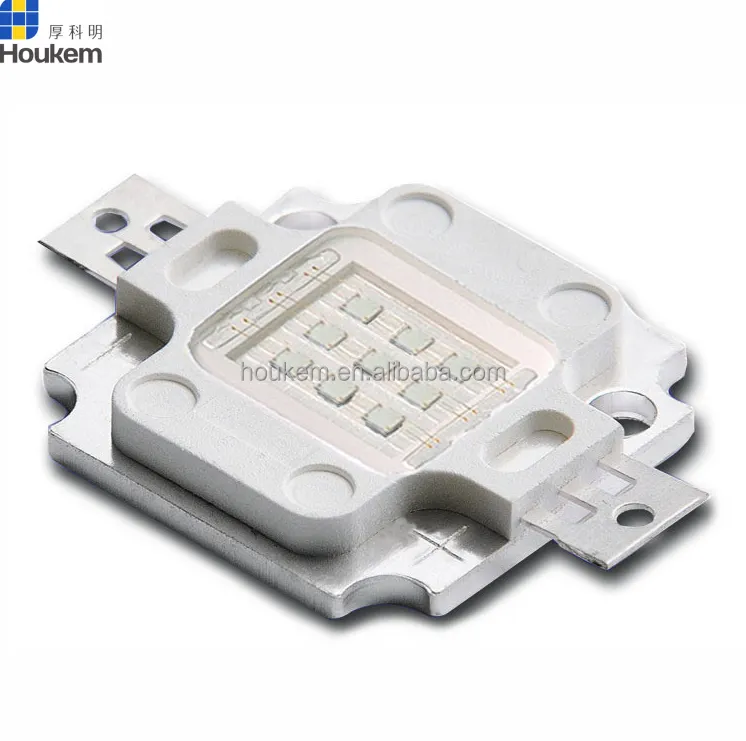

10W High Power 370nm UV LED
370nm UV LED Product Overview
The370nm UV LED from HOUKEM is a high-power UVA light source designed for industrial UV curing, UV coating, UV ink printing, fluorescence excitation, and specialized ultraviolet processing systems. Built with high-quality Epileds chips and a durable red copper PCB substrate, this 10W UV LED delivers stable optical output, excellent thermal performance, and long operational life for demanding commercial applications.
With a wavelength range covering 370-375nm, this high-power UVA LED provides strong ultraviolet energy while maintaining high reliability and low optical attenuation. It is an ideal choice for OEM manufacturers, UV equipment integrators, industrial automation companies, and UV curing system developers seeking dependable UV LED solutions.
Key Features of the 10W High Power 370nm UV LED
High-Efficiency UVA Output
This370nm UV LED produces a radiant power of 3500-4000mW, providing sufficient UV energy for curing, coating, printing, and fluorescence-based applications.
Long Operational Lifetime
Designed for continuous industrial operation, the LED offers:
- Lifespan: 50,000 Hours
- Working Time: 50,000 Hours
- Optical Attenuation: Only 3%
The long service life helps reduce maintenance costs and equipment downtime.
Premium Epileds Chip Technology
The product utilizes Epileds 45mil chips, ensuring:
- Stable wavelength consistency
- High radiant intensity
- Excellent thermal stability
- Reliable long-term performance
Wide Wavelength Options
In addition to the standard 370nm UV LEDand375nm UV LED, HOUKEM supports customized UV solutions covering:
- 365nm UV LED
- 370nm UV LED
- 375nm UV LED
- 385nm UV LED
- 395nm UV LED
- 405nm UV LED
- Other wavelengths from 255nm to 1550nm
This flexibility allows customers to select the optimal wavelength for their specific UV curing or industrial application.
Technical Specifications
Electrical and Optical Parameters
| Parameter | Specification |
|---|---|
| Product Model | HOUKEM-HP10W-375 |
| Product Type | High Power UVA LED |
| Power | 10W |
| Wavelength | 370-375nm |
| Dominant Wavelength | 375nm |
| Radiant Power | 3500-4000mW |
| Forward Voltage | 9-10V |
| Forward Current | 900-1050mA |
| Viewing Angle | 140° |
| Chip Brand | Epileds 45mil |
| PCB Material | 2.0mm Red Copper Plate |
| Lifetime | 50,000 Hours |
| Certification | CE, RoHS |
| Warranty | 2 Years |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -20℃ to +60℃ |
| Storage Temperature | -40℃ to +80℃ |
| Product Weight | 0.03kg |
Applications of 370nm UV LED
UV Curing Systems
The most common application for this 10W UV LED is industrial UV curing. The wavelength range of 370-375nm is widely used in:
- UV adhesive curing
- UV resin curing
- UV coating systems
- UV varnish curing
- Electronic component bonding
UV Ink Printing
Many industrial printing systems utilize 370nm UV LED technology to rapidly cure UV-sensitive inks while improving production efficiency and print quality.
Typical applications include:
- Digital printing equipment
- Label printing machines
- Packaging printing systems
- Screen printing equipment
UV Coating Equipment
Manufacturers of UV coating systems often choose high-power UVA LEDs because they provide:
- Fast curing speed
- Low heat generation
- Energy efficiency
- Consistent UV output
Fluorescence and Inspection Equipment
The wavelength range of 370nm UV LEDand375nm UV LED is commonly used for:
- Fluorescence detection
- Leak detection
- Material inspection
- Anti-counterfeiting verification
- Laboratory analysis
Why Choose HOUKEM UV LEDs?
More Than 20 Years of Manufacturing Experience
Established in 2003, HOUKEM specializes in the development and manufacturing of:
- UV LEDs
- IR LEDs
- COB LEDs
- High Power LEDs
- LED Arrays
- Customized LED Modules
Our products are exported worldwide, including:
- United States
- Germany
- Japan
- South Korea
- Europe and Southeast Asia
OEM and ODM Support
Our engineering team can provide customized solutions including:
- Custom wavelengths
- Customized PCB designs
- Integrated heat sink solutions
- LED module development
- Driver matching support
Strict Quality Control
Each370nm UV LED undergoes rigorous testing before shipment to ensure:
- Wavelength accuracy
- Radiant power consistency
- Electrical stability
- Long-term reliability
FAQ
Can the 370nm UV LED be customized to other wavelengths?
Yes. HOUKEM supports wavelengths from 255nm to 1550nm, including popular options such as 365nm UV LED, 385nm UV LED, 395nm UV LED, and 405nm UV LED.
Is this 10W UV LED suitable for industrial UV curing equipment?
Yes. The high radiant output of 3500-4000mW makes it suitable for UV curing, UV ink curing, and UV coating systems.
Do you provide OEM and private label services?
Yes. We offer OEM and ODM manufacturing, customized packaging, logo printing, and application-specific UV LED module development.
What is the typical lead time for bulk orders?
Sample orders generally require 3-7 working days, while mass production typically takes 1-3 weeks depending on quantity and customization requirements.
How do you ensure product quality consistency?
All UV LEDs undergo wavelength testing, electrical testing, and optical performance inspection before shipment, supported by CE and RoHS compliance standards.
Request a Quote for 370nm UV LED
Looking for a reliable supplier of 370nm UV LED,375nm UV LED, or customized high-power UVA LED solutions?
HOUKEM provides factory-direct pricing, technical support, OEM/ODM services, and customized UV LED solutions for industrial equipment manufacturers worldwide.
Contact our engineering team today to request samples, technical specifications, pricing, or customized UV LED module solutions for your project.
