Model No: HOUKEM-10033-SR

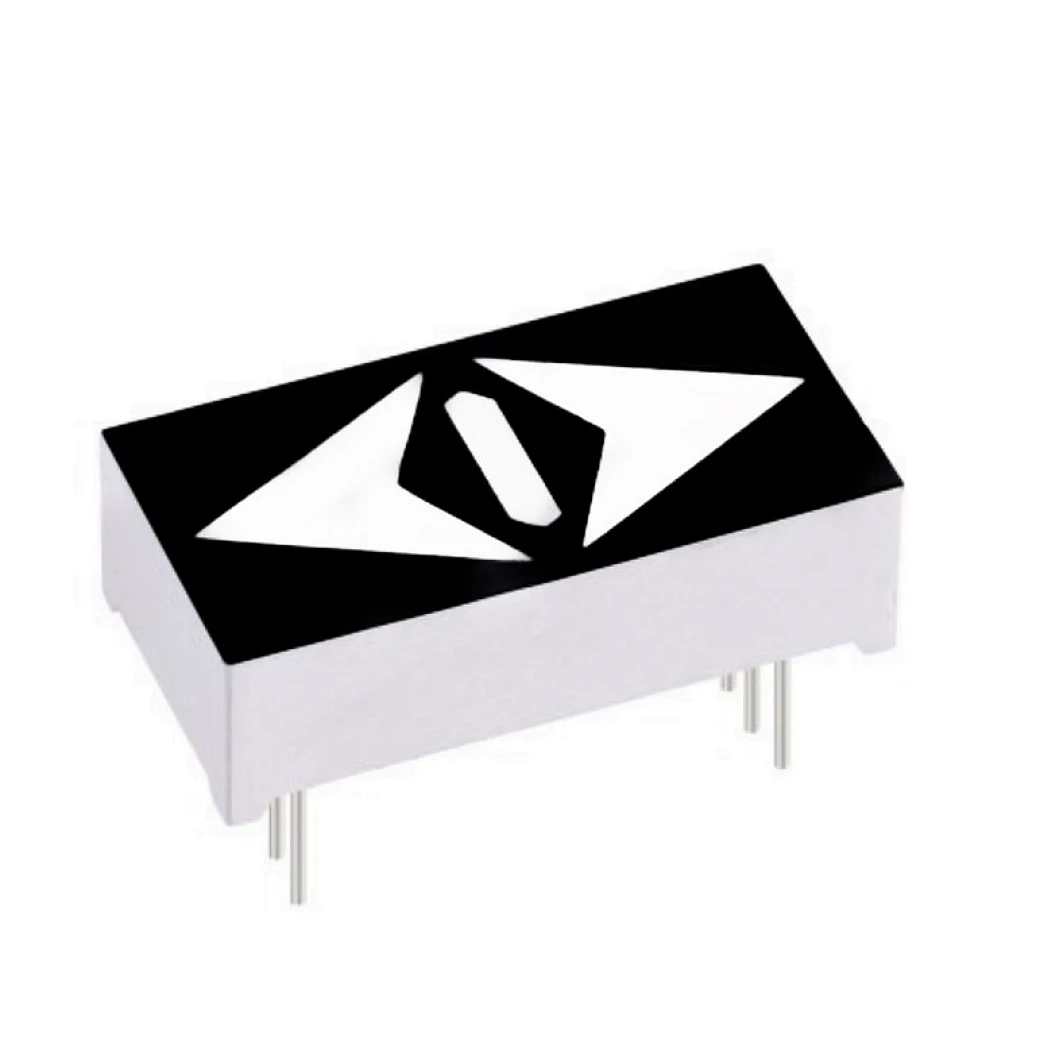

Electronic elevator led arrow display red 1427.68.5mm

Delivery :

FOB

minimum order :

2000

Quantity :

USD0.36 - USD0.38

add to cart

Contact Now

Place of Origin:CN;GUA
Usage:Indoor
Tube Chip Color:Red
Display Function:Graphics
Pixels:25mm
Brand Name:HOUKEM
Model Number:HOUKEM-10033-SR
Screen Dimension:14*27.6mm

Product Describtion

Electronic elevator led arrow diaplay red 14*27.6*8.5mm

Features:

1, Low consumption

2, High brightness

Product details:

Item No.	HOUKEM-10033-SR
Dimension	1427.68.5mm
Surface color	Black / Grey
Segment color	White /Clear
Emitting color	super red

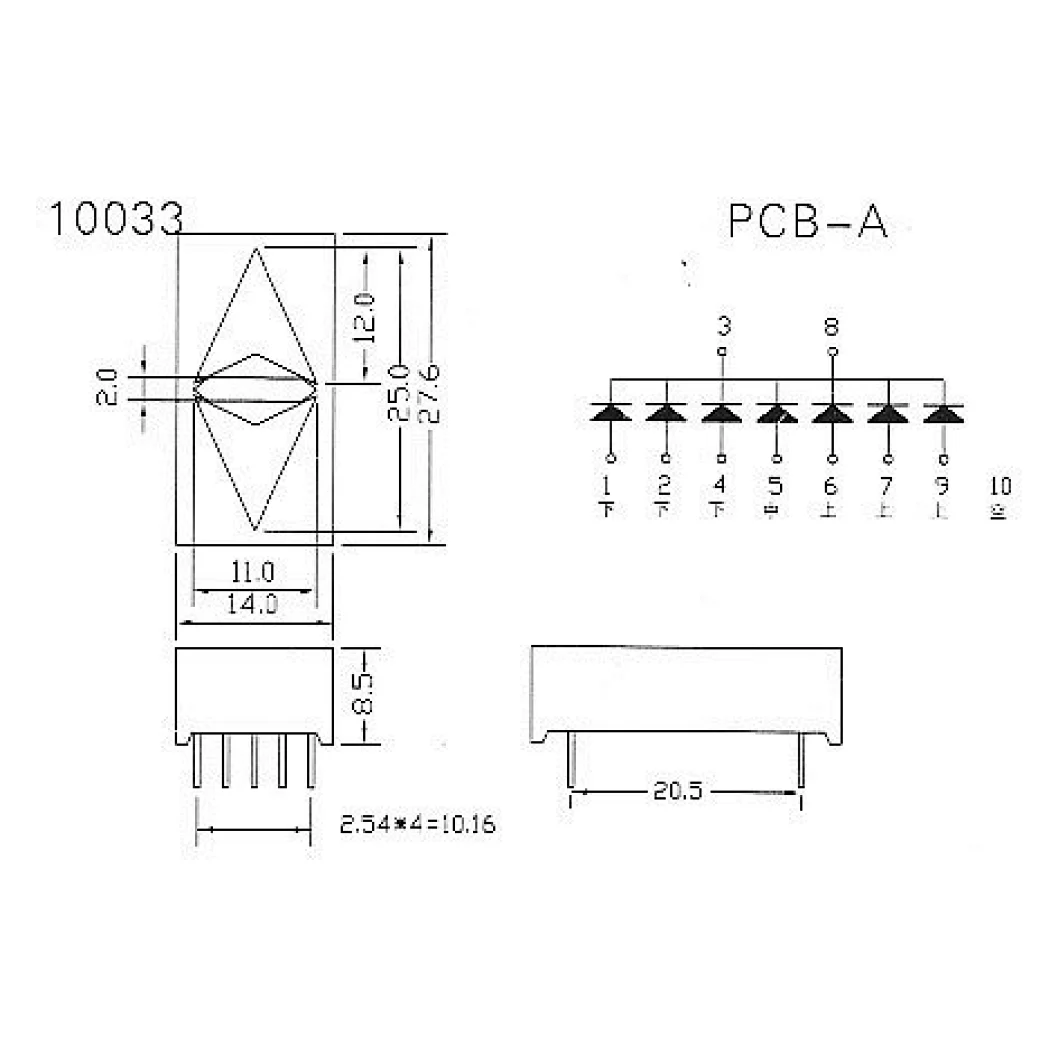

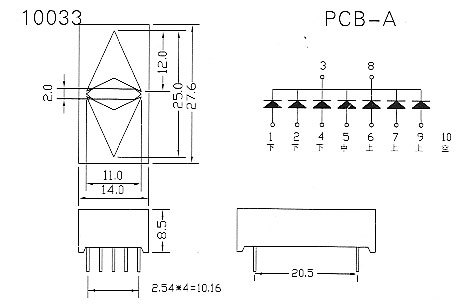

Package dimension & Internal circuit diagram

10033

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)

Emitting Color	Test Condition	Wavelength(nm)		Forward Voltage(V)		Luminous Intensity (mcd)
Emitting Color	Test Condition	(λp)	λ	Typ	Max	Typ	Max
Amber	IF=10-15mA	600-605	30	1.8	2.0	90	100
Super green	IF=10-15mA	565-575	30	1.9	2.0	48	55
Super red	IF=10-15mA	625-640	20	1.8	2.0	110	130
Ultra red	IF=10-15mA	620-625	20	1.8	2.0	300	350
High red	IF=10-15mA	638-660	20	1.8	1.9	15	20
Yellow green	IF=10-15mA	570-580	30	1.8	2.0	43	50
Yellow	IF=10-15mA	580-600	35	1.8	2.0	70	80
Blue	IF=10-15mA	465-475	40	2.7	2.9	150	200
Pure green	IF=10-15mA	515-525	40	2.7	2.9	180	250
White	IF=10-15mA	-	-	2.7	2.9	180	200

Two years quality warranty

Our Services

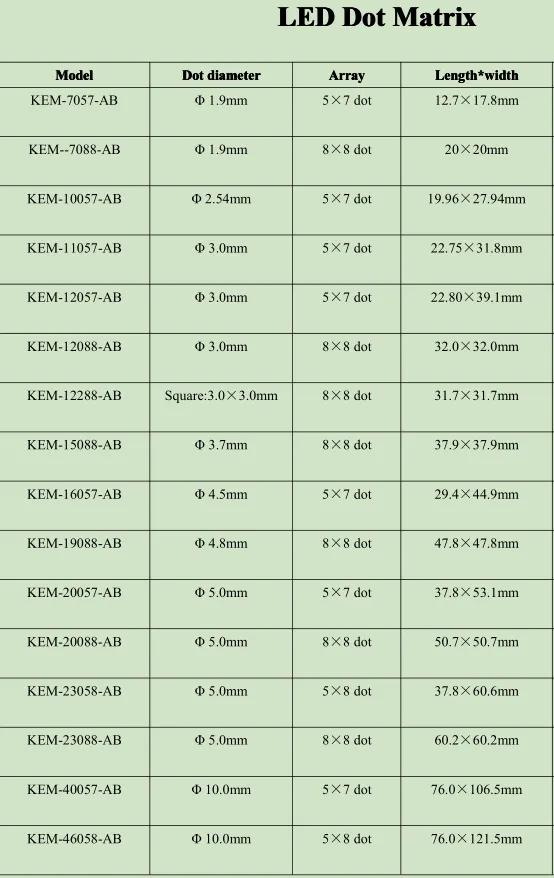

Led dot matrix: 57, 58, 88, 117, 16*16

led dot matrix display

7 segment LED display

1 digit	0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit	0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit	0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit	0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit	0.28'', 0.36'', 0.56''
6 digit	0.36'', 0.56''

14 /16 segment

1 digit	0.39'', 0.5'', 0.8'', 1.2'', 2.3''
2 digit	0.54''
3 digit	0.54''
4 digit	0.39''

Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.

Custom 7 segment display are available

High power led: smd led, red/ green/ blue led, UV/ IR LED

Packaging & Shipping

packing & shipping

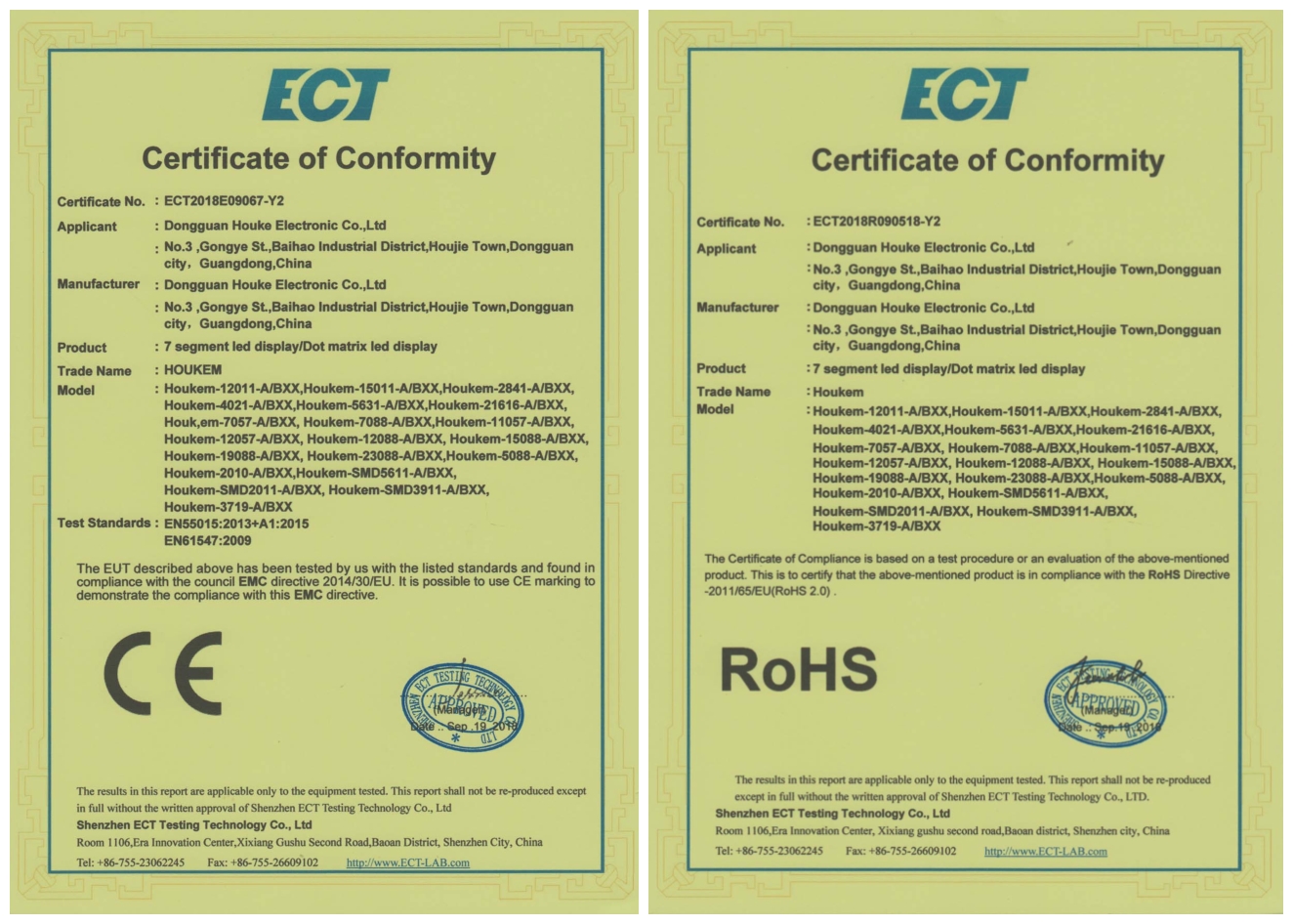

Certifications
