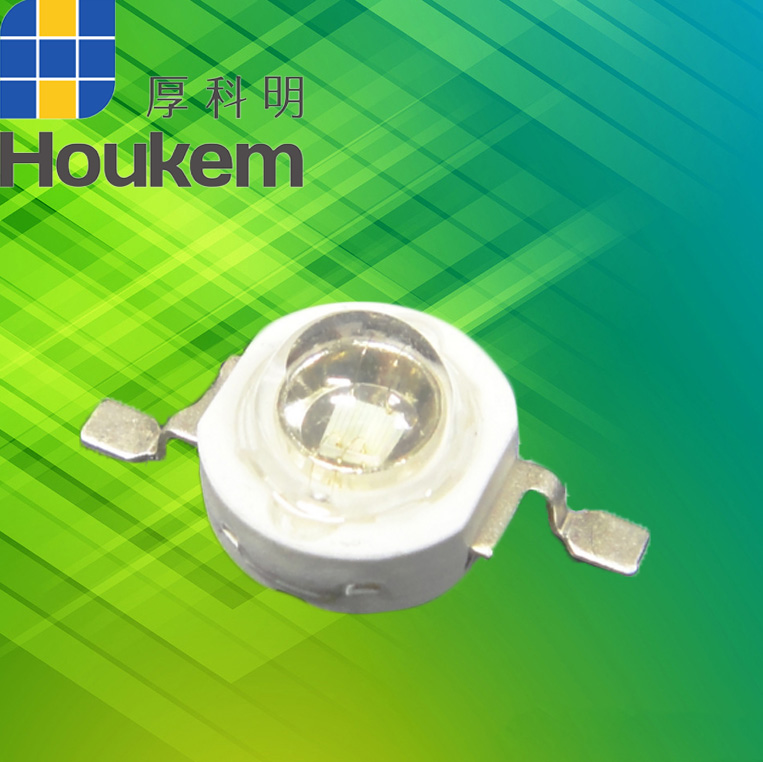

370nm 380nm 390nm 405nm 420nm 410nm 440nm 365nm 3w UV High Power Led Light
- Type:High Power LED
- Chip Material:AlGaInP
- Power:1-3W
- Place of Origin:CN;GUA

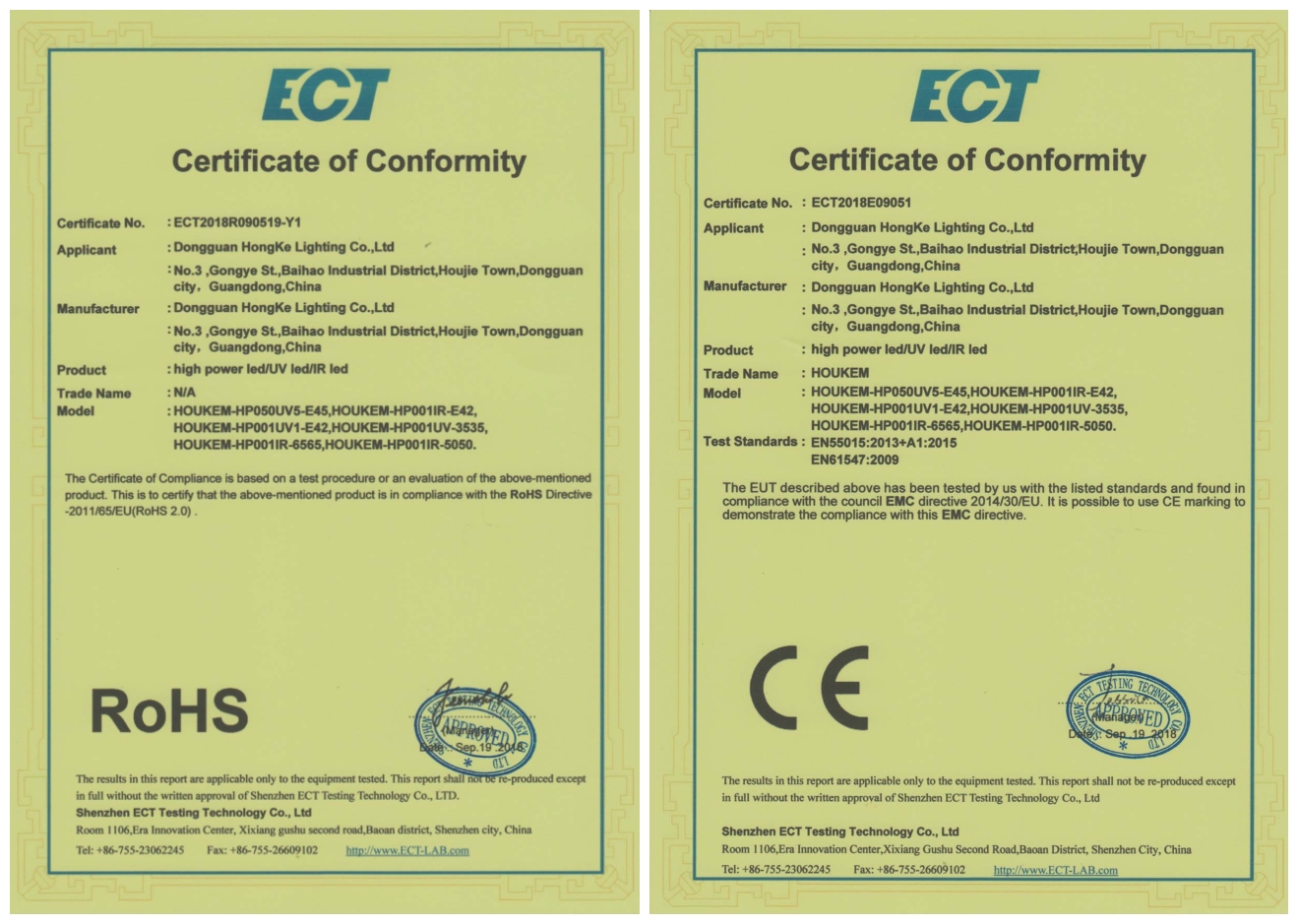

- Certification:CE
- Certification:RoHS
- Emitting Color:UV
- Viewing Angle(°):60 or 120 Degree
- Color Rendering Index(Ra):80
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 80
- Brand Name:KEM

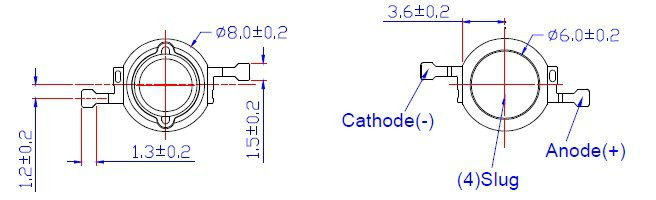

370nm 380nm 390nm 405nm 420nm 410nm 440nm 365nm 3w UV High Power Led Light
Absolute Maximum Ratings
Parameter | Symbol | Rating | Unit |
uv | |||
DC Forward Current(mA) | If | 350 | mA |
Peak Pulse Current(mA) | If | 350 | mA |
Reverse Voltage | VR | 5 | V |
LED Junction Temperature | Tj | 125 | °C |
Operation Temperature | Topr | -20--60 | °C |
Storage Temperature | Tstg | -20--80 | °C |
Soldening Temperature | Tsol | 260 | °C |
ESD Sensitivity | Vb | 4000 | V |
Luminous Flux at 1050mA,Ta=25°C
Color | Part No | Wavelength | CRI | Flux | Units | ||
Min | Typ | Max | |||||
| UV | KEM-HP003UV-E45 | 380-390nm | 80 | 70 | 90 | mw | |
Our service:
Sample are available
In order to let you have an enjoyable experience on our best quality product and satisfied service,
we can offer---- SAMPLES for your test within 3-5 days.
Series information:
| Part Number | Chip Material | Emitting Color | Forward voltage | Forward current | Luminous | Viewing angle (Deg) |
| KEM-HP003WW-E45 | InGan | 2500-4500K | 3.0-3.3V | 600mA | 100-110lm | 120 |
| KEM-HP003PW-E45 | InGan | 4500-7000K | 3.0-3.3V | 600mA | 110-120lm | 120 |
| KEM-HP003CW-E40 | InGan | 7000-15000K | 3.0-3.3V | 600mA | 110-120lm | 120 |
| KEM-HP003RW-E42 | AIGainp | Red 620-630nm | 2.0-2.4V | 600mA | 60-670lm | 120 |
| KEM-HP003DR-E42 | AIGainp | Red 660-670nm | 2.0-2.4V | 600mA | 40-50lm | 120 |
| KEM-HP003GW-E40 | InGan | Green 520-530nm | 3.0-3.3V | 600mA | 80-90lm | 120 |
| KEM-HP003BW-E45 | InGan | Blue 460-470nm | 3.0-3.3V | 600mA | 100-120lm | 120 |
| KEM-HP003YW-E42 | AIGainp | Yellow 590-595nm | 2.0-2.4V | 600mA | 40-50lm | 120 |
| KEM-HP003UV-E45 | InGan | UV 385-420nm | 3.0-3.3V | 600mA | 40-90mw | 120 |
| KEM-HP003UV365-E45 | InGan | UV 365nm | 3.4-3.8V | 600mA | 70-90mw | 120 |
Package

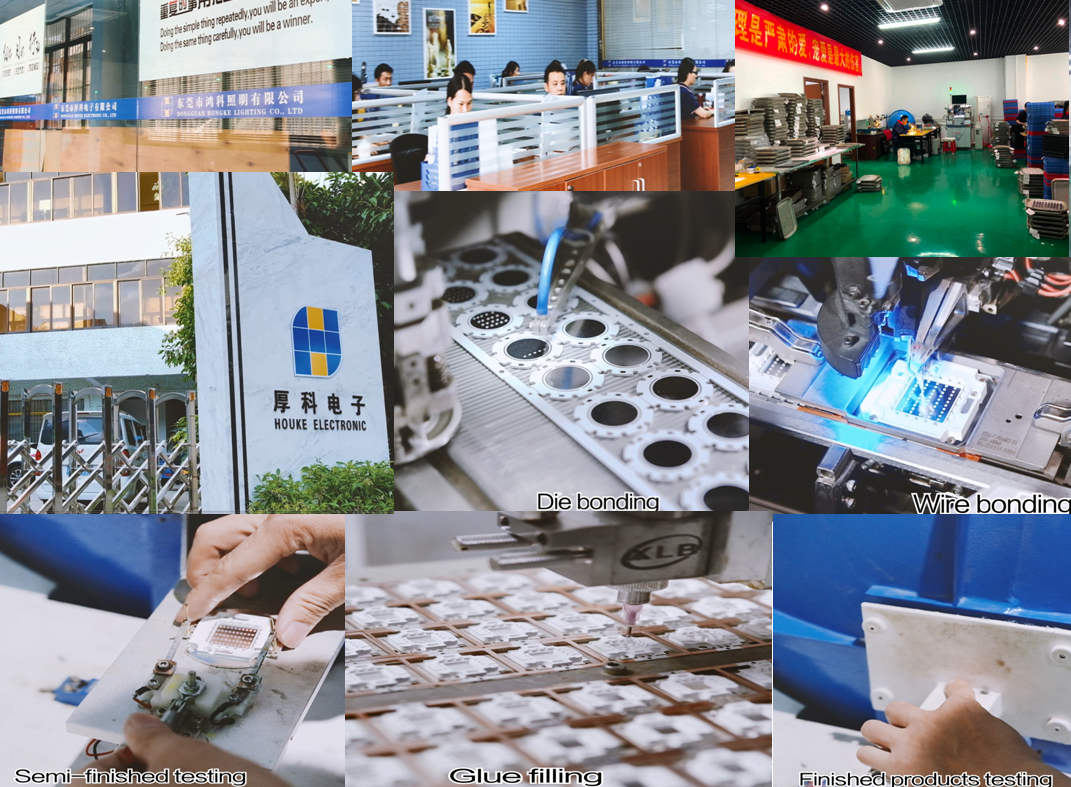

Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs,

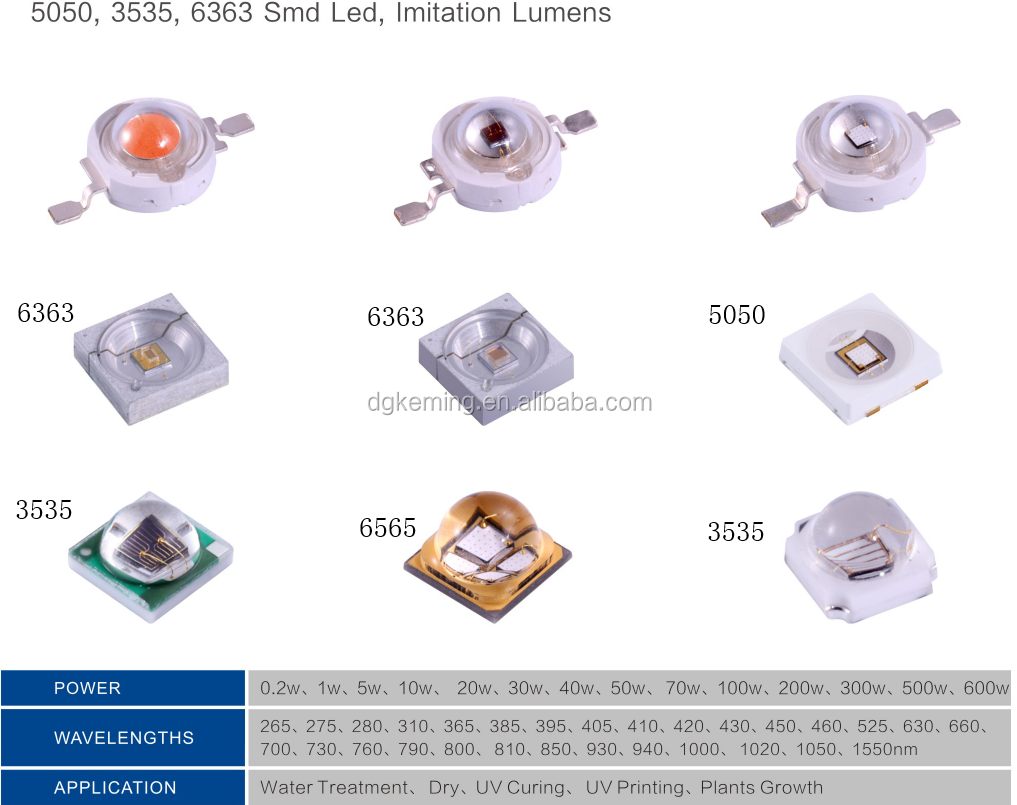

dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led, high power 265nm to 1550nm LED arrays,

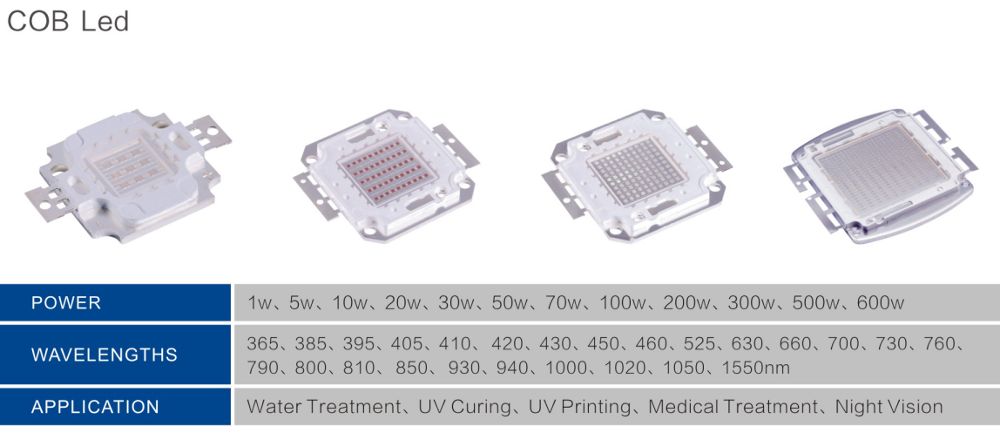

COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light, street light, grow light and all LED lighting application solution, etc.
