seven segment display 0.56 inch diamond shape common anode

Model No: Houkem-5621-BB

Blue 0.56" 7 segment 18 pin 2 digit led 7 segment display 7 segment digital display 7 segment indicator - Houkem

Houke is 7 segment display, 7 segment digital display, 7 segment indicator professional manufacturer.

Delivery :

EXW

minimum order :

5 pieces

Supply Ability :

5000pieces / Month

Stock Time :

7-14Day

Country of Origin :

Dongguan/ Guangdong

Quantity :

US $0.29 - US $0.36 / pieces

add to cart

Contact Now

Place of Origin:CN;GUA
Usage:Indoor
Tube Chip Color:Blue
Display Function:Graphics
Pixels:20mm
Brand Name:KEM
Model Number:Houkem-5621-BB
Screen Dimension:25*19mm

Product Describtion

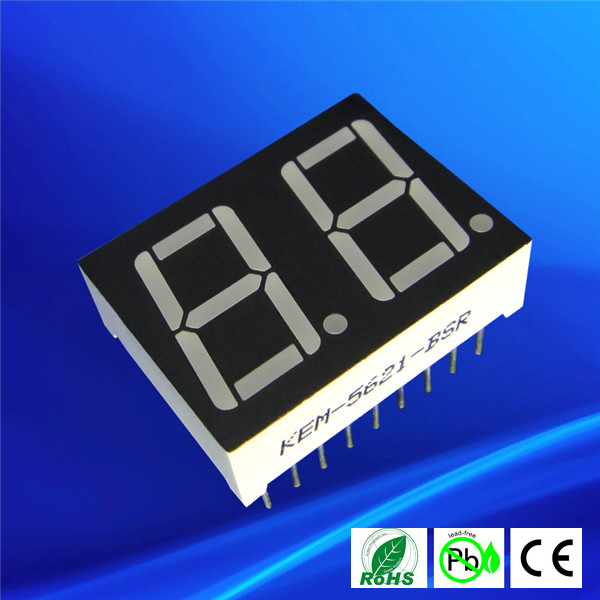

Blue 0.56"7 segment 18 pin 2 digit led 7 segment display 7 segment digital display 7 segment indicator

Item No.	Houkem-5621-BB
Dimension	25198mm
Surface color	Black /Grey
epoxy color	white
Emitting color	blue

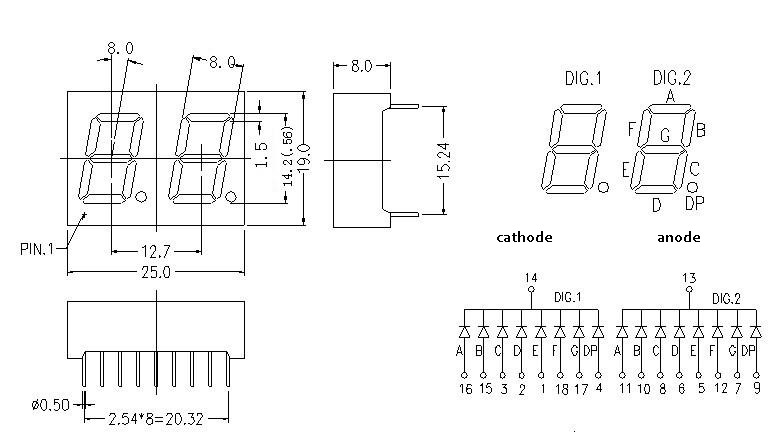

Package dimension & Internal circuit diagram

5621

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Two years quality warranty

1,Low power consumption

2, High brightness

3, High intensity and reliability

4, Easy assembly

5621-

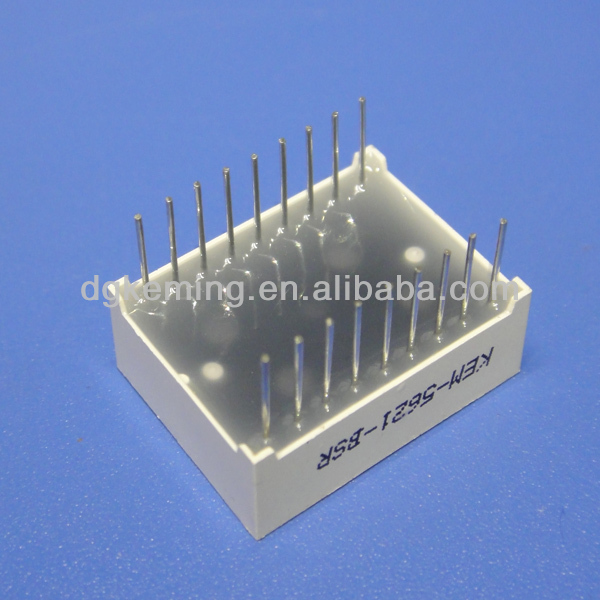

5621-2

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)

Emitting Color	Test Condition	Wavelength(nm)		Forward Voltage(V)		Luminous Intensity (mcd)
Emitting Color	Test Condition	(λp)	λ	Typ	Max	Typ	Max
Amber	IF=10-15mA	600-605	30	1.9	2.0	90	100
Super green	IF=10-15mA	565-575	30	1.9	2.0	48	55
Super red	IF=10-15mA	620-625	20	1.8	2.0	110	130
Ultra red	IF=10-15mA	620-625	20	1.8	2.0	300	350
High red	IF=10-15mA	638-660	20	1.8	1.9	15	20
Yellow green	IF=10-15mA	570-580	30	1.9	2.0	43	50
Yellow	IF=10-15mA	580-600	35	1.9	2.0	70	80
Blue	IF=10-15mA	465-475	40	2.7	2.9	150	200
Pure green	IF=10-15mA	515-525	40	2.7	2.9	180	250
^White	^IF=10-15mA	^-	^-	^2.7	^2.9	¹⁸⁰	²⁰⁰

Our Services

Quantity Lead time

1-10K pcs 3-7 days

10.1K-50K pcs 7-15 days

Any delivery way is available.

Our service:

Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

we can offer---- SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, Bi-color, RGB.

4. Led dot matrix: 57, 58, 88, 117, 16*16

5. high power led: white /red /blue/green/IR/UV led
