Model No: HOUKEM-11057-A/BSR

led dot matrix 5x7 super red led matrix 7x5 common anode

led dot matrix display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Country of Origin :
EXW Dongguan 3mm 5x7 dot matrix
Quantity :
$0.47 - $0.50 / piece
add to cart
Contact Now
  • Application:Indoor, DIP led display
  • Color:Super red
  • Panel Size:31.8*22.75mm
  • Pixel Pitch:2.54
  • Supplier Type:Original manufacturer
  • Media Available:datasheet
  • Place of Origin:Guangdong, China
  • Model Number:KEM-11057-A/BSR
  • Brand Name:HOUKEM
  • use:advertising publish, display of dishes, exhibition hall, elevator
  • Pixels:3mm
  • Specification:Digital Poster
  • Screen Dimension:31.8*22.75mm
  • Key words:3mm 5x7 dot matrix
  • Dimension:31.8*22.75*8.5mm
  • Dot array:5X7
  • Segment Color:white or water clear
  • Face color:Black, grey or red
  • Dot Dia.:3mm
  • LED Source:Taiwan Epistar
  • Origin:China
  • Certificate:CE ROHS REACH ISO9001
High quality led matrix 5x7 matrics display red color led dot matrix 7x5

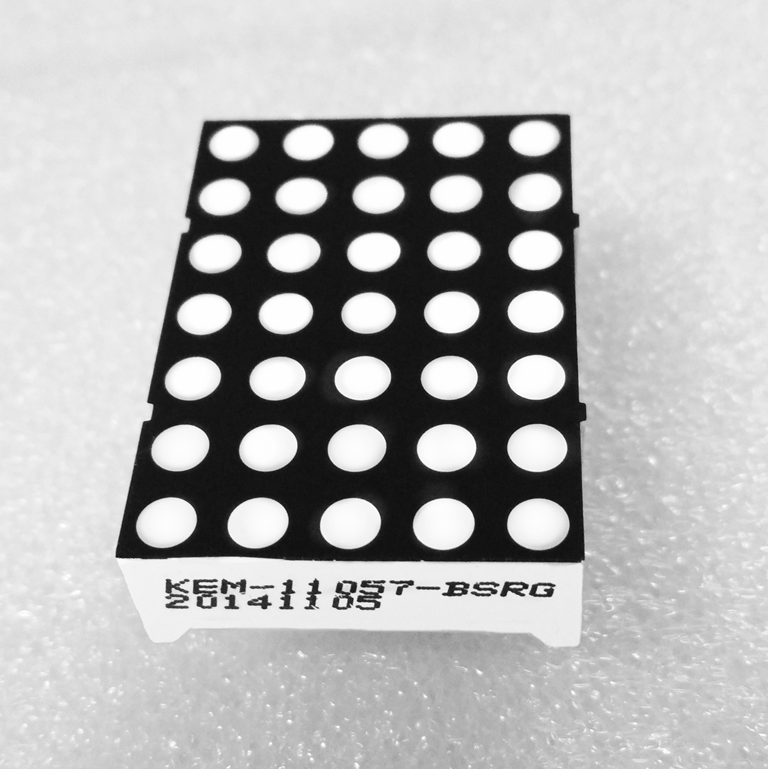

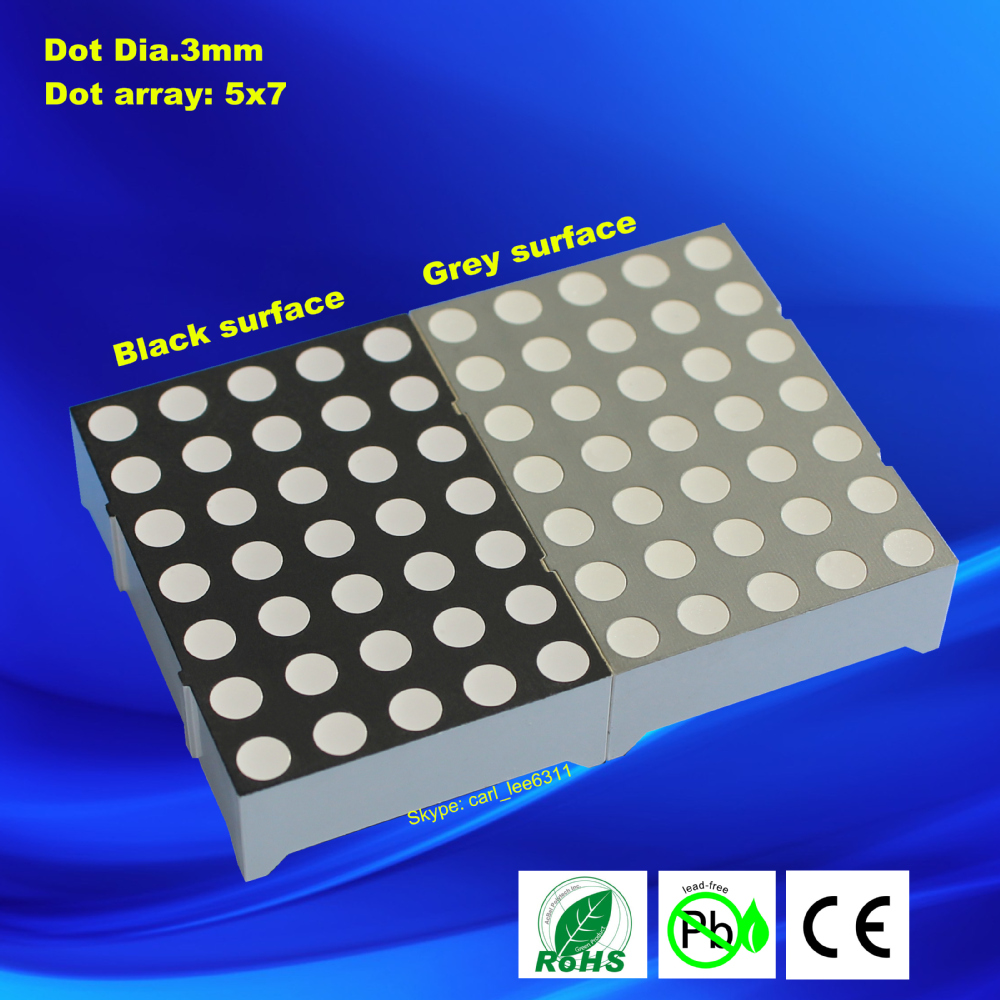

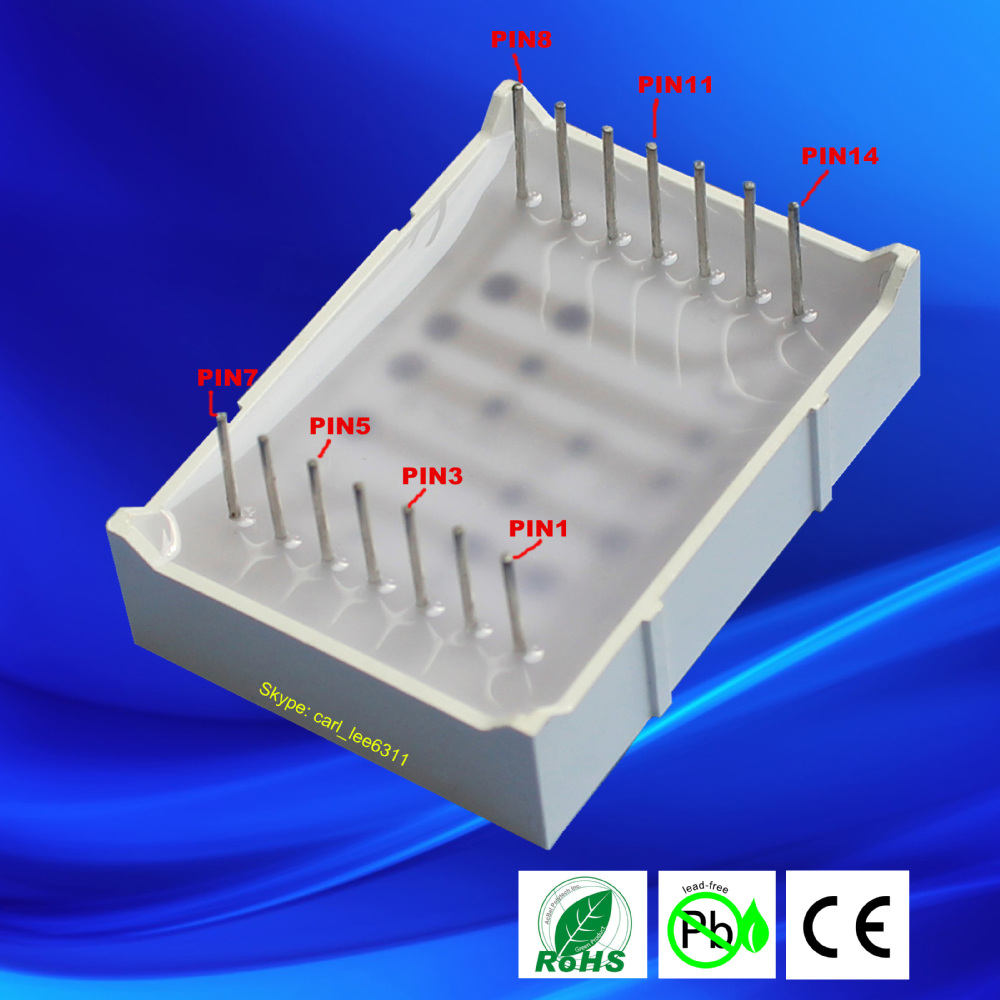

Pictures of products

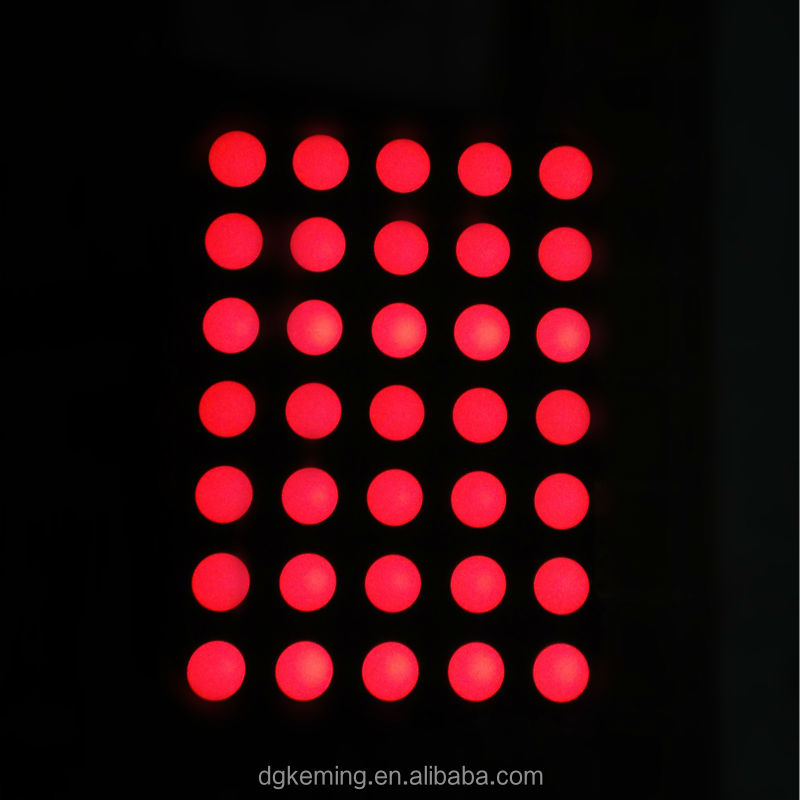

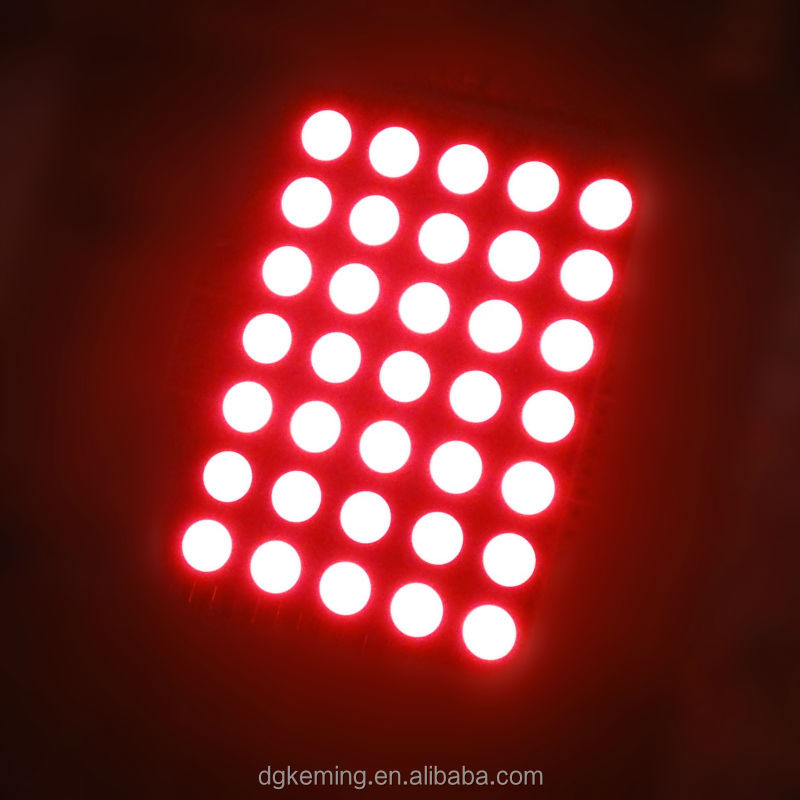

Light on:

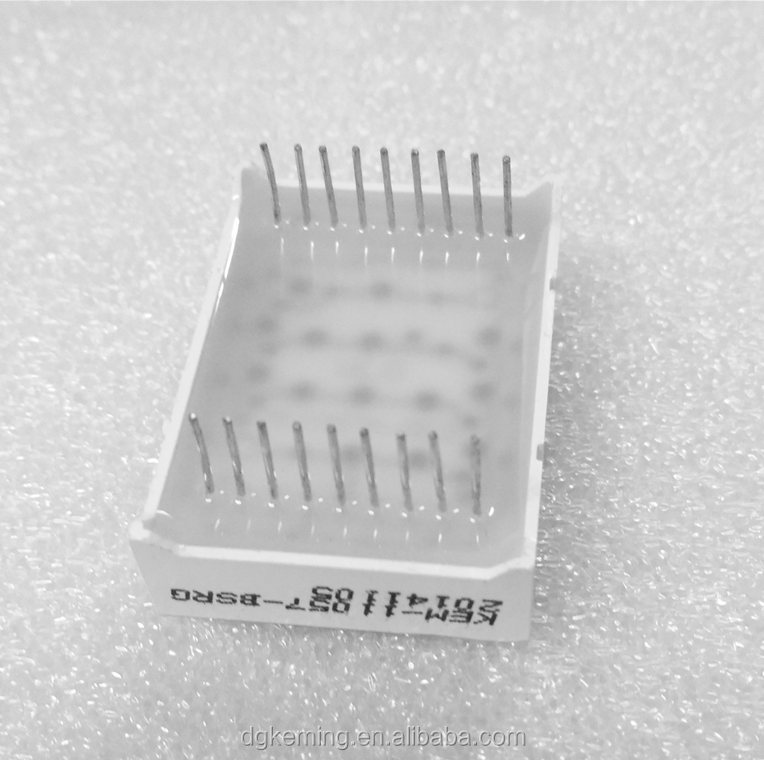

Light off:

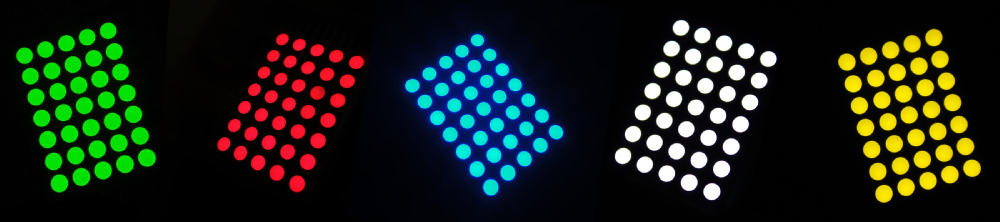

All of single colors and Bi-color are available controled by yourself:

Product Description

Part No

KEM-11057-A/BSR
Dimension31.8*22.75*8.5mm
Dot array5x7
Surface colorBlack/gray
Segment colorwhite / water clear
Emitting colorSuper red
Luminous intensity100mcd/chip
Pin configurationcommon anode/common cathode

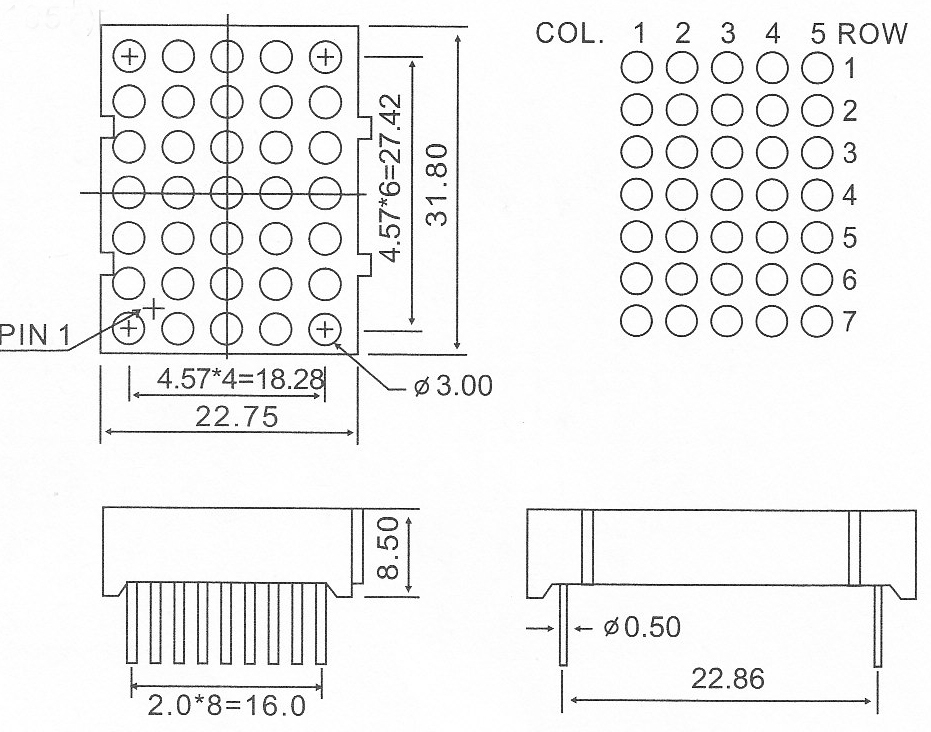

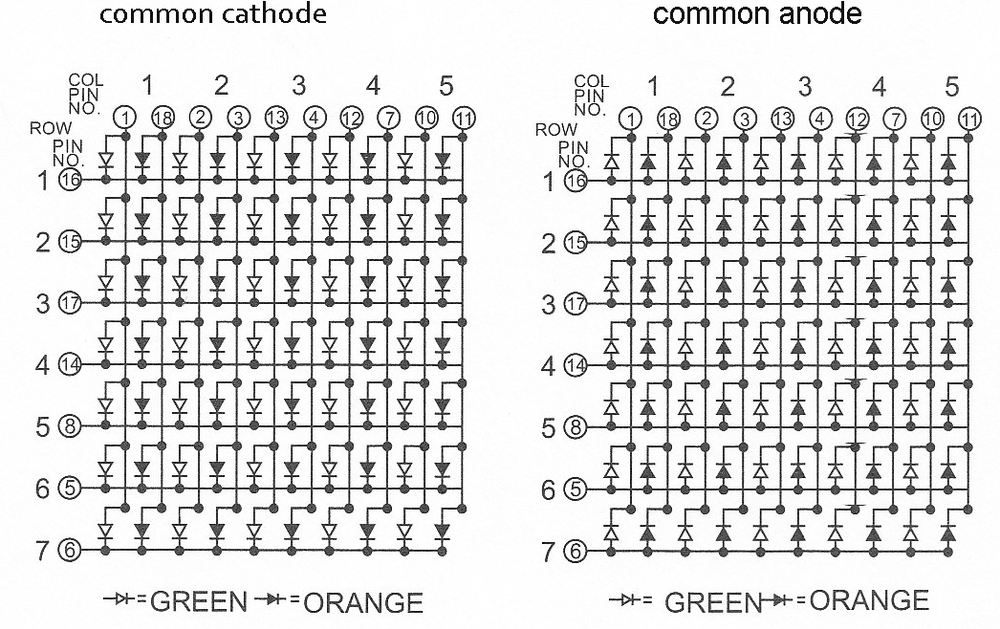

Dimension and Internal Circuit Diagram:

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Application:

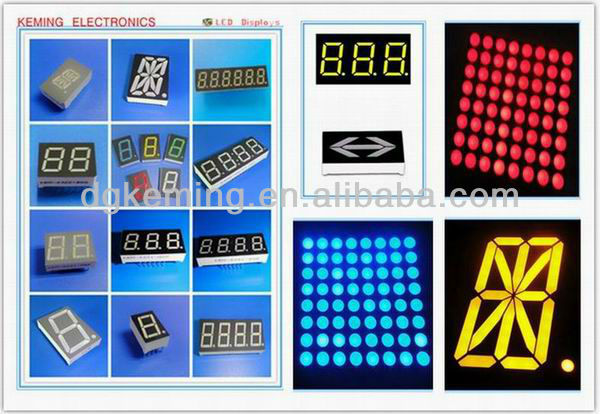

Our Services

Overview:

1. We can supply you all kinds of Dot Matrix Display:

---Dot Dia. from 1.9mm to 10mm

---Array type: 5x7 dots, 5x8 dots, 8x8 dots

2. Available Emitting color: Red, green, blue, yellow, amber, white, RGB,etc

3. Available surface color: black and grey

4. Dot exposy color: milky white, water clear or same with emitting color

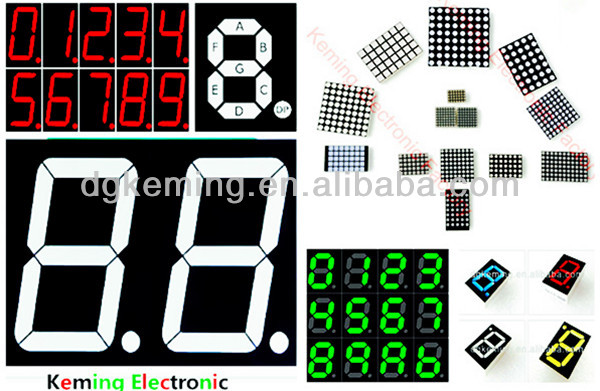

7 segments led display range:

1. We can supply you all kinds of 7 segment LED display:

---Digit size: from 0.25"to 16"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 16 segment both available

3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color

4. Available surface color: black,grey or red

5. Lens color: white or same as emitting color

Related Products

Certifications

Warranty

All of our led products with 3 years warranty.

Payment ways:

1. Western Union

2. T/T

3. Ali Escrow

4. L/C

Factory Images

Main Processes of Our Segment Display(Factory pictures):

Delivery Time:

Quantity Lead time

1-10K pcs 3-7 days

10.1K-50K pcs 7-15 days

Our safety packing for your goods:

Small carton size:40*27*40cm.
Export carton size:50*43*43cm(two small cartons packed inside)

Shipping way

LED professional manufacturer HOUKEM with over 19 years experience in led field,

we do believe we can become your reliable supplier!
