Number Display Function 7 segment 4 digit .56 inch Red, Blue, Yellow, Green, White Tube Chip Color
- Place of Origin:CN;GUA
- Usage:Indoor
- Display Function:Graphics
- Screen Dimension:50.2*19mm
- Model Number:KEMING-5643-AY
- Brand Name:KEM
- Pixels:20mm
- Tube Chip Color:yellow

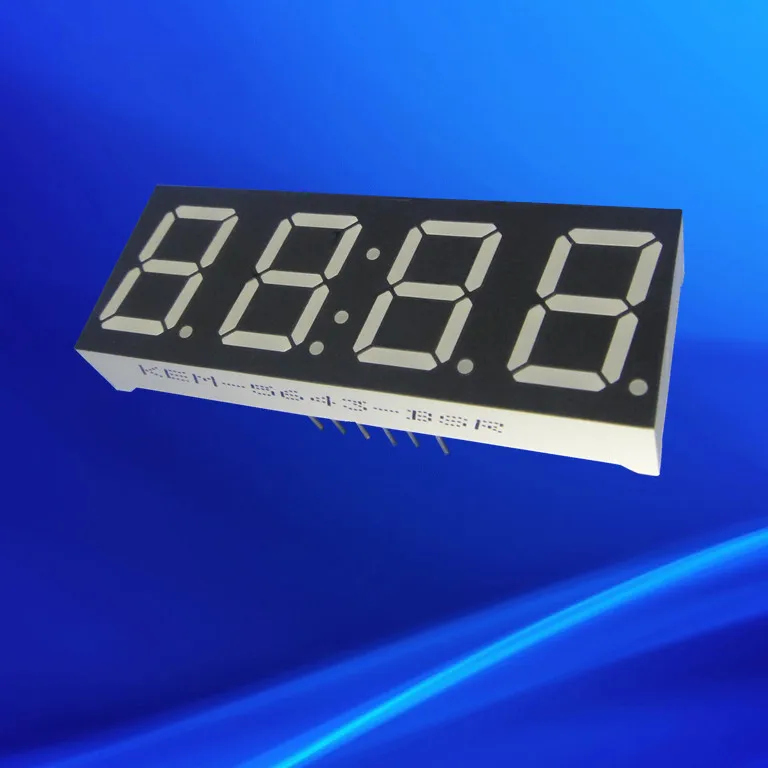

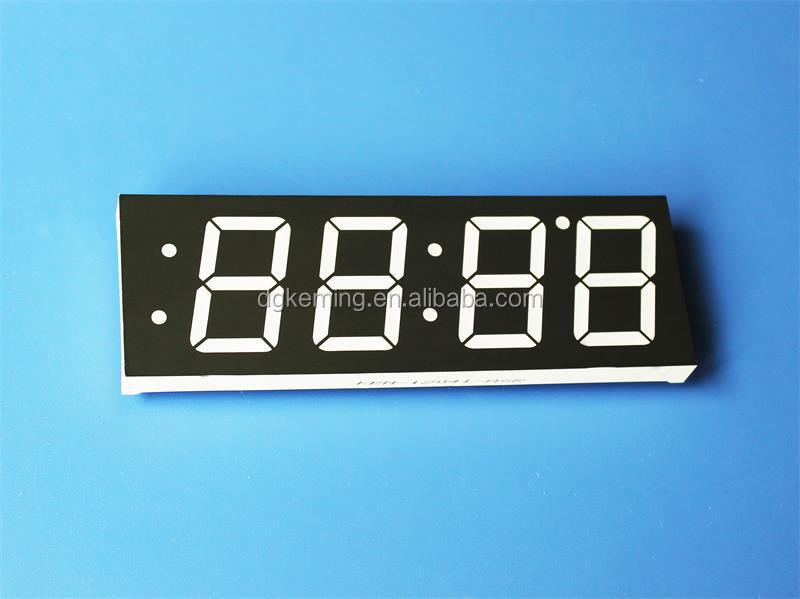

Yellow 7 segment display 4 digit 0.56''
1,Low consumption
2, High brightness
3, High intensity and reliability
4, Easy assembly
| Item No. | KEMING-5643-AY |
| Dimension | 50.2*19*8mm |
| Surface color | Black /Grey |
| epoxy color | white |
| Emitting color | Yellow |

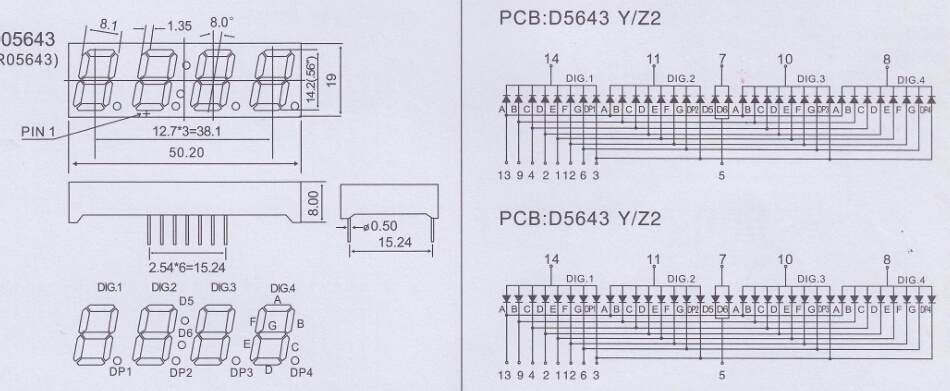

Package dimension & Internal circuit diagram
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=18mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=18mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=18mA | 625-640 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red | IF=18mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=18mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=18mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=18mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=20mA | 465-475 | 40 | 2.8 | 3.0 | 150 | 200 |
Pure green | IF=20mA | 515-525 | 40 | 2.8 | 3.0 | 180 | 250 |
White | IF=20mA | - | - | 2.8 | 3.0 | 180 | 200 |
Quantity Lead time
1-10K pcs 3-7 days
10.1K-50K pcs 7-15 days
Any delivery way is available.
Our service:
Sample are available
In order to let you have an enjoyable experience on our best quality product and satisfied service, we can offer---- FREE SAMPLES for your test within 3-5 days.
Custom service:
1. We can supply you all kinds of 7 segment LED display
---Digit size: from 0.25"to 20"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 14 segment both available

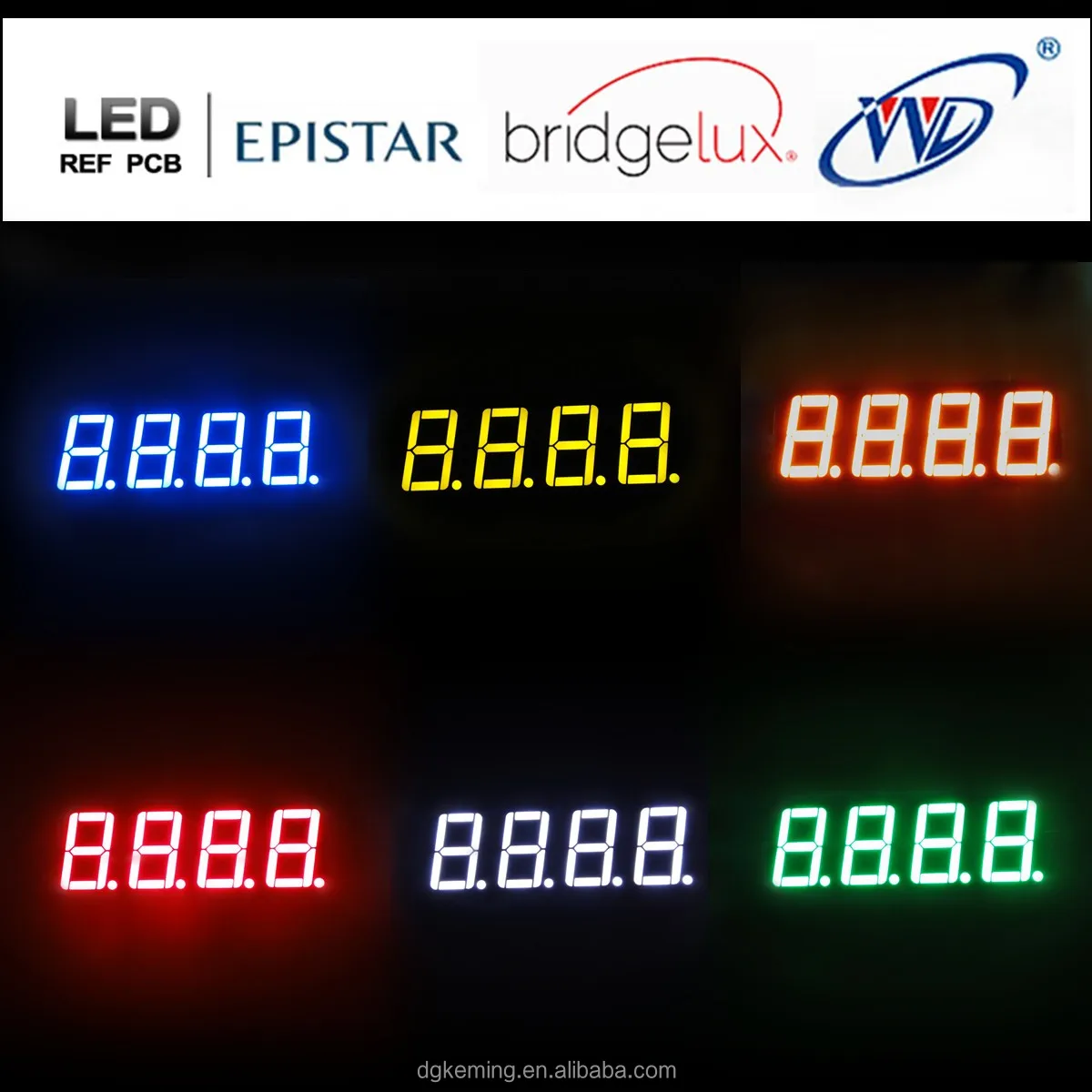

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.
4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

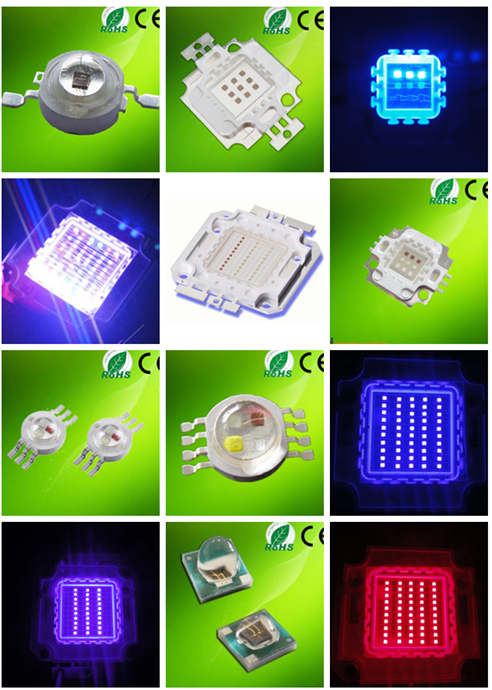

5. high power led: white /red /blue/green/IR/UV led
warranty:
Two years quality warranty
