Model No: KEM-7088-AB

mini size blue led matrix 8x8 dot matrix module 1.9mm

dot matrix led display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$0.61 - $0.63 / piece
add to cart
Contact Now
  • Application:Indoor, DOT MATRIX
  • Color:BLUE
  • Panel Size:20*20MM
  • Pixel Pitch:2.54MM
  • Supplier Type:Original manufacturer, Other
  • Media Available:datasheet
  • Place of Origin:Guangdong, China
  • Model Number:KEM-7088-AB
  • Brand Name:KEM
  • use:advertising publish
  • Pixels:1.9mm
  • Specification:Digital Poster
  • Usage:Indoor / outdoor
  • Screen Dimension:20x20mm
  • Array:8x8
  • Dot size:1.9mm
  • Surface color:black/gray
  • Luminous Intensity:200mcd
  • place of origin:China
  • wavelength:470-475 nm
  • Operating temperature:-35 ~ +85 ℃
  • emitting color:blue

mini size blue led matrix 8*8 display 8x8 dot matrix module 1.9mm

Product Description
Part No.KEM-7088-ABEmittingcolorred/blue/amber/green/white/yellow
Polarity

Common anode

Common cathode

Epoxy colorwhite/blue/red/green/yellow
Current20mASurface colorBlack/gray/white

We can provide different sizes,digits & color.

Features of mini size dot led matrix display module :

  • Low current operation.
  • Low power consumption.
  • High brightness.
  • Rohs & CE standard
  • Easy mounting on P.C. board or sockets.
  • Long-life ,2 years of warranty
  • Short delivery time

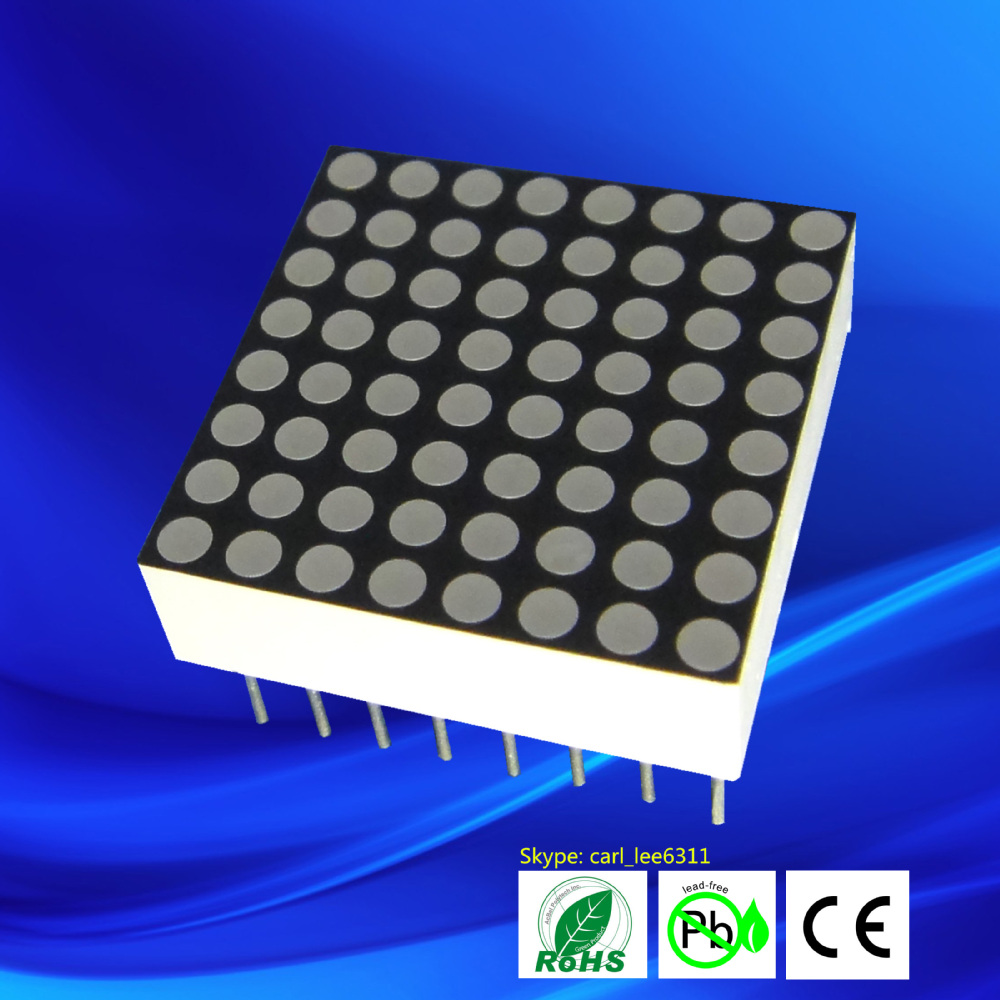

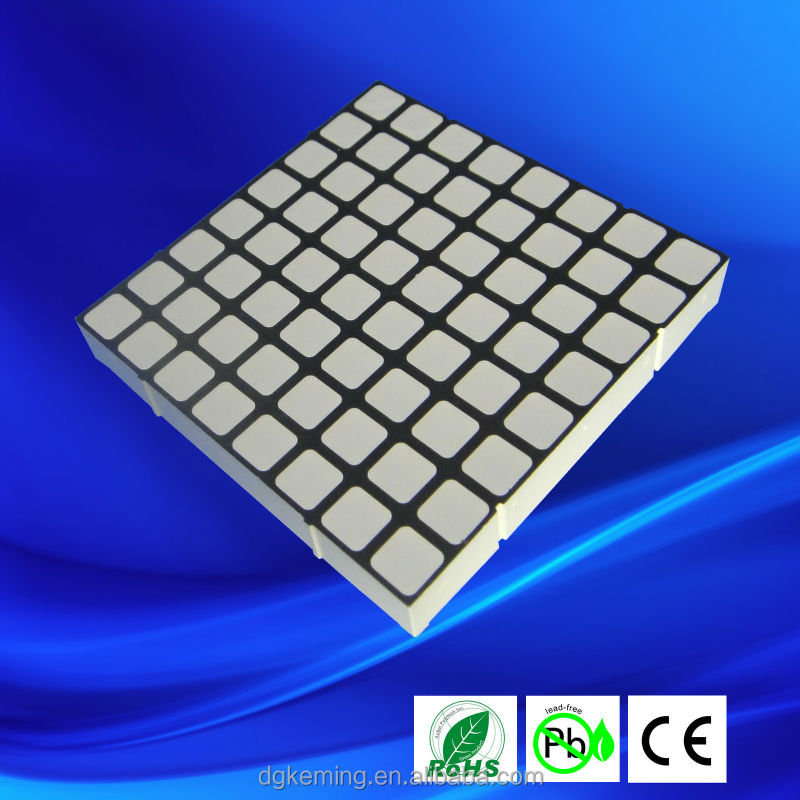

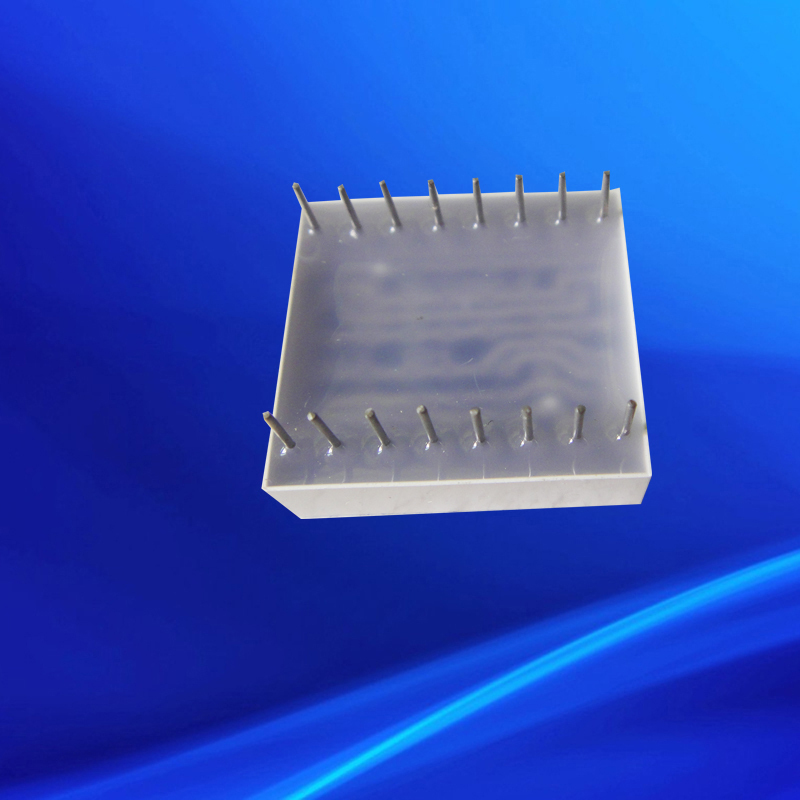

Product picture of mini size dot led matrix display module :

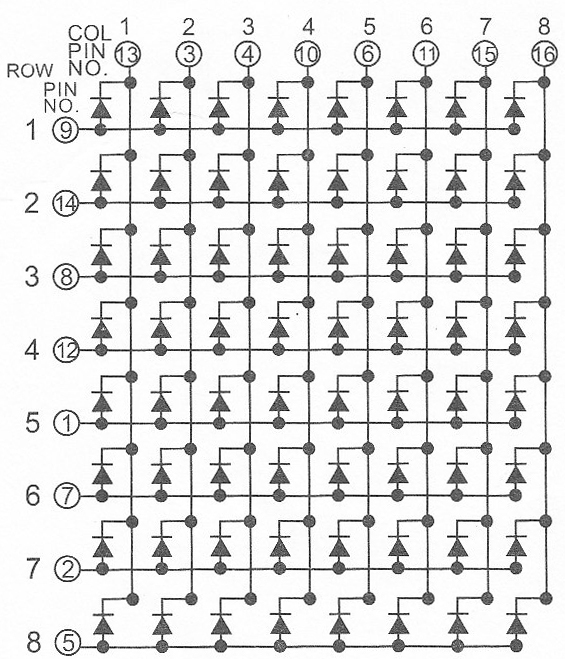

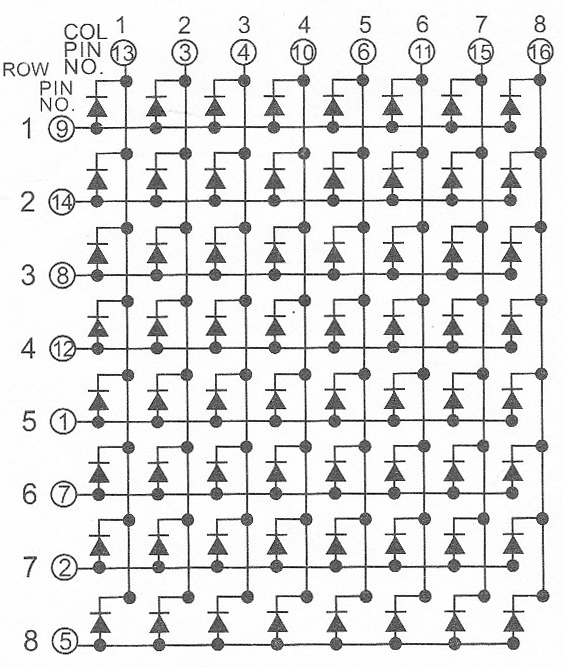

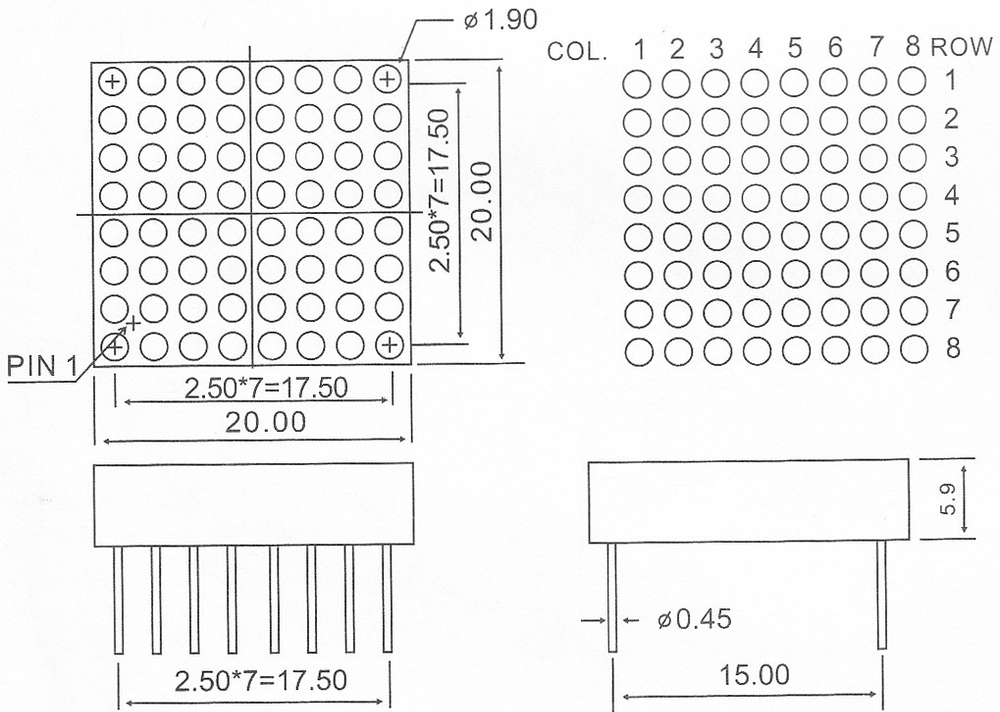

Part Drawing and Internal Circuit of mini size dot led matrix display module :

If the circuit cannot meet your need, pls advise me for other choices. Thank you.

Our hot products, (more details please click the picture or the link ):

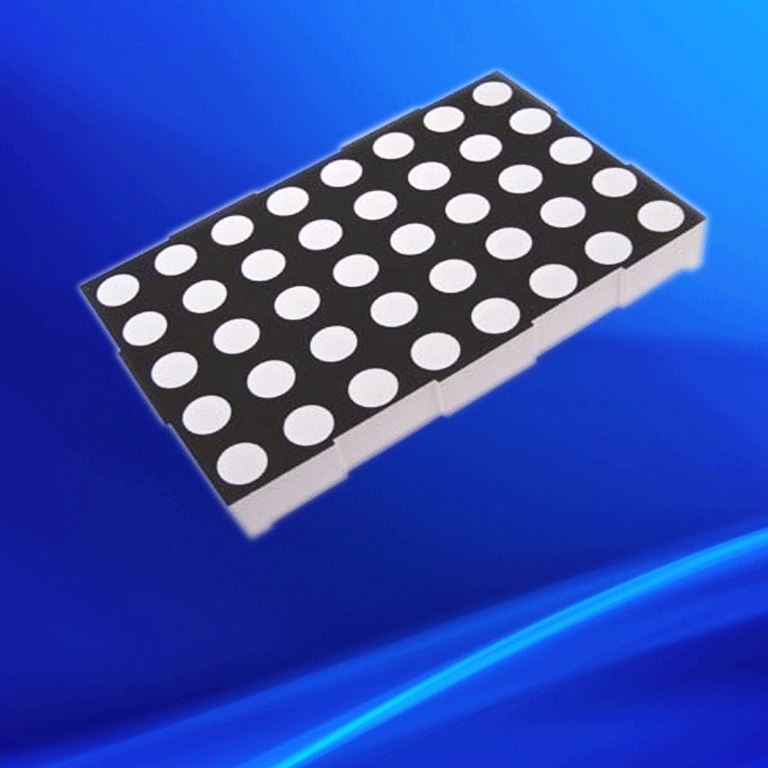

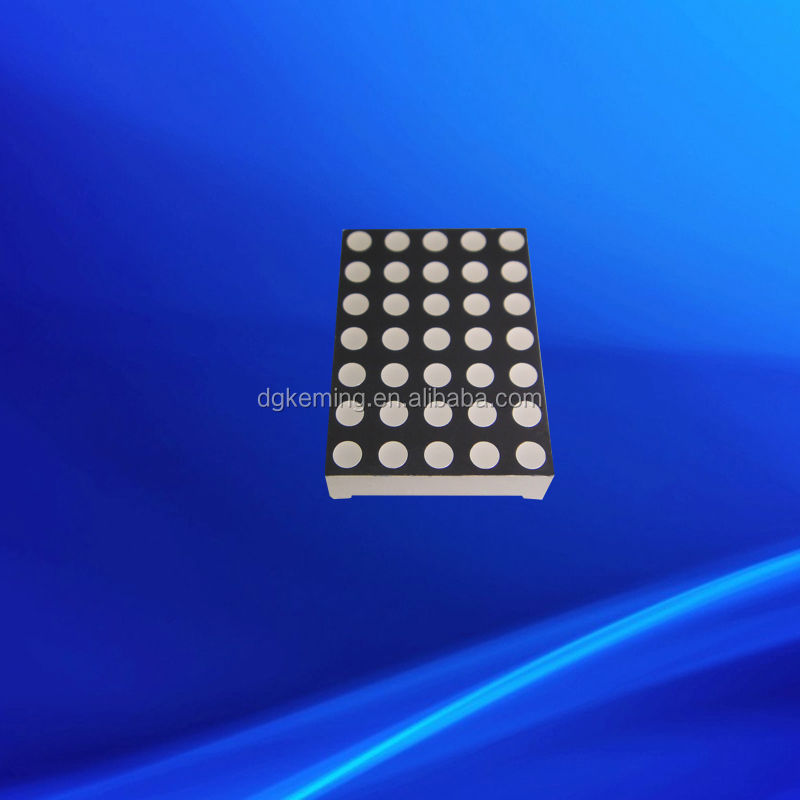

5x7 round dot matrix

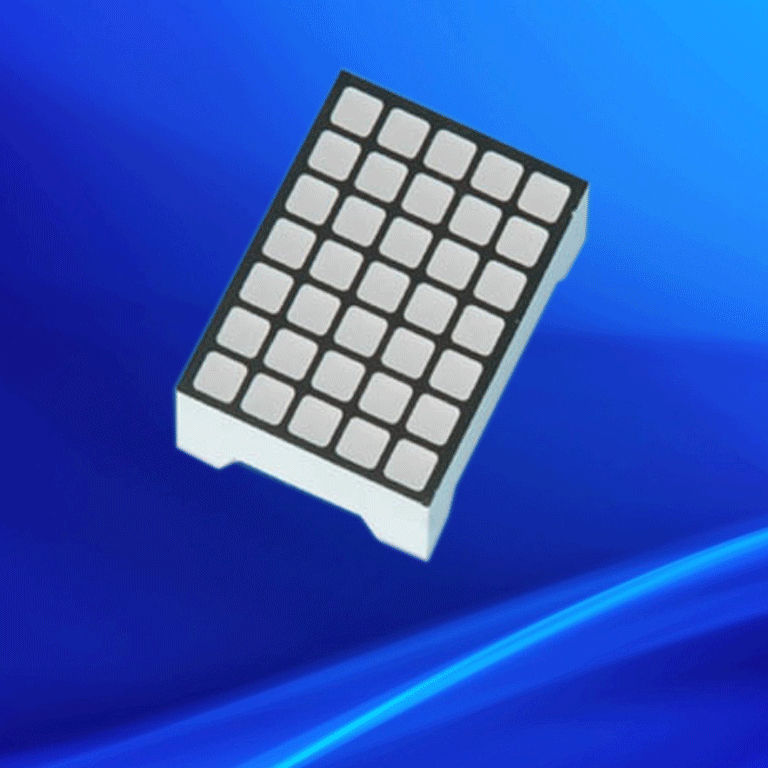

5x7 square dot matrix

5x8 dot matrix

8x8 square dot matrix RGB

8x8 round dot matrix singel color

8x8 round dot matrix RGB

7 segemnt led display
ItemcolorItemcolor
0.3” 1 digitsingle color0.56” 4 digitsingle color
0.36” 1 digitsingle color0.8” 1 digitsingle color,bicolor
0.36” 3 digitsingle color0.8” 2 digitsingle color
0.36” 4 digitsingle color1” 1 digitsingle color,bicolor
0.39” 1 digitsingle color,bicolor1.2” 1 digitsingle color,bicolor
0.39” 3 digitsingle color1.5” 1 digitsingle color,bicolor
0.39” 4 digitsingle color1.8” 1 digitsingle color,bicolor
0.4” 1 digitsingle color2.3” 1 digitsingle color,bicolor
0.4” 2 digitsingle color3” 1 digitsingle color,bicolor
0.52” 1 digitsingle color4” 1 digitsingle color,bicolor
0.56” 1 digitsingle color,bicolor5” 1 digitsingle color,bicolor
0.56” 2 digitsingle color8” 1 digitsingle color,bicolor
0.56” 3 digitsingle color12” 1 digitsingle color
dot matrix
ItemcolorItemcolor
0.7"8x8single color,bicolor0.7"5x7single color,bicolor
1.2"8x8single color,bicolor1.2"5x7single color,bicolor
1.5"8x8single color,bicolor,tricolor2.3"5x8single color,bicolor,tricolor

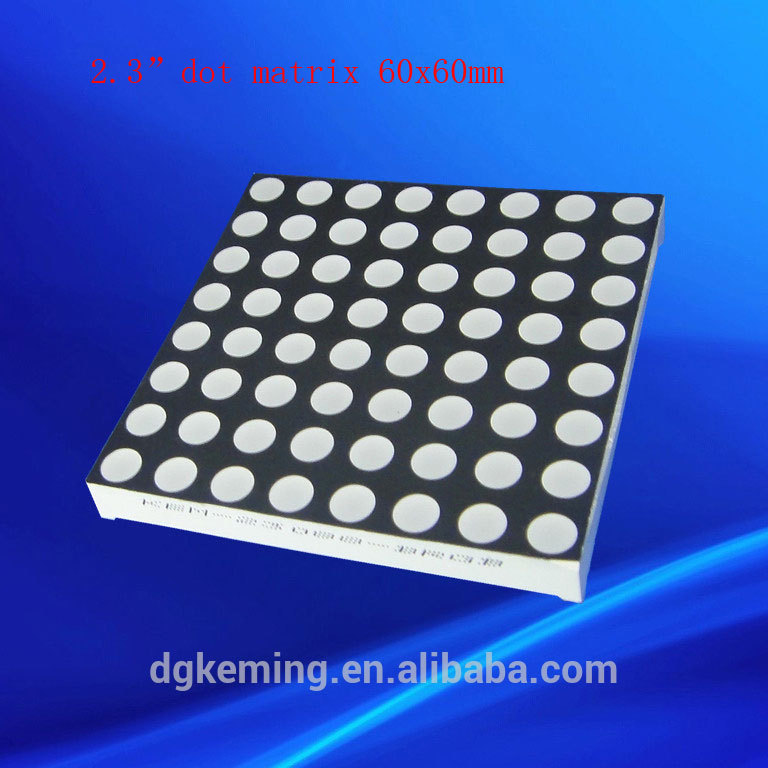

1.9"8x8single color,bicolor2.3"8x8single color,bicolor,tricolor


Specifications of mini size dot led matrix display module :

Part no.

:KEM-7088-A/B

Array

:8x8

Dot mension

:1.9mm

Dimension

:20x20mm

Surface color

:Gray /black/white/red

Emitting color

:Blue

Polarity

:Common cathode or Anode

Packing details :

Certificate :

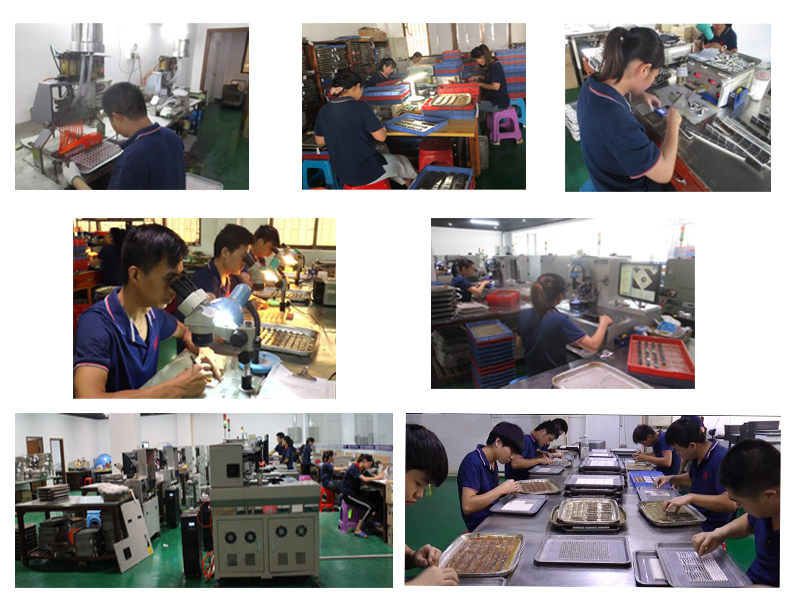

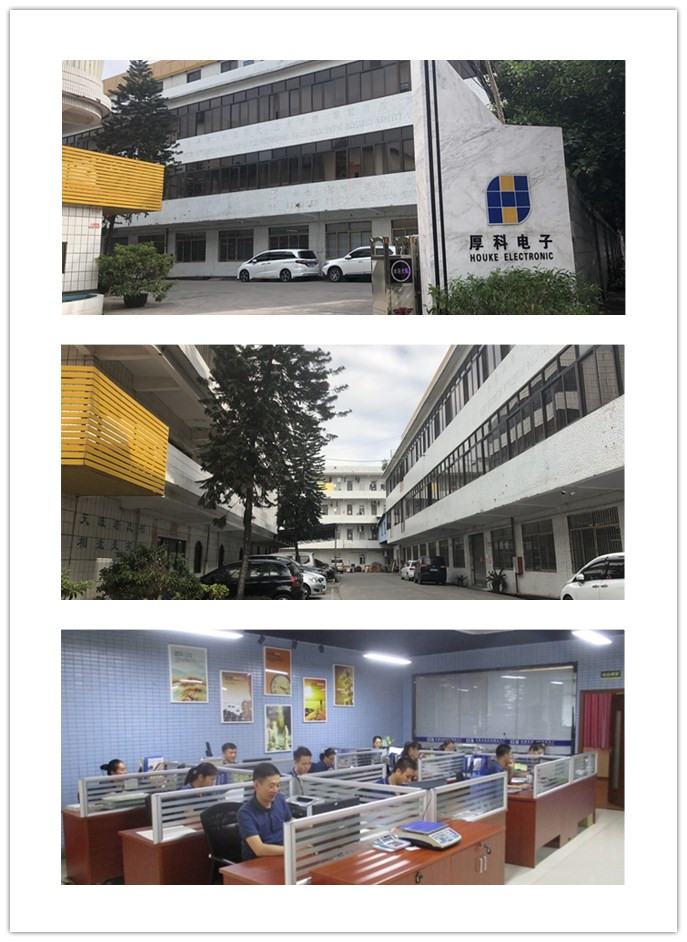

Our factory

Established in 2003,our factory is specialized in LED products, including 7 segment

LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix ,bar graph

arrays,arrow led display and high power led.etc.
