Mini Matrix Display Square Dot Ultra Red Color Dot 5x7
- Place of Origin:Guangdong, China
- Model Number:KEM-8057-A/BSR
- Brand Name:KEM
- Display Function:Graphics
- Screen Dimension:30*22mm
- Tube Chip Color:Red
- Pixels:11mm
- Usage:Semi-outdoor
- Key words:led matrix
- Dimension:30*22*6mm
- Segment Color:white or water clear
- Dot array:5x7 array
- Face color:Black, grey or red
- Dot Dia.:3.45x3.45mm
- OEM:Yes
- Package:EPE or as your request
- Feature:Energy saving & long life
- Origin:China

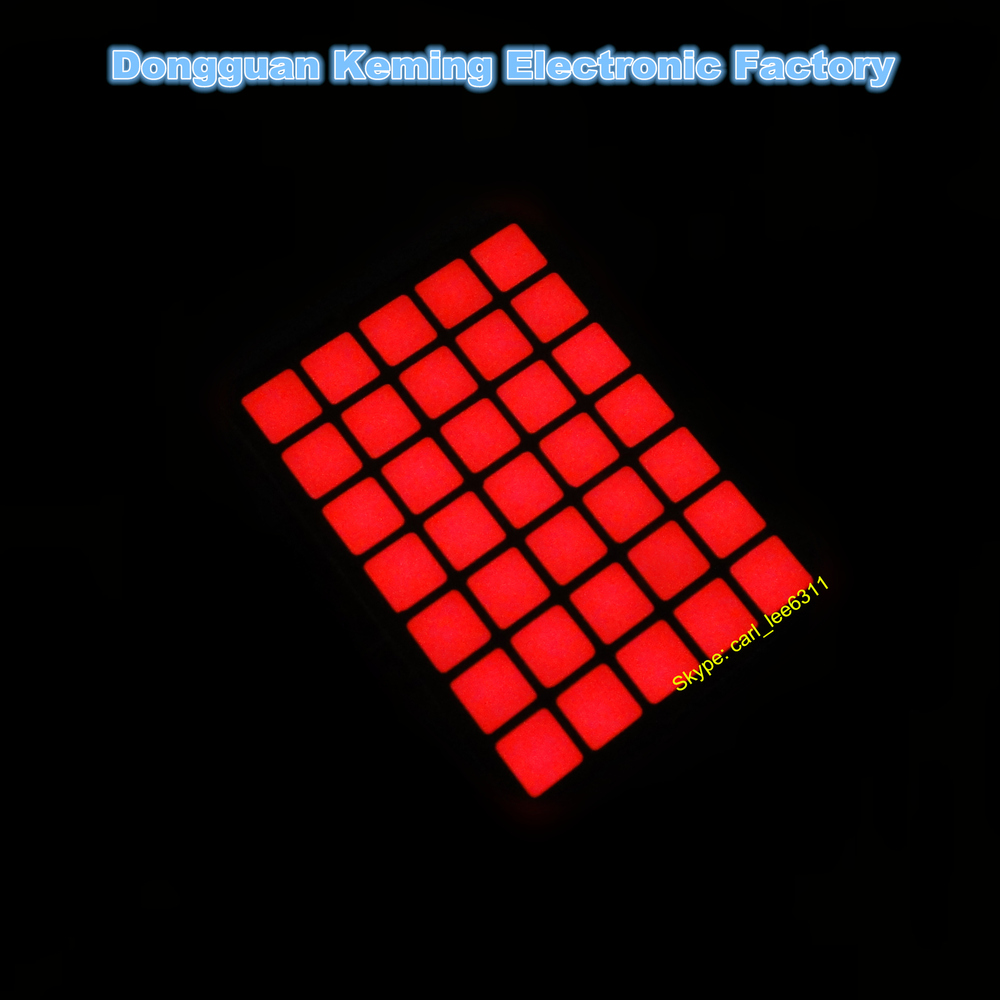

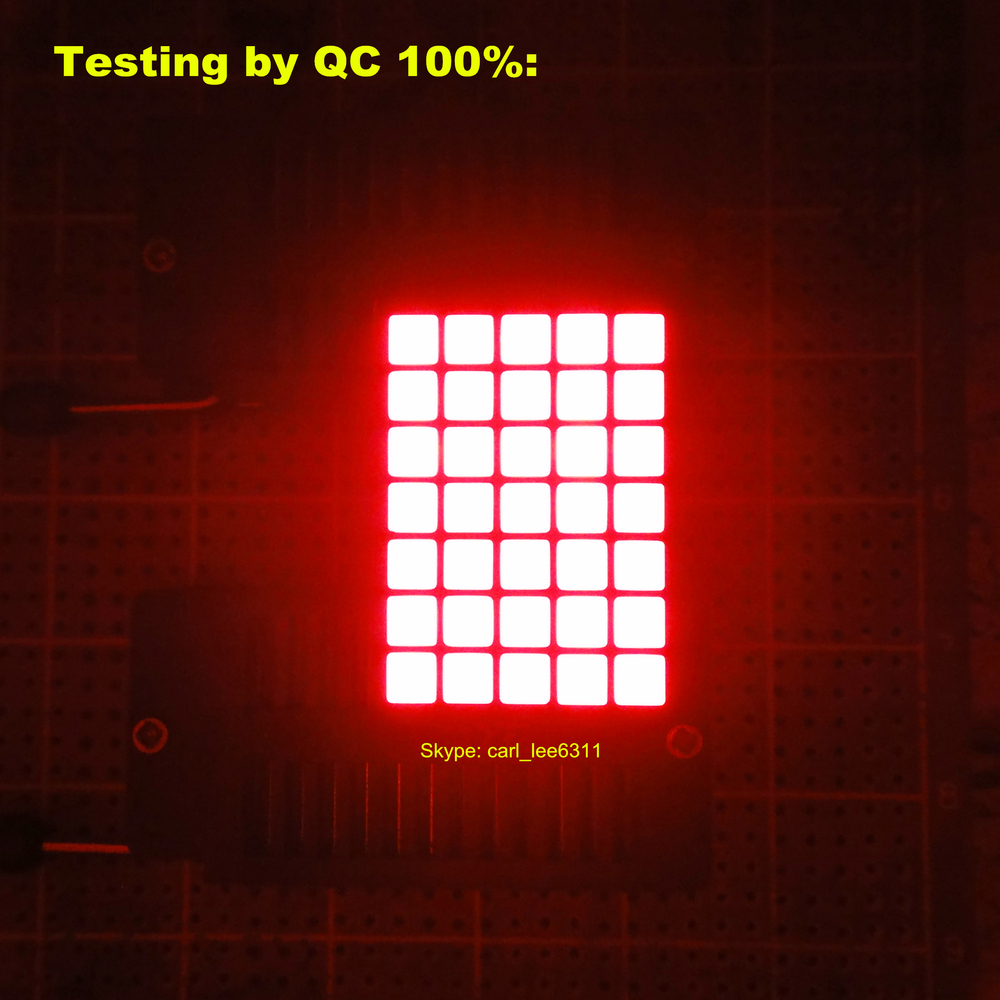

Light on:
All of single colors are available:

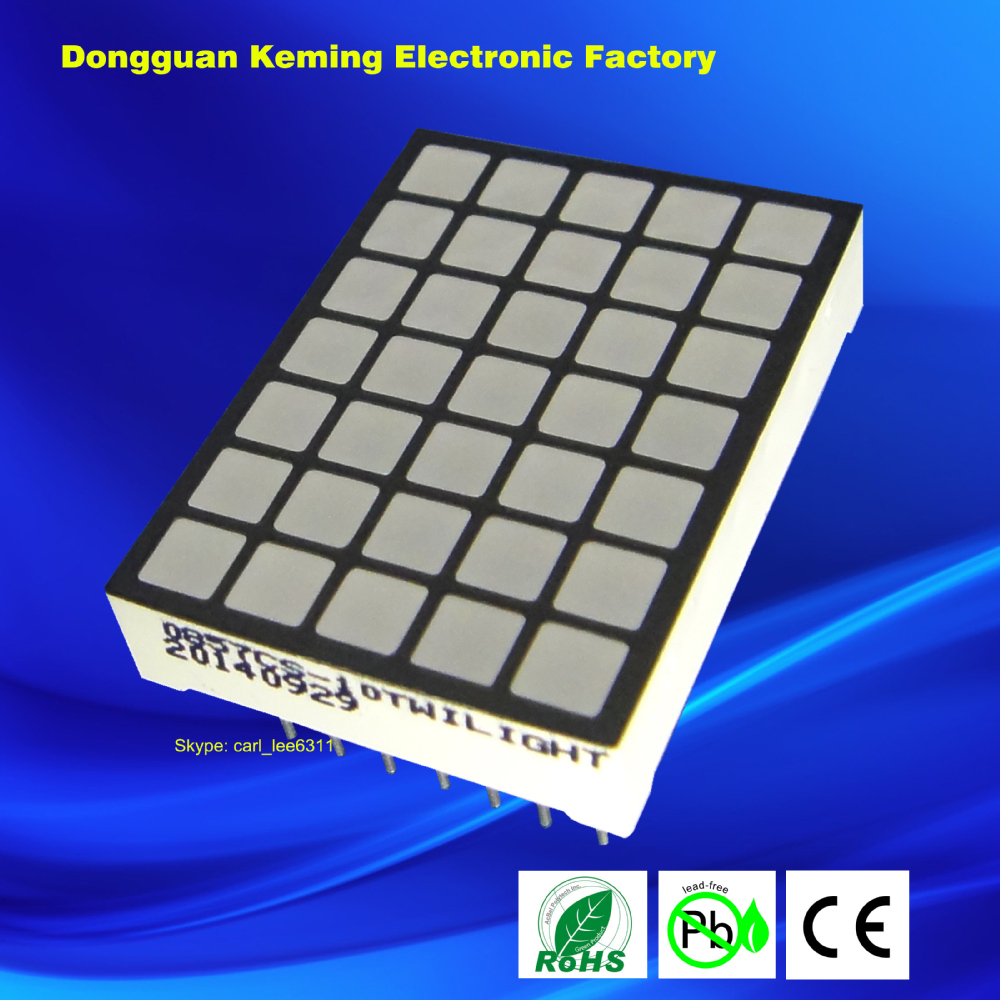

Light off:
Part No | KEM-8057-A/BSR |
| Dimension | 30*22*6mm |
| Dot array | 5*7 |
| Dot size | 3.45x3.45mm |
| Surface color | Black/gray |
| Segment color | white / water clear |
| Emitting color | Super Red |
| Luminous intensity | 100mcd/chip |

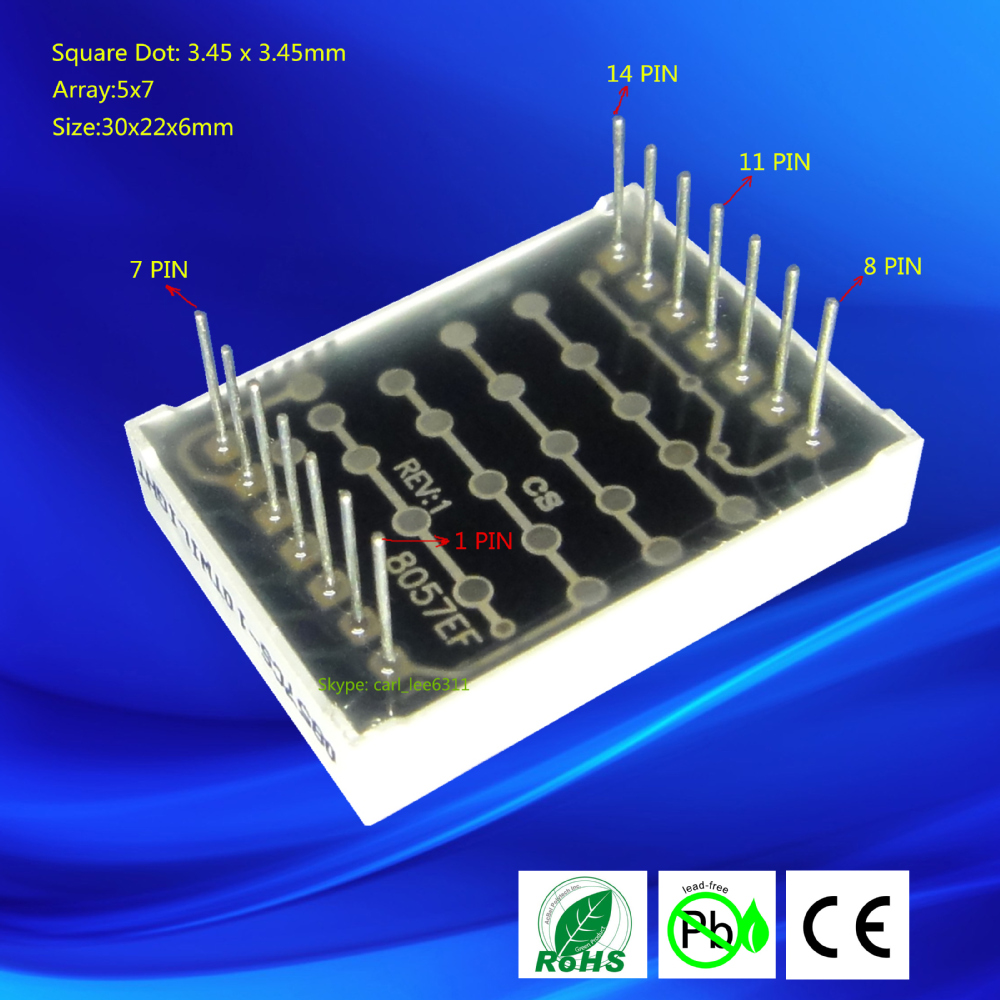

| Pin configuration | common anode/common cathode |

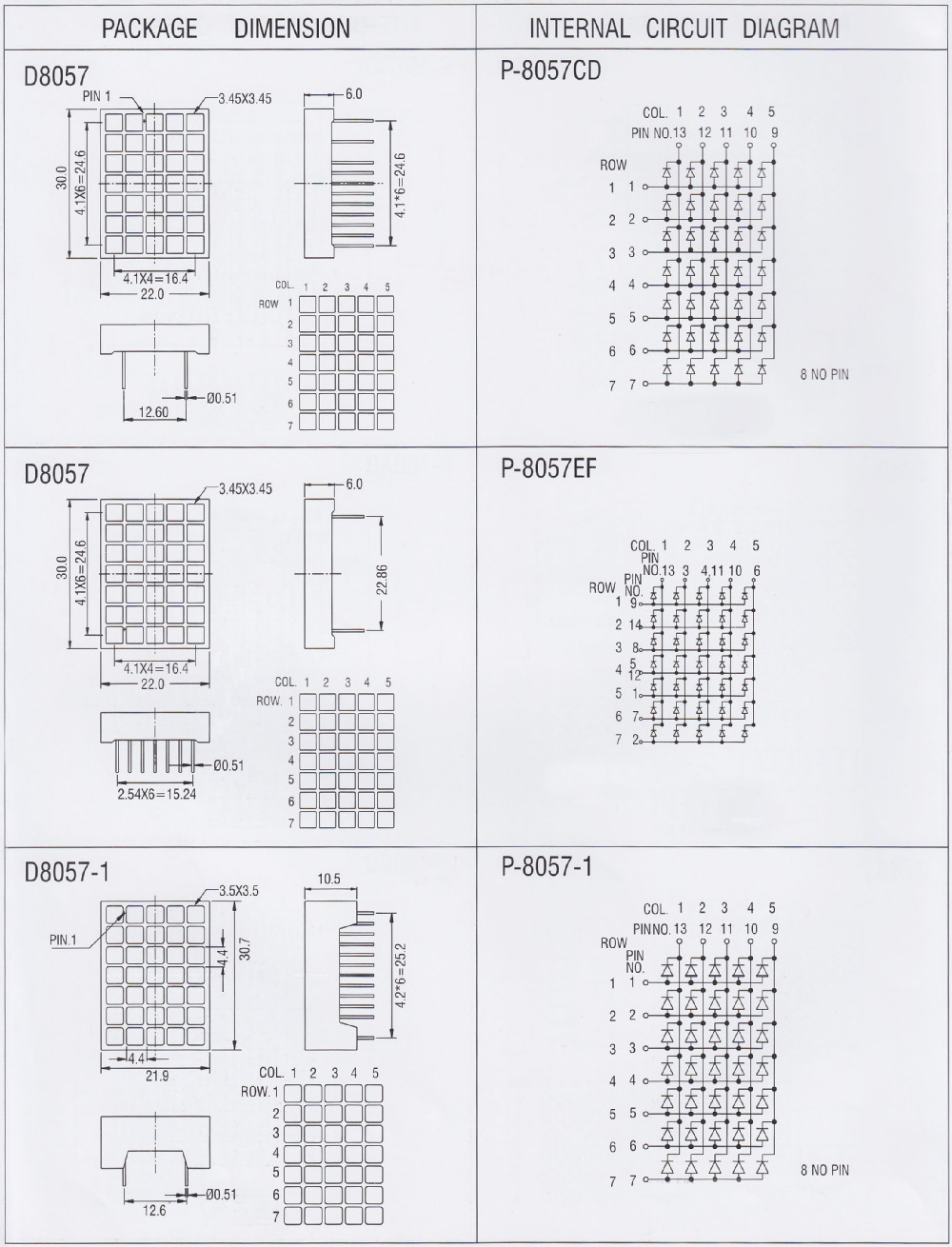

Dimension and Internal Circuit Diagram:
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Application:

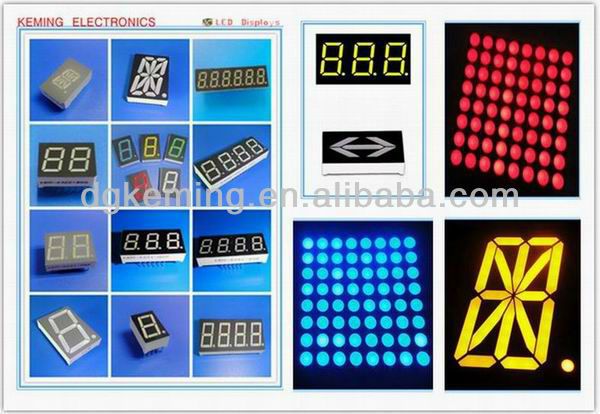

1. We can supply you all kinds of 7 segment LED display:
---Digit size: from 0.25"to 16"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 16 segment both available
3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color
4. Available surface color: black,grey or red
5. Lens color: white or same as emitting color
All of our led products with 3 years warranty.

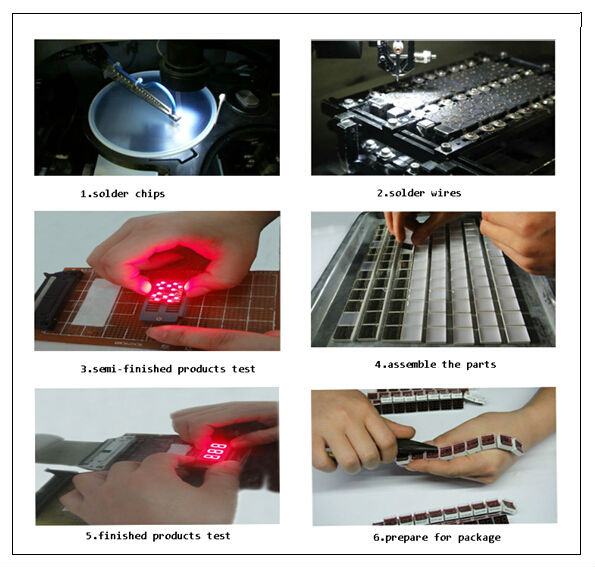

Main Processes of Our Segment Display(Factory pictures):
1. Western Union
2. T/T
3. Ali Escrow
4. L/C
Delivery Time:
Quantity Lead time
1-10K pcs 3-7 days
10.1K-50K pcs 7-15 days
Our safety packing for your goods:
Small carton size:40*27*40cm.
Export carton size:50*43*43cm(two small cartons packed inside)
LED professional manufacturer KEM with over 11 years experience in led field,
we do believe we can become your reliable supplier!
