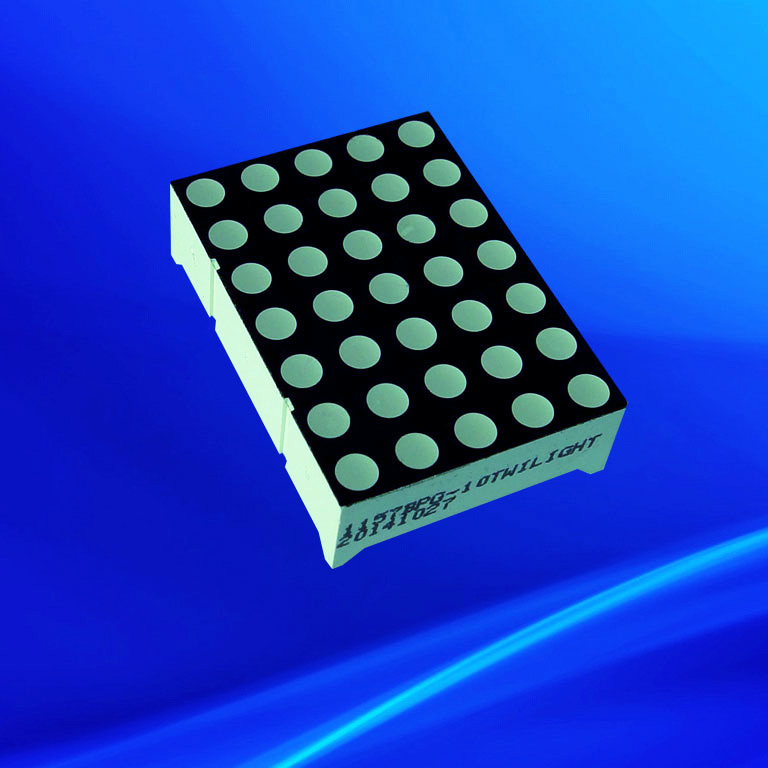

mini green led 5x7 matrix display,round dot 7x5 matrix led

• Application:led display
• Color:green
• Panel Size:22.75*31.8mm
• Pixel Pitch:5mm
• Place of Origin:Guangdong, China
• Model Number:KEM-11057AB
• Brand Name:KEM
• Screen Dimension:22.75*31.8mm
• Emitting color:Green or custom
• Face color:Black or Gray
• Working current:20mA
• Working voltage:1.8-3.3V
• OEM:Yes
• Manufature:China factory
• Part number:KEM-10057AB
• polarity:Commond Anode/Cathode
• Dimension:22.75*31.8mm

mini green led 5x7 matrix display,round dot 7x5 matrix led

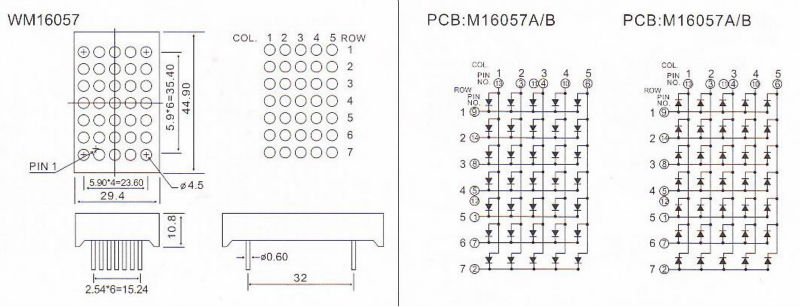

Dimension and Internal Curcuit :

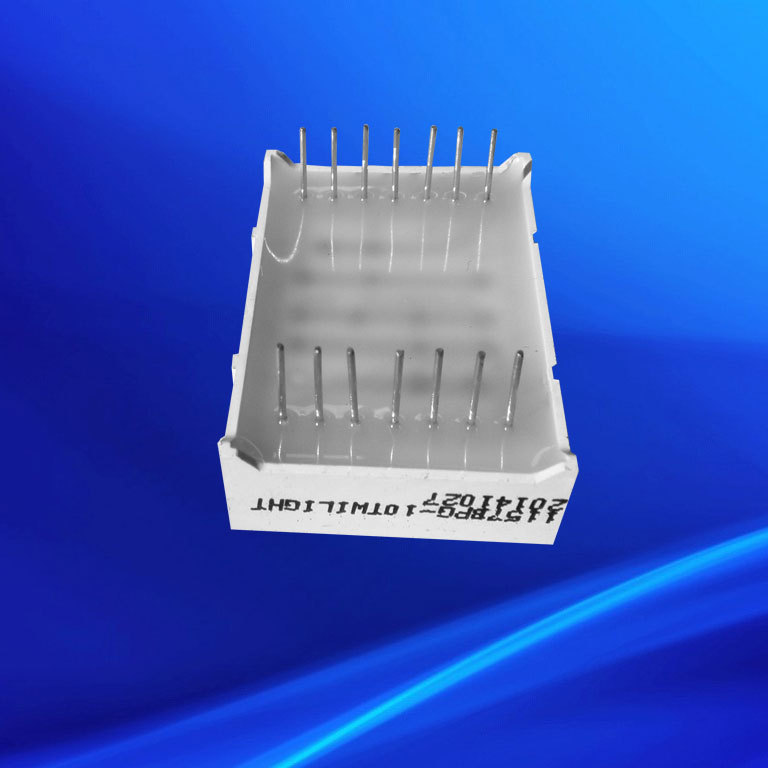

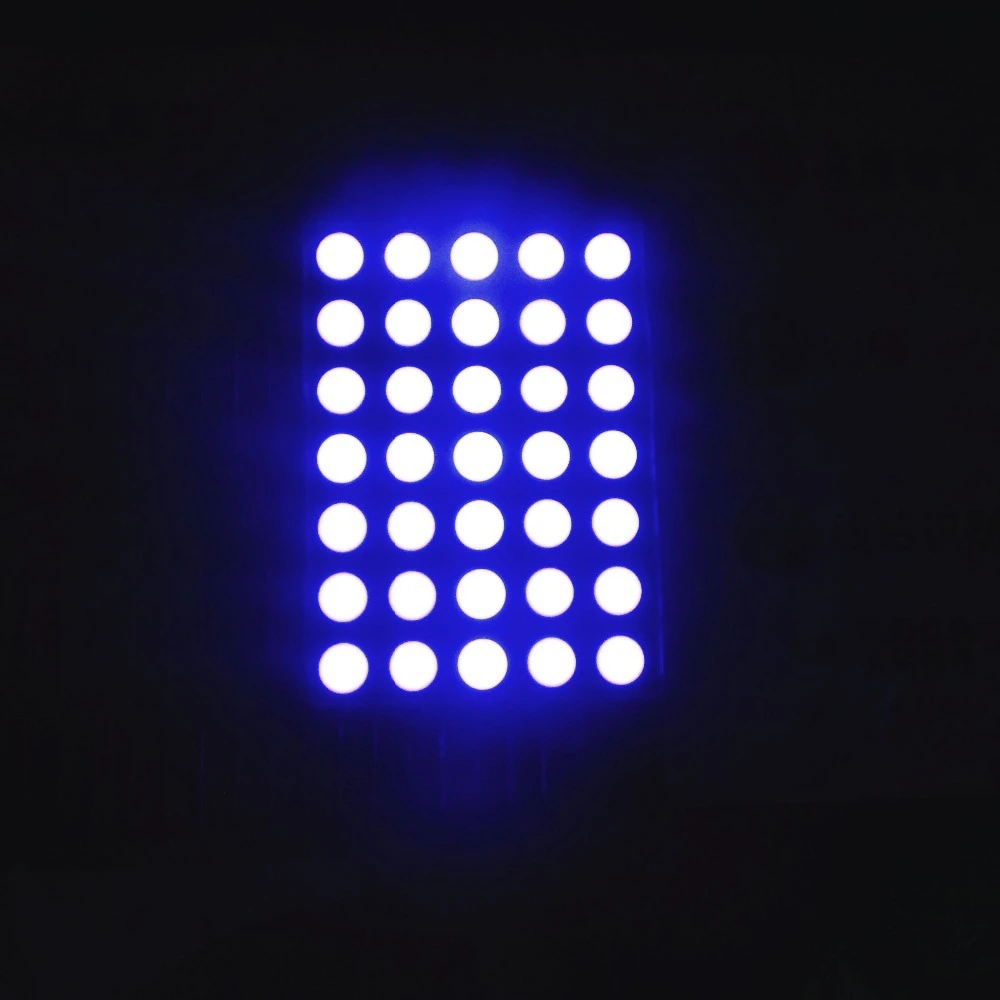

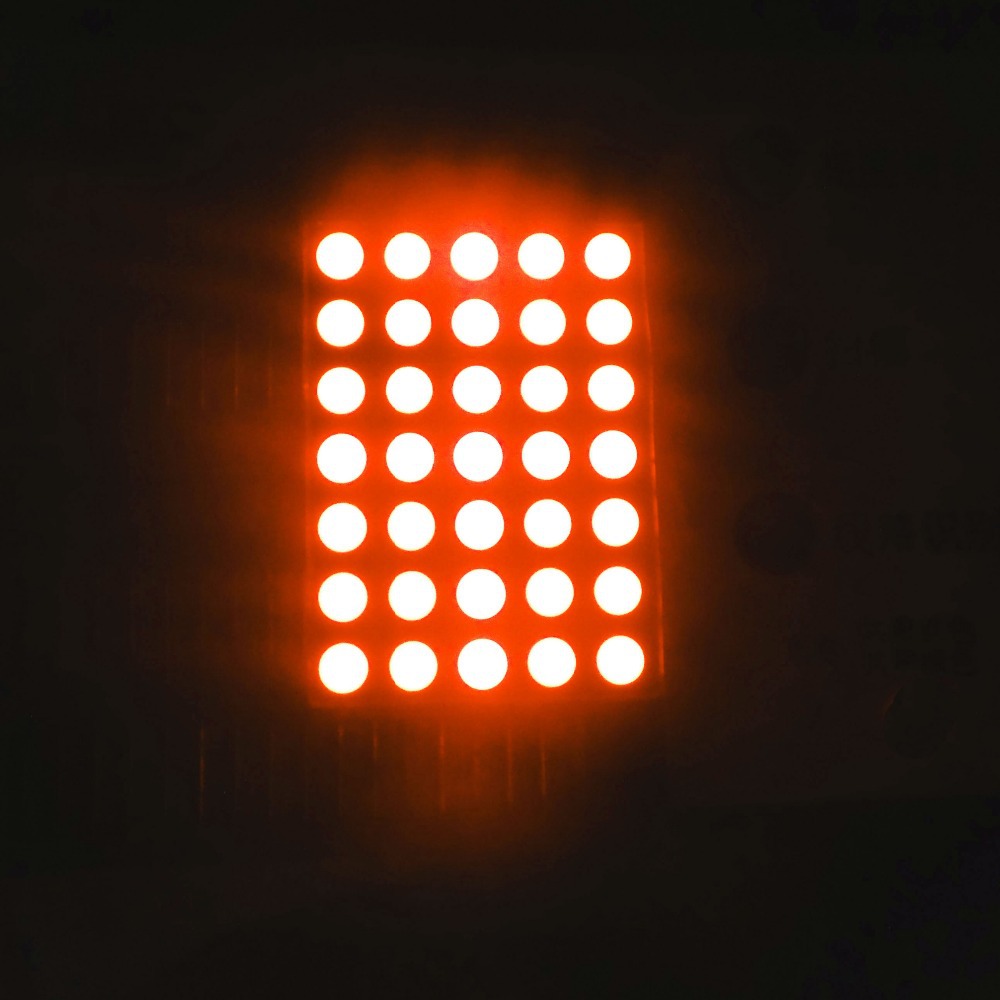

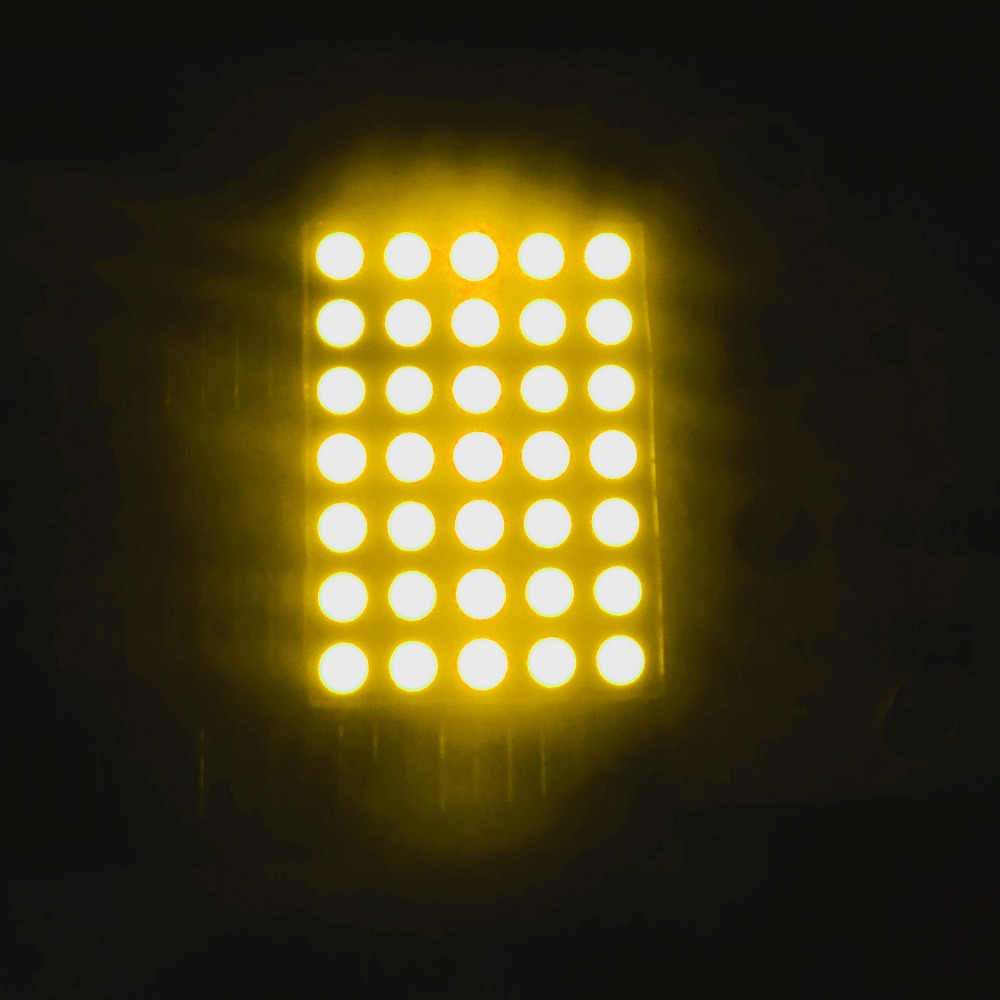

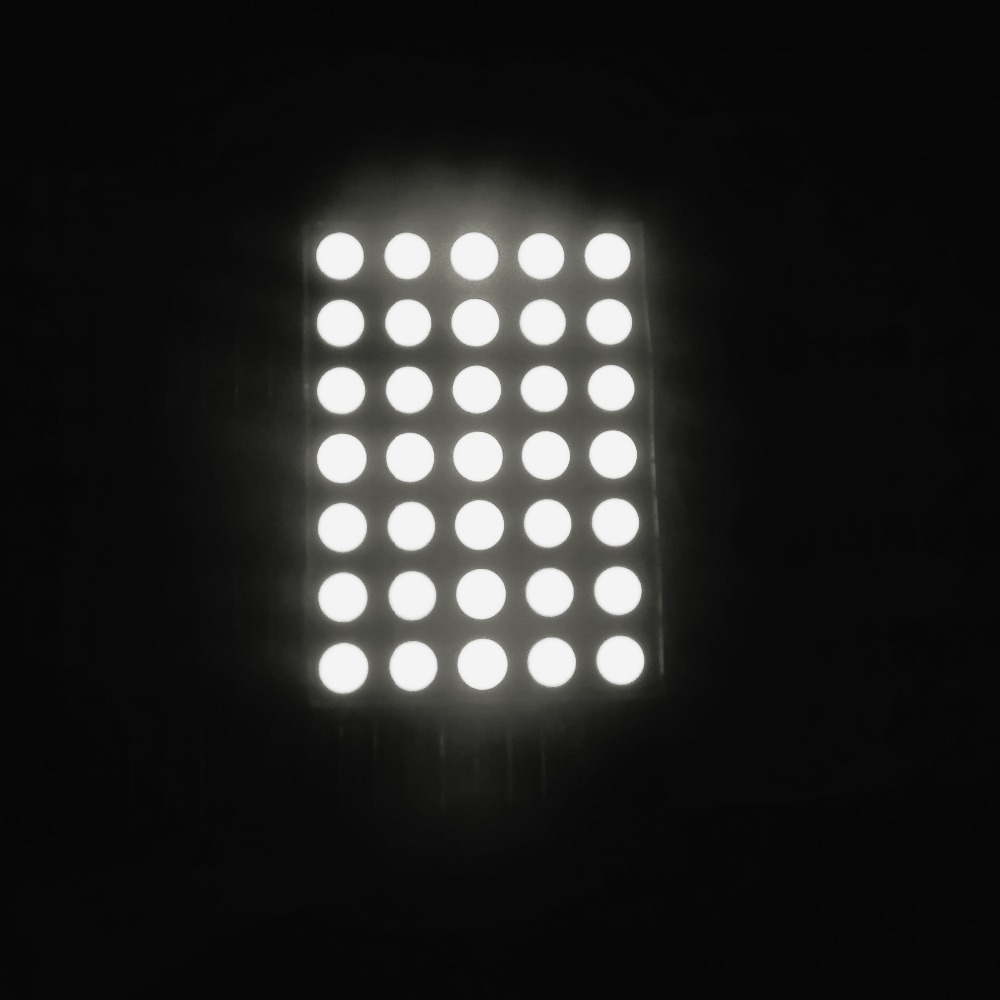

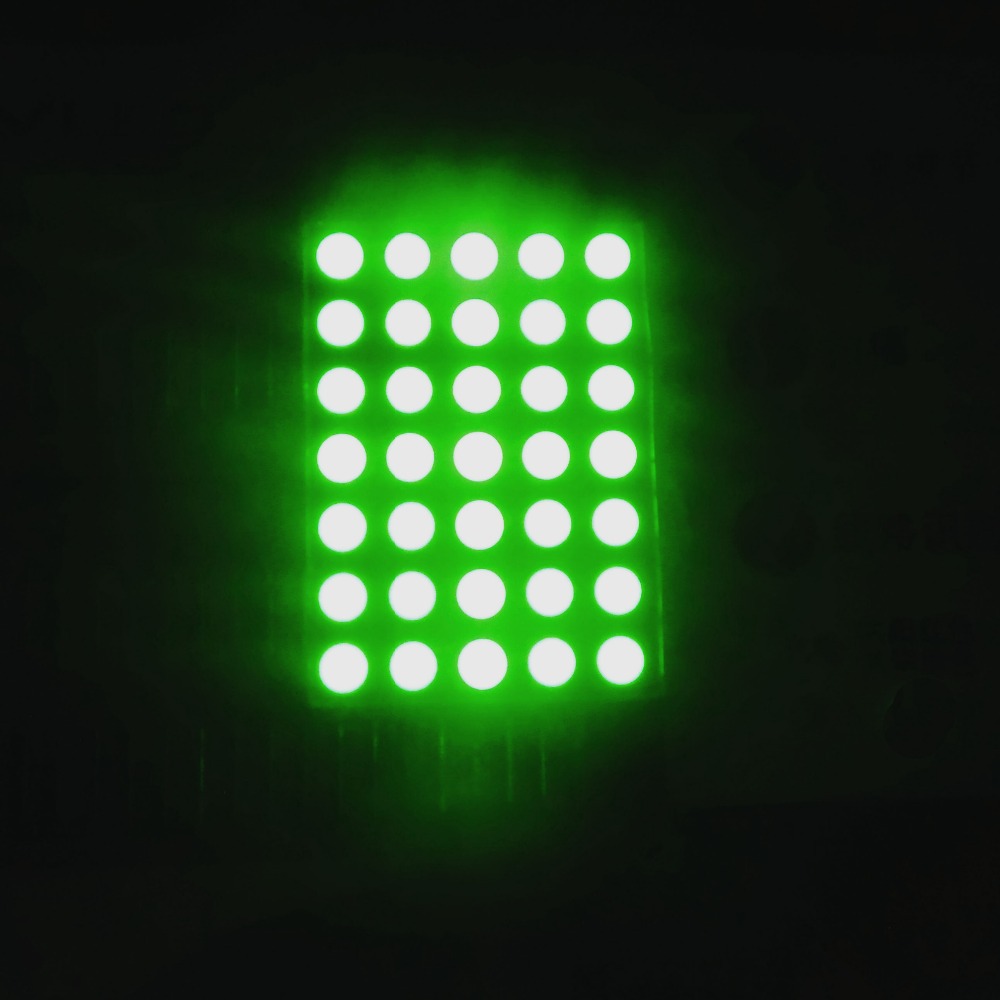

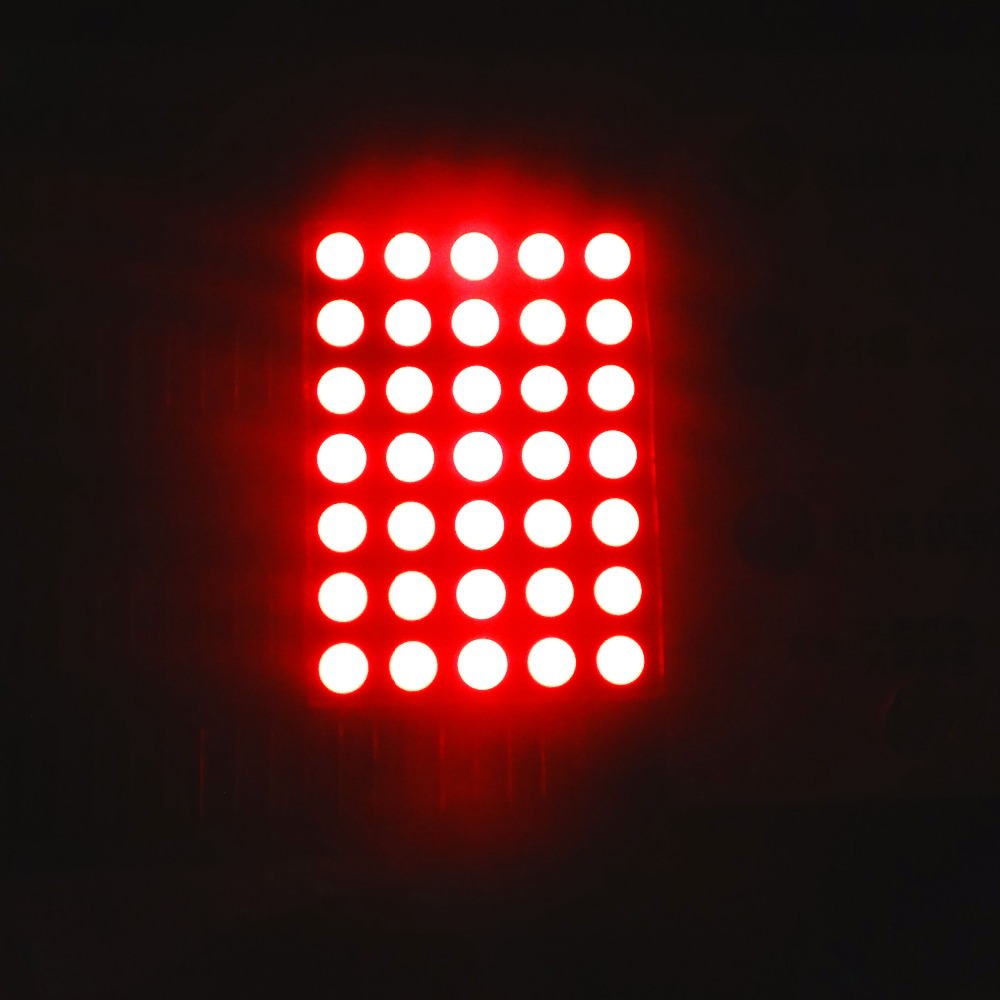

More Pictures for your easy ref

Features :

• Low current operation.
• Low power consumption.
• Full color.
• High brightness.
• Industrial standard size.
• Easy mounting on P.C. board or sockets.
• Emitting color : red / green/ yellow/ blue/ orange/ white/ bi-color/ RGB.
• Face color : black / gray.
• Surface dot type : epoxy diffusion / clear lens.

Part details :

Various color available for amber 600nm dot matrix led display 4.5 mm :

Dominant Wavelength Luminous Intensity

Red: 620 - 630nm Red: 70-90 mcd (1.8-2.3v / 20mA)

High red: 635 - 640 nm High red: 50-70 mcd (1.8-2.3v / 20mA)

Green: 565 - 575 nm Green: 70-90 mcd (1.8-2.3v / 20mA)

Yellow: 585 - 595 nm Yellow: 40-50 mcd (1.8-2.3v / 20mA)

Amber: 600 - 605nm Amber: 30 mcd (1.8-2.3v / 20mA)

Blue: 460 - 475nm Blue: 40-50 mcd (3.0-3.3v / 20mA)

Pure green: 515 - 525nm Pure green: 180-250 mcd (3.0-3.3v / 20mA)

White : 450-460 nm White: 100-180 mcd (3.0-3.3v / 20mA

If the PCB curcuit can not meet your need, pls contact me for other choices.

package details:

What We Can Provide:

7 segment / 14 segment / 16 segment display :

LED Dot Matrix Display:

Applications:

- Audio equipments or instrument panels.

- Home electronic appliances, air conditional controller.

- General use for digital indicator( led clock timer, led price tag, lift / elevator indicator & etc.).

- Multimedia products.

We Promise:

1. Your inquiry related to our products or prices will be replied within 24 hours.

2. Experienced sales and engineers will answer all your requirements in fluent English.

3. Advanced equipments & good material:ASM machines; chips,PCB boards & epoxy resin of RoHS compliant.

4. No matter big order or small order, we will provide our products with the best quality & also best service.

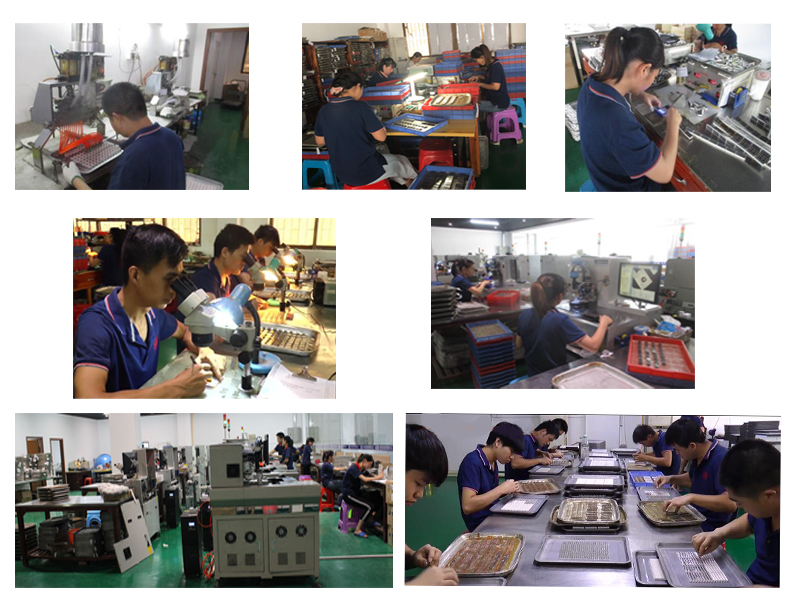

5. We are a direct factory in Dongguan and we've been doing the OEM and ODM service for over 10 years.
