0.36 Inch 6 Digit Amber 7 Segment LED Display
0.36 Inch 6 Digit 7 Segment LED Display

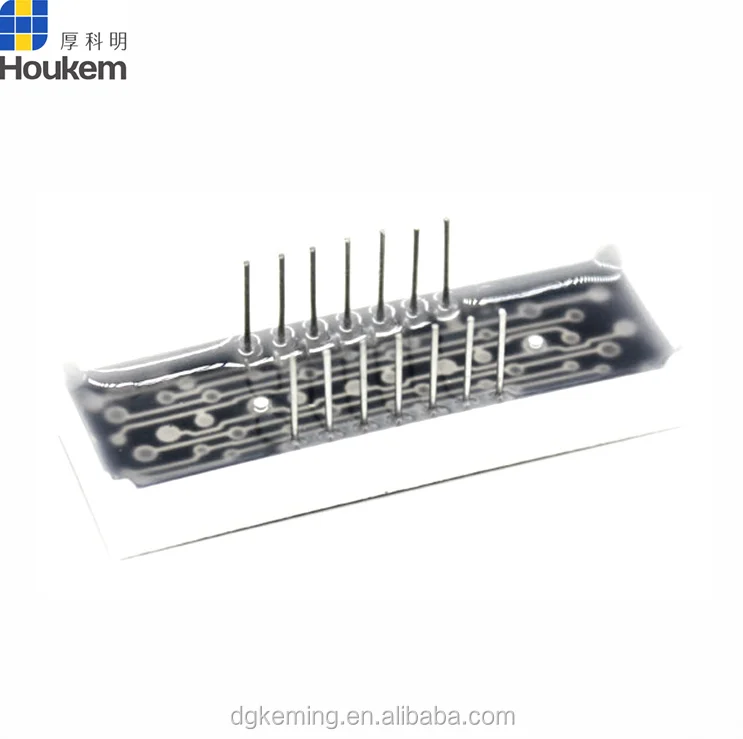

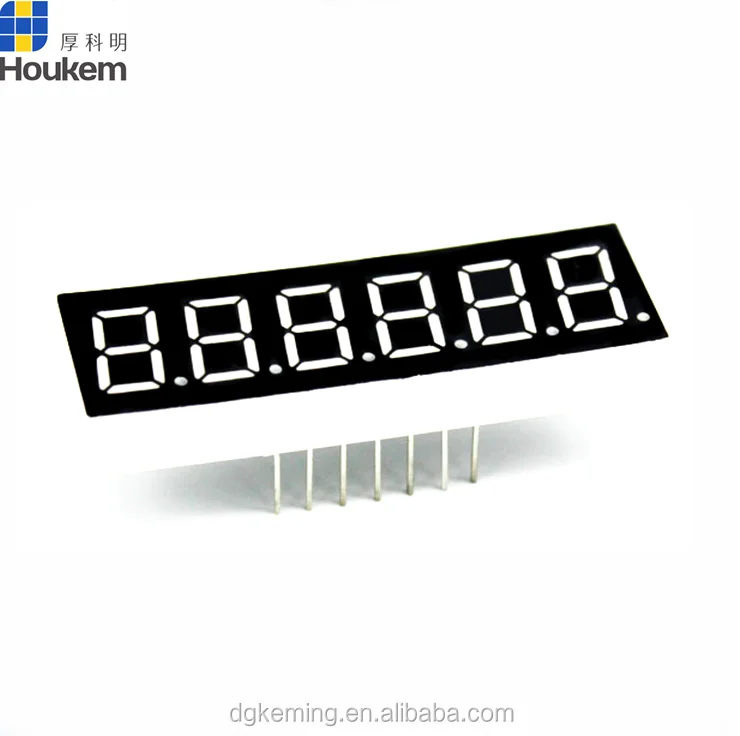

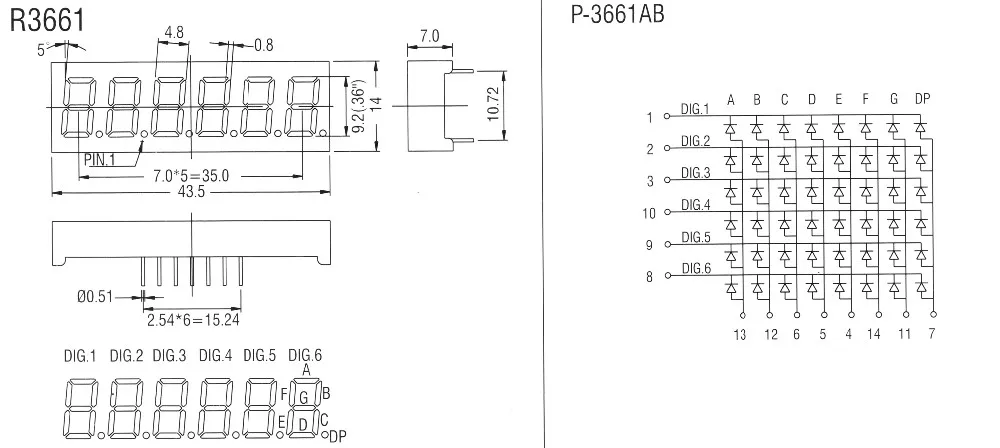

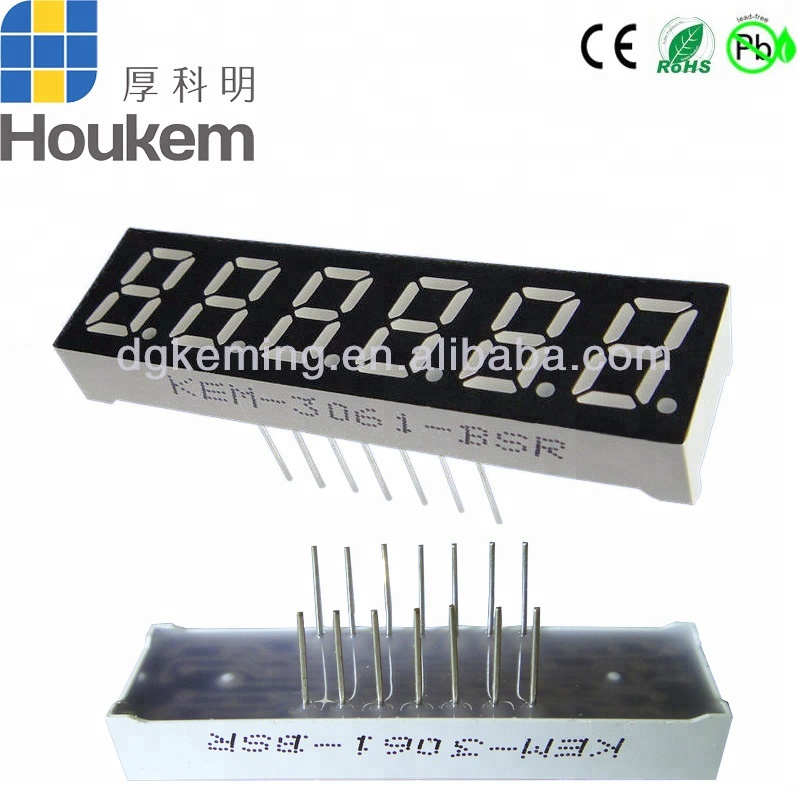

The0.36 inch 6 digit 7 segment display is a compact numerical LED display designed for meters, counters, control panels, and electronic equipment. This amber 7 segment LED display features a 43.5 × 14 mm screen dimension, low power consumption, and high brightness for clear numerical readouts.
The Houkem-3661 series is available in common anode (CA)andcommon cathode (CC) configurations, giving OEM and equipment manufacturers more flexibility when designing their display circuits.
Product Specifications
| Item | Specification |
|---|---|
| Model | Houkem-3661-BA / Houkem-3661-AA |
| Display Type | 7 Segment LED Display |
| Digit Size | 0.36 inch |
| Digit Number | 6 digits |
| Emitting Color | Amber |
| Screen Dimension | 43.5 × 14 mm |
| Product Dimension | 43.5 × 14 × 7 mm |
| Surface Color | Black / Grey |
| Epoxy Color | White |
| Usage | Indoor |
| Display Function | Graphics |
| Brand | KEM |
| Place of Origin | Guangdong, China |
| Configuration | Common Anode / Common Cathode |
| Warranty | 2 years |
TheHoukem-3661-BA is the common anode version, while the Houkem-3661-AA is the common cathode version. Customers should confirm the required circuit configuration before ordering.
The 0.36-inch display is also available in 1, 2, 3, 4, 5, and 6 digit configurations for different equipment designs.
Amber 7 Segment Display Features
This0.36 inch 7 segment display is designed for compact numerical display applications where space and readability are important.
Key features include:
- Low power consumption
- High brightness
- Compact 0.36-inch digit size
- Six-digit numerical display
- Amber emitting color
- Common anode and common cathode options
- Two-year quality warranty
The standard amber version has a wavelength of 600–605 nm. Under the specified test condition of IF=18mA, the forward voltage is 1.9V typical and 2.0V maximum, with luminous intensity of 90 mcd typical and 100 mcd maximum.
Color and Chip Characteristics
| Emitting Color | Test Condition | Wavelength (λp) | λ | Forward Voltage Typ. | Forward Voltage Max. | Luminous Intensity Typ. | Luminous Intensity Max. |
|---|---|---|---|---|---|---|---|
| Amber | IF=18mA | 600–605nm | 30 | 1.9V | 2.0V | 90mcd | 100mcd |
| Super green | IF=18mA | 565–575nm | 30 | 1.9V | 2.0V | 48mcd | 55mcd |
| Super red | IF=18mA | 620–625nm | 20 | 1.8V | 2.0V | 110mcd | 130mcd |
| Ultra red | IF=18mA | 620–625nm | 20 | 2.0V | 2.1V | 300mcd | 350mcd |
| High red | IF=18mA | 638–660nm | 20 | 1.8V | 1.9V | 15mcd | 20mcd |
| Yellow green | IF=18mA | 570–580nm | 30 | 1.9V | 2.0V | 43mcd | 50mcd |
| Yellow | IF=18mA | 580–600nm | 35 | 1.9V | 2.0V | 70mcd | 80mcd |
| Blue | IF=20mA | 465–475nm | 40 | 2.8V | 3.0V | 150mcd | 200mcd |
| Pure green | IF=20mA | 515–525nm | 40 | 2.8V | 3.0V | 180mcd | 250mcd |
| White | IF=20mA | — | — | 2.8V | 3.0V | 180mcd | 200mcd |
7 Segment LED Display Customization
HOUKEM provides multiple options for professional OEM projects. Digit sizes range from 0.25"to 20", with 1 to 6 digitsavailable.
Customers can also select:
- 7-segment or 14-segment displays

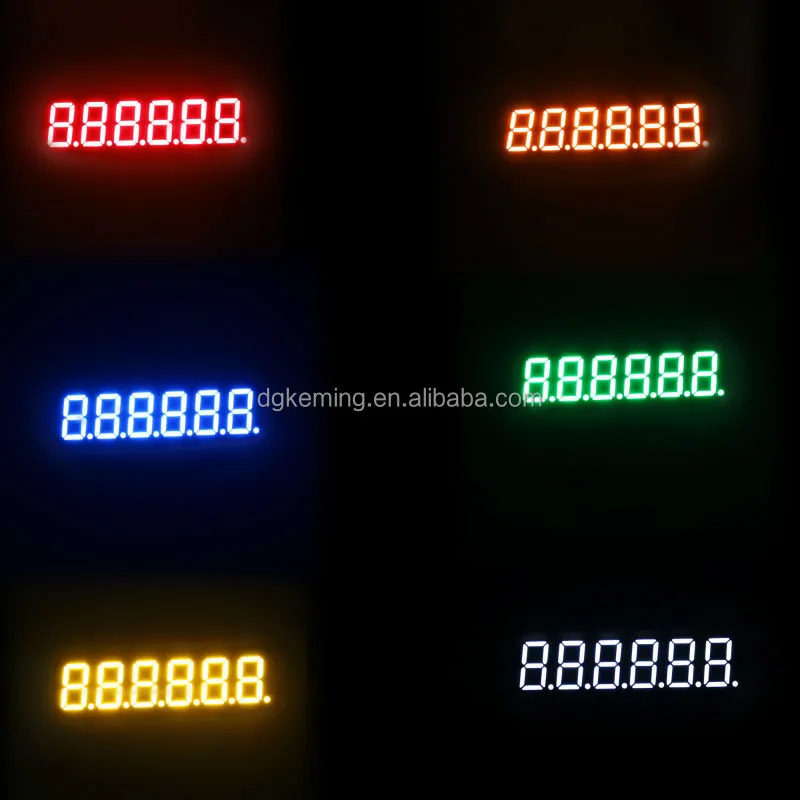

- Super red, ultra red, high red, yellow green, pure green, super green, blue, yellow, white, amber, bi-color, or RGB
- Custom PCB layouts and display configurations
If the standard PCB layout does not meet your requirements, HOUKEM can discuss alternative configurations based on your equipment design.
Applications and OEM Support
This6 digit 7 segment LED display is suitable for digital meters, counters, timers, control panels, measuring equipment, and other indoor electronic devices requiring compact numerical output.
HOUKEM provides samples for testing, with sample availability typically within 3–5 days. For OEM projects, customers can provide the required digit size, digit number, color, circuit configuration, and PCB requirements for evaluation.
FAQ
Is the 0.36 inch display available in common cathode?
Yes, the Houkem-3661-AA is the common cathode version. The Houkem-3661-BA uses a common anode configuration.
Can I order fewer than six digits?
Yes, the 3661 series is available in one to six digits. This allows customers to select a configuration according to available panel space.
What colors are available for custom 7 segment displays?
HOUKEM offers multiple color options, including amber, red, green, blue, white, bi-color, and RGB. Availability depends on the selected display configuration.
Can HOUKEM modify the PCB layout?
Yes, alternative PCB layouts can be discussed when the standard layout does not fit your equipment. Customers should provide the required dimensions and connection requirements.
Can I test samples before bulk production?
Yes, HOUKEM provides samples for evaluation, with sample availability typically within 3–5 days. Testing the display in the target equipment is recommended before mass production.
Request a 0.36 Inch 7 Segment Display
Need a 0.36 inch 6 digit 7 segment display for a meter, counter, control panel, or OEM device? Contact HOUKEM for samples, configuration confirmation, pricing, PCB options, and technical support for your project.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Two years quality warranty
