Model No: HOUKEM-2531-BY

Mini 0.25 inch 7 segment led display 3 digit 888 yellow

7 segment display dongguan houke is 7 segment led display professional manufacturer

Delivery :

EXW

minimum order :

10 pieces

Supply Ability :

50000pieces / Day

Stock Time :

7-14Day

Country of Origin :

Dongguan/ Guangdong

Quantity :

US $0.19 - US $0.30 / pieces

add to cart

Contact Now

Place of Origin:CN;GUA
Usage:Indoor
Display Function:Graphics
Pixels:25mm
Tube Chip Color:white
Brand Name:KEM
Model Number:HOUKEM-2531-BY
Screen Dimension:15*8mm

Product Describtion

0.25 inch 3 digit 7 segment display yellow

HOUKEM-2531-BY---------common anode(CA)

HOUKEM-2531-AY---------common cathode(CC)

Item No.	HOUKEM-2531-BY
Dimension	1584mm
Surface color	Black /Grey
epoxy color	white
Emitting color	Yellow

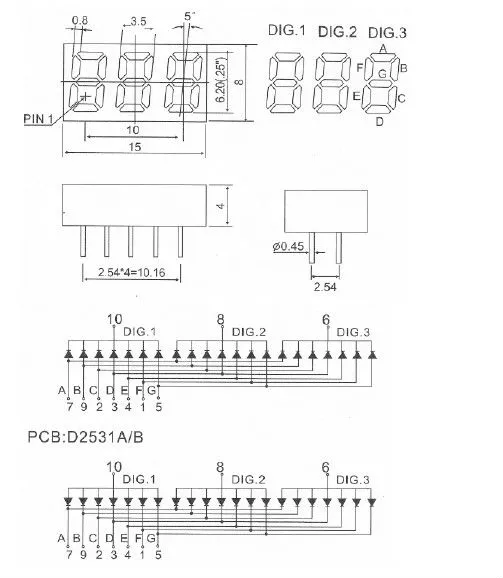

Package dimension & Internal circuit diagram

2531 Dimension &PCB

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

TWO years quality warranty

1,Low power consumption

2, High brightness

3, High intensity and reliability

4, Easy assembly

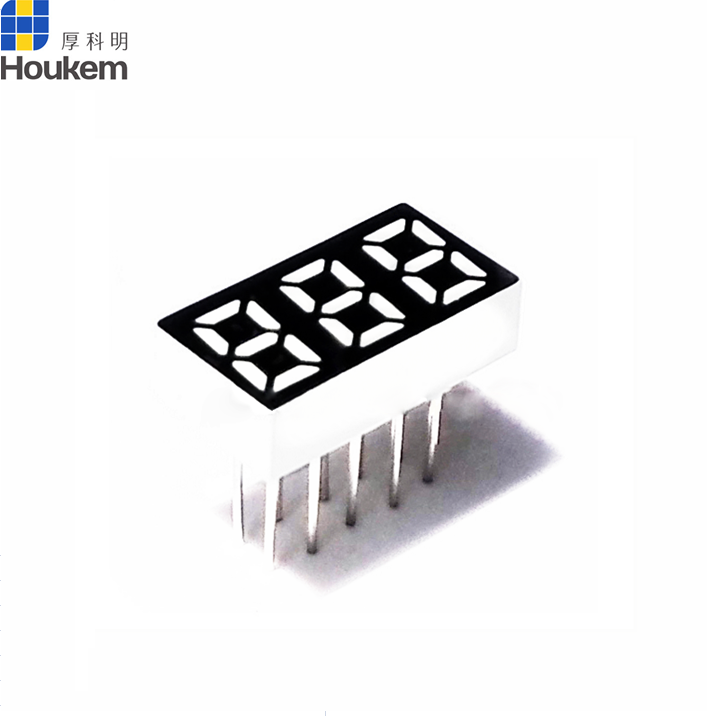

2531

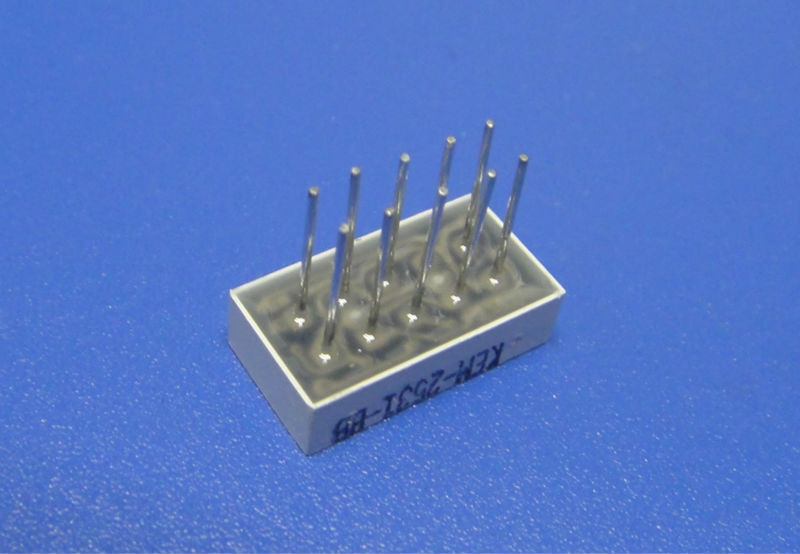

2531-Back

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)

Emitting Color	Test Condition	Wavelength(nm)		Forward Voltage(V)		Luminous Intensity (mcd)
Emitting Color	Test Condition	(λp)	λ	Typ	Max	Typ	Max
Amber	IF=18mA	600-605	30	1.9	2.0	90	100
Super green	IF=18mA	565-575	30	1.9	2.0	48	55
Super red	IF=18mA	620-625	20	1.8	2.0	110	130
Ultra red	IF=18mA	620-625	20	2	2.1	300	350
High red	IF=18mA	638-660	20	1.8	1.9	15	20
Yellow green	IF=18mA	570-580	30	1.9	2.0	43	50
Yellow	IF=18mA	580-600	35	1.9	2.0	70	80
Blue	IF=20mA	465-475	40	2.8	3.0	150	200
Pure green	IF=20mA	515-525	40	2.8	3.0	180	250
^White	^IF=20mA	^-	^-	^2.8	^3.0	¹⁸⁰	²⁰⁰

Different color epoxy are available

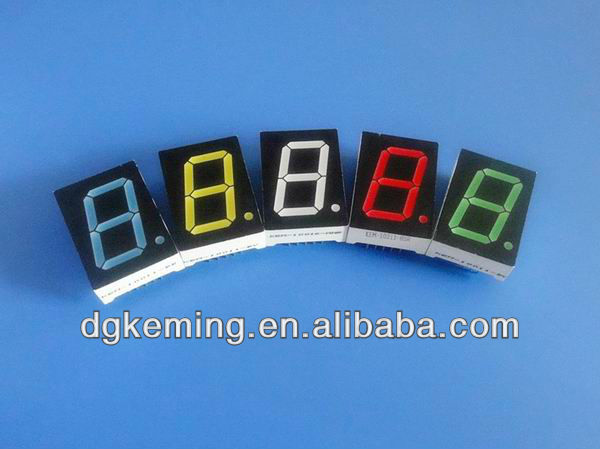

1inch 10016 (27)

Our Services

Our service:

Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

we can offer----SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3.Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, Bi-color, RGB.

4. Led dot matrix: 57, 58, 88, 117, 16*16

5. high power led: white /red /blue/green/IR/UV led

Working Process

working process

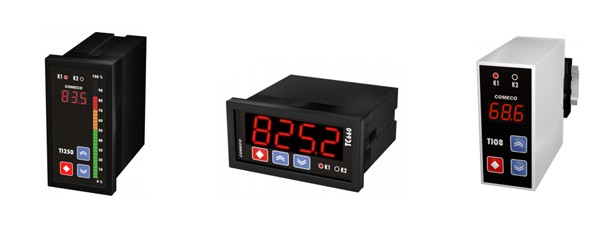

Application

7-segment-application

application-6311

Packaging & Shipping

packing & shipping

Contact us

Established in 2003,our factory is specialized in LED products, including 7 segment

LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix Led displays,bar graph

arrays and LED directon indicator displays, high power led, etc.
