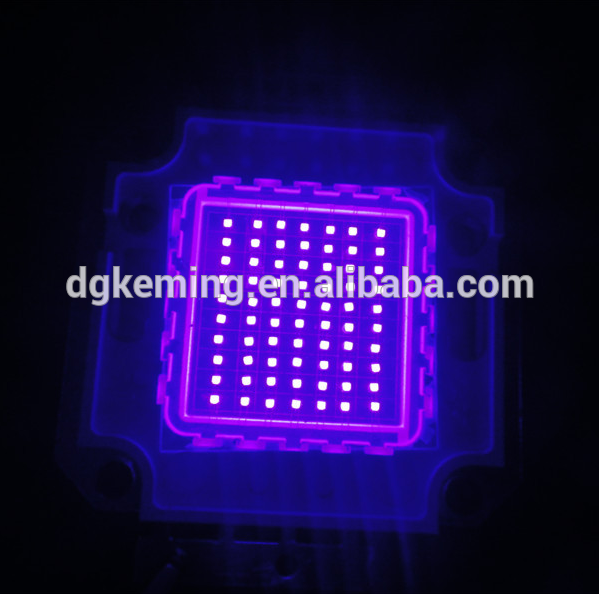

Long lifespan 70w uv led 365nm 370nm high power cob uv led
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Warranty(Year):2-Year
- Chip Material:InGaN
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Luminous Efficacy(lm/w):10
- Luminous Flux(lm):5000-6000
- Optical Attenuation(%):2
- Power Dissipation:60
- Viewing Angle(°):140
- Color Rendering Index(Ra):80
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 80
- Brand Name:KEM
- Lighting solutions service:uv curing
- Emitting Color:UV
- Power:70W
High power uv led Epileds LG chip 70w 365nm uv led for UV curing
| Item | High Power 70w UV LED |
| Power | 70w |
| Color | UV |
| Diode Brand | LG / Epileds |
| Lens Material of Diode | Quartz |
| Wavelength | 365-370nm, 380-385nm, 390-395nm, 395-400nm, 400-405nm |
| Forward Current | 300mA/chip |
| Forward Voltage | 3.2-3.6v/chip |
| Certification | CE, RoHS |
| PCB Material | 2.0mm Red copper plate |
1. Use high efficient integrated LED as the light source
2. Wide beam angle: 140 degree (larger lighting area) or customized
3. Smart appearance: built-in power supply, no need ballast, reflector, it can work independently
4. Unique heat dissipation device: thermostatically controlled fans to keep LED light cool
5. Can be combined with fluorescent lighting
6. Environment-friendly: no mercury and other harmful heavy metal, no light harmful for plant
