led 7 segment small size 0.2 inch smd red
- Application:Indoor
- Color:red
- Panel Size:6.9*10mm
- Pixel Pitch:2.54
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet, Photo
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-2011SMD-BSR
- Brand Name:HOUKEM
- use:advertising publish, shopping mall, subway, Restaurant & Hotel Supplies, medical treatment
- Pixels:--
- Specification:--
- Screen Dimension:6.9*10mm
- Product name:0.2'' 1 digit 7 segment led smd display 0.2''
- color:RED
- Warranty:2Years
- Luminous Intensity:130-150mcd
- Forward Voltage:2V
- operating temperature:-35 ~ +50 ℃
- OEM:YES
- Custom made:YES
- Certificate:CE ROHS ISO9001

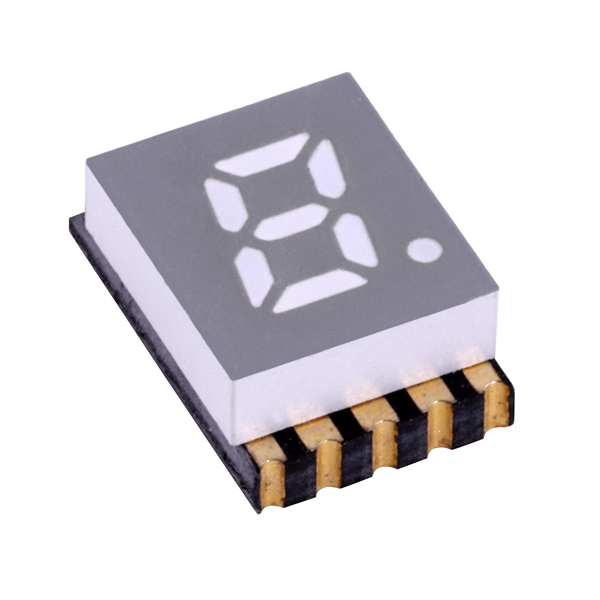

red 0.2'' 1 digit smd 7 segment LED display
Product details:
HOUKEM-2011SMD-BSR, common anode(CA)
HOUKEM-2011SMD-ASR, common cathode(CC)
| Part NO | HOUKEM-2011SMD-BSR | Digit height | 0.2” |
Digit quantity | 1 | Pin configuration | Common anode |
Surface color | gray | Emitting color | super red |

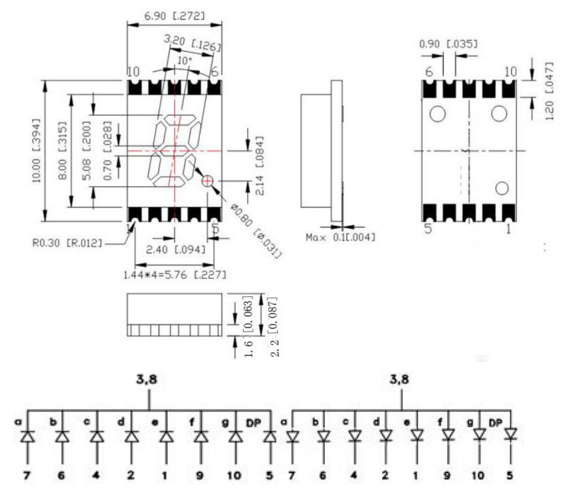

Package dimension& Internal circuit diagram
Two years quality warranty
1, Low power consumption
2, High brightness
3, Easy assembly
4, High intensity and reliability

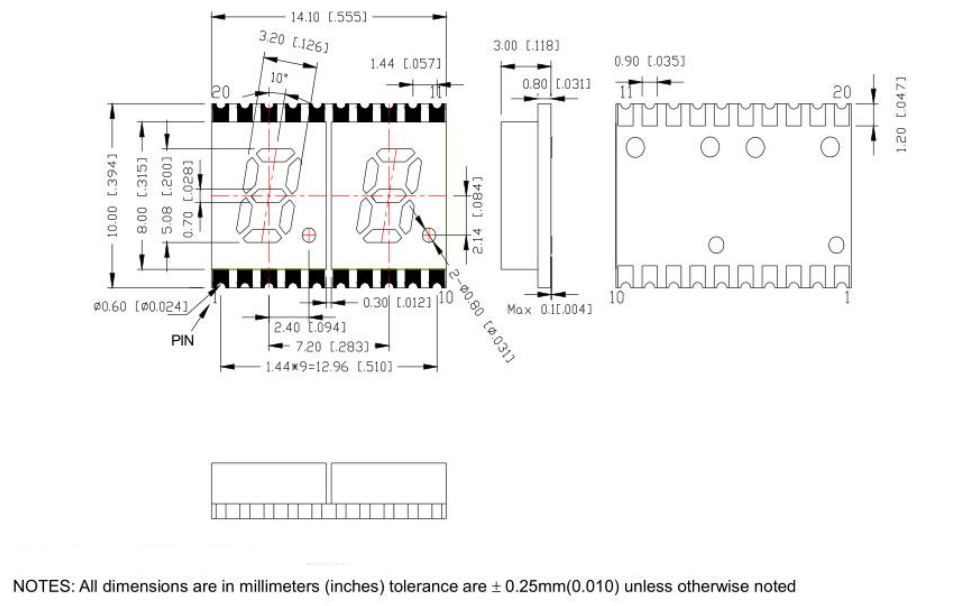

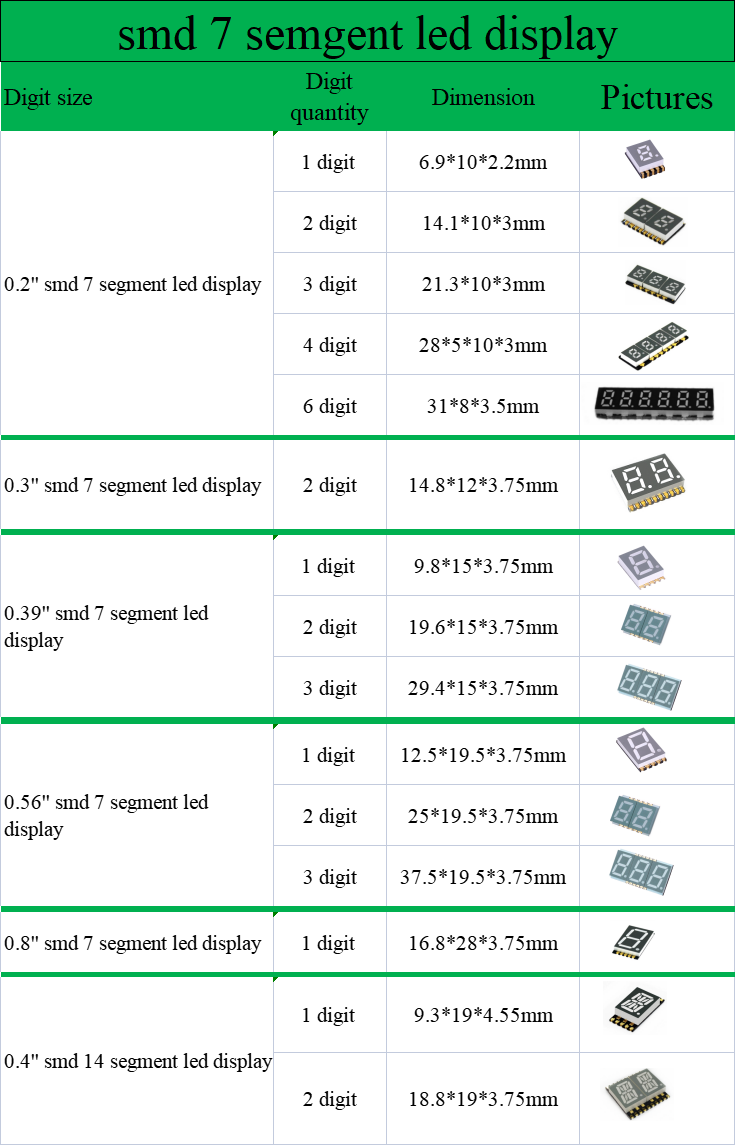

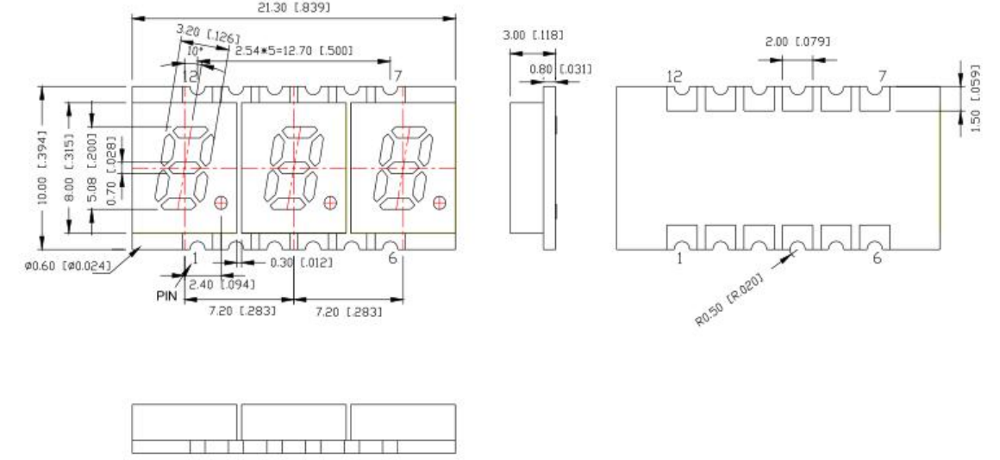

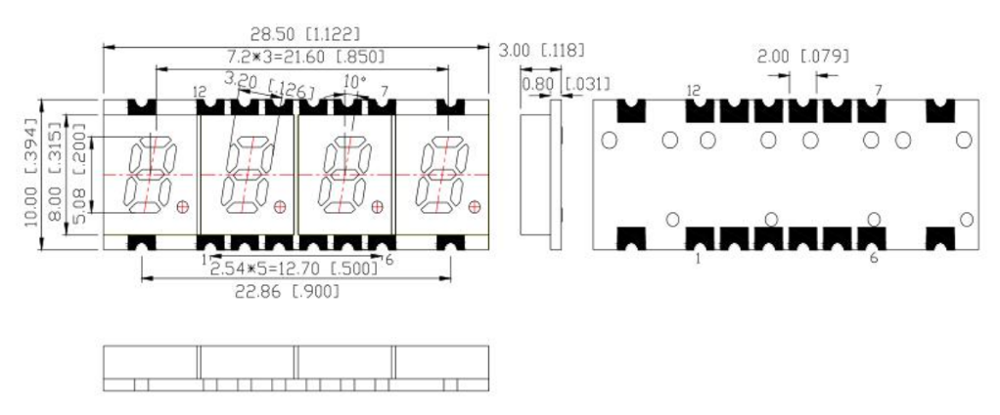

0.2'' 4 /3/2 digit smd 7 segment led display
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=10-15mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=10-15mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red 1 | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 200 | 210 |
Ultra red 2 | IF=10-15mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=10-15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=10-15mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=10-15mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=10-15mA | 465-475 | 40 | 2.9 | 3.0 | 150 | 200 |
Pure green | IF=10-15mA | 515-525 | 40 | 2.9 | 3.0 | 600 | 640 |
White | IF=10-15mA | - | - | 2.8 | 2.9 | 180 | 200 |
Customized products are available
