Model No: KEM-HP003YW-E40
LED 3W 585nm 595nm led High Power Led epileds chip yellow with ROHS certification
high power led houkem is high power led professional manufacturer
Delivery :
EXW
minimum order :
1 piece
Supply Ability :
500piece / Week
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $0.65 - US $1.00 / piece
- Type:High Power LED
- Place of Origin:CN;GUA
- Color Temperature:standard
- Color Rendering Index(Ra):80
- Brand Name:KEM
- Model Number:KEM-HP003YW-E40
- Power Dissipation:1
- Power:1-3W
- Luminous Flux(lm):70
- Luminous Intensity:70
- Storage Temperature(℃):-25 - 85
- Optical Attenuation(%):1
- Viewing Angle(°):140
- Chip Material:AlGaInP
- Certification:CE
- Certification:RoHS
- Emitting Color:Yellow
- Operating Temperature(℃):-15 - 60
Product Describtion

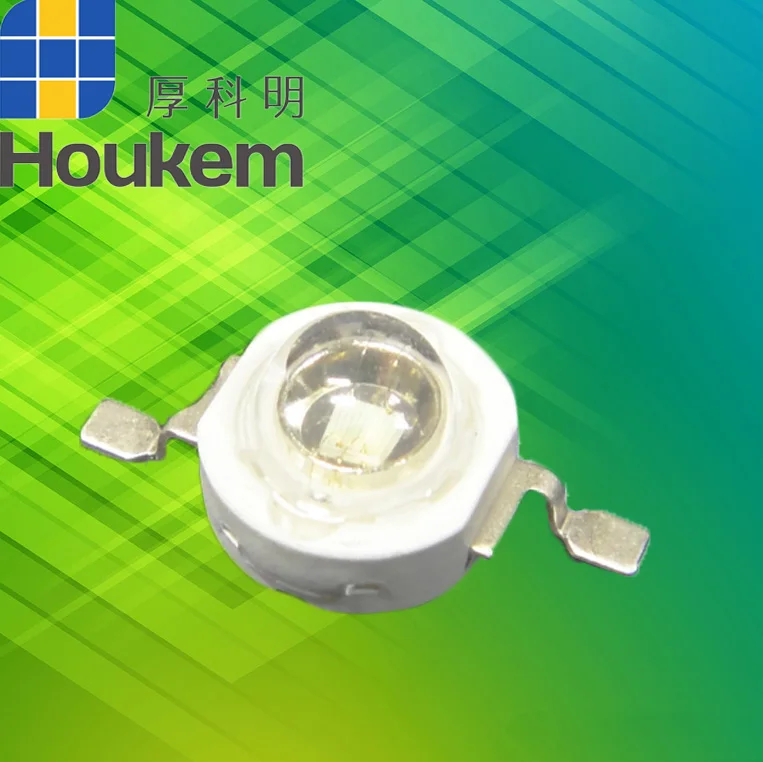

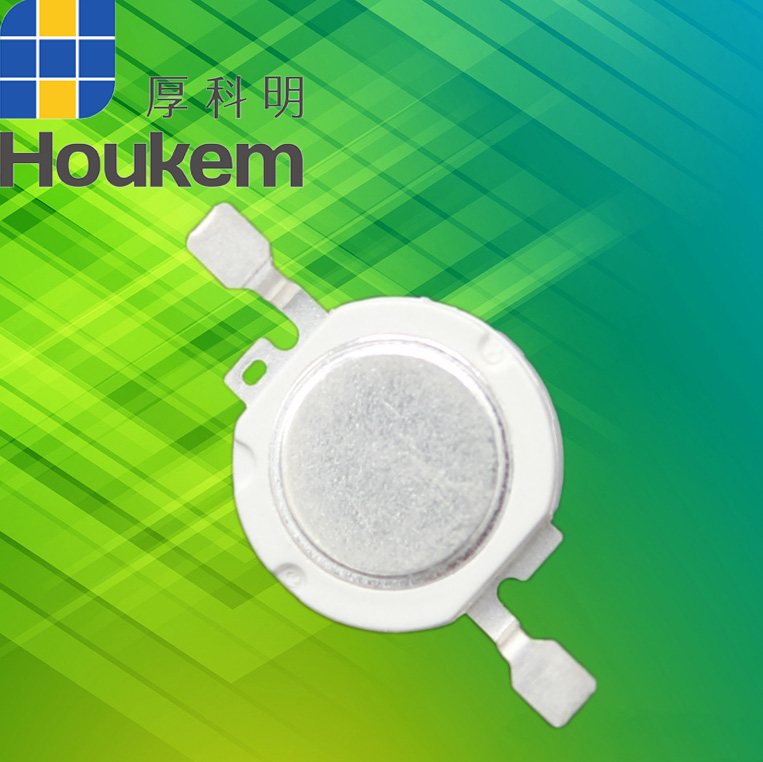

LED 3W 585nm 595nm led High Power Led epileds chip yellow
Electeical Characteristics at 600mA,Ta=25°C
Color | Part No | Forward Voltage | Units | ||
Min | Typ | Max | |||
yellow | KEM-HP003YW-E40 | 2.0 | - | 2.4 | V |
Absolute Maximum Ratings
Parameter | Symbol | Rating | Unit |
UV | |||
DC Forward Current(mA) | If | 600 | mA |
Peak Pulse Current(mA) | If | 600 | mA |
Reverse Voltage | VR | 5 | V |
LED Junction Temperature | Tj | 125 | °C |
Operation Temperature | Topr | -40--100 | °C |
Storage Temperature | Tstg | -40--100 | °C |
Soldening Temperature | Tsol | 260 | °C |
ESD Sensitivity | Vb | 4000 | V |
Luminous Flux at 350mA,Ta=25°C
Color | Part No | Wavelength | CRI | Flux | Units | ||
Min | Typ | Max | |||||
yellow | KEM-HP003YW-E40 | 585-595nm | 80 | 60 | 70 | mw | |
Quantity Lead time
1-10K pcs 3-7 days
10.1K-50K pcs 7-15 days
Any delivery way is available.
Our service:
Sample are available
In order to let you have an enjoyable experience on our best quality product and satisfied service,
we can offer---- SAMPLES for your test within 3-5 days.

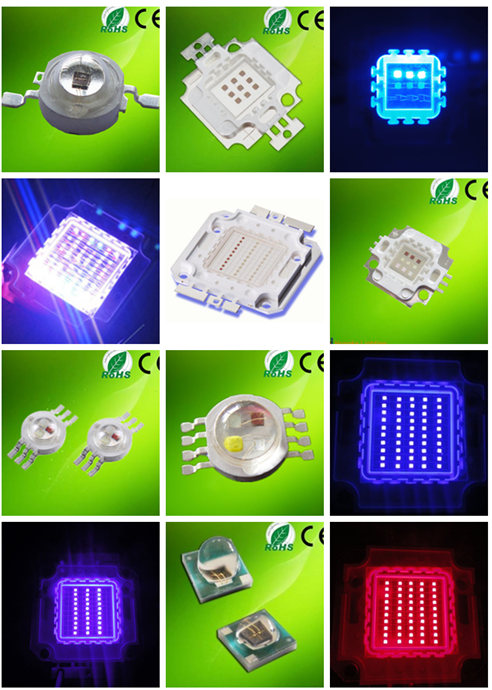

Series information:
| Part Number | Chip Material | Emitting Color | Forward voltage | Forward current | Luminous | Viewing angle (Deg) |
| KEM-HP003WW-E35 | InGan | 2500-4500K | 3.0-3.3V | 600mA | 100-110lm | 120 |
| KEM-HP003PW-E35 | InGan | 4500-7000K | 3.0-3.3V | 600mA | 110-120lm | 120 |
| KEM-HP003CW-E35 | InGan | 7000-15000K | 3.0-3.3V | 600mA | 110-120lm | 120 |
| KEM-HP003RW-E35 | AIGainp | Red 620-630nm | 2.0-2.4V | 600mA | 60-670lm | 120 |
| KEM-HP003DR-E35 | AIGainp | Red 650-670nm | 2.0-2.4V | 600mA | 40-50lm | 120 |
| KEM-HP003GW-E35 | InGan | Green 530-540nm | 3.0-3.3V | 600mA | 80-90lm | 120 |
| KEM-HP003BW-E35 | InGan | Blue 460-470nm | 3.0-3.3V | 600mA | 100-120lm | 120 |
| KEM-HP003YW-E35 | AIGainp | Yellow 590-595nm | 2.0-2.4V | 600mA | 40-50lm | 120 |
| KEM-HP003UV-E45 | InGan | UV 385-420nm | 3.0-3.3V | 600mA | 40-90mw | 120 |
| KEM-HP003UV365-E45 | InGan | UV 365nm | 3.4-3.8V | 600mA | 70-90mw | 120 |

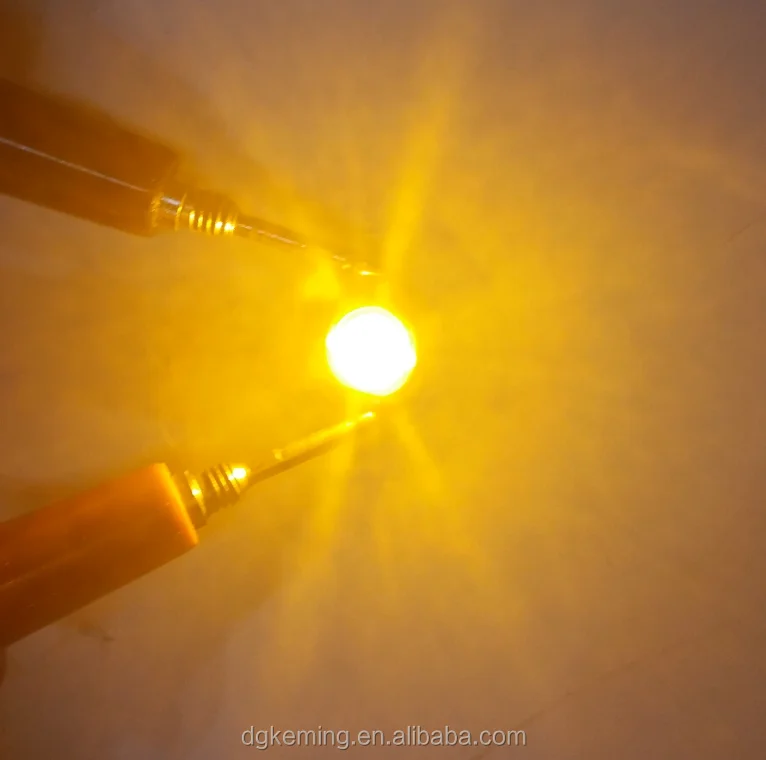

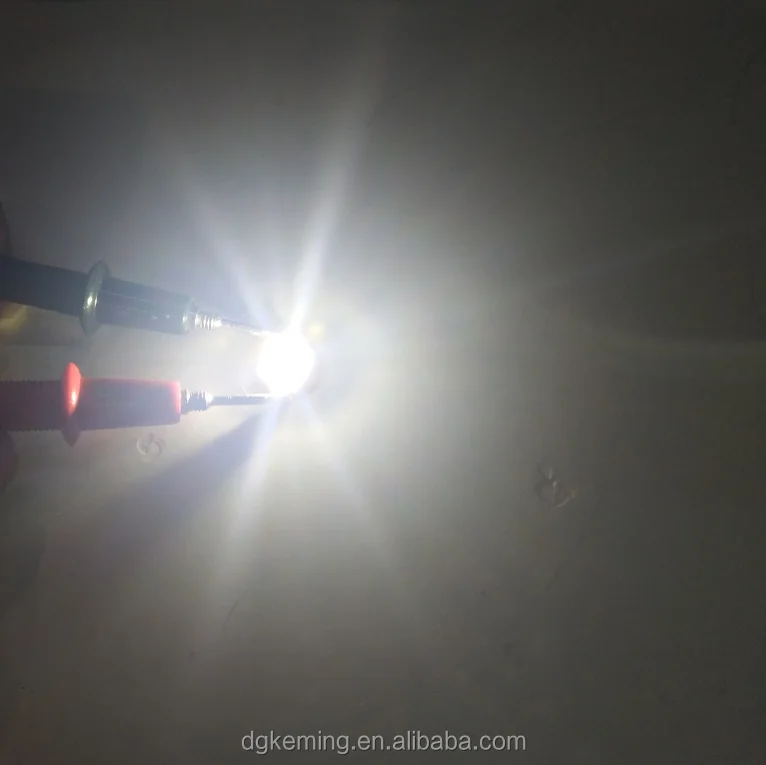

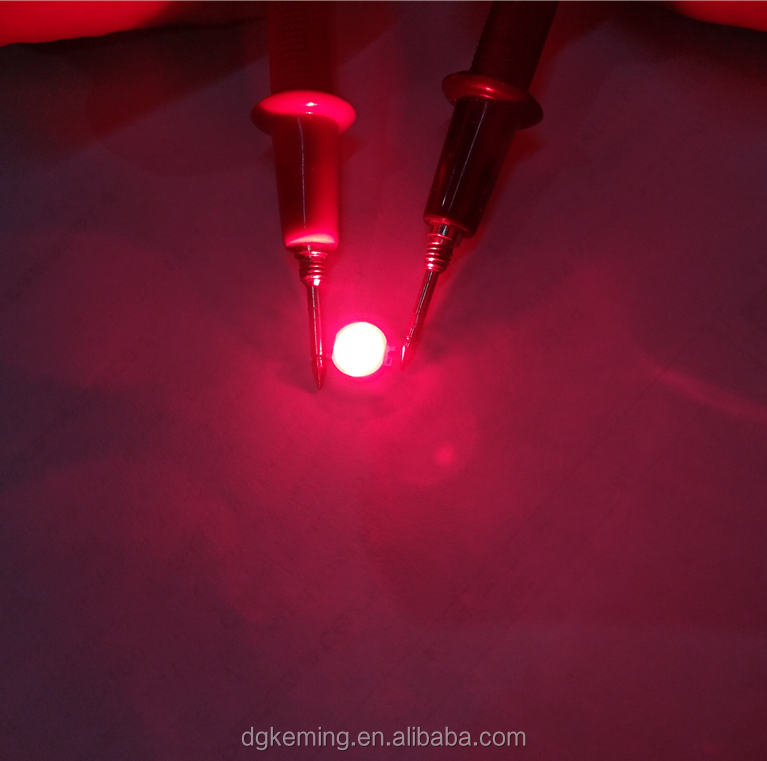

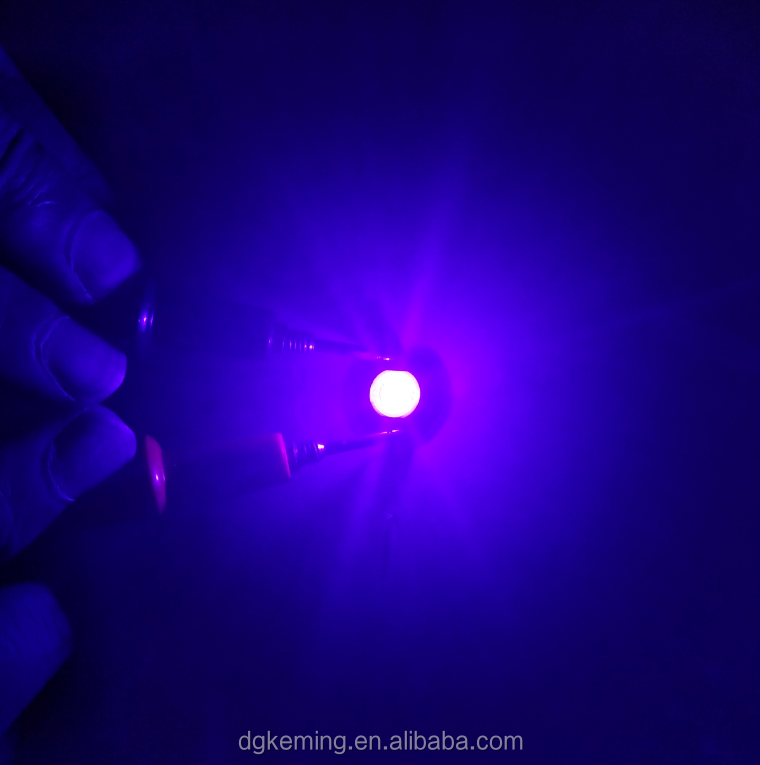

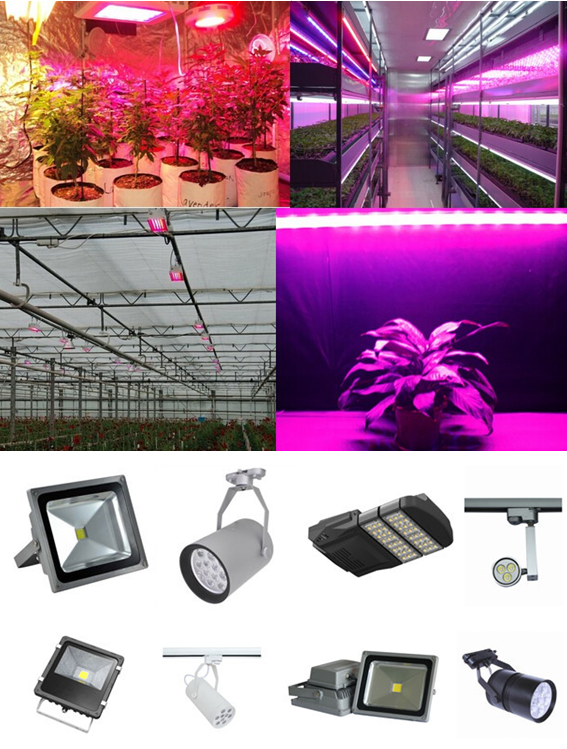

Lighting and application pictures

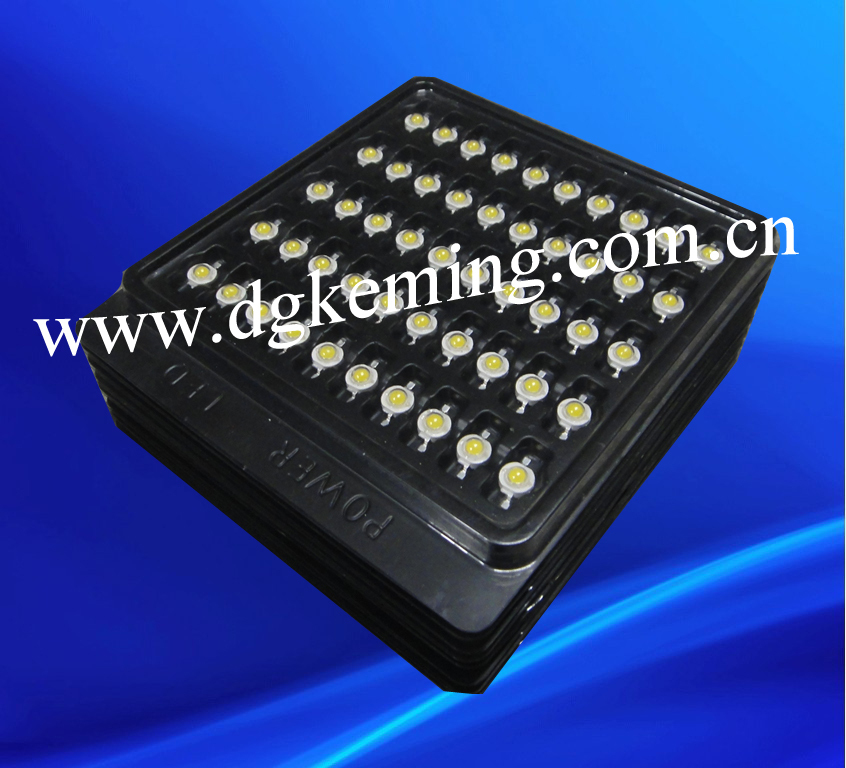

Package
Certificates

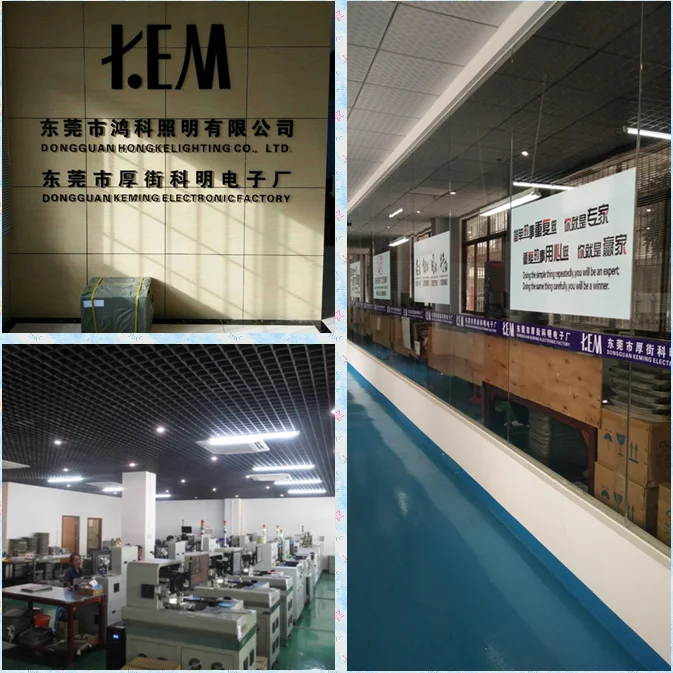

Factory information
