Model No: HOUKEM-46058-BW
ultra white 10mm 8x5 matrix led 5x8 dot matrix display
dot matrix display houkem is dot matrix led display professional manufacturer
minimum order :
1 piece
Quantity :
$5.60 - $5.60 / piece
- Application:Indoor, 5x8 dot matrix
- Color:white
- Panel Size:76*121.5mm
- Pixel Pitch:15.24mm
- Supplier Type:Original manufacturer, ODM
- Media Available:datasheet
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-46058-BW
- Brand Name:HOUKEM
- use:retail store
- Function:SDK
- Pixels:5mm
- Specification:Digital Poster
- Dimension:76*121.5*13mm
- Face color:Black or Gray or red
- Polarity:Common Anode
- Working current:20mA
- Working voltage:2V
- OEM:Yes
- Certificate:Rohs CE
- Emitting color:white
- Product name:dot matrix 5x8
- Warranty:2 YEARS
Products Description
ultra white 10mm 8x5 matrix led 5x8 dot matrix display
Part No. | HOUKEM-46058-BW | Dimension | 76*121.5*13mm | |||
Pixel | 10mm | Surface Color | Black/Grey | |||
Epoxy Color | Milky White/Clear | Emitting Color | white | |||
Luminous intensity | 200-250mcd/chip | Polarity | Common anode | |||
If need other specifications, Please contact with our sales to get what you want. | ||||||

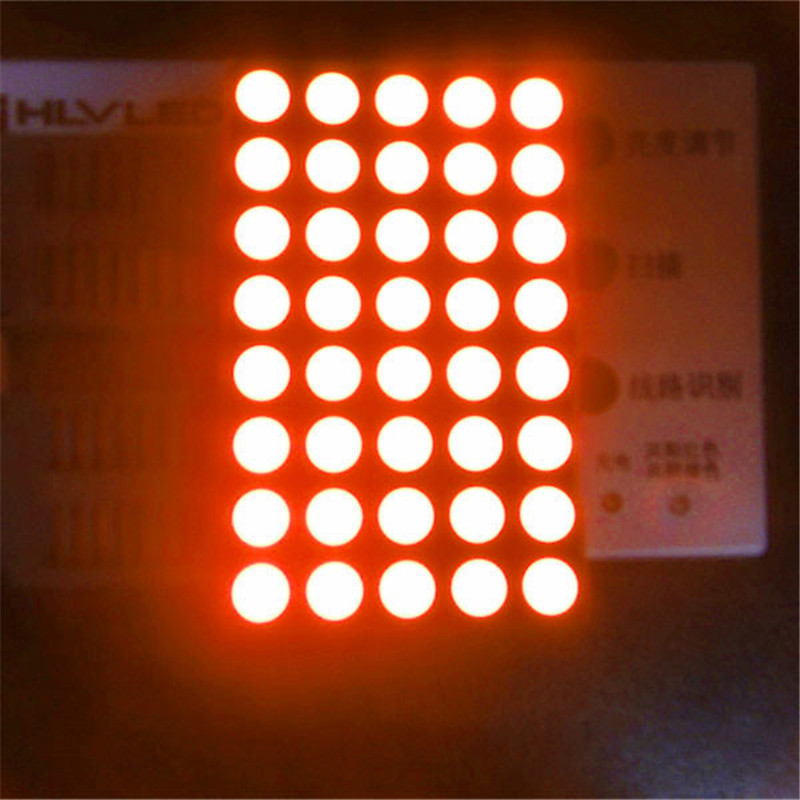

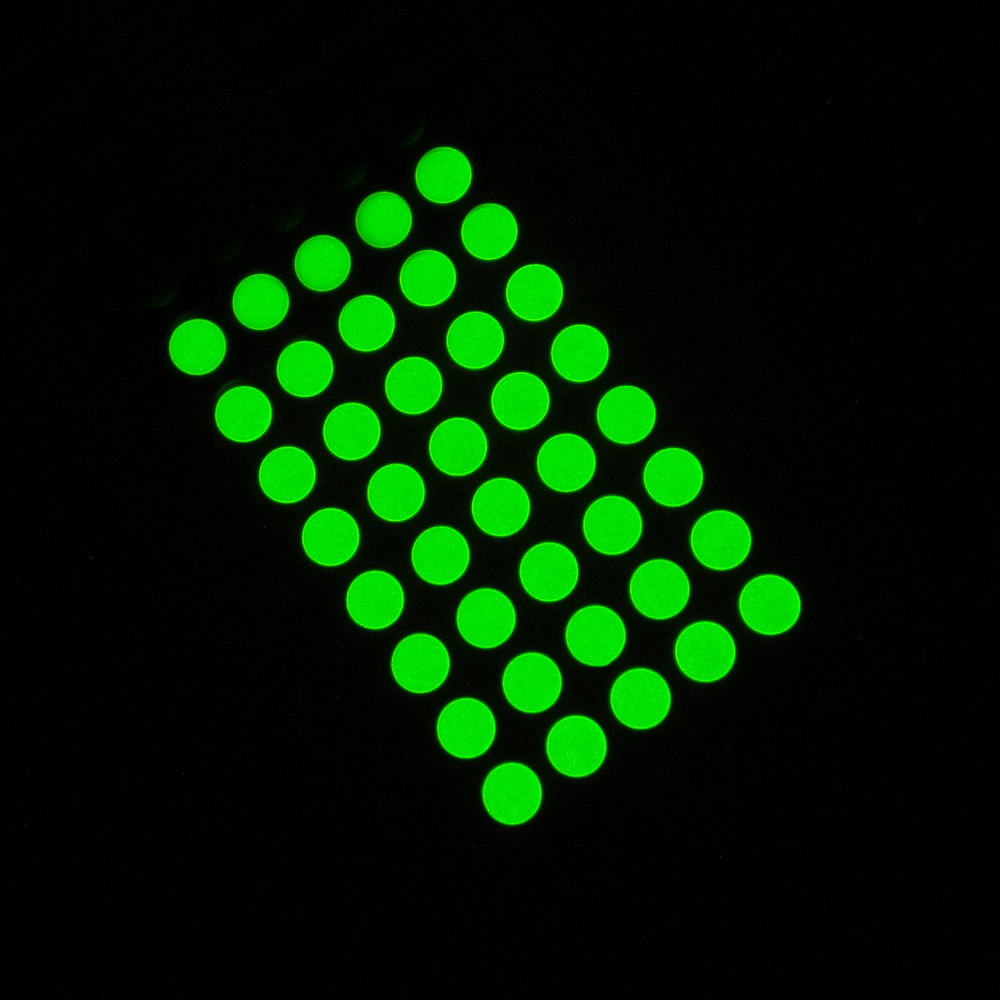

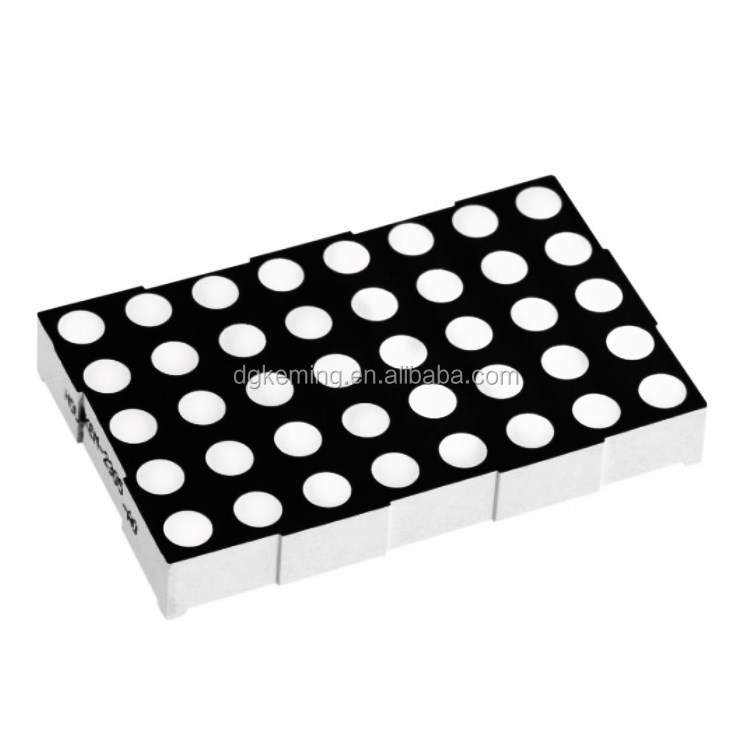

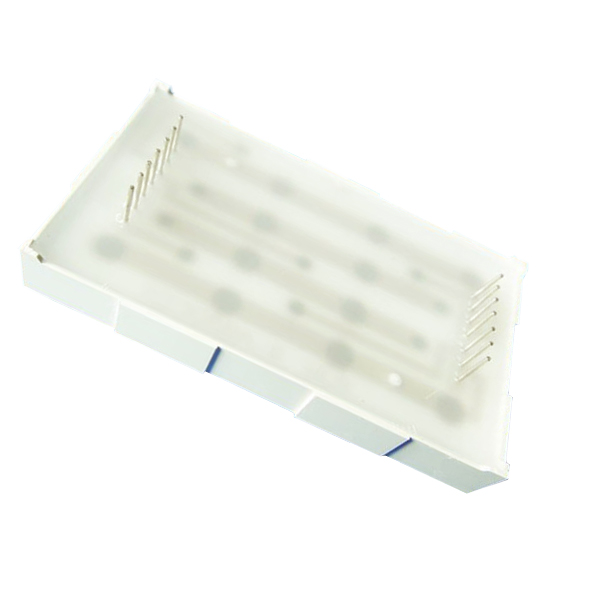

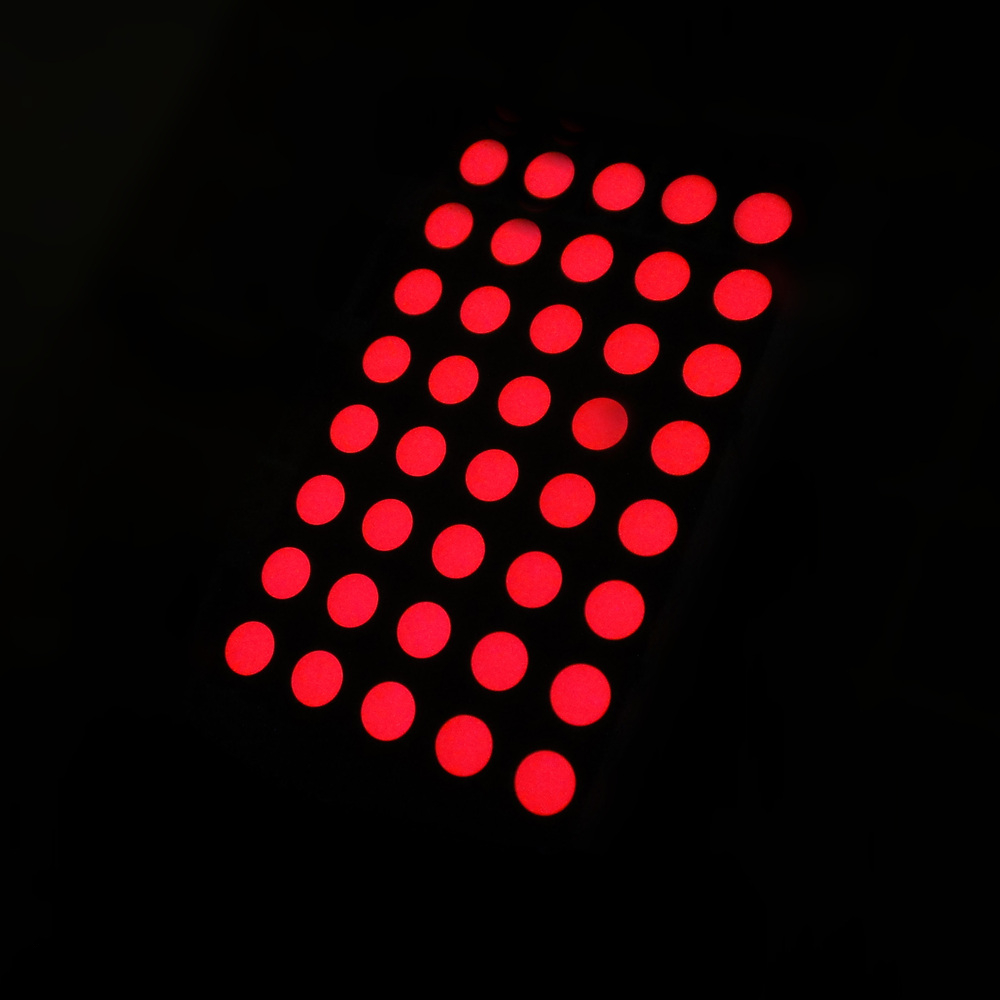

Details Images
Features:
1.4.6 inch 10mm 5x8 dot matrix bi-color.
2.Uniform glow.
3.Low current consumption.
4.2 years of warranty.
5.Rohs & CE compliant.

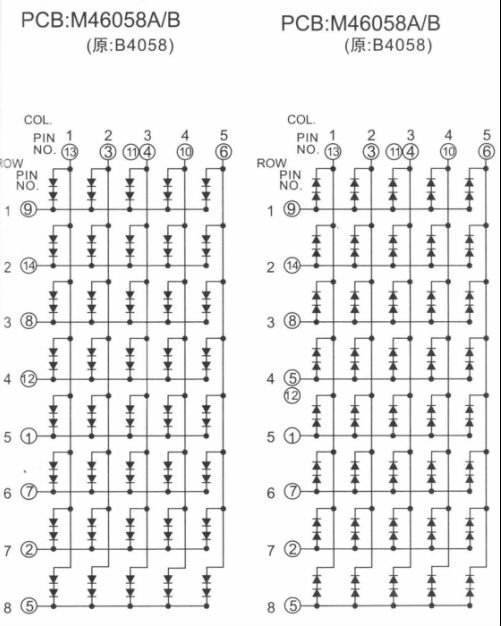

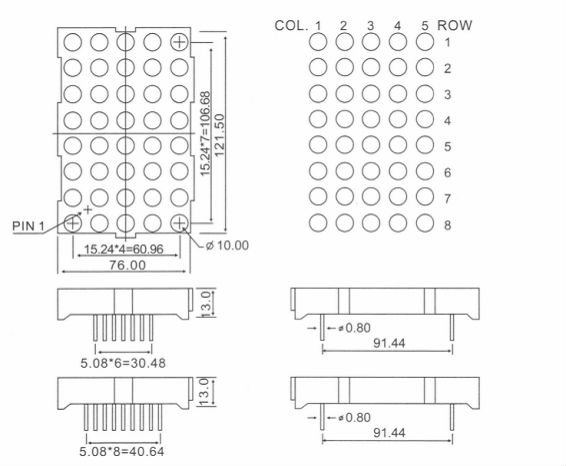

Dimension and Internal Circuit Diagram
All colors and size we can supply:
Items | Wavelength(nm) | Forward Voltage(V) | Forward current(mA) | Luminous Intensity (mcd) | Peak Forward Current(mA) | Reverse Voltage (V) | Reverse Current(uA) | ||||||
super red | 630-635 | 1.8-2.0 | 18 | 100-150 | 100 | 5 | 10 | ||||||
high red | 638-660 | 1.8-1.9 | 18 | 15-20 | 100 | 5 | 10 | ||||||
ultra red | 620-625 | 2.0-2.1 | 18 | 200-300 | 100 | 5 | 10 | ||||||
super green | 565-575 | 1.9-2.0 | 18 | 48-55 | 100 | 5 | 10 | ||||||
pure green | 615-625 | 2.8-3.0 | 20 | 260-300 | 100 | 5 | 10 | ||||||
white | / | 2.6-2.8 | 20 | 200-250 | 100 | 5 | 10 | ||||||
blue | 465-475 | 2.8-3.0 | 20 | 150-200 | 100 | 5 | 10 | ||||||
yellow | 580-600 | 1.9-2.0 | 18 | 70-80 | 100 | 5 | 10 | ||||||
amber | 600-605 | 1.9-2.0 | 18 | 100-110 | 100 | 5 | 10 | ||||||
1 digit 7 segment led display | 0.28"/0.3"/0.32"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.5"/1.8"/2.3"/3"/4"/5"/6"/7"/8"/10"/12"/16"/20" | ||||||||||||
2 digit 7 segment led display | 0.25"/0.26"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.3"/1.5"/1.8"/2.3" | ||||||||||||
3 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8" | ||||||||||||
4 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.2" | ||||||||||||
5 digit 7 segment led display | 0.28"/0.36"/0.39"/0.56" | ||||||||||||
6 digit 7 segment led display | 0.3"/0.36" | ||||||||||||
Application
Industrial Equipment led display
Clock LED Display
Home Appliance LED Display
Company Profile
Houkem has 18 years of experience in manufacturing,developing,selling of led products,and certified by ISO 9001 international quality system.our main products are:customized led display,7 segment smd /led display,dot matrix,uv led & IR led.Our reliable quality and excellent service acquired high reputation from our customers.Sincerely hope to cooperate with you and create a bright future!

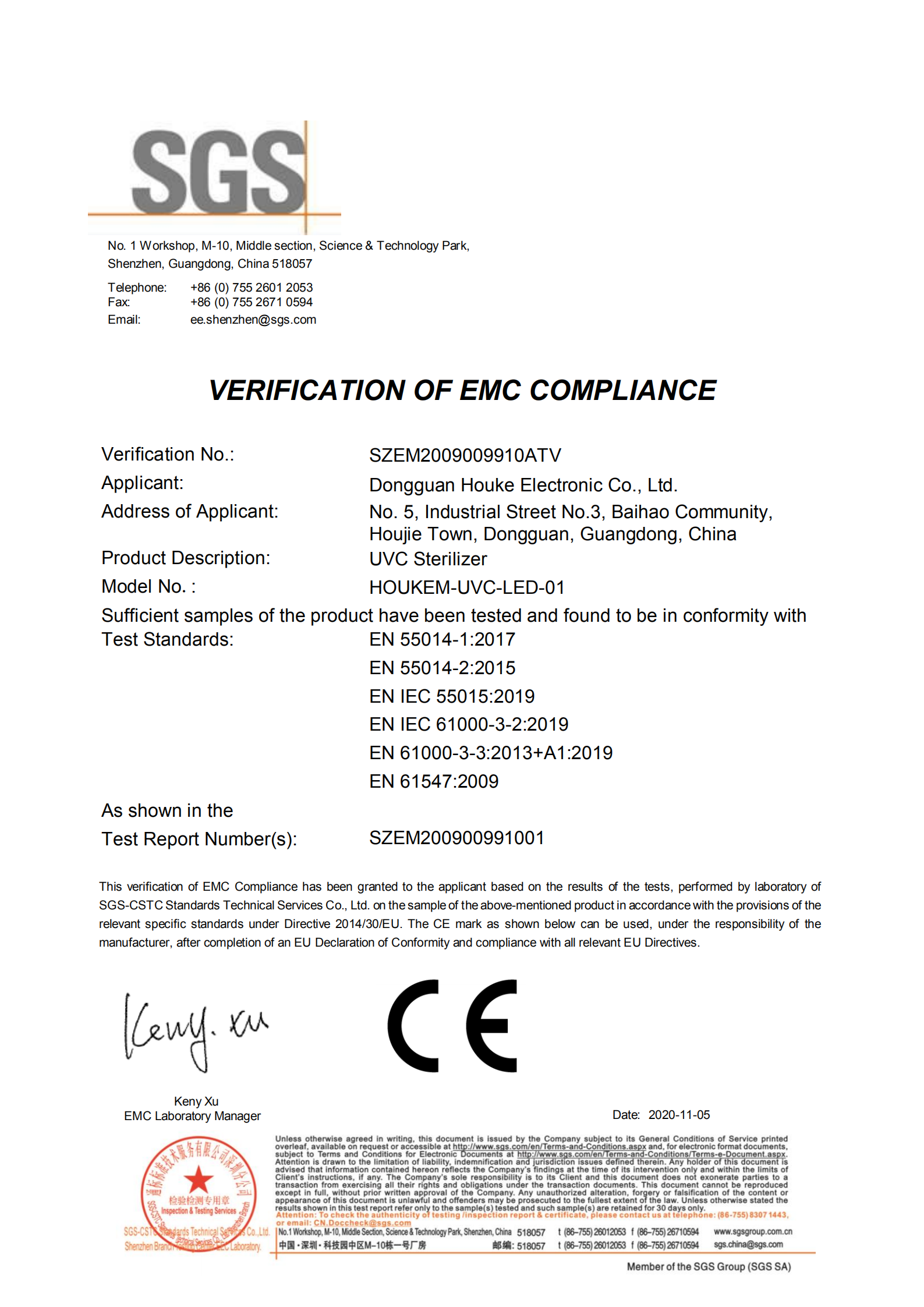

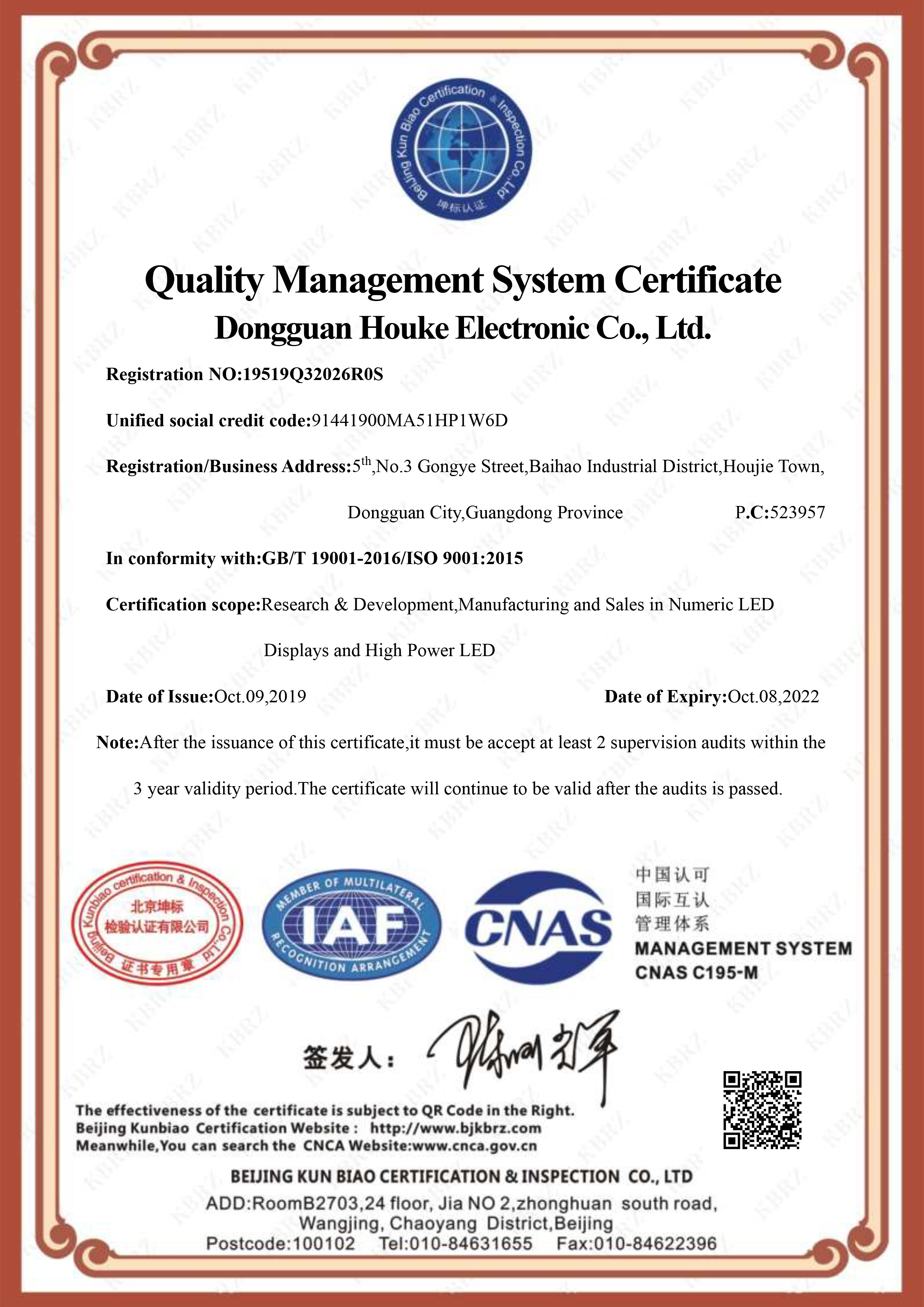

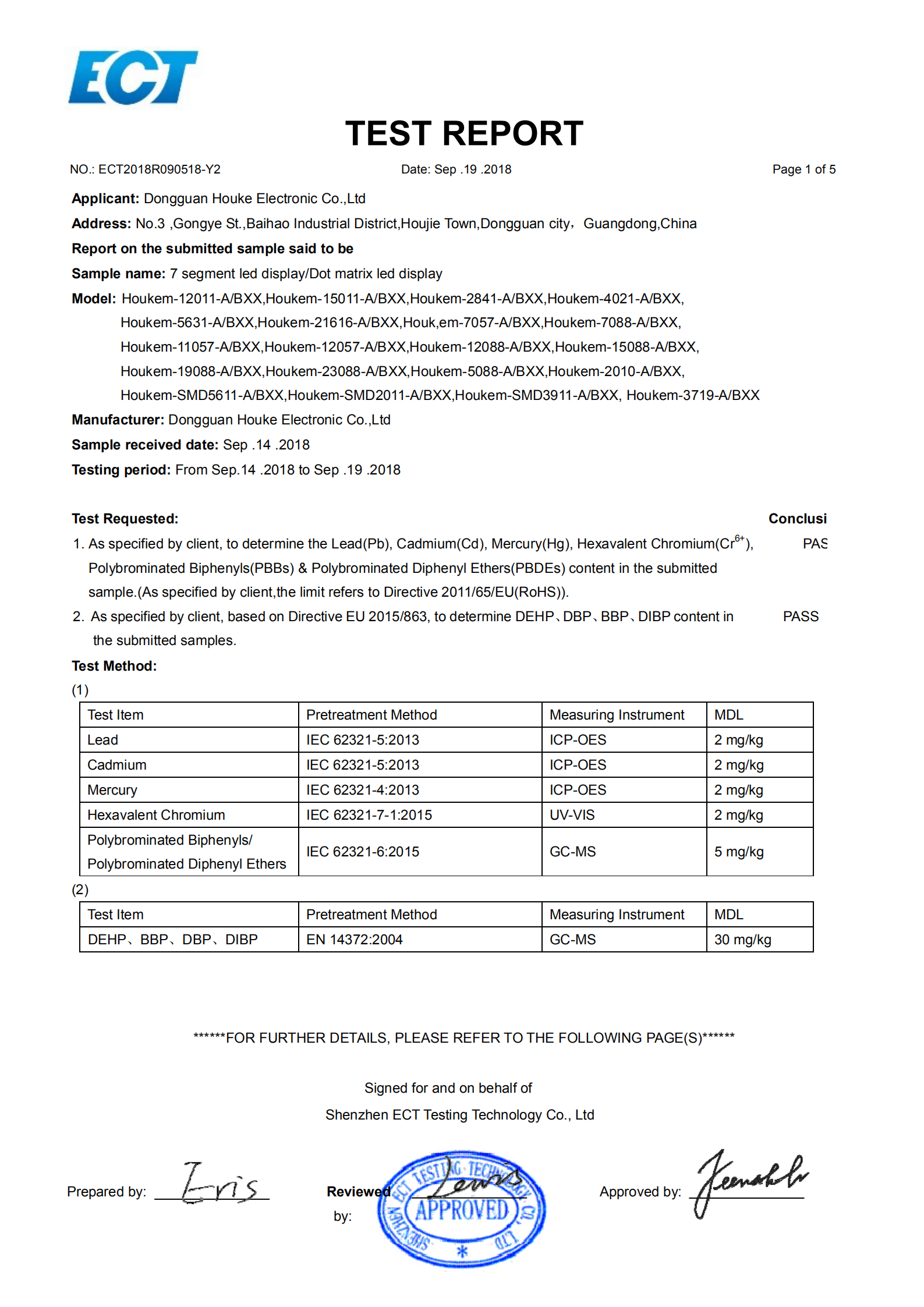

Certifications
