Model No: HOUKEM-12103-AW

Large single digit white 1.2 inch 16 segment display alphanumeric display - Houkem

Houke is 16 segment display, 14 segment digital display, alphanumeric display manufacturer.

Delivery :

FOB

minimum order :

1500

Quantity :

USD1.10 - USD1.20

add to cart

Contact Now

Place of Origin:CN;GUA
Usage:Indoor
Display Function:Graphics
Pixels:25mm
Tube Chip Color:white
Brand Name:HOUKEM
Model Number:HOUKEM-12103-AW
Screen Dimension:38*26.5mm

Product Describtion

1.2'' single digit 16 segment led display 1.2 inch 16 segment led numberic display white

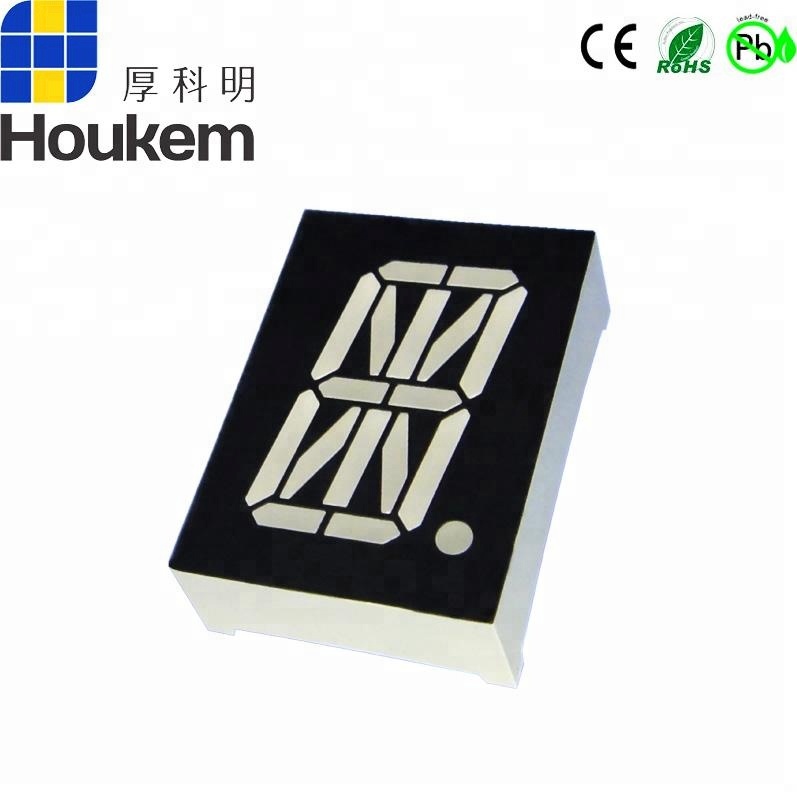

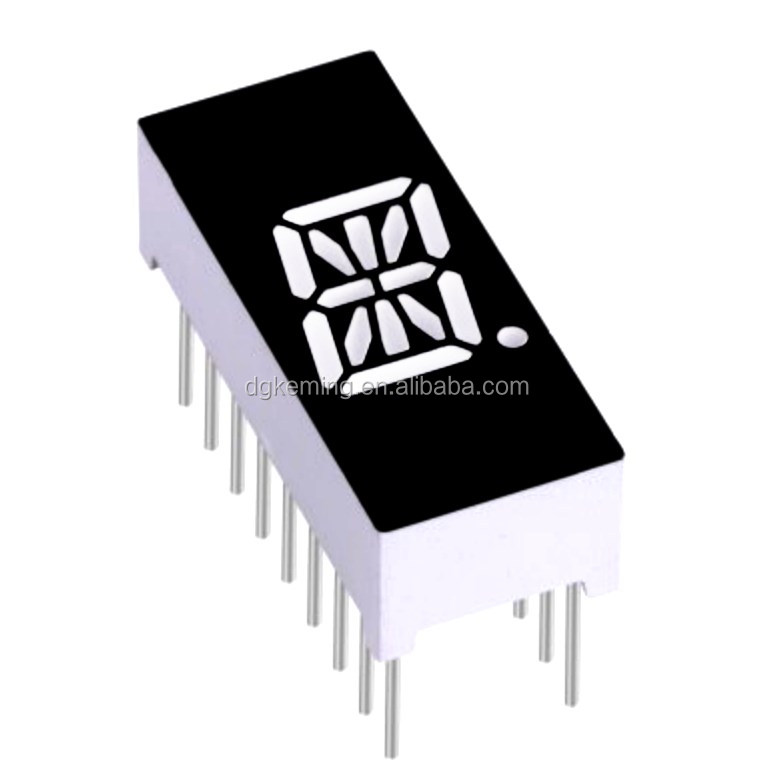

Large single digit white 1.2 inch 16 segment display alphanumeric display

Features:

1, Low consumption

2, High brightness

Product details:

Item No.	HOUKEM-12103-BW
Dimension	26.5*38mm
digit height	1.2'' (30.5mm)
Surface color	Black / Grey
Segment color	White /Clear
Emitting color	white

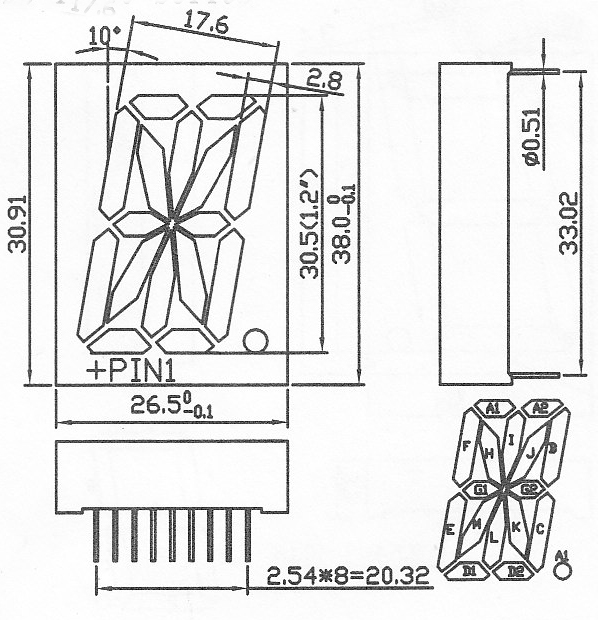

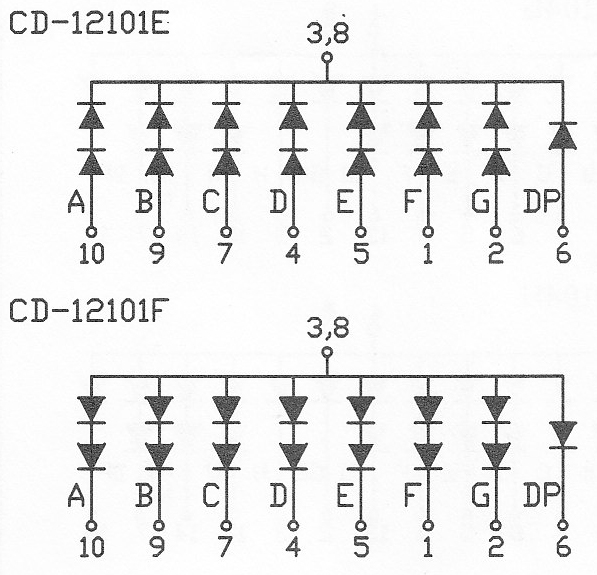

Package dimension & Internal circuit diagram

121031 121032

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)

Emitting Color	Test Condition	Wavelength(nm)		Forward Voltage(V)		Luminous Intensity (mcd)
Emitting Color	Test Condition	(λp)	λ	Typ	Max	Typ	Max
Amber	IF=10-15mA	600-605	30	1.8	2.0	90	100
Super green	IF=10-15mA	565-575	30	1.8	2.0	48	55
Super red	IF=10-15mA	620-625	20	1.8	2.0	110	130
Ultra red 1	IF-10-15mA	620-625	20	1.8	2.0	200	210
Ultra red 2	IF=10-15mA	620-625	20	1.8	2.0	300	350
High red	IF=10-15mA	638-660	20	1.8	1.9	15	20
Yellow green	IF=10-15mA	570-580	30	1.8	2.0	43	50
Yellow	IF=10-15mA	580-600	35	1.8	2.0	70	80
Blue	IF=10-15mA	465-475	40	2.7	2.9	150	200
Pure green	IF=10-15mA	515-525	40	2.7	2.9	180	250
White	IF=10-15mA	-	-	2.7	2.9	180	200

Two years quality warranty

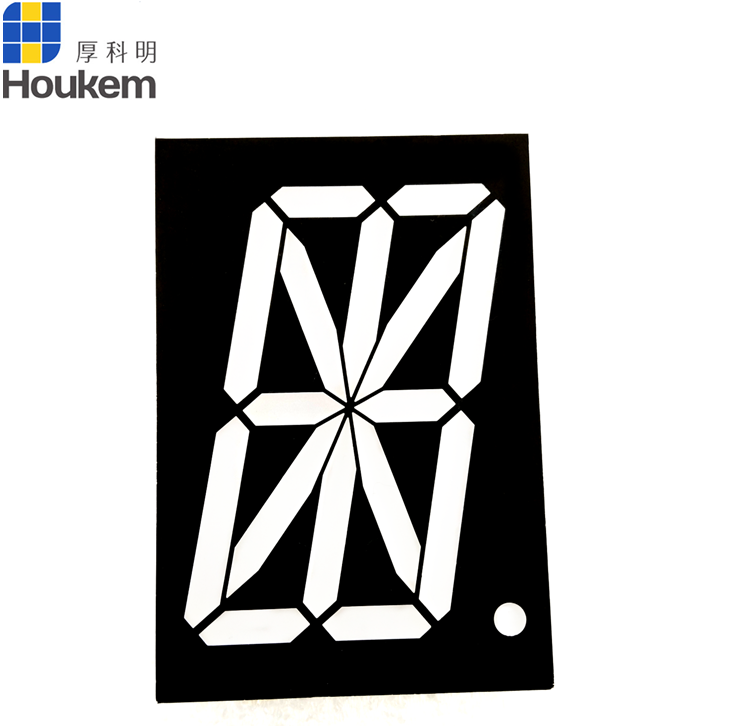

23011

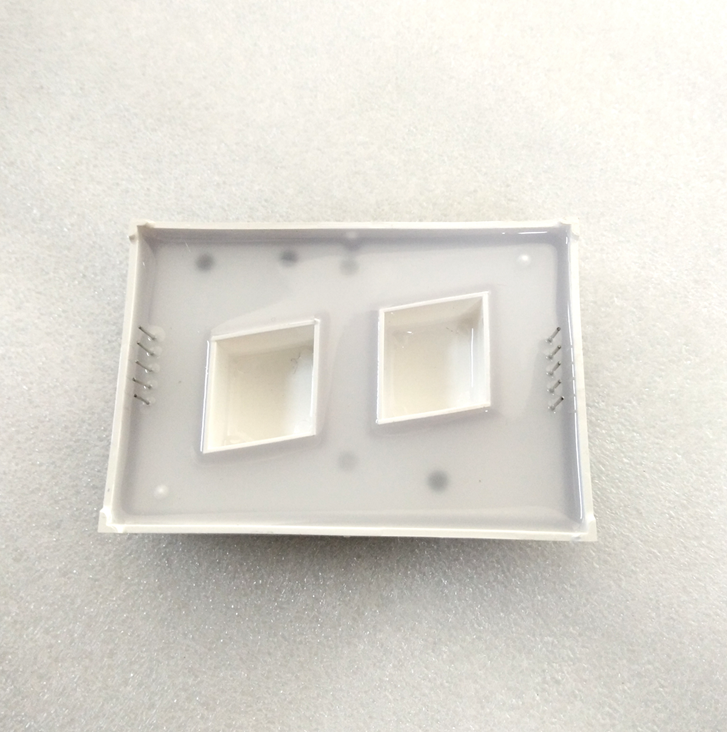

23011 (2)

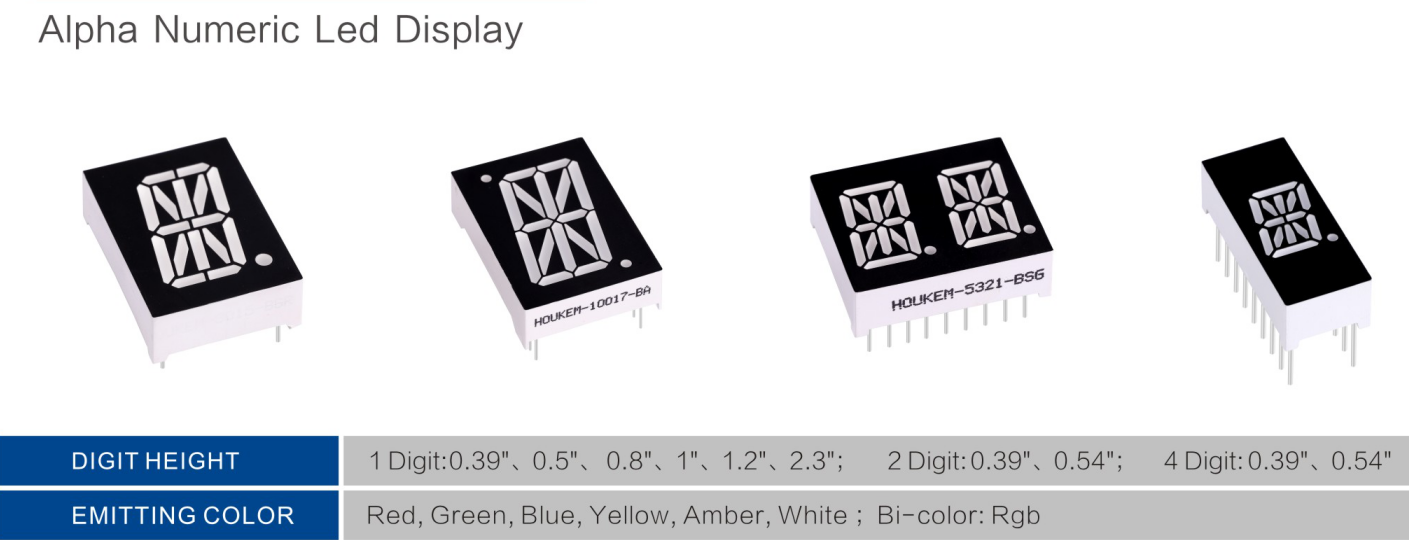

alpha

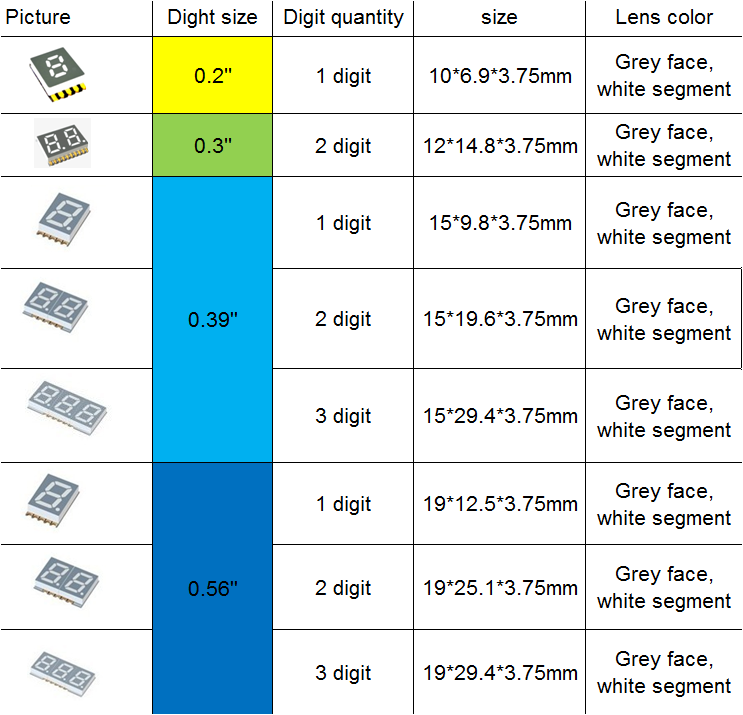

smd 7 segment display

Our Services

Led dot matrix: 57, 58, 88, 117, 16*16

led dot matrix display

7 segment LED display

1 digit	0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit	0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit	0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit	0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit	0.28'', 0.36'', 0.56''
6 digit	0.3'', 0.36''

14 /16 segment

1 digit	0.39'', 0.5'', 0.8'', 1.2'', 2.3''
2 digit	0.54''
3 digit	0.54''
4 digit	0.39''

Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.

Custom 7 segment display are available

High power led: smd led, red/ green/ blue led, UV/ IR LED
