5x8 led dot matrix BLUE

5x8 led dot matrix BLUE

5x8 led dot matrix BLUE

5x8 led dot matrix BLUE

5x8 led dot matrix BLUE

5x8 led dot matrix BLUE

Model No: HOUKEM-46058-BB

5x8 led matrix display 10mm

5x8 dot matrix led display houkem is dot matrix display professional manufacturer

Delivery :

FOB

minimum order :

2000

Quantity :

USD3.70 - USD3.75

add to cart

Contact Now

Place of Origin:CN;GUA
Application:Graphics
Color:Blue
Panel Size:76*121.5MM
Model Number:HOUKEM-46058-BB
Brand Name:HOUKEM

Product Describtion

business

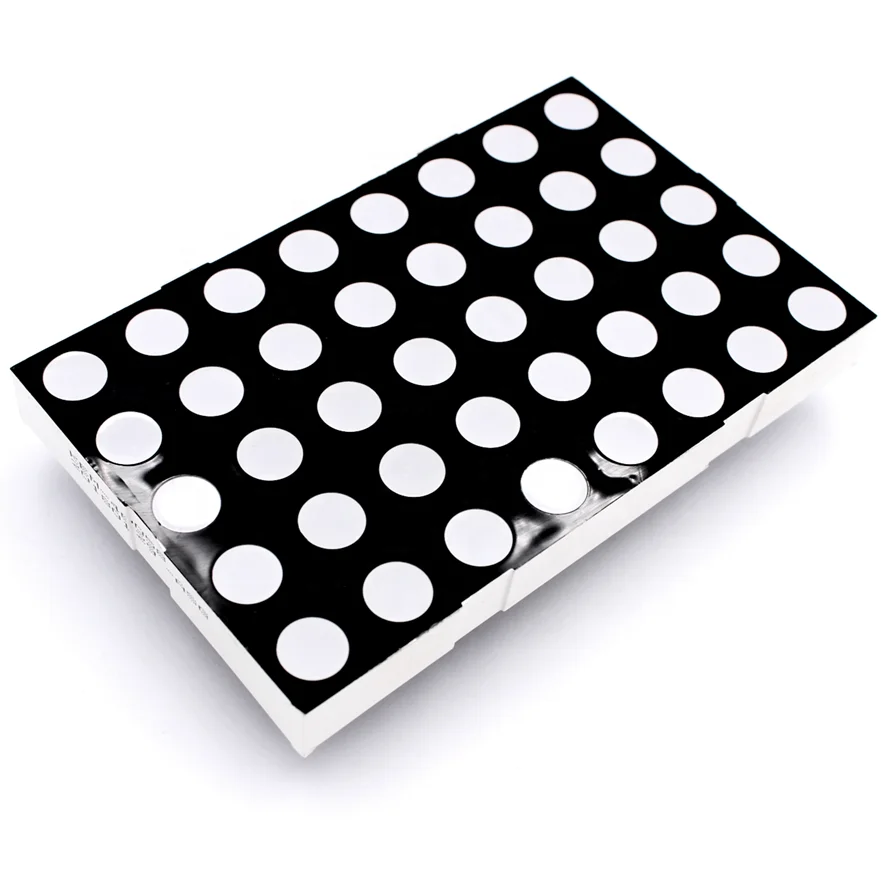

10mm dot 5x8 led matrix blue

Features:

1, Low consumption

2, High brightness

Product details:

Item No.	HOUKEM-46058-BB
Dimension	76121.513mm
dot	10mm
Surface color	Black / Grey
Segment color	White /Clear
Emitting color	BLUE

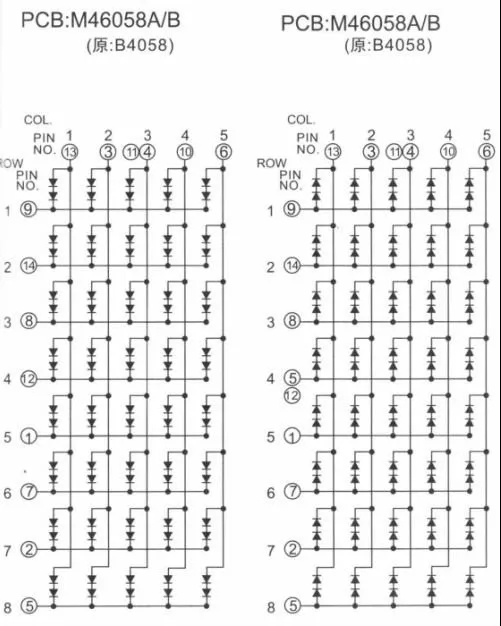

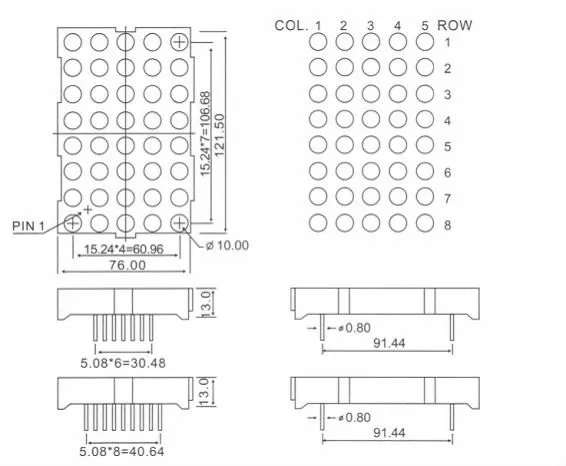

Package dimension & Internal circuit diagram

46058.1 46058.2

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)

Emitting Color	Test Condition	Wavelength(nm)		Forward Voltage(V)		Luminous Intensity (mcd)
Emitting Color	Test Condition	(λp)	λ	Typ	Max	Typ	Max
Amber	IF=10-15mA	600-605	30	1.8	2.0	90	100
Super green	IF=10-15mA	565-575	30	1.8	2.0	48	55
Super red	IF=10-15mA	620-625	20	1.8	2.0	110	130
Ultra red 1	IF-10-15mA	620-625	20	1.8	2.0	200	210
Ultra red 2	IF=10-15mA	620-625	20	1.8	2.0	300	350
High red	IF=10-15mA	638-660	20	1.8	1.9	15	20
Yellow green	IF=10-15mA	570-580	30	1.8	2.0	43	50
Yellow	IF=10-15mA	580-600	35	1.8	2.0	70	80
Blue	IF=10-15mA	465-475	40	2.7	2.9	150	200
Pure green	IF=10-15mA	515-525	40	2.7	2.9	180	250
White	IF=10-15mA	-	-	2.7	2.9	180	200

Two years quality warranty

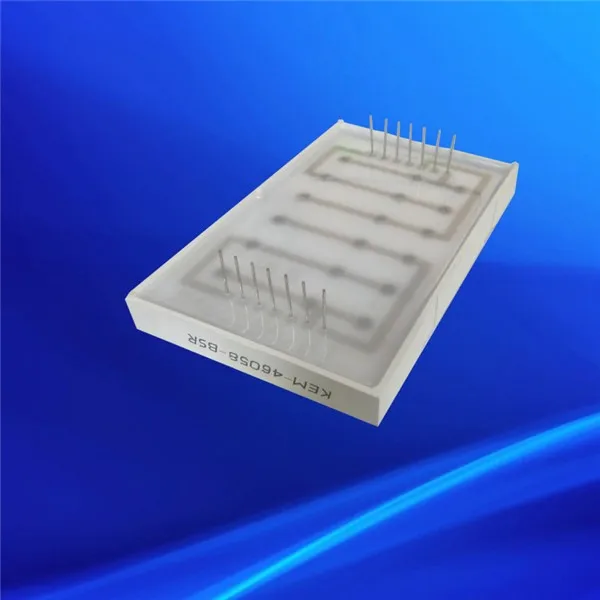

46058.1

Our Services

Led dot matrix: 57, 58, 88, 117, 16*16

led dot matrix display

7 segment LED display

1 digit	0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit	0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit	0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit	0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit	0.28'', 0.36'', 0.56''
6 digit	0.3'', 0.36''

14 /16 segment

1 digit	0.39'', 0.5'', 0.8'',1 '', 1.2'', 2.3''
2 digit	0.54''
3 digit	0.54''
4 digit	0.39''

Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.

Custom 7 segment display are available

High power led: smd led, red/ green/ blue led, UV/ IR LED
