6inch single digit red color 7 segment led display led module KEM-60011-A/BSR
- Application:Audio equipment or instrument panels
- Color:super red
- Panel Size:152.4*111.5mm
- Pixel Pitch:2.54mm
- Supplier Type:Original manufacturer
- Media Available:datasheet, Photo
- Place of Origin:Guangdong, China
- Model Number:KEM-60011-A/BSR
- Brand Name:KEM
- use:Instrument
- Pixels:2.5mm
- Specification:LED
- Product name:6 inch single digit 7 segment led display led module outdoor red color
- Keyword:6 inch 7 segment led display
- LED chips:EpiLEDs, Epistar Bridgleux
- Voltage:1.8-2.3V
- Current:20 mA
- Lifespan:50000 hours
- Warranty:3 years
- Certification:CE, RoHS
Emitting color can be Ultra Red , Super Red , High Red , Yellow Green , Super Green , Pure Green, Yellow , Blue , Amber and White . Different colors are different prices.
1. Bridgelux, Epistar, Epileds Chips
2.Japanese Dow Corning Silicon packing, in accordance with environmental protection
3.Intematix fluorescent powder, quality assurance
4. Gold wire: 1.25mil huge diameter
5. High brightness,low light attenuation,less power, Long lifespan.
6. Lights attenuation: less than 1%
7. Reasonable prices, fast delivery(3-5 days)
8. CE & RoHS
9. MOQ: 1 piece

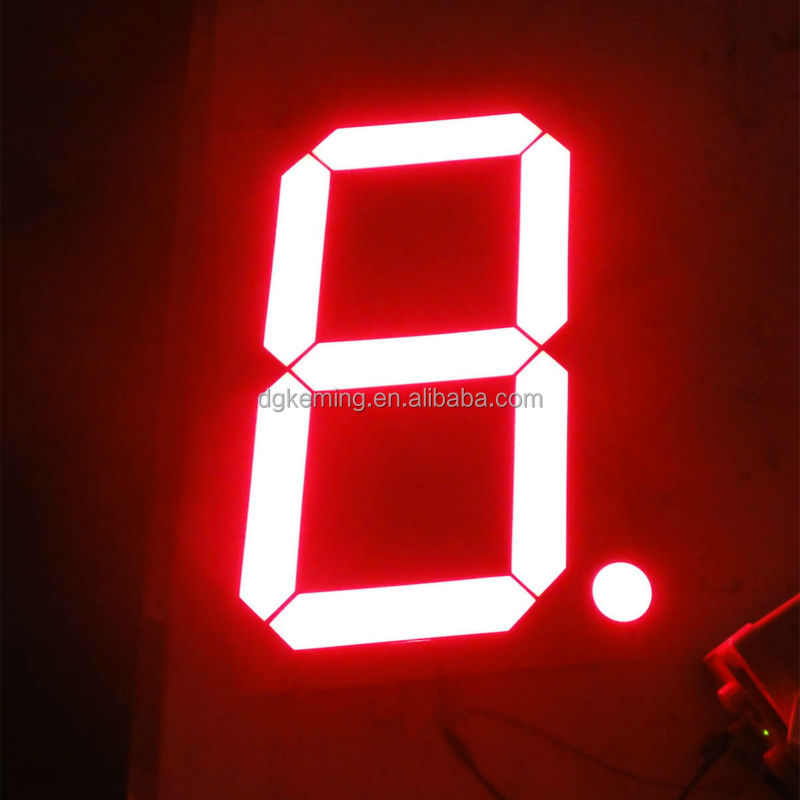

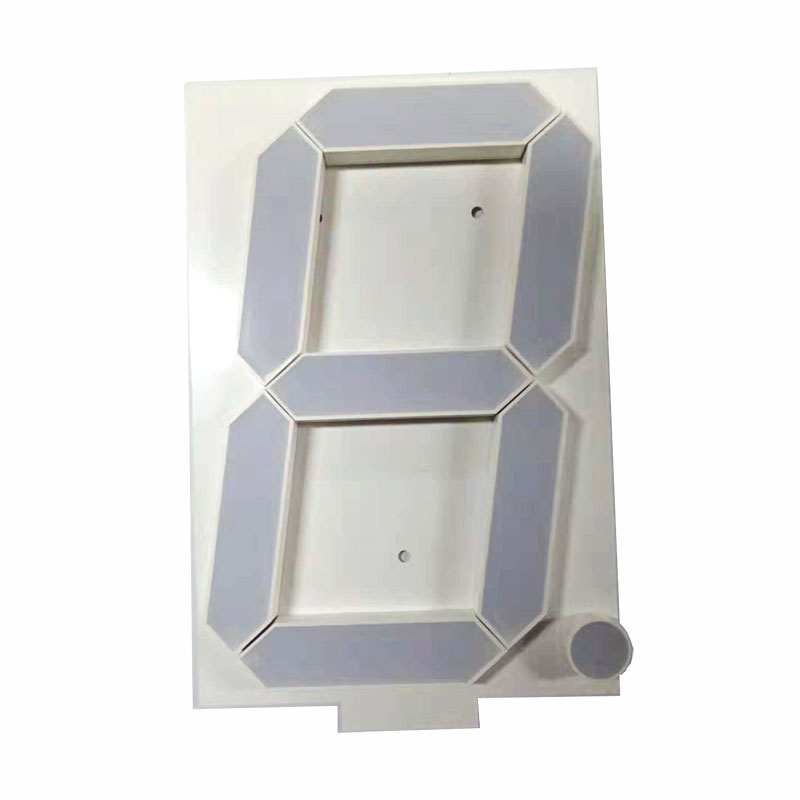

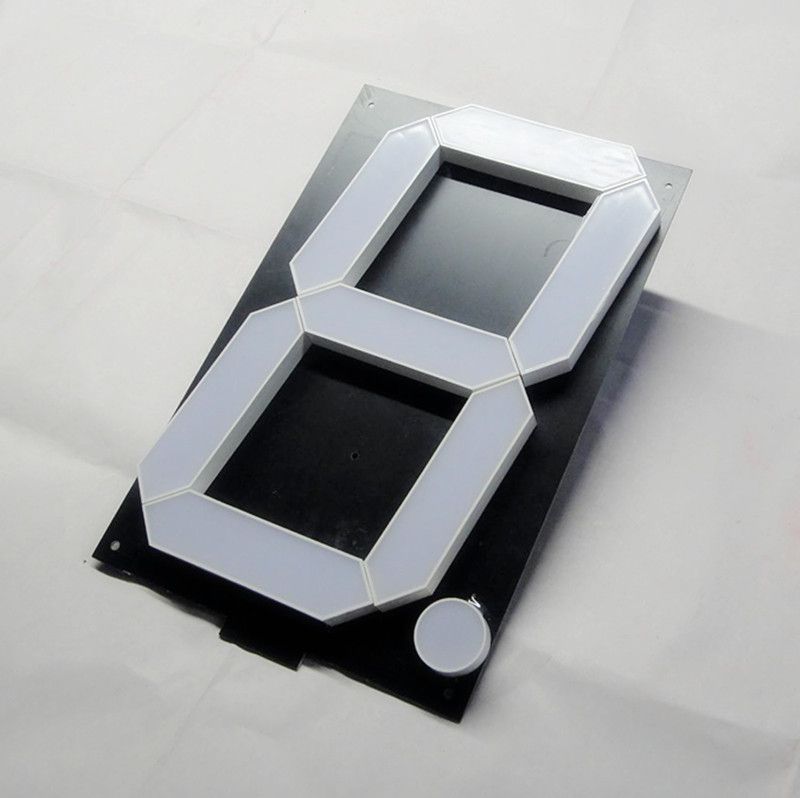

6 inch super red 1 digit 7 segment led display outdoor
| Model | 6 inch super red 1 digit 7 segment led display outdoor |
| Item | KEM-60011-BSR |
| digit height | 6 inch |
| Digit number | Single |
| Segment color | white or as emitting |
| Face color | Black or Grey |
| Emitting color | super red |
| Color Temperature | 625-640nm |
| Luminous intensity | 80mcd/chip |
| Forward voltage | 1.8-2.3v/chip |
| Reverse voltage | 5v |
| Recommend used current | 20mA |
Besides Super Red ,we also have below colors:
Ultra Red , High Red , Yellow Green , Super Green , Pure Green, Yellow , Blue and White.
Related products:
Overview
1. We can supply you all kinds of 7 segment LED display:
---Digit size: from 0.25"to 16"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 16 segment both available
3. Available Emitting color: Super green,Super red, Yellow green, Pure green, Yellow, Blue, White RGB and bi-color
4. Available surface color: black,grey or red
5. Lens color: white or same as emitting color

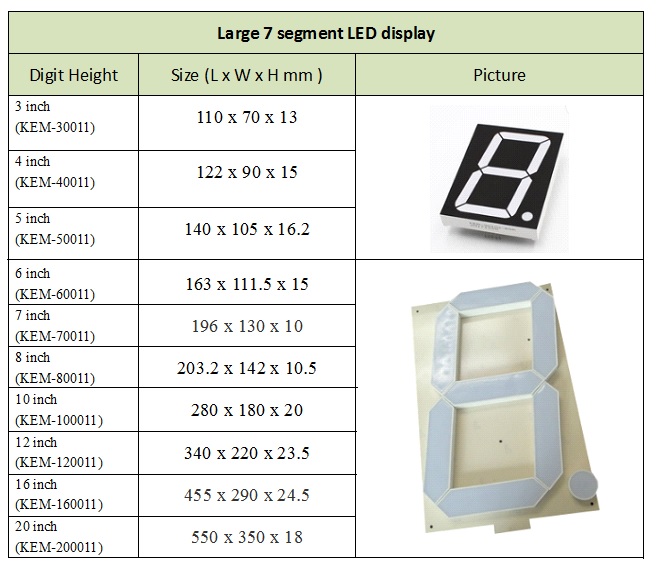

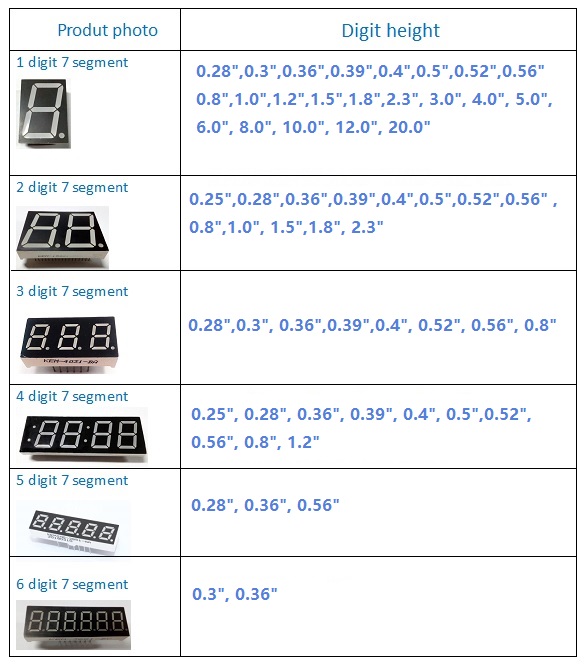

6.We can offer below 7 segment LED display.
We can provide 3 inch, 4 inch , 5 inch, 6 inch, 7 inch, 8 inch, 10 inch, 12 inch, 16 inch and 20 inch large single digit 7 segment led display. If you are interested, please contact me for more details.

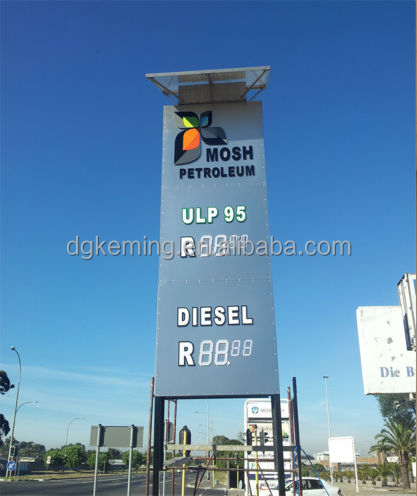

Applications:
The LED CHIPS of our products

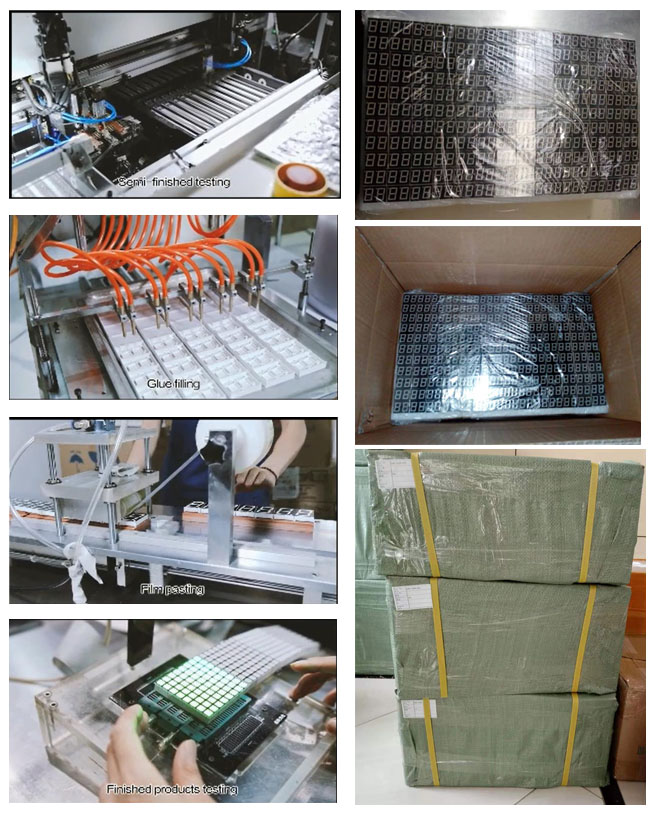

The PACKAGE of cargoes
Internal:EPE
External:Carton
The LOGISTICS partner of our company
1.Trade terms
Price can be FOB, CIF ,EXW, or With taxes
2.What will be the delivery time and what will be the mode of payment?
Quantity (pcs) | 1~3000 | >3000 |
Est.Time ( days) | 6 | To be negotiated |
The payment can be T/T, Paypal, Alibaba Trade Assurance and West Union
3.Aboutlogistics?
Usually ,we ship the products by express since the products isn’t too heavy for the transportation.
We can also arrange Air or LCL shipments if you need.
4.Could you please send me thesample first so that i could see and analyze its quality?
Yes.We can send samples first,samples will be free charged if the value is lower.
5. Can you provide quotation ?
Yes.
For our quick qutotation, please provide below information for our reference.
(1)Digit height:
(3)Digit quantity: ( we can do 1~6)
(4)Pin configuration: ( Common Anode or Common Cathode ?)
(5)Surface color : ( we can do grey or black)
(6)Emitting color :
(We can do Amber, Red, Green, Yellow, Blue, white.
For red color, we have RGB, Ultra red, Super red, High red. Which red do you prefer ? RGB is the brightest and most expensive red color.
For green color, we have Yellow green, Super green, Pure green. Which green do you prefer ? )
(7)Payment method:
(We accept T/T, Paypal, Alibaba Trade Assurance and West Union)
For shipping cost, please provide below information for our checking.
(1)Sample /Order quantity: ( Quantity will affect the parcel’s weight )
(2)Receiver Address: ( which country will it be sent to? Do you have post code ? )
1,all the raw materials for above products are from domestic and foreign well-known brand manufactures.
2,all products will be with strict tested before shipping.
3,choosing the best logistics services for all shipments.
4,3 years warranty for our products

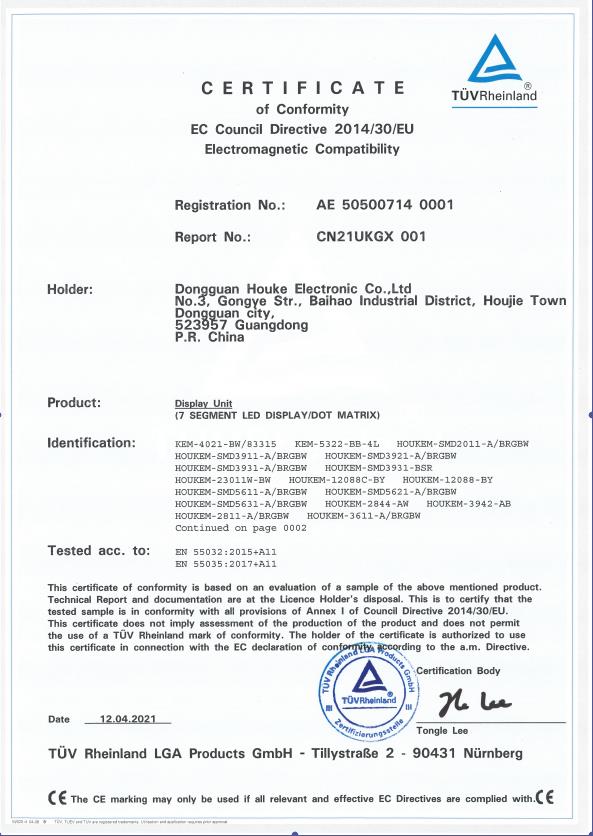

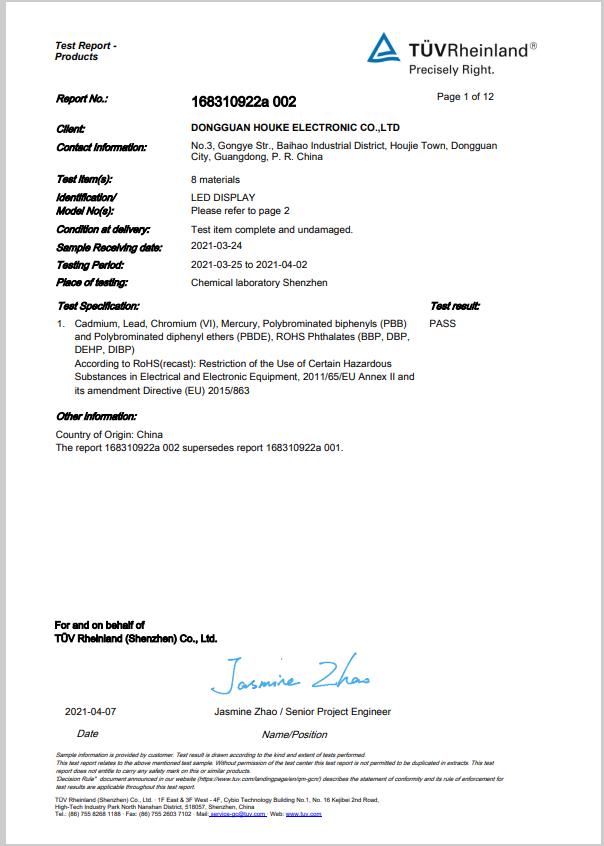

The CE&RoHS certificated of our products

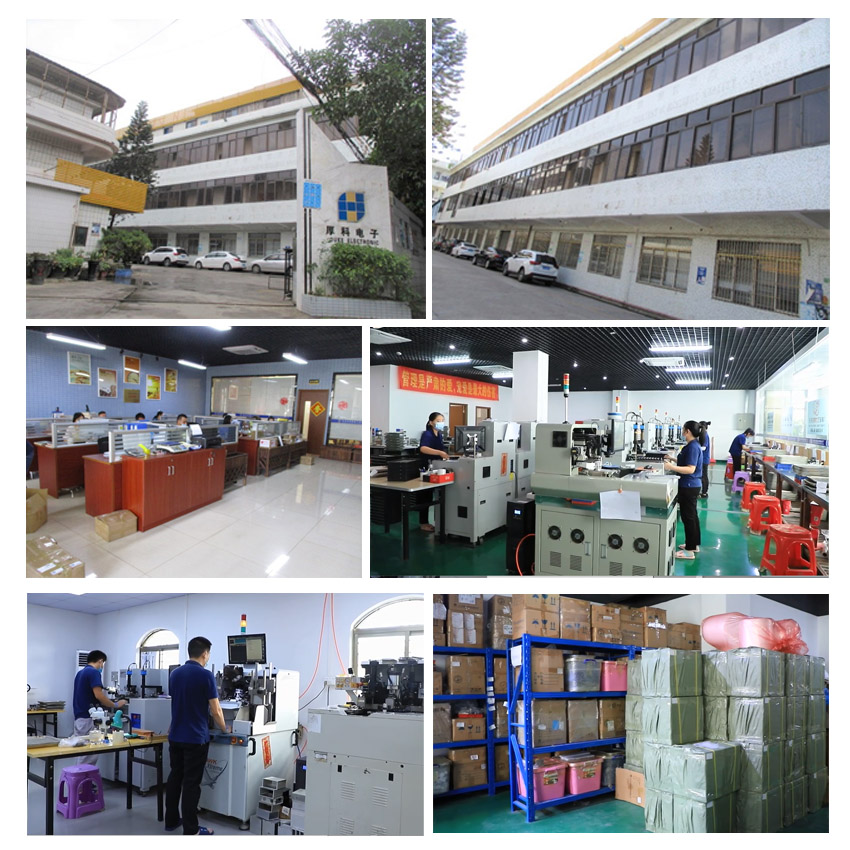

Our company:
Dongguan Houke Electronic Co., Ltd is a branch company of Dongguan Houjie Keming Electronic(established in 2003) which is a 5 years Gold supplier in Alibaba Website.
Keming focus on producing high quality all kinds of 7 segment LED display.
Houke Electronic will continue the quality and service concept of Keming Electronic,will still provide our best products for all our clients.
The products of Houke Electronic have obtained CE&RoHS certification.
All led products will get 3 years warranty.
With more than 16 years of experience in the LED market, we have an experienced team, and we believe that we can provide you with quality products and professional services !
