Model No: HOUKEM-23088-BSR
2.3 inch 8x8 red led dot matrix 5mm Houkem-23088-BSR
led dot matrix display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$1.00 - $1.20 / piece
- Application:Indoor, Graphics, elevator, digital counter
- Color:red
- Panel Size:60.2*60.2mm
- Pixel Pitch:2.54
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet, Photo
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-23088-BSR
- Brand Name:HOUKEM
- use:advertising publish, shopping mall, subway, elevator
- Pixels:2.54
- Specification:--
- Product name:RED 5mm8*8 dot matrix
- Warranty:2Years
- PCB Polarity:common anode
- operating temperature:-20 ~ +50 ℃
- OEM:YES
- Custom made:YES
- Life span:100000hours
- Certificate:CE ROHS
Product Describtion

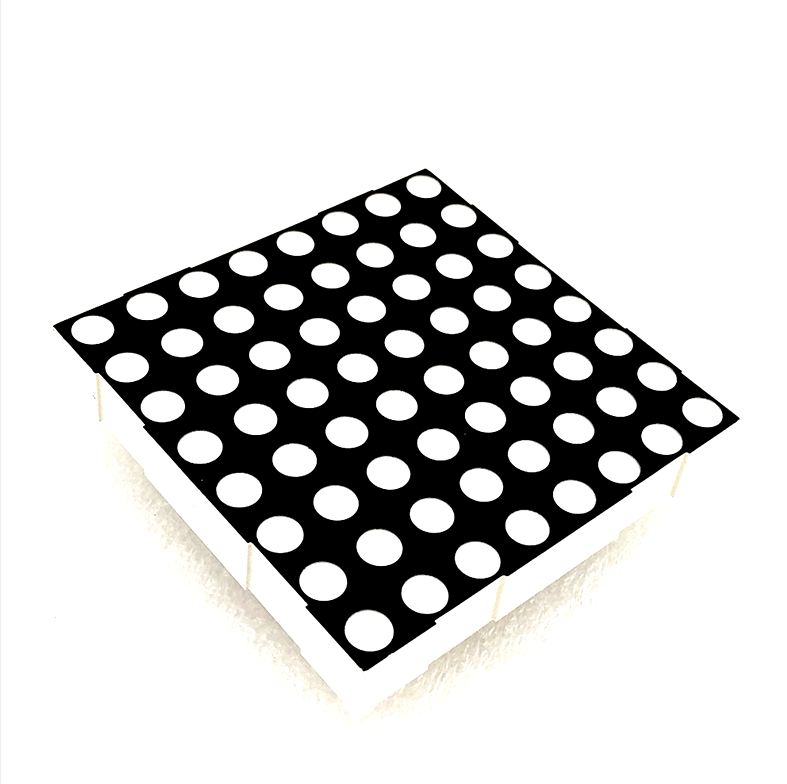

red 5mm dot 8x8 led matrix
Features:
1, Low consumption
2, High brightness
Product details:
| Item No. | HOUKEM-23088-BSR |
| Dimension | 60.2*60.2*9.2mm |
| dot | 5mm |
| Surface color | Black / Grey |
| Segment color | White /Clear |
| Emitting color | Super red |

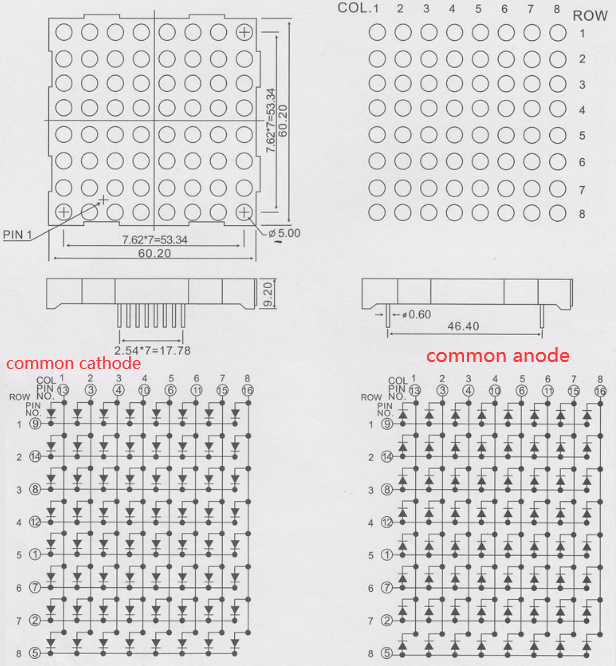

Package dimension & Internal circuit diagram
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)
| Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
| (λp) | λ | Typ | Max | Typ | Max | ||
| Amber | IF=15mA | 600-605 | 30 | 1.8 | 2.0 | 90 | 100 |
| Super green | IF=15mA | 565-575 | 30 | 1.8 | 2.0 | 48 | 55 |
| Super red | IF=15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
| Ultra red 1 | IF-15mA | 620-625 | 20 | 1.8 | 2.0 | 200 | 210 |
| Ultra red 2 | IF=15mA | 620-625 | 20 | 1.8 | 2.0 | 300 | 350 |
| High red | IF=15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
| Yellow green | IF=15mA | 570-580 | 30 | 1.8 | 2.0 | 43 | 50 |
| Yellow | IF=15mA | 580-600 | 35 | 1.8 | 2.0 | 70 | 80 |
| Blue | IF=15mA | 465-475 | 40 | 2.95 | 3.0 | 150 | 200 |
| ultra blue | IF=15mA | 467-469 | 40 | 2.9 | 3.0 | 360 | 385 |
| Pure green | IF=15mA | 515-525 | 40 | 2.95 | 3.0 | 600 | 640 |
| White | IF=15mA | - | - | 2.8 | 3.0 | 180 | 200 |
Two years quality warranty
Our Services
Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
7 segment LED display
| 1 digit | 0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20'' |
| 2 digit | 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5'' |
| 3 digit | 0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8'' |
| 4 digit | 0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2'' |
| 5 digit | 0.28'', 0.36'', 0.56'' |
| 6 digit | 0.3'', 0.36'' |
14 /16 segment
| 1 digit | 0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3'' |
| 2 digit | 0.54'' |
| 3 digit | 0.54'' |
| 4 digit | 0.39'', 0.54'' |
| 6 digit | 0.4'' |
Various colors: super red, ultra red, high red, yellow green, pure green, super green,
pure green, blue, yellow, white, amber, orange, Bi-color, RGB.
Custom 7 segment display are available

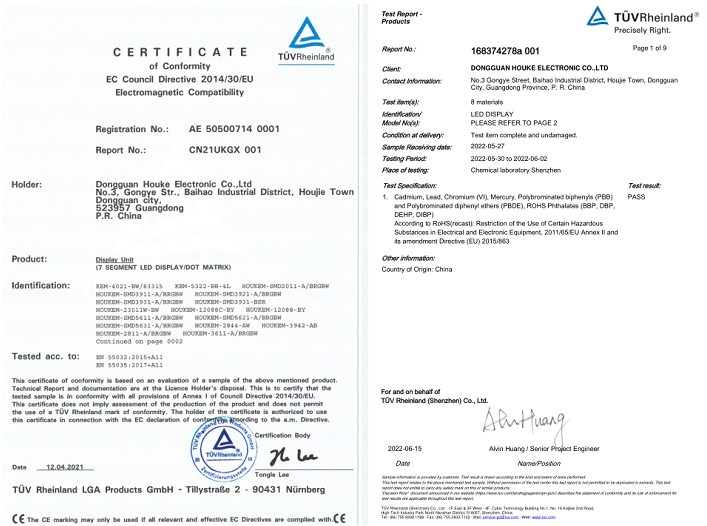

Certifications
