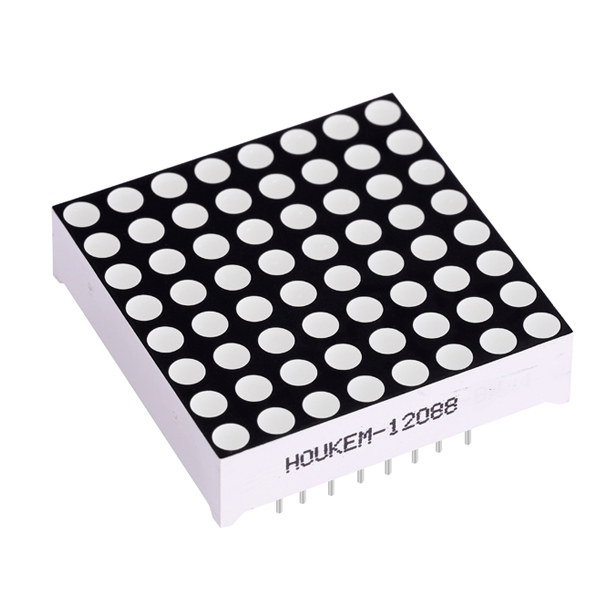

8*8 dot matrix display blue
8*8 dot matrix display blue
8*8 dot matrix display blue
8*8 dot matrix display blue
8*8 dot matrix display blue
8*8 dot matrix display blue
Model No: HOUKEM-12088-BB

KEMING-12088-BB dot matrix blue dot 8 8 anode display 8x8

dot matrix display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Country of Origin :
shenzhen guangzhou
Quantity :
$0.60 - $1.00 / piece
add to cart
Contact Now
  • Place of Origin:Guangdong, China
  • Model Number:KEMING-12088-BB
  • Brand Name:KEM
  • Product name:8*8 led dot matrix
  • dimension:32*32*8mm
  • Warranty:2Years
  • Luminous Intensity:180-200mcd
  • Forward Voltage:2.8-3V
  • PCB Polarity:common anode
  • operating temperature:-35 ~ +85 ℃
  • OEM:YES
  • Custom made:YES
  • Application:Indoor
Product Describtion

KEMING-12088-BB dot matrix blue dot 8 8 anode

Features:

1, Low consumption

2, High brightness

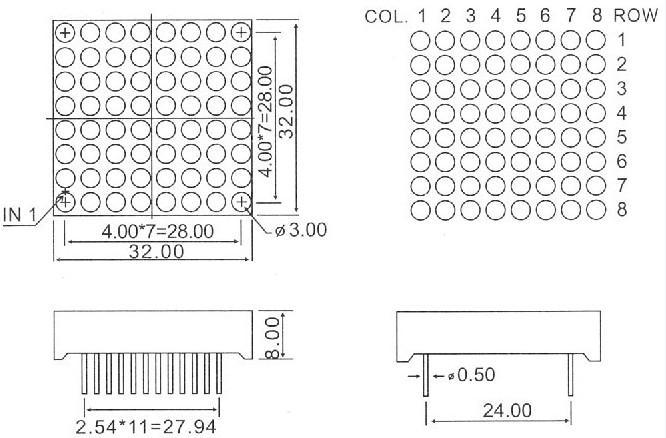

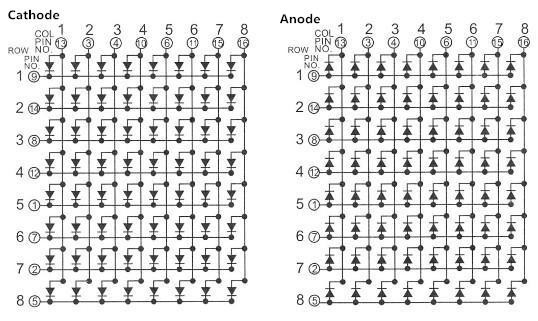

Package dimension & Internal circuit diagram

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=15mA

600-605

30

1.9

2.0

90

100

Super green

IF=15mA

565-575

30

1.9

2.0

48

55

Super red

IF=15mA

625-640

20

1.8

2.0

110

130

Ultra red

IF=15mA

620-625

20

2

2.1

300

350

High red

IF=15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=15mA

580-600

35

1.9

2.0

70

80

Blue

IF=15mA

465-475

40

2.8

3.0

150

200

Pure green

IF=15mA

515-525

40

2.8

3.0

180

250

White

IF=15mA

-

-

2.8

3.0

180

200

Product details:

Item No.KEMING-12088-BB
Dimension32*32*8mm
dot3mm
Surface color Black / Grey
Segment colorWhite /Clear
Emitting color BLUE

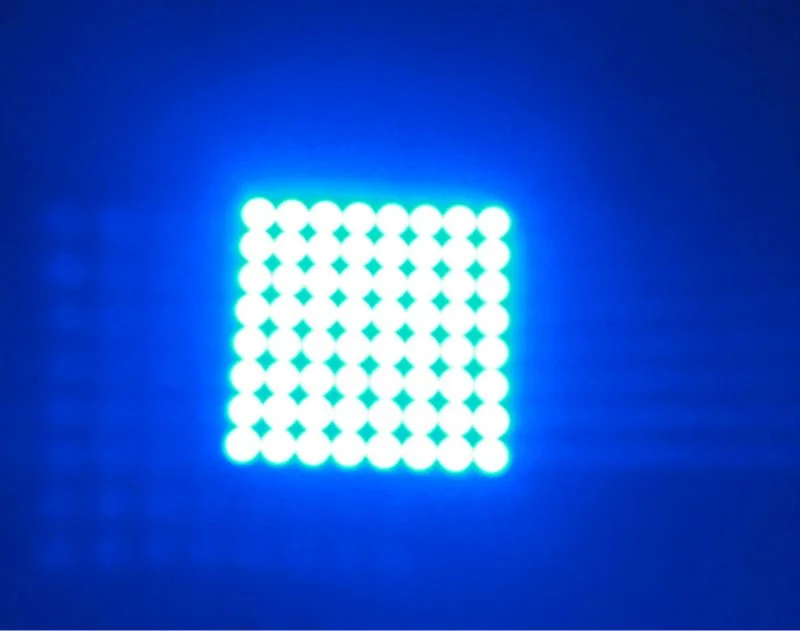

Light on

Our Services



Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.

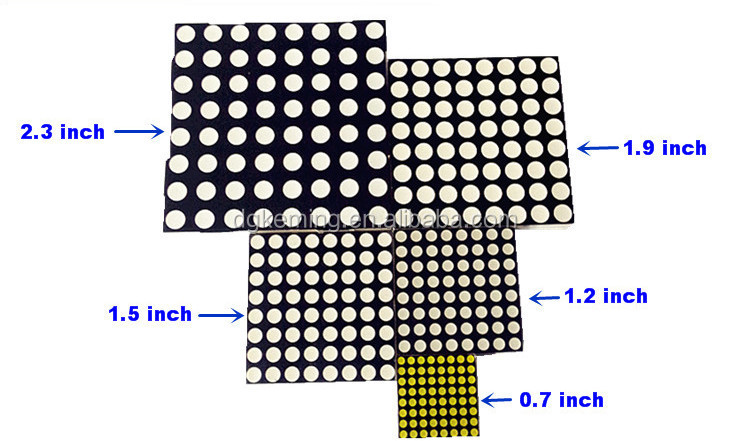

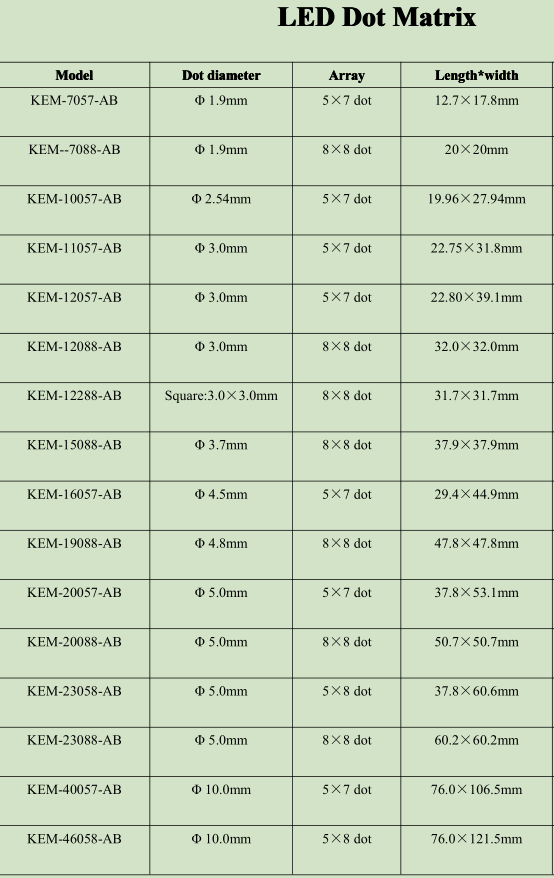

4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

5. high power led: white /red /blue/green/IR/UV led

Packaging & Shipping

Related Products

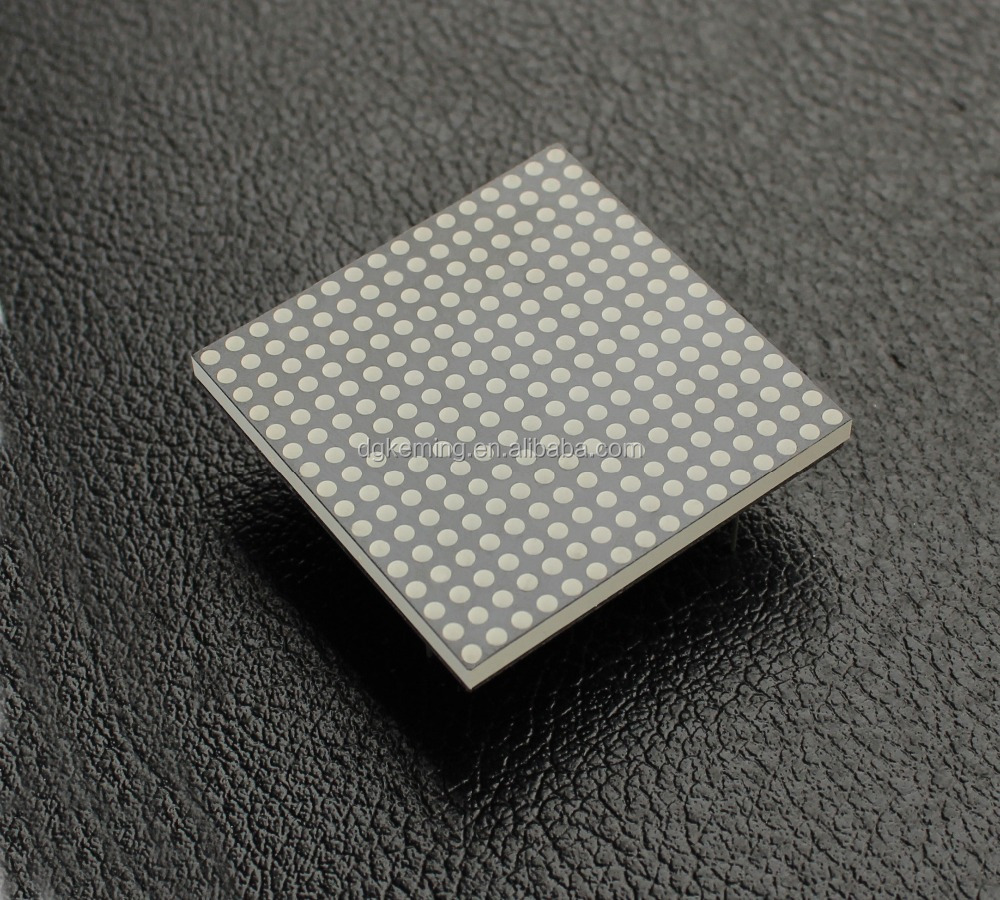

16*16

Factory pictures

We are the LED professional manufacturer, have over 14 years experience on LEDs. We can offer you 7 segment led display, dot matrix,

high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED grow light, street light,

and all LED lighting application solution.
