Model NO.
KEMING-5631SMD-BSR
Price:
USD 1.38-1.42
Delivery:
FOB
Minimum order quantity:
10
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Red
  • Display Function:Graphics
  • Pixels:25mm
  • Brand Name:KEM
  • Model Number:KEMING-5631SMD-BSR
  • Screen Dimension:29.4*19*3.75mm


Product Describtion

 business

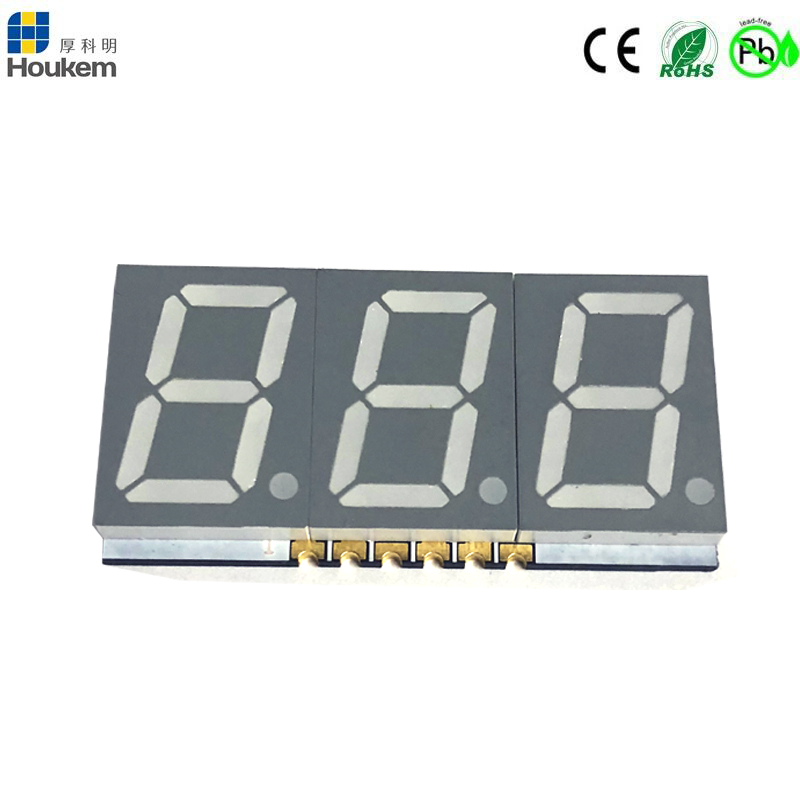

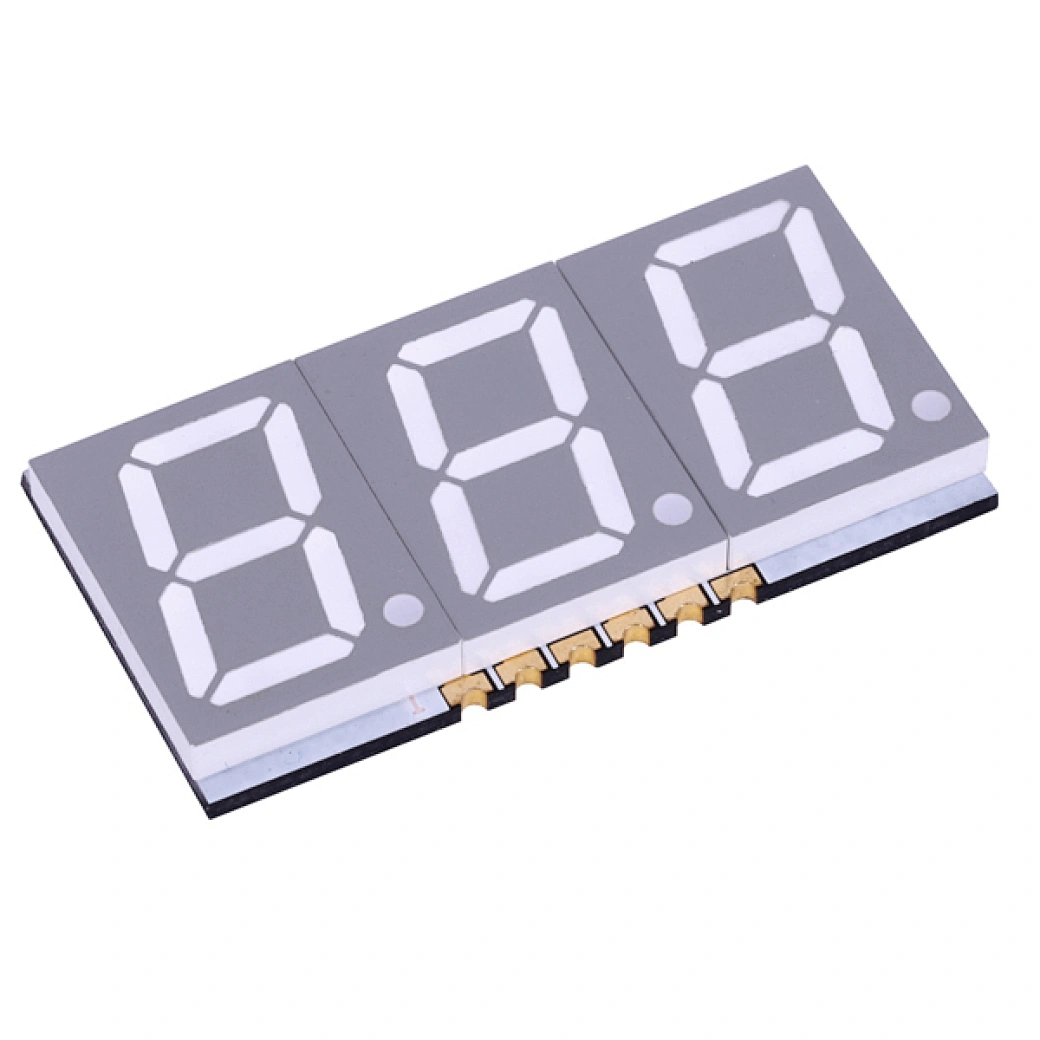

Gray face kem led 0.56 inch smd 7 segment led display 3 digits



1, Low consumption

2, High brightness





Product details:

Item No.KEMING-5631SMD-BSR
Dimension29.4*19*3.75mm
Digit height0.56''
Surface color  Black  / Grey
Segment colorWhite  /Clear
Emitting color  SUPER RED

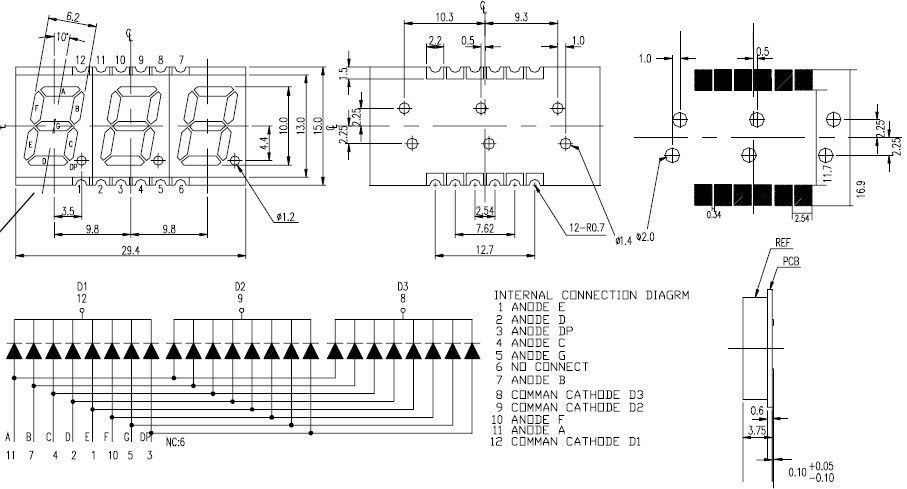

Package dimension& Internal circuit diagram

5631smd





Note: If this PCB layout don't meet your requirements, please contact me for other choices.



Two years quality warranty



5631

5631 3 digit

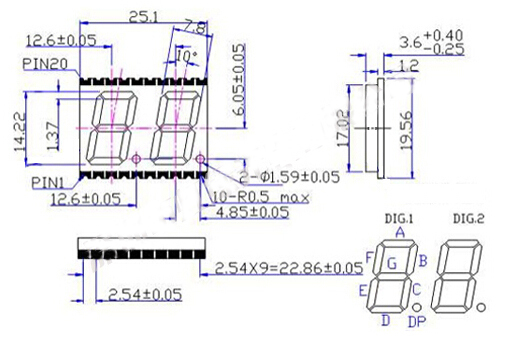

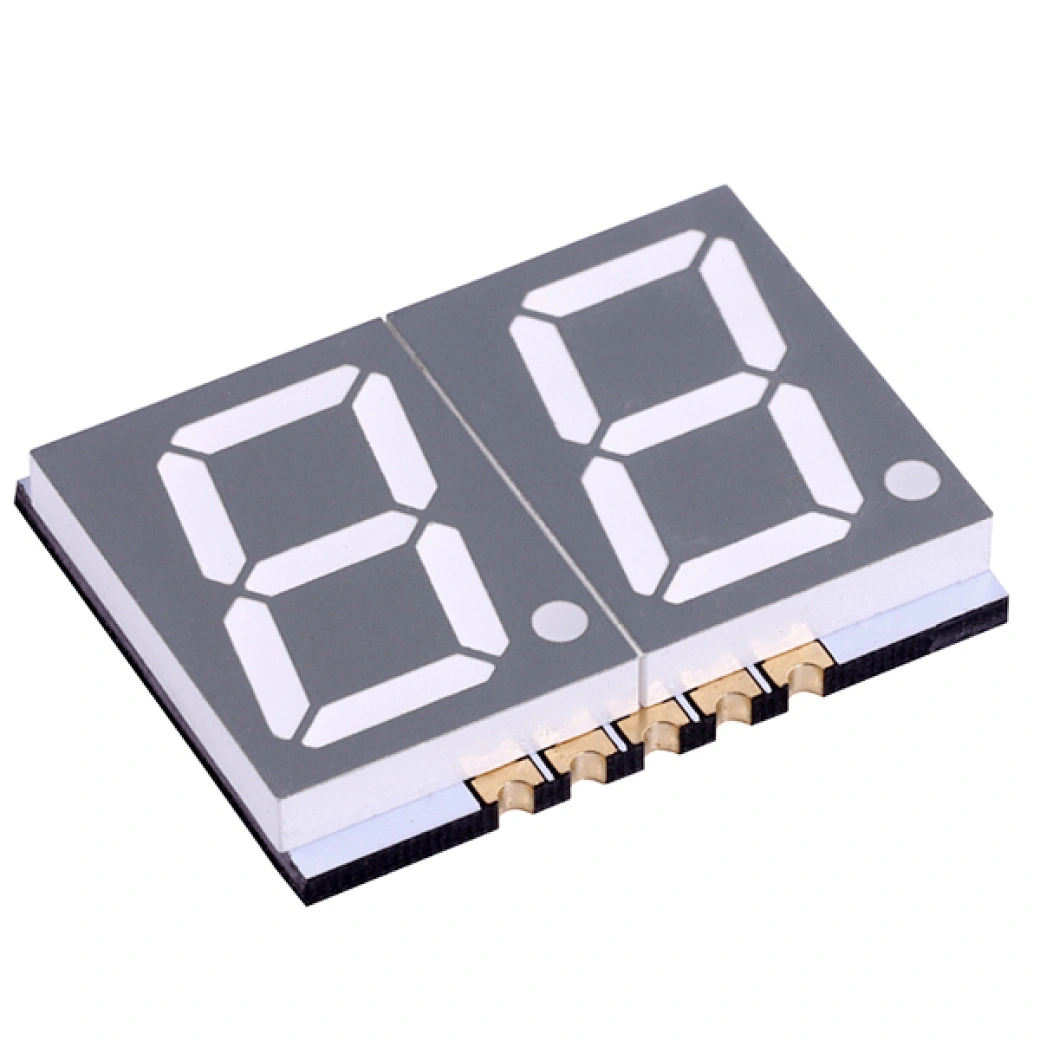

 2 digit

 5621SMD

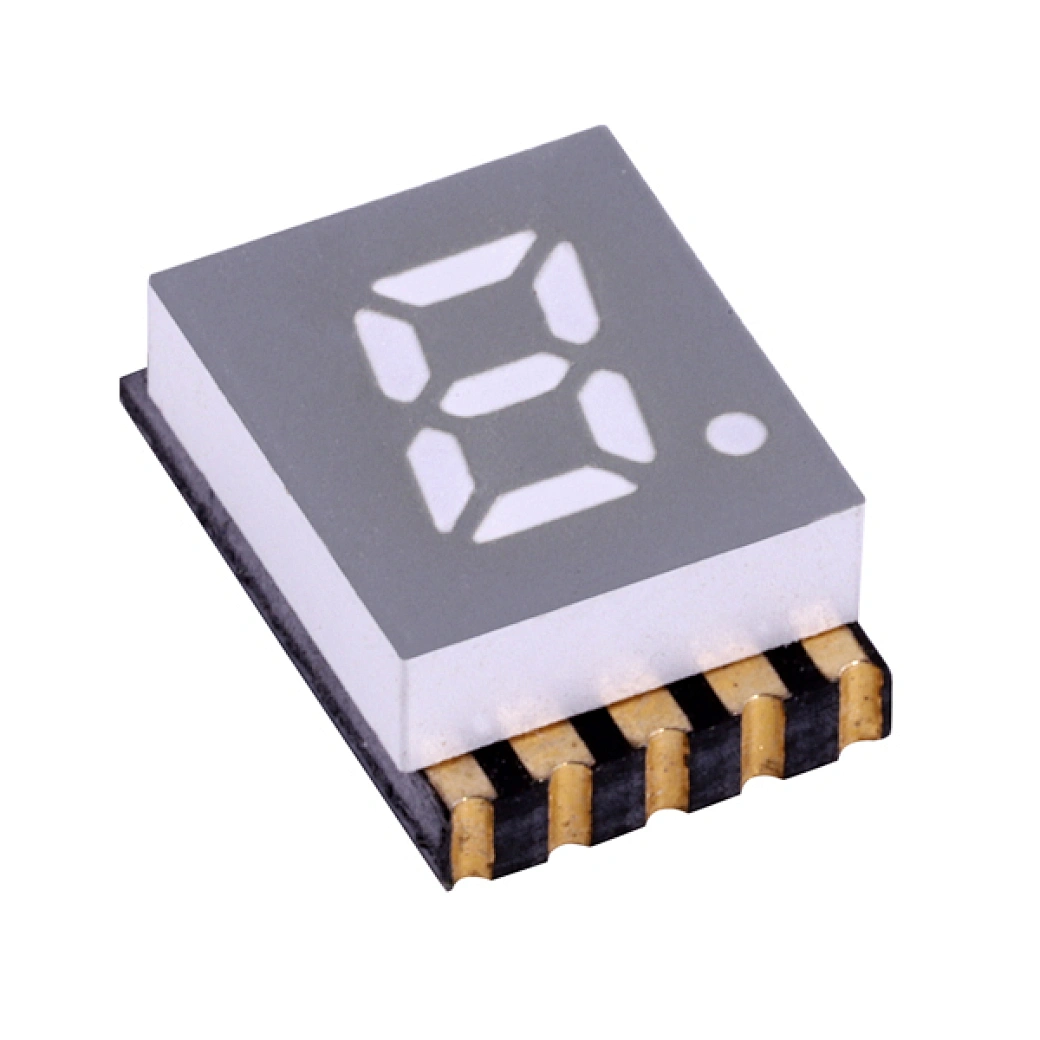

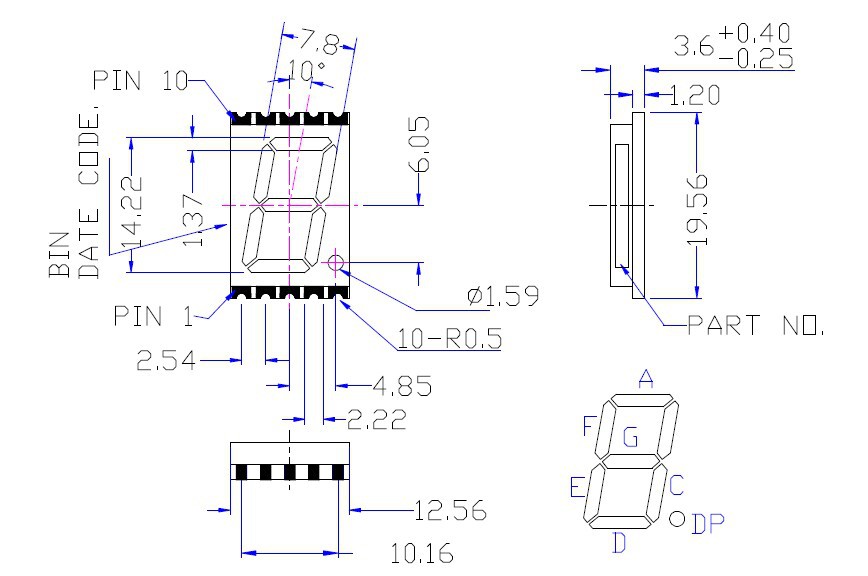

 1 digit

5611smd

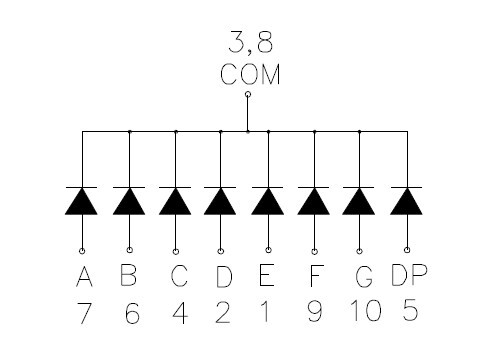

5611smd.2

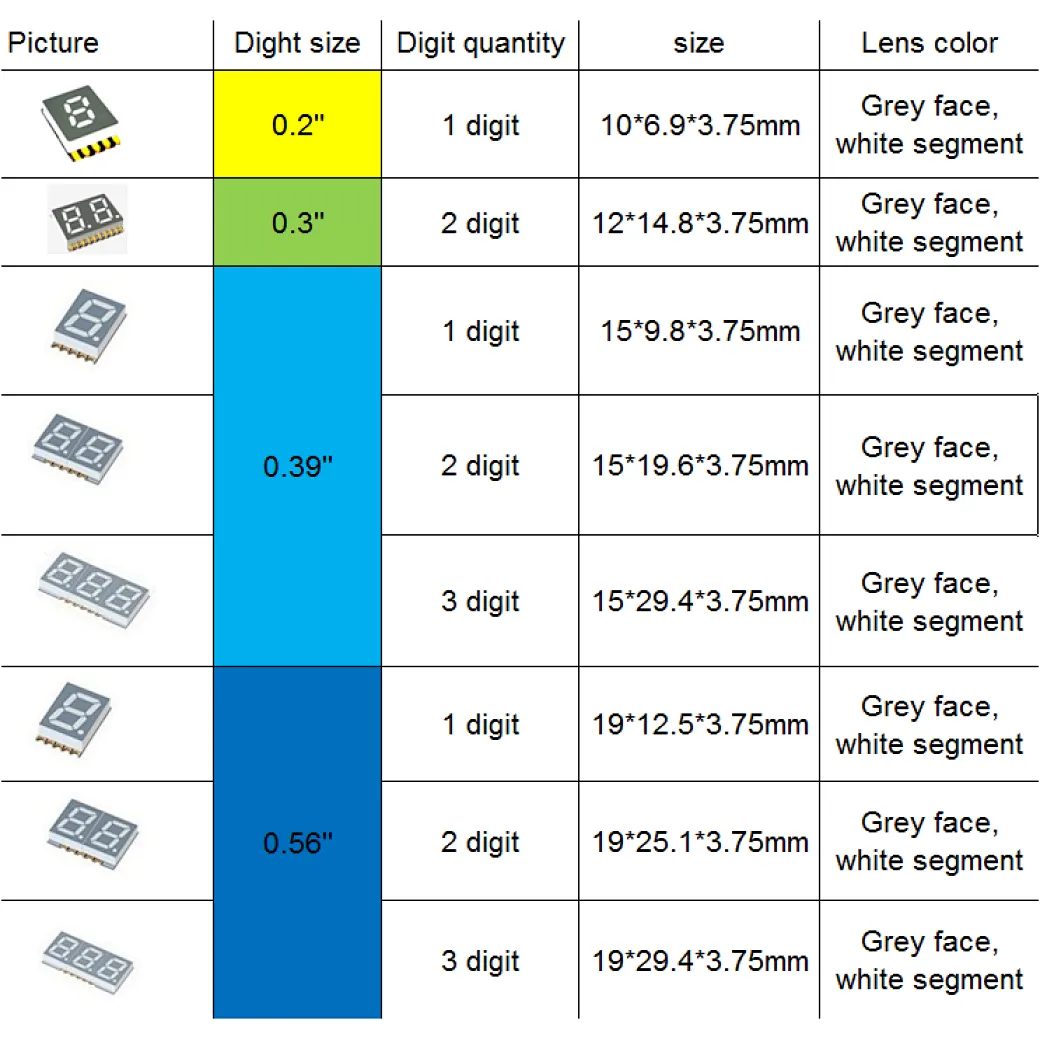

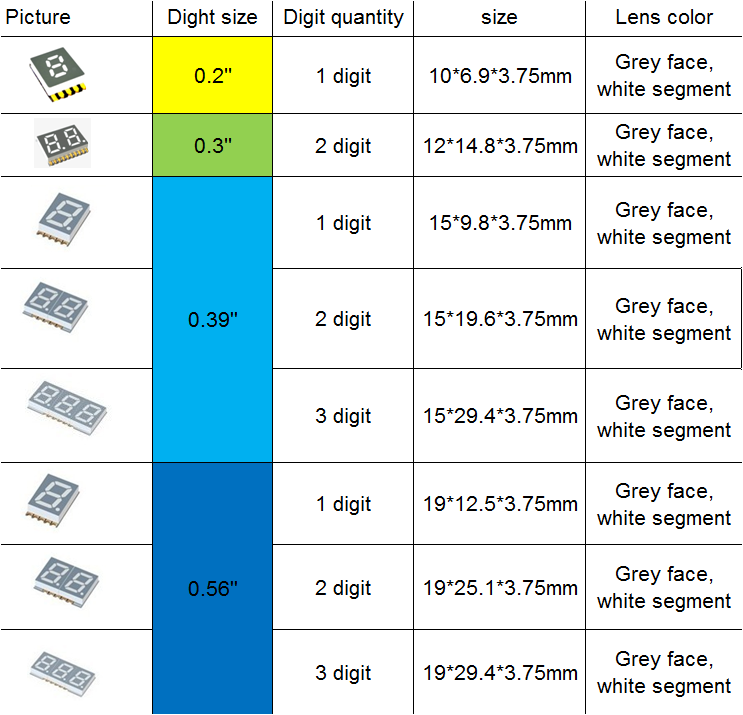

If you need other size, please free to contact us.

smd 7 segment display

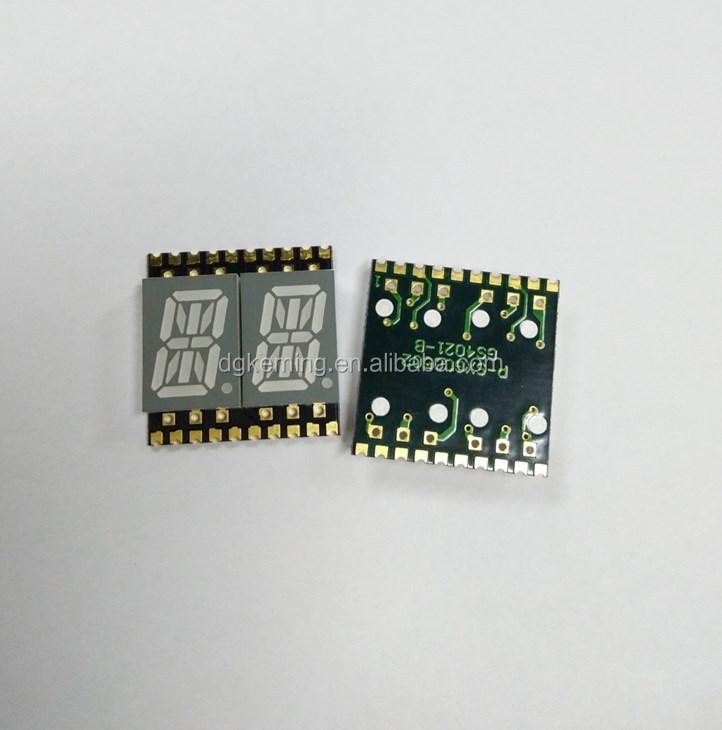

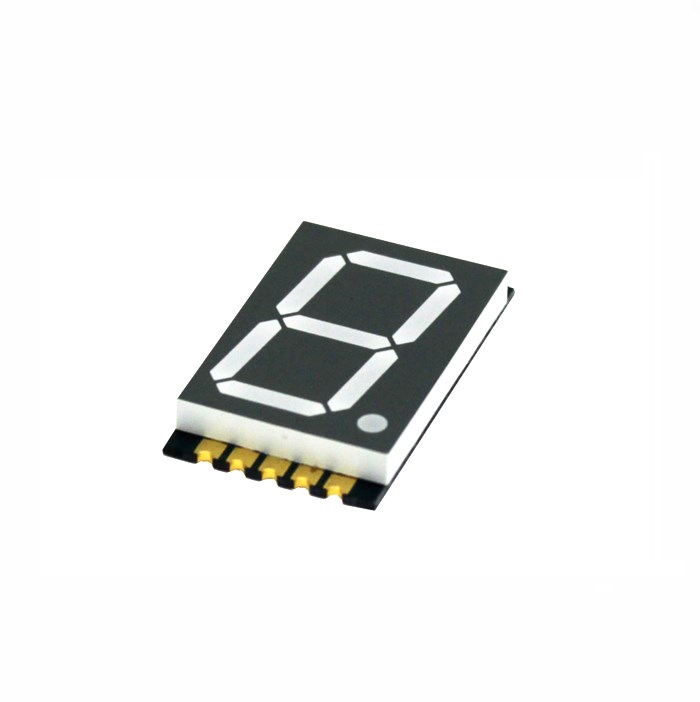

A4021--_8011smd(1)

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200







Our Services


 Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

we can offer--- SAMPLES for your test within 3-5 days.

customized service:

customized products are available.

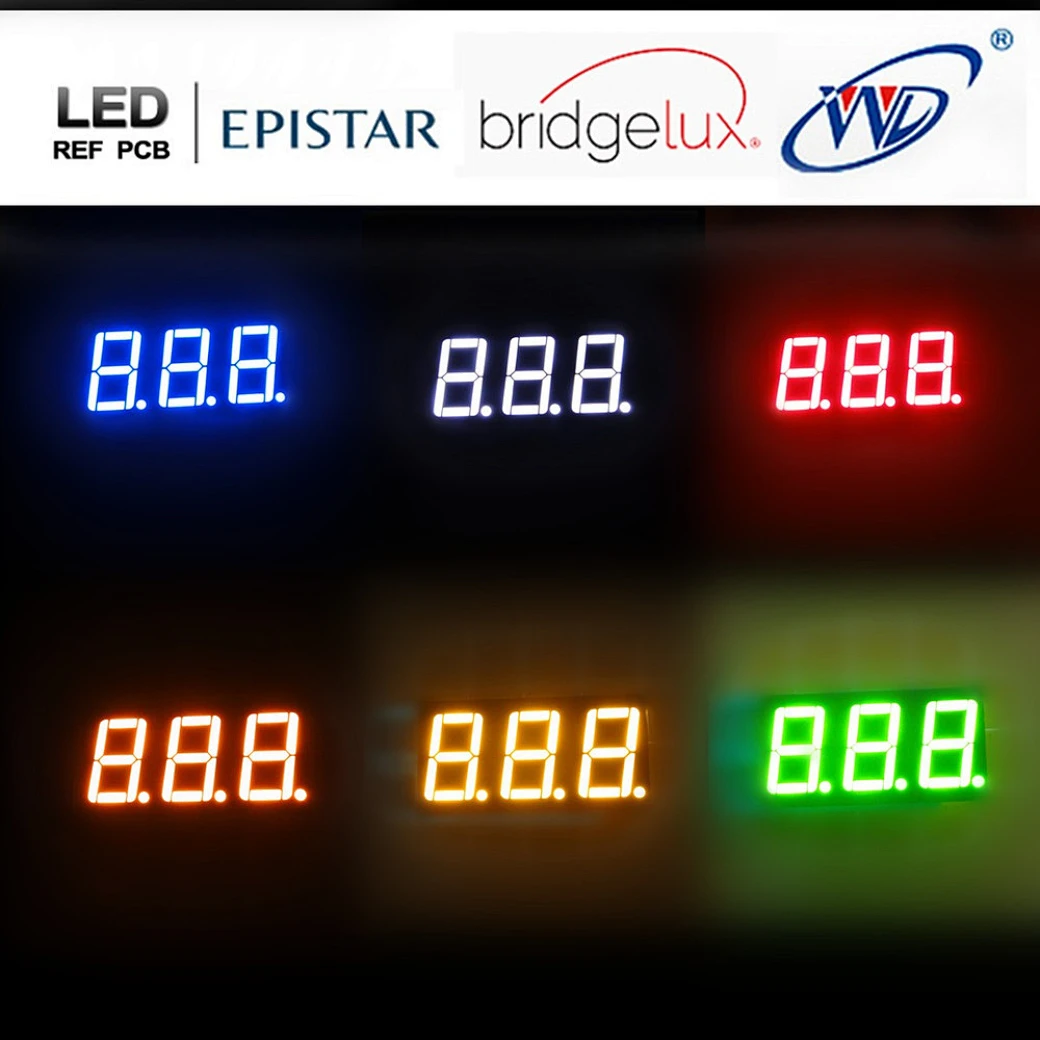

Other color

5631-111111
