tri-color led display module 8*8
tri-color led display module 8*8
tri-color led display module 8*8
tri-color led display module 8*8
tri-color led display module 8*8
tri-color led display module 8*8
Model No: HOUKEM-23088-BRGB

HOUKEM-23088-BRGB Red green blue 8x8 rgb led matrix 5.5mm

led dot matrix display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$2.00 - $3.00 / piece
add to cart
Contact Now
  • Application:Indoor, Semi-outdoor, elevator, digital counter
  • Color:rgb, ultr red2+ ultra blue+pure green
  • Panel Size:60.4*60.4*7mm
  • Pixel Pitch:2.54
  • Supplier Type:Original manufacturer
  • Media Available:datasheet, Photo
  • Place of Origin:Guangdong, China
  • Model Number:KEM-23088-BRGB
  • Brand Name:HOUKEM
  • use:advertising publish
  • Pixels:2.54
  • Specification:--
  • Product name:2.3 inch rgb 8*8 dot matrix
  • Warranty:2Years
  • PCB Polarity:common anode
  • operating temperature:-35 ~ +50 ℃
  • OEM:YES
  • Custom made:YES
  • Life span:100000hours
  • Certificate:CE ROHS
Product Describtion

kem-23088-brgb rgb 5.5mm led dot 8x8 led matrix display tri-color

Features:

1, Low consumption

2, High brightness

Product details:

Item No.KEM-23088-BRGB
Dimension60.4x60.4x7mm
dot5.5mm
Surface color Black / Grey
Segment colorWhite /Clear
Emitting color red+green+blue

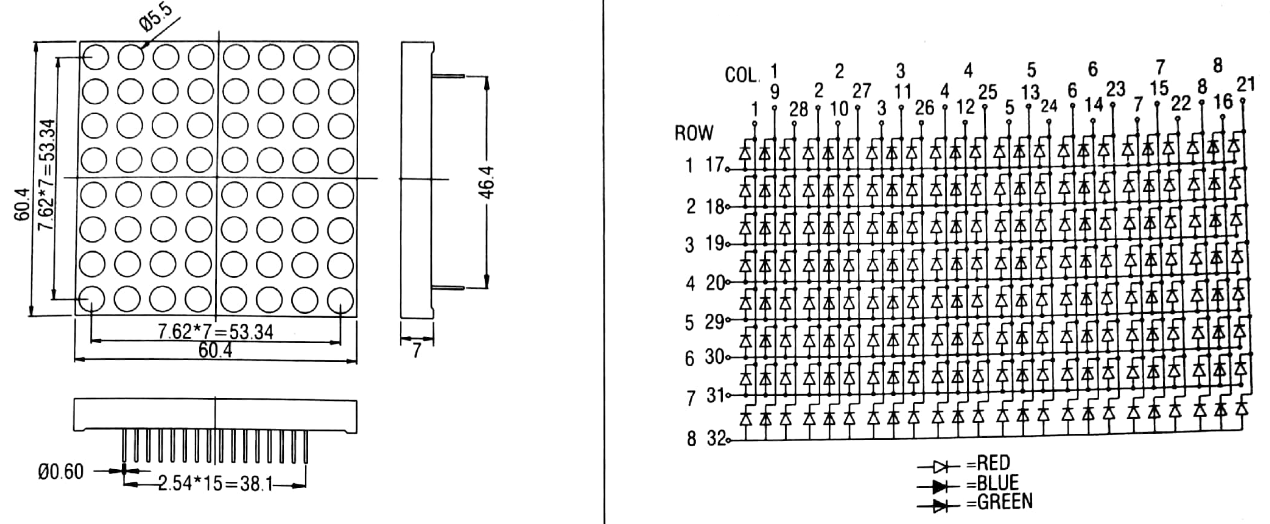

Package dimension & Internal circuit diagram

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.8

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.8

2.0

48

55

Super red

IF=10-15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF-10-15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=10-15mA

620-625

20

1.8

2.0

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.8

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.8

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.95

3.0

150

200

ultra blue

IF-15mA

465-469

40

2.9

3.0

365

380

Pure green

IF=10-15mA

515-525

40

2.95

3.0

600

640

White

IF=10-15mA

-

-

2.8

3.0

180

200


Two years quality warranty

Our Services

Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

7 segment LED display

1 digit0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit0.28'', 0.36'', 0.56''
6 digit0.3'', 0.36''

14 /16 segment

1 digit0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit0.54''
3 digit0.54''
4 digit0.39'', 0.54''
6 digit0.4''

Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.
Custom 7 segment display are available

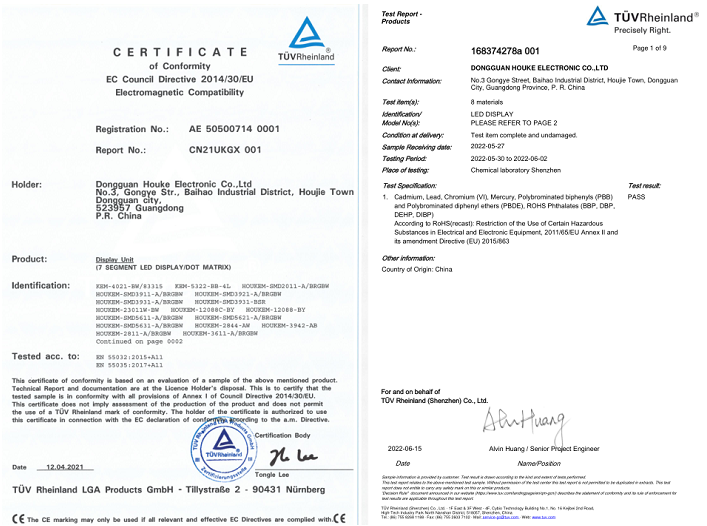

Certifications
