Model NO.
KEMING-19088-BRGB
Price:
USD 3.20-4.20 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
50000 piece / Day
Country of Origin:
shenzhen guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Display Function:Graphics
  • Pixels:20mm
  • Tube Chip Color:rgb
  • Brand Name:KEM
  • Model Number:KEMING-19088-BRGB
  • Screen Dimension:47.8*47.8mm


Product Describtion







dot led matrix display rgb 4.8mm kem-19088



Features:

1, Low power consumption

2, High brightness

3,High intensity and reliability

4,Easy assembly

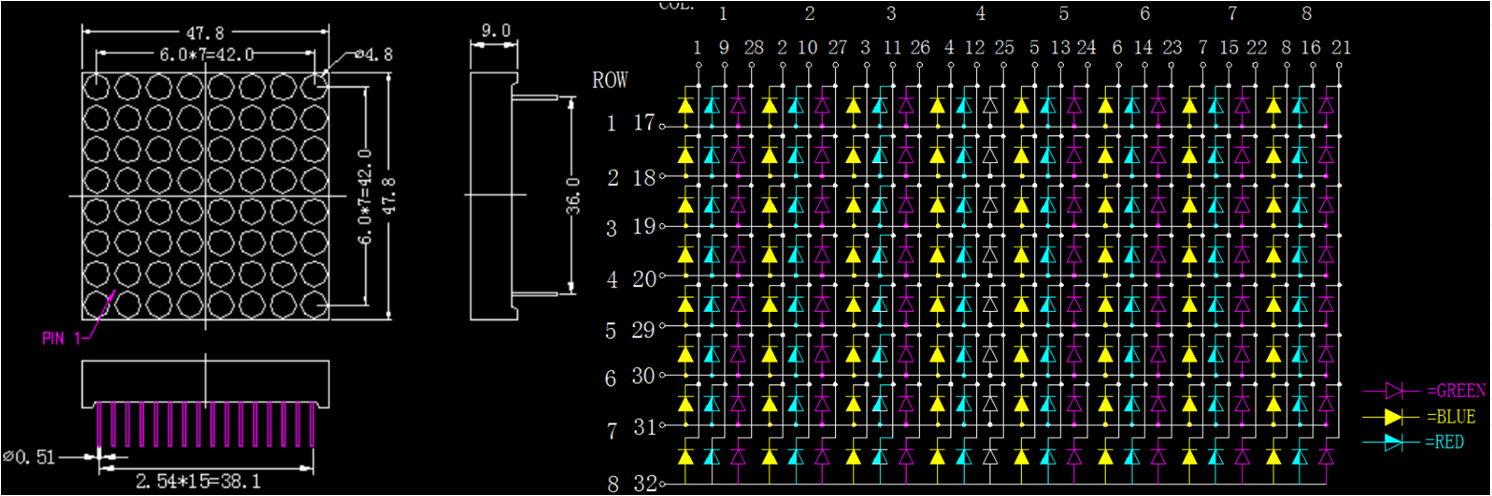

Package dimension & Internal circuit diagram




 Note: If this PCB layout don't meet your requirements, please contact me for other choices.



Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

625-640

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200



 Product details:

Item No.KEMING-19088-BRGB
Dimension47.8*47.8*9mm
dot4.8mm
Surface color  Black  / Grey
Segment colorWhite  /Clear
Emitting color full color







Features:

1, Low power consumption

2, High brightness

3,High intensity and reliability

4,Easy assembly





Two years quality warranty

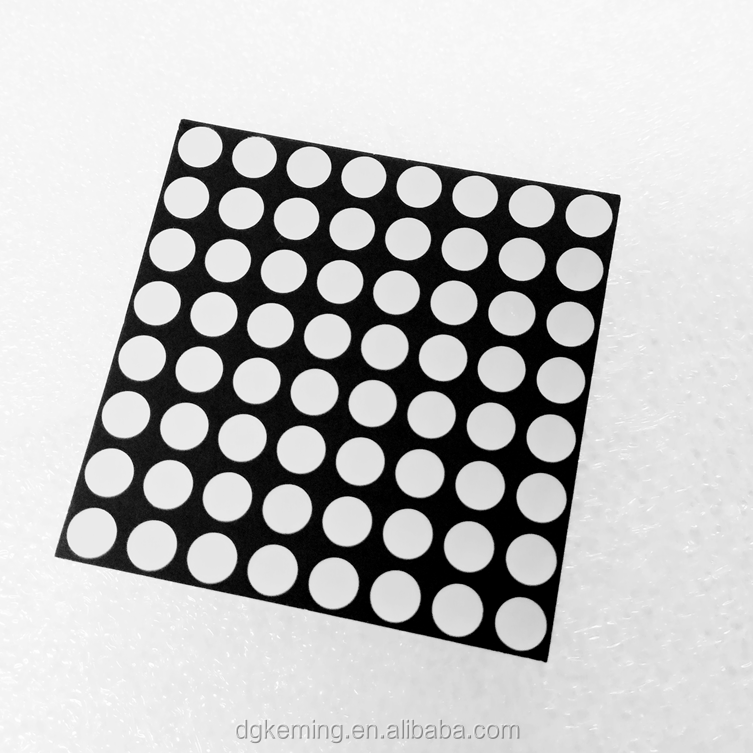

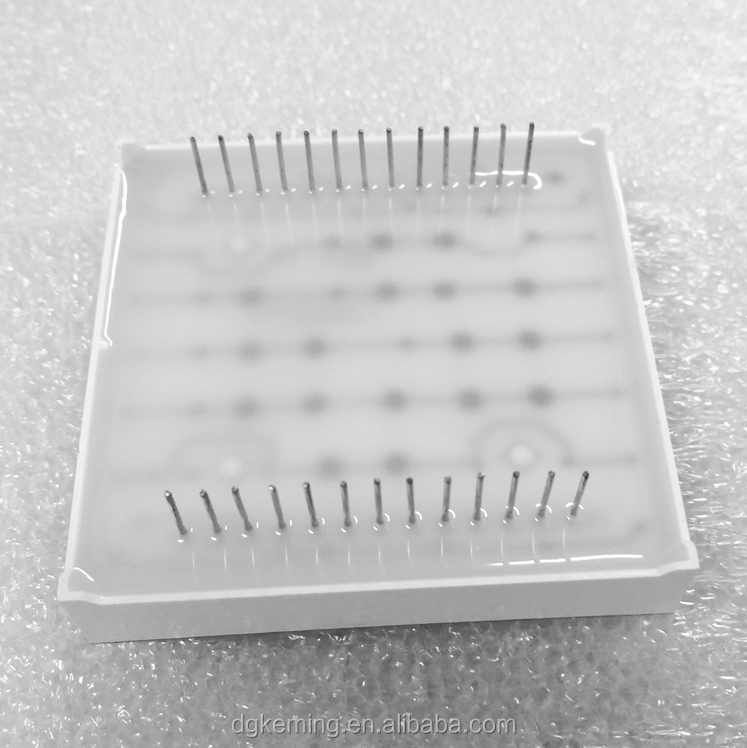

 19088--19088(1)





Our Services

Quantity Lead time

1-10K pcs 3-7 work days

10.1K-50K pcs 7-15 work days

Any delivery way is available.


Custom service:


1. Various colors: super red, ultra red, high red, yellow green, pure green

super green, pure green, blue, yellow, white, amber, Bi-color



2.Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16











Packaging & Shipping

Working process

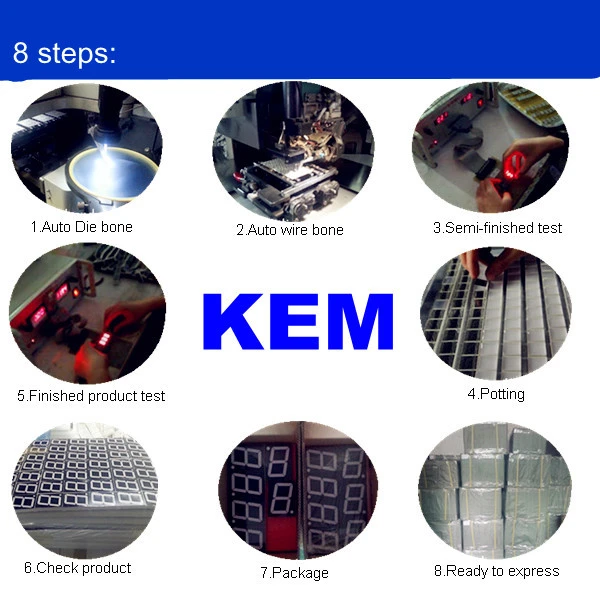

kem working process









packing & shipping

Contact us

  business

factory

Related Products

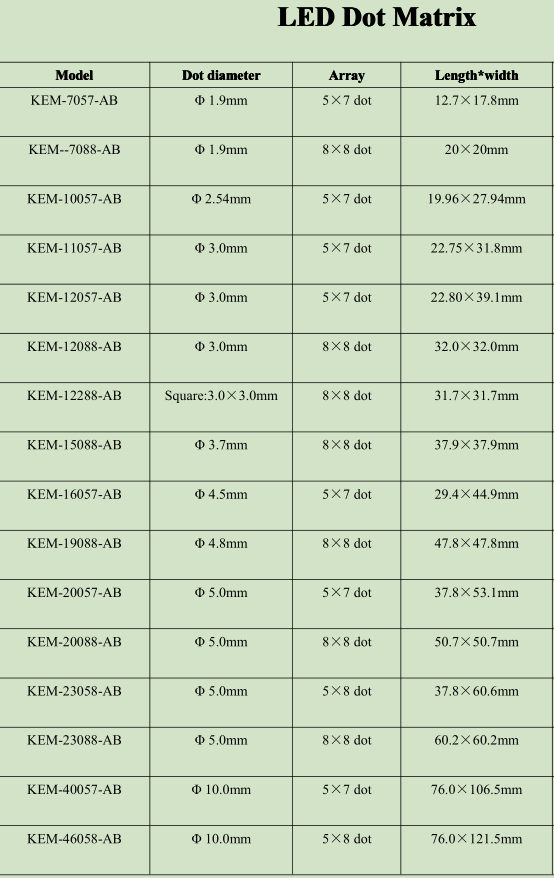

led dot matrix display.png

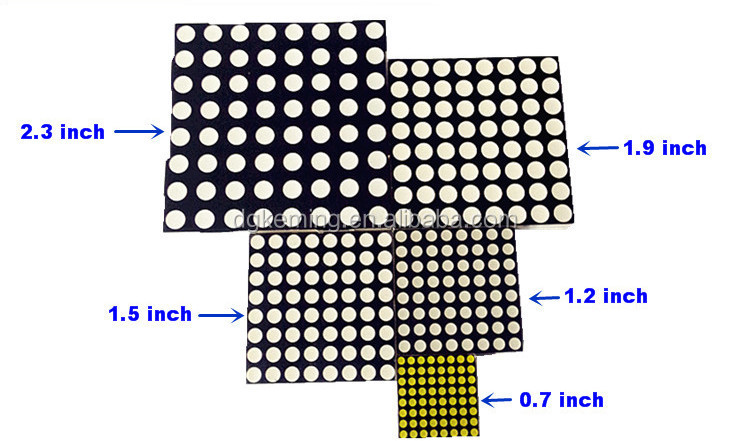

 8x8 dot matrix led related product
