8x8 dot matrix led display board 47.8*47.8mm
- Application:bicolor 8x8 dot matrix
- Color:bicolor
- Panel Size:47.8*47.8mm
- Place of Origin:Guangdong, China
- Model Number:KEM-19088A/BSRG
- Brand Name:KEM
- Screen Dimension:47.8*47.8mm
- Diameter:4.8mm
- Emitting color:Super Red and green
- Surface color:Black or gray
- Expory color:Milky white diffused
- Peakwave length:625-630nm (635-640nm)
- Luminous intensity:50-90 mcd
- Forward voltage:1.8-2.3v
- Working current:20mA
KEM 19088 bicolor 8x8 dot matrix led display board

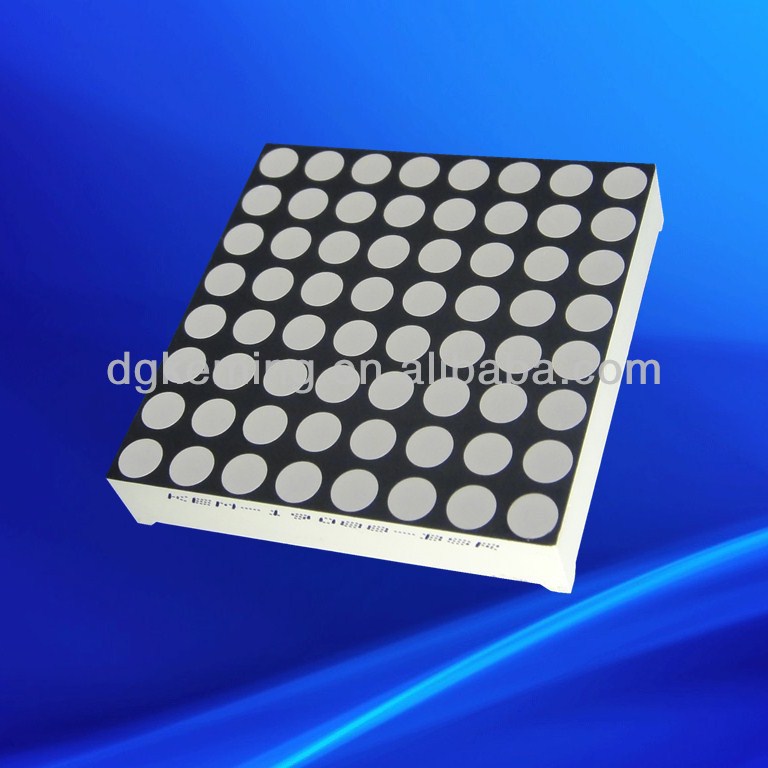

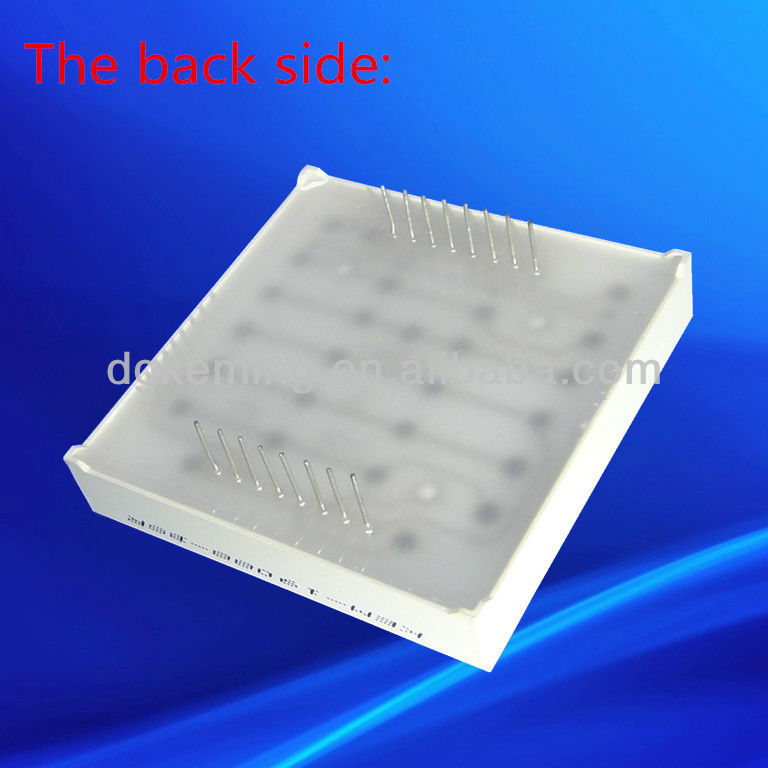

Product picture:

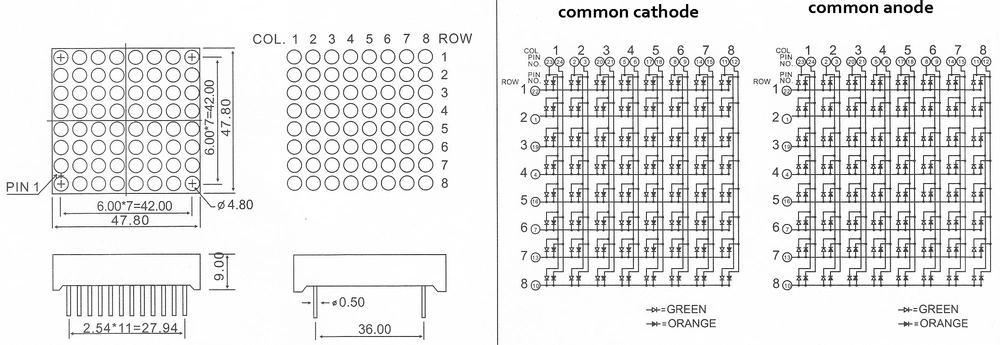

Part Drawing and Internal Circuit :
If the circuit cannot meet your need, pls advise me for other choices. Thank you.
Specifications :
Part no. | : | KEM-19088-A/B |
Array | : | 8x8 |
Dot mension | : | 4.8mm |
Dimension | : | 47.8*47.8mm |
Surface color | : | Gray /black/white/red |
Emitting color | : | Blue |
Polarity | : | Common cathode or Anode |

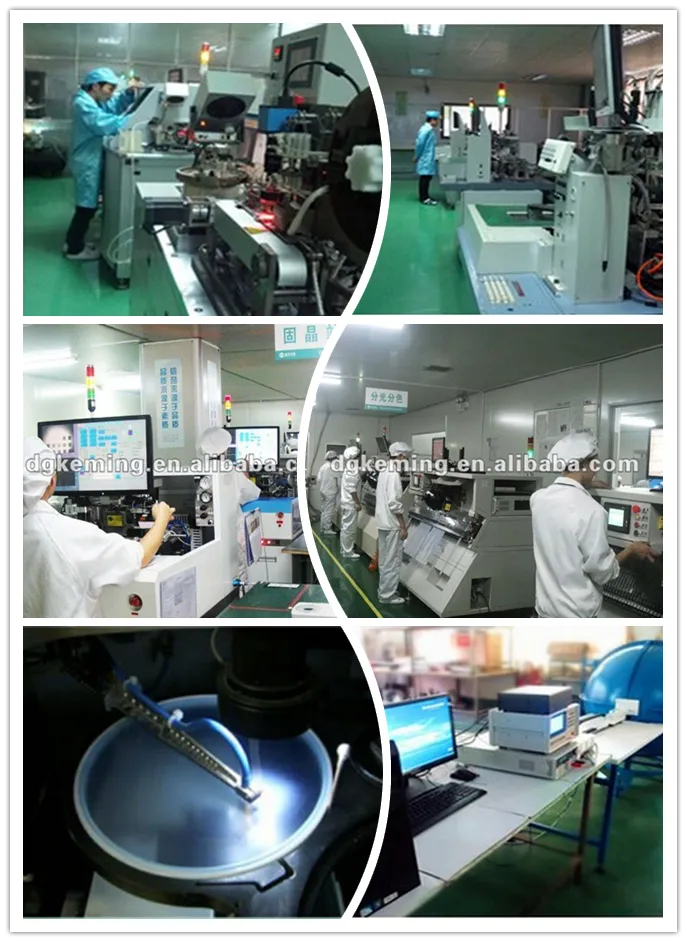

Produce process of 1.9mm module blue led dot matrix display 8x8 :
Delivery time of 1.9mm module blue led dot matrix display 8x8 :
Qty Lead time
100-10K pcs 3-7 working days
10K-50K pcs 7-15 working days
Any shipping way below is available.
Packing details of 1.9mm led dot matrix display 8x8 blue :
Certificate of 1.9mm led dot matrix display 8x8 blue :
Established in 2003,our factory is specialized in LED products, including 7 segment
LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix Led displays,bar graph
arraysand LED directon indicator displays.etc.
Q1. Can I have a sample order for your products?
A: For standard type,Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-7 days, mass production time needs 1-3 weeks .
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc for sample checking is available for most types.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
Fordefective batch products, we will resend them to you or we can discuss the solution
including re-call according to real situation.
